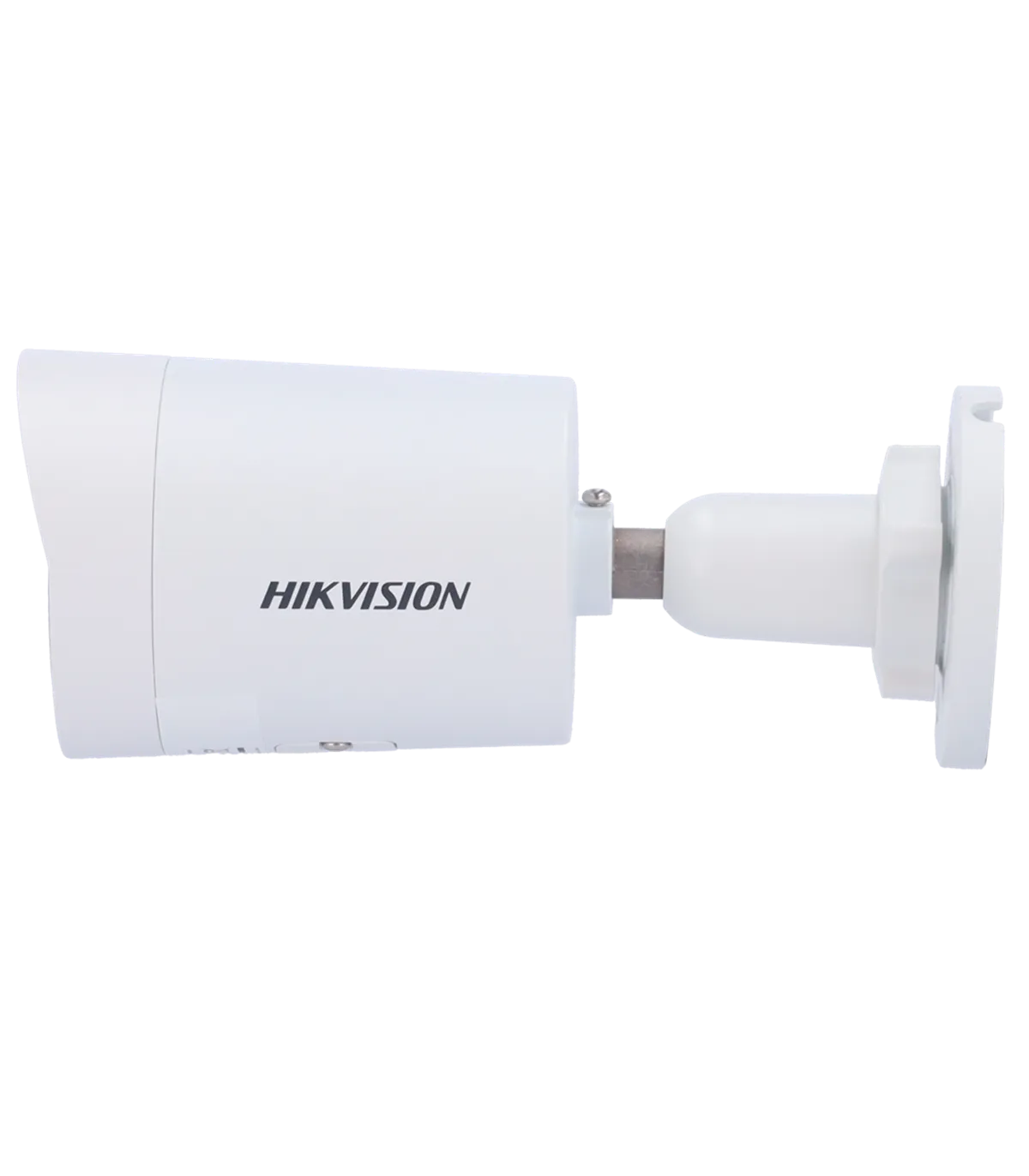

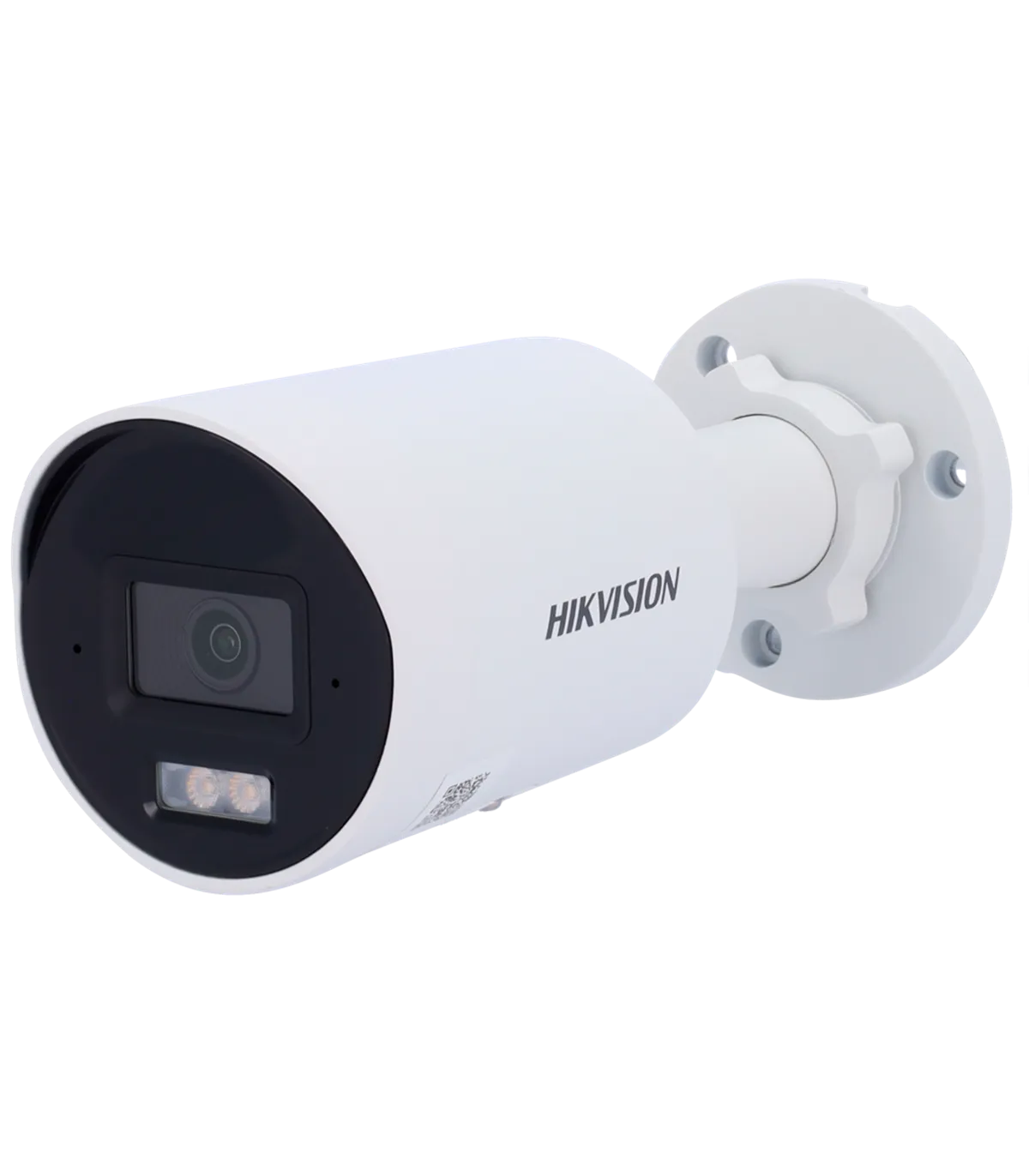

The DS-2CD2063G2-LI2U(2.8mm) is a high-performance IP Bullet Camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera excels in providing clear images with its 6 Megapixel resolution and advanced features such as motion detection and dual microphone integration. With its hybrid light technology, it ensures visibility even in complete darkness, making it a perfect choice for security in various settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with white light |

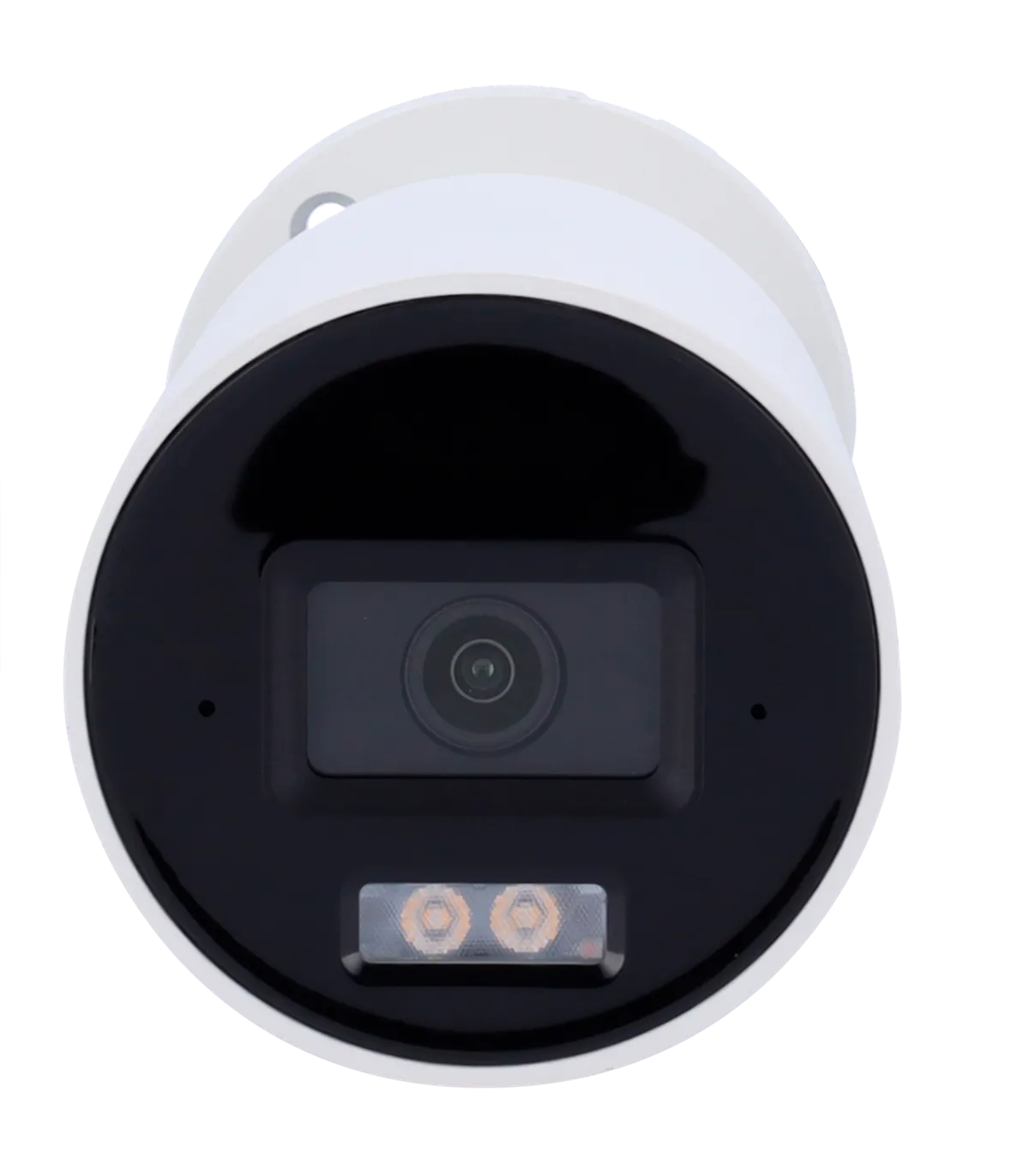

| Supplementary Illumination | Hybrid Light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |

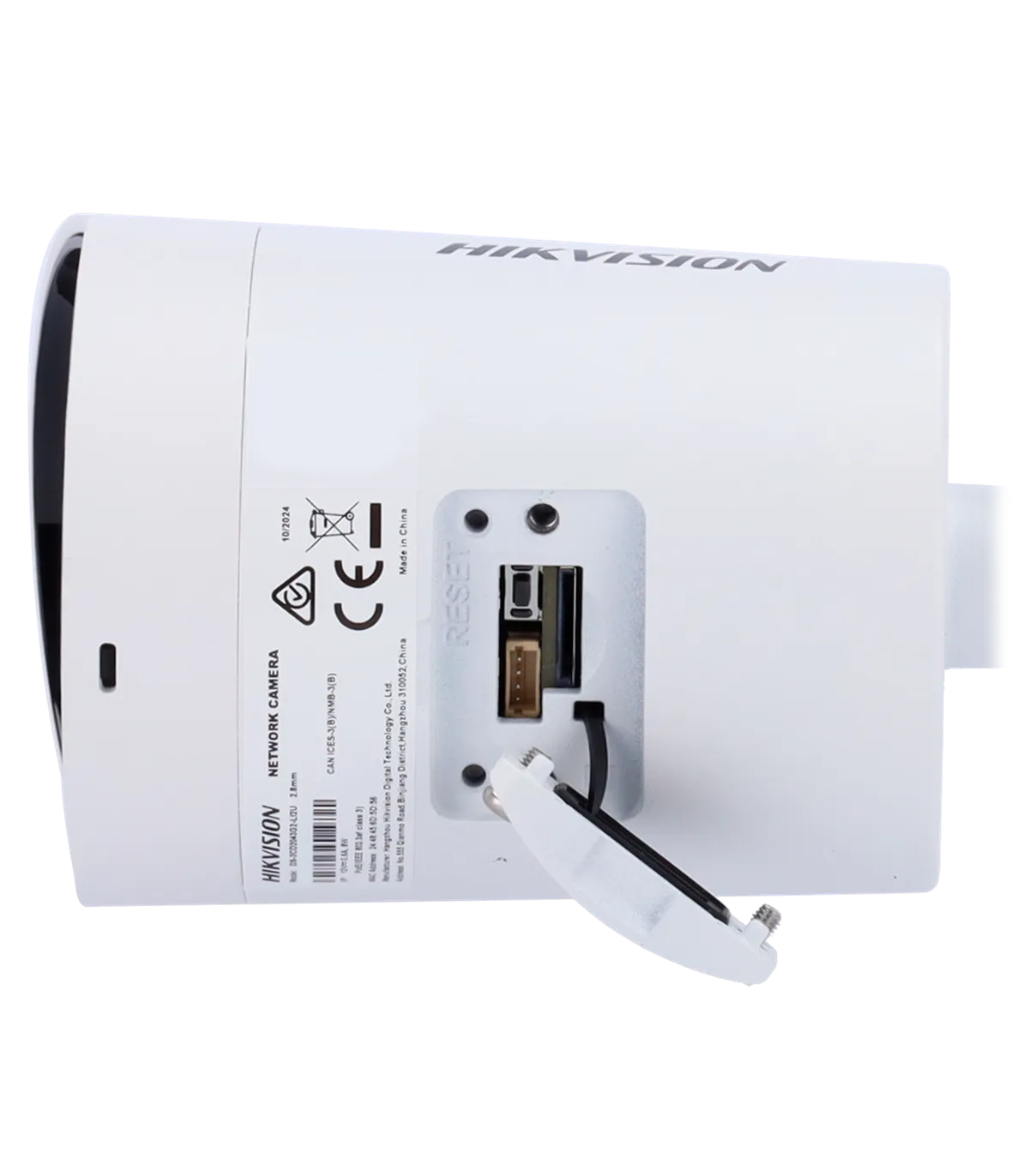

| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Dual Array Microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK |

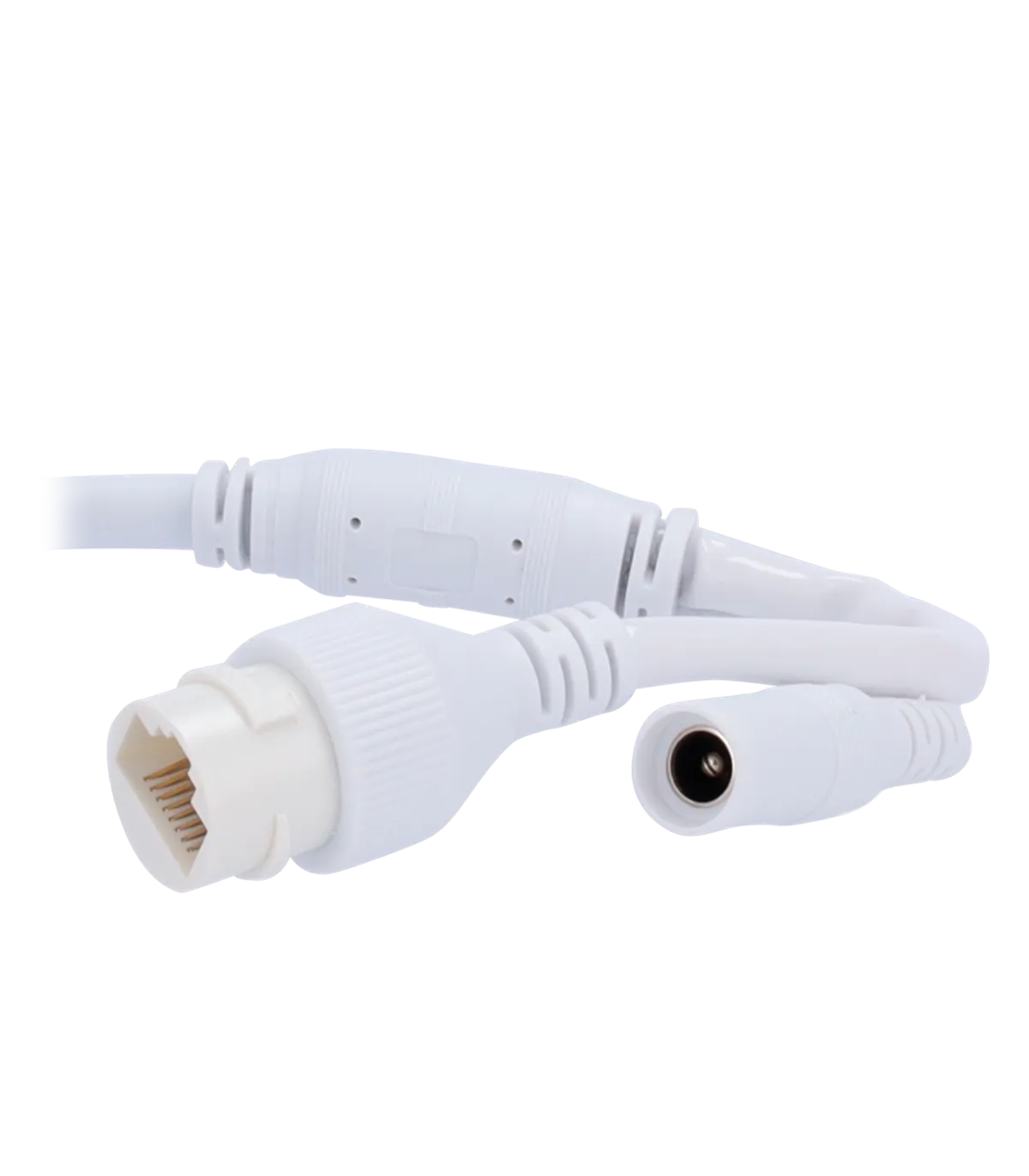

| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -30º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 74.4 mm x 176.3 mm (Fo) |

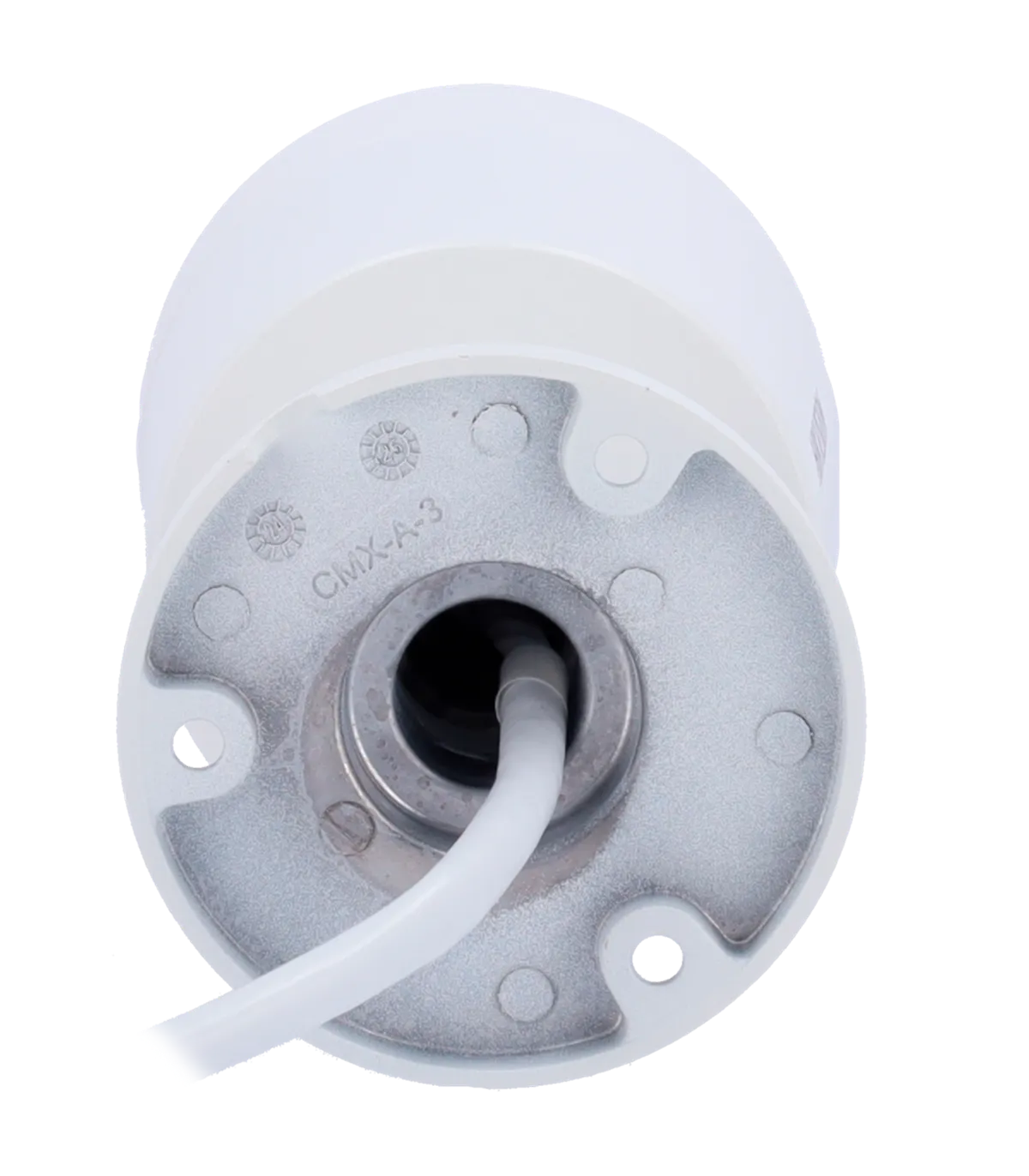

| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2063G2-LI2U(2.8mm) camera is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be mounted at entry points to monitor customer traffic and deter theft. With its high resolution and hybrid light technology, it provides clear images both day and night, ensuring comprehensive coverage. The motion detection feature, enhanced by AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable users to monitor live feeds from anywhere via a smartphone app or web browser, enhancing security management. The robust IP67 waterproof rating ensures durability in various weather conditions, making it a reliable choice for outdoor installations.
