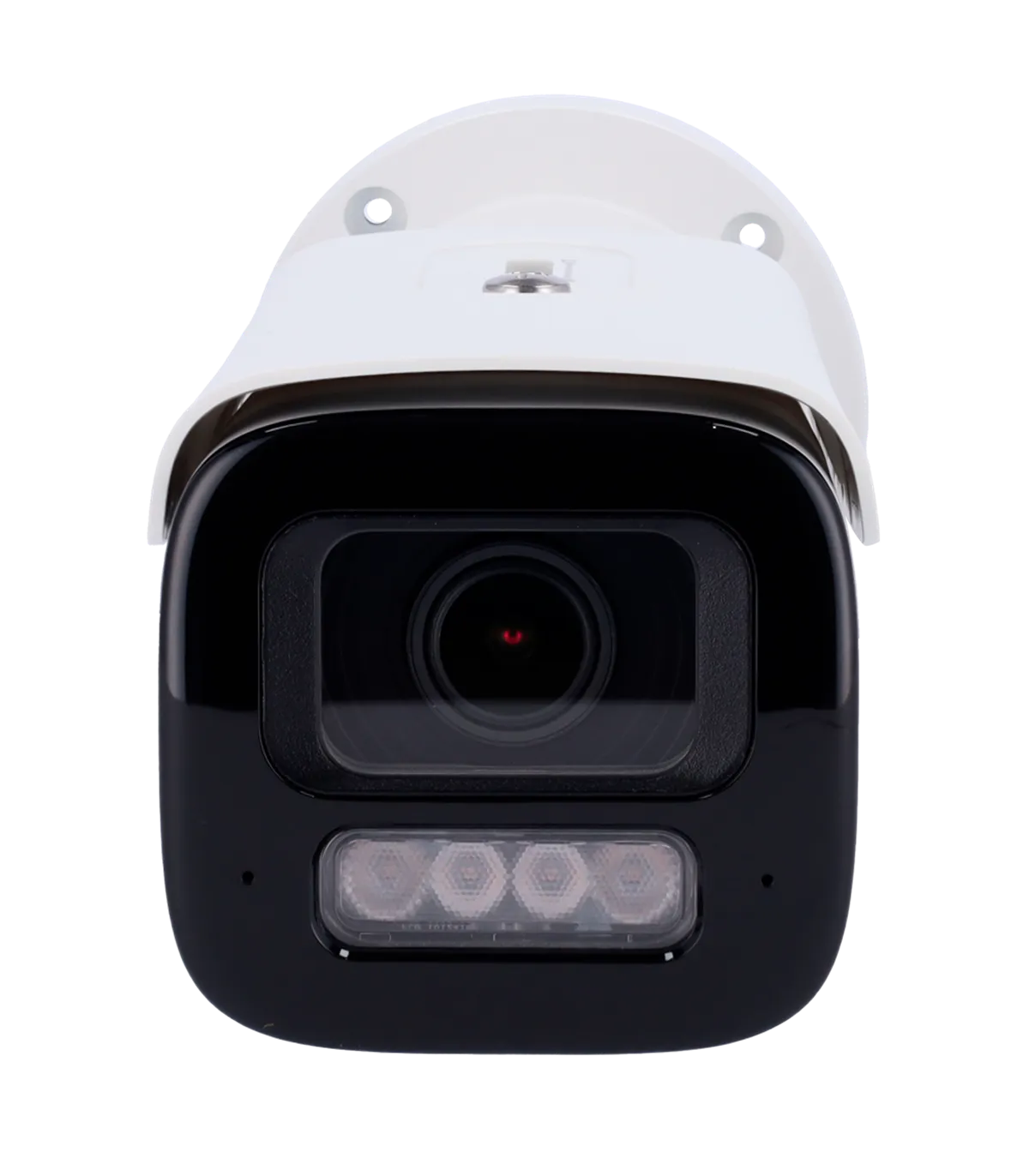

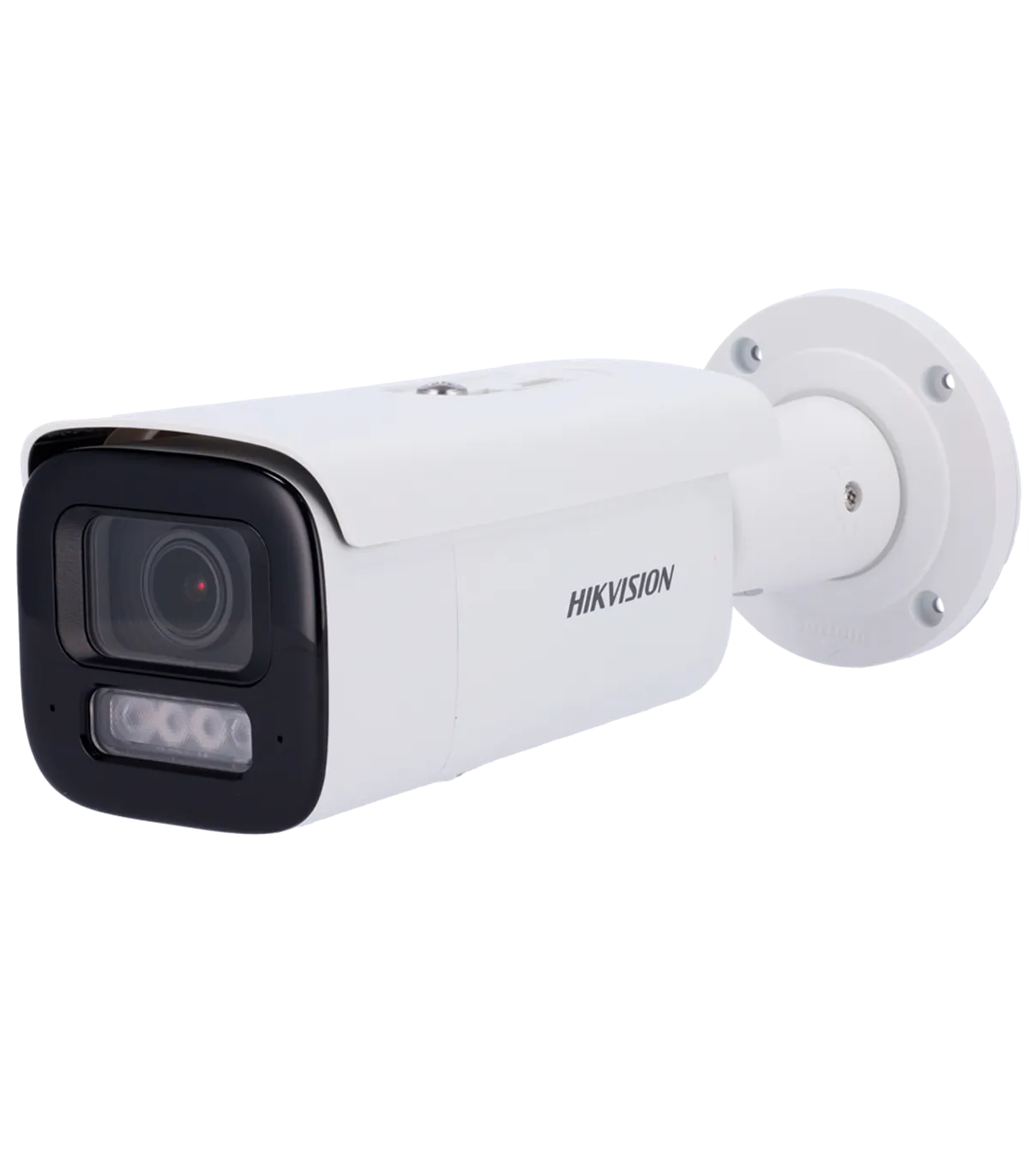

The DS-2CD2683G2-LIZS2U(2.8-12mm) is a high-performance IP bullet camera designed for comprehensive surveillance in various environments. With its 8 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear and detailed images even in low-light conditions. The device is equipped with a motorized varifocal lens that allows for flexible focal length adjustments, making it suitable for a wide range of monitoring scenarios. Its robust design ensures durability, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |

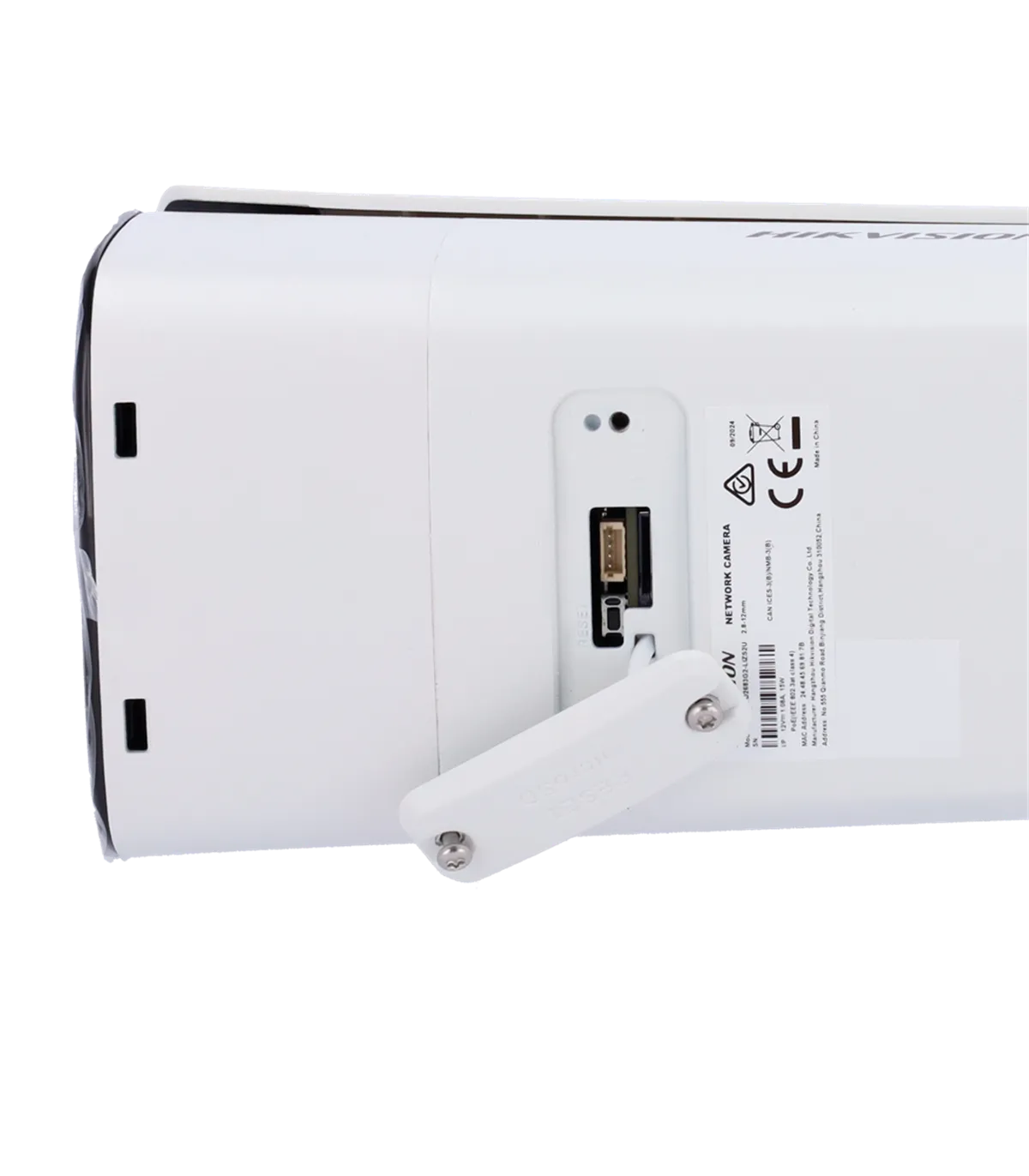

| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1080 mA / 13 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 94.2 mm (H) x 97.9 mm (W) x 332.8 mm (D) |

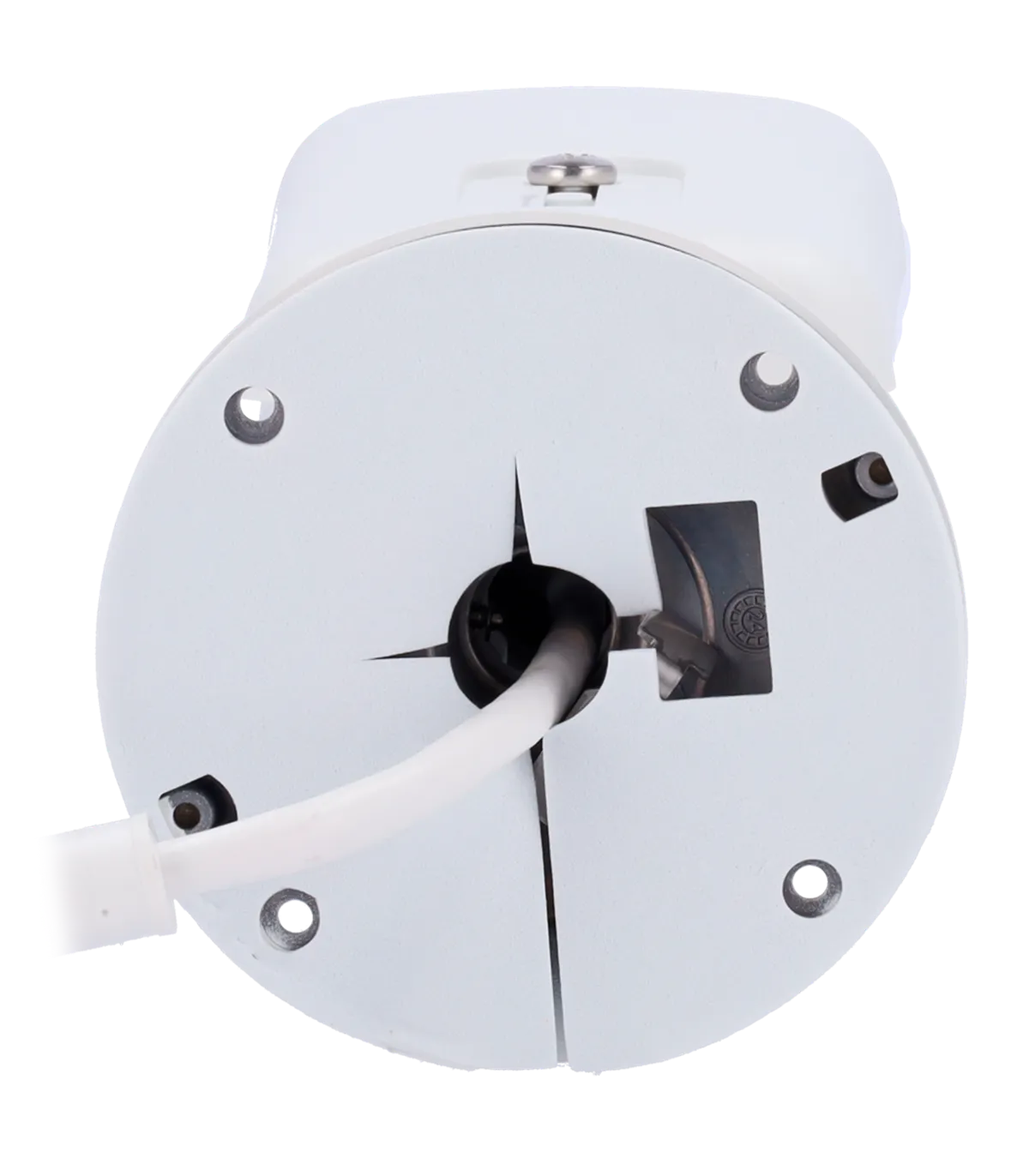

| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1531 g |
The DS-2CD2683G2-LIZS2U(2.8-12mm) is ideally suited for deployment in commercial and residential settings where high-quality surveillance is essential. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring enhanced security against theft. The motorized varifocal lens allows installers to easily adjust the field of view, providing flexibility in capturing critical areas. With its AcuSense technology, the camera can effectively reduce false alarms by distinguishing between human and vehicle movements, making it a valuable asset for security personnel. Additionally, the IP67 rating ensures that the camera remains operational in various weather conditions, while the remote access feature allows users to monitor live feeds from anywhere, enhancing overall security management. This camera is an excellent choice for those seeking a reliable and advanced surveillance solution.
Data sheet
