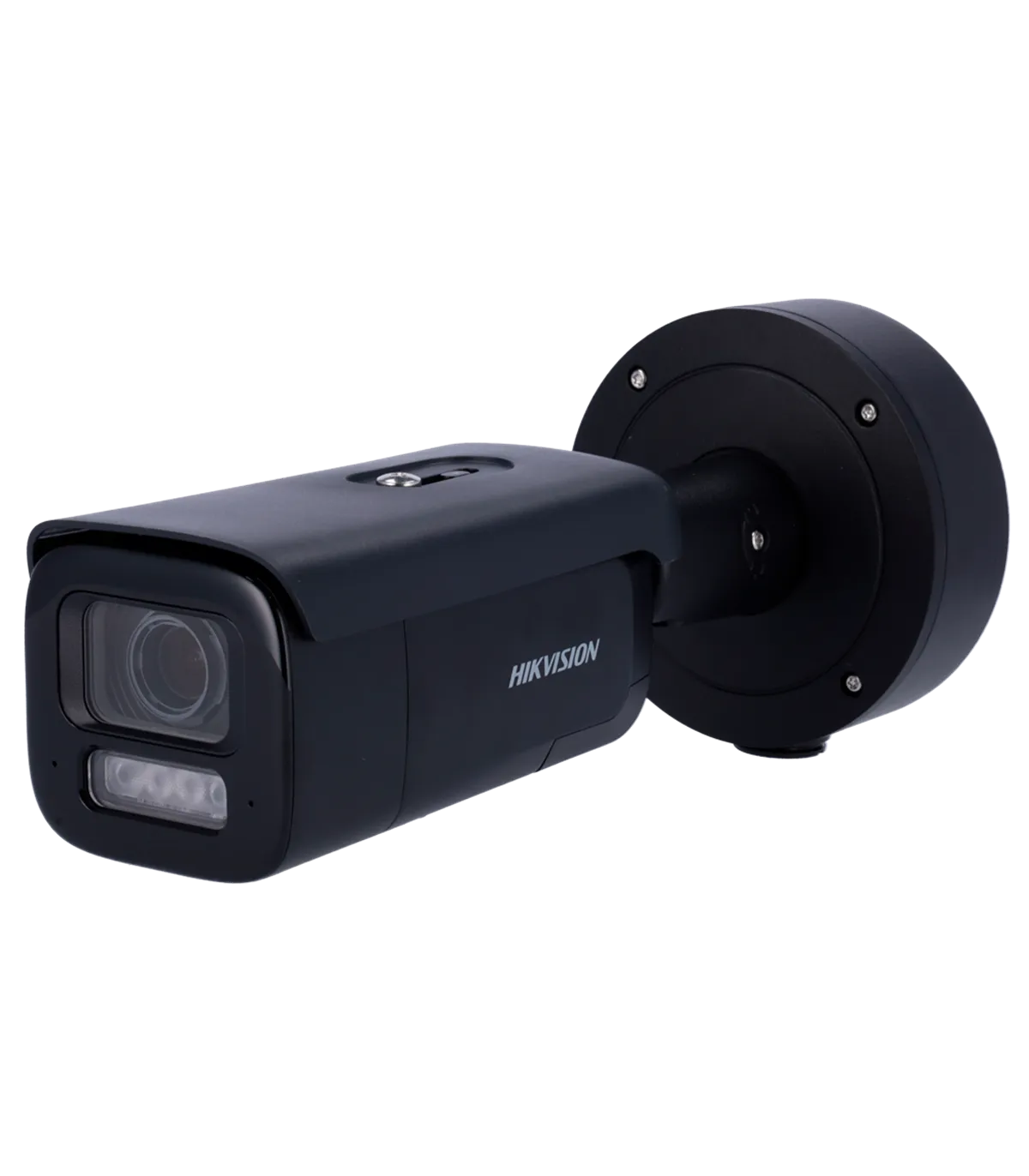

The DS-2CD2686G2H-IZS2U/SL(2.8-12)/eF/BLK is a high-performance IP bullet camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera is ideal for both indoor and outdoor environments, providing exceptional image clarity and detail. Its motorized varifocal lens allows for flexible focal length adjustments, making it suitable for various monitoring scenarios. The device features advanced motion detection capabilities and is equipped with IR illumination for low-light conditions, ensuring reliable performance around the clock.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 89.2~220 m (D), 35.4~87.3 m (O), 17.8~44 m (R), 8.9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and white flash in the camera |
| Audio | 1 input / 1 output 2 integrated microphones and speaker |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Rating | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 97.9 mm (W) x 95.7 mm (H) x 298 mm (D) |
| Base Dimensions | Ø base 105.1 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1520 g |
| Color | Black |
The DS-2CD2686G2H-IZS2U/SL(2.8-12)/eF/BLK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it can effectively capture detailed images of individuals and vehicles, enhancing security measures. The IR illumination allows for clear visibility even in complete darkness, making it perfect for 24/7 surveillance. Additionally, the integration of AcuSense technology significantly reduces false alarms, ensuring that security personnel can focus on genuine threats. This camera's remote access features enable users to monitor live feeds from anywhere, providing peace of mind and enhancing overall security management.
