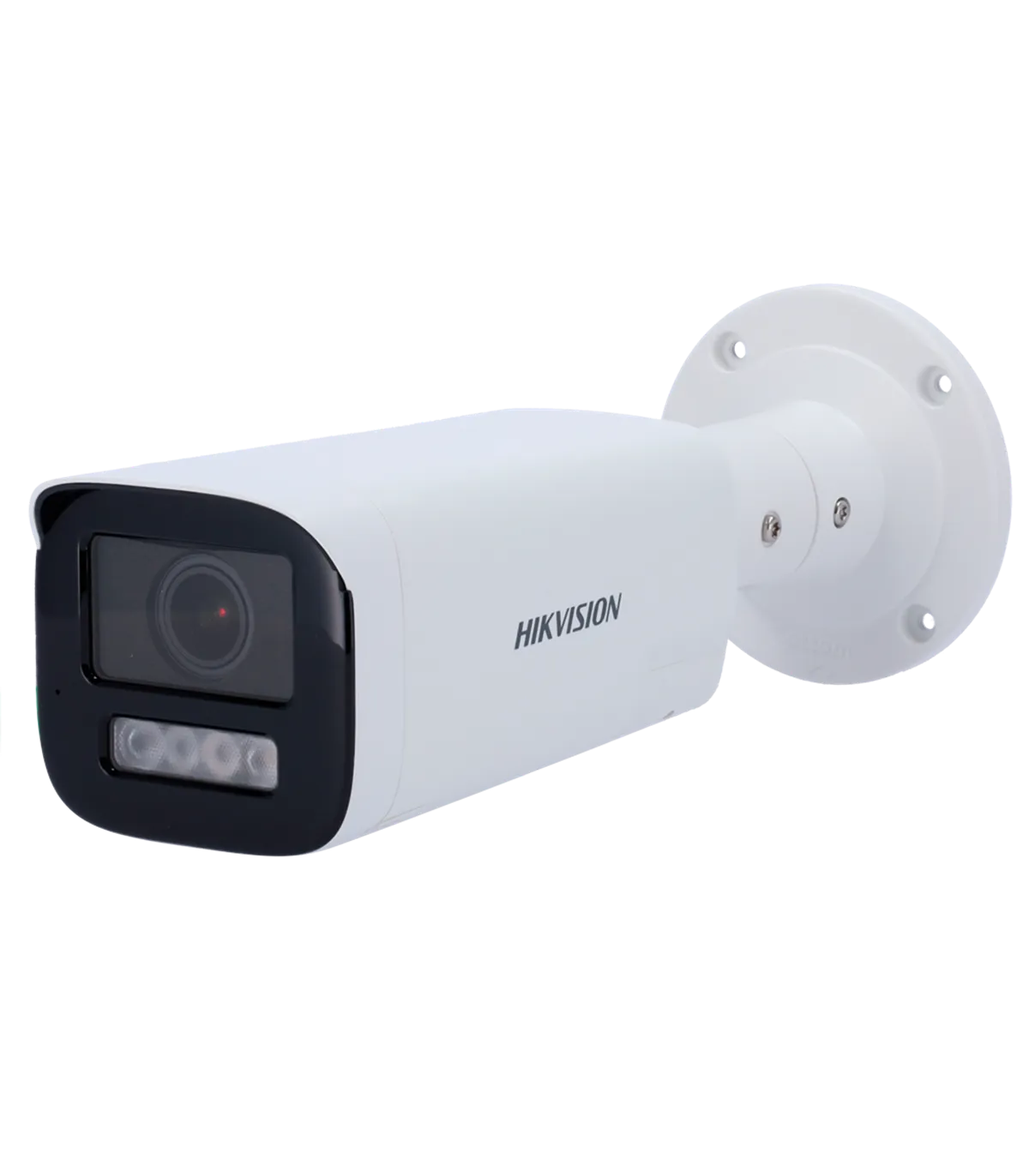

The DS-2CD1643G2-LIZSU/SL(2.8-12mm) is a high-performance IP bullet camera designed for versatile surveillance applications. With its 4 Megapixel resolution and motorized varifocal lens, it is ideal for both indoor and outdoor environments, providing clear images in various lighting conditions. This camera features advanced technologies such as H.265+ compression for efficient video storage and motion detection capabilities, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 95.9~29.2°, V: 50.6~16.4°, D: 114.7~33.5° |
| DORI | 68~200 m (D), 27~79 m (O), 13.6~40 m (R), 6.8~20 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR and white light IR range: 50 m White light range: 50 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 900 mA / 11 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 105 mm x 285.8 mm (Fo) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 780 g |
The DS-2CD1643G2-LIZSU/SL(2.8-12mm) is an excellent choice for various surveillance scenarios, particularly in retail and commercial settings. For instance, a retail store can deploy this camera at entry points and high-traffic areas to ensure comprehensive coverage. The camera's 4 Megapixel resolution provides detailed images, allowing for effective monitoring of customer interactions and potential theft. With its motion detection capabilities, the camera can alert security personnel in real-time, enhancing the store's overall security. Additionally, the hybrid light technology ensures visibility even in low-light conditions, making it suitable for 24/7 surveillance. The integration of a deterrent siren and flash can further discourage criminal activity, while the remote access feature allows store managers to monitor the premises from anywhere, ensuring peace of mind.
