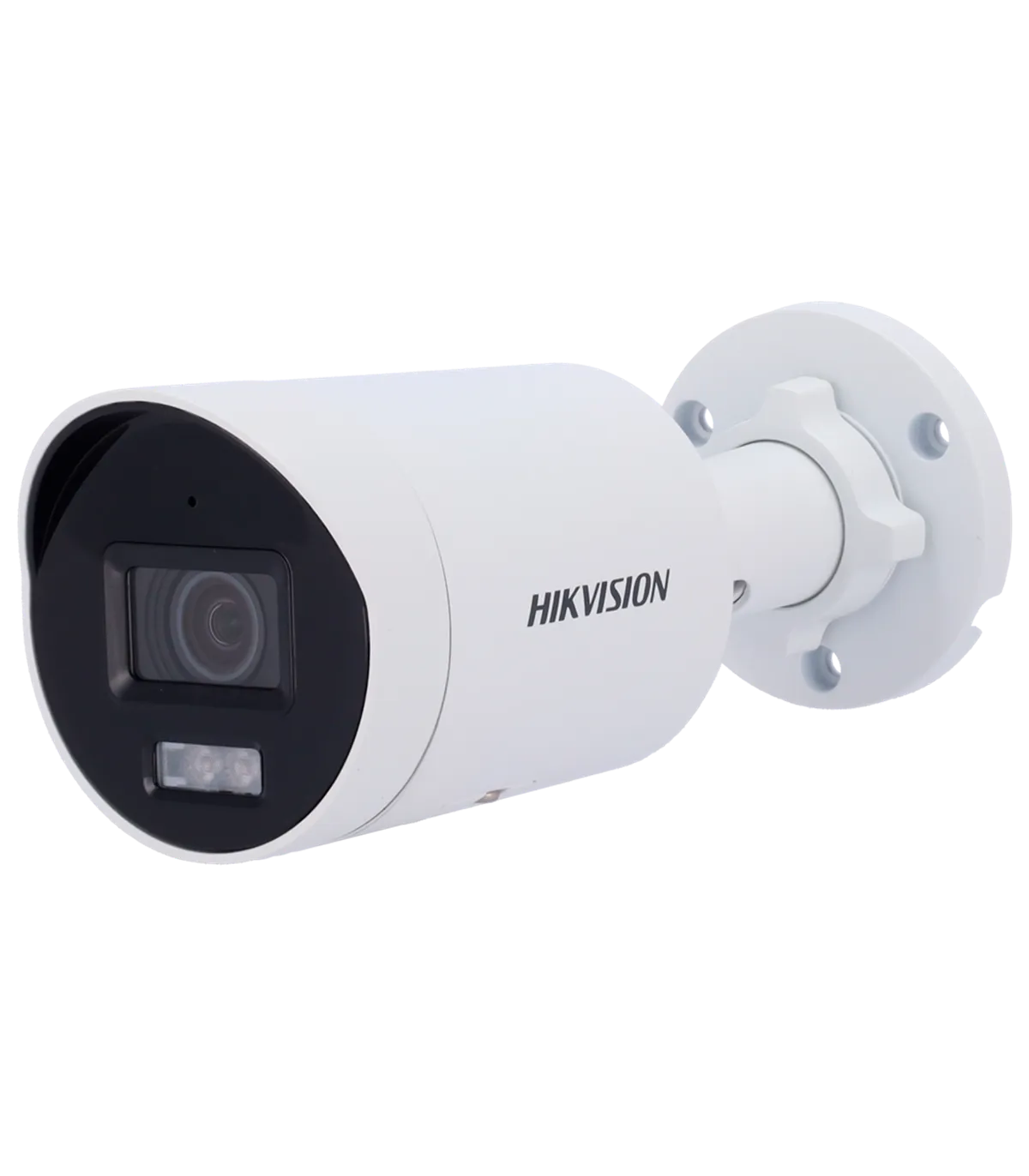

The DS-2CD2086G2H-IU(2.8mm)(eF) is a high-performance IP bullet camera designed for outdoor surveillance applications. It excels in low-light conditions, making it ideal for monitoring areas such as parking lots, building perimeters, and other critical locations. This camera features advanced technologies like AcuSense for enhanced motion detection and facial recognition, ensuring reliable security monitoring. With its robust design and IP67 waterproof rating, it is built to withstand harsh weather conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1080x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105.1°, V: 54.8°, D: 128.2° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |

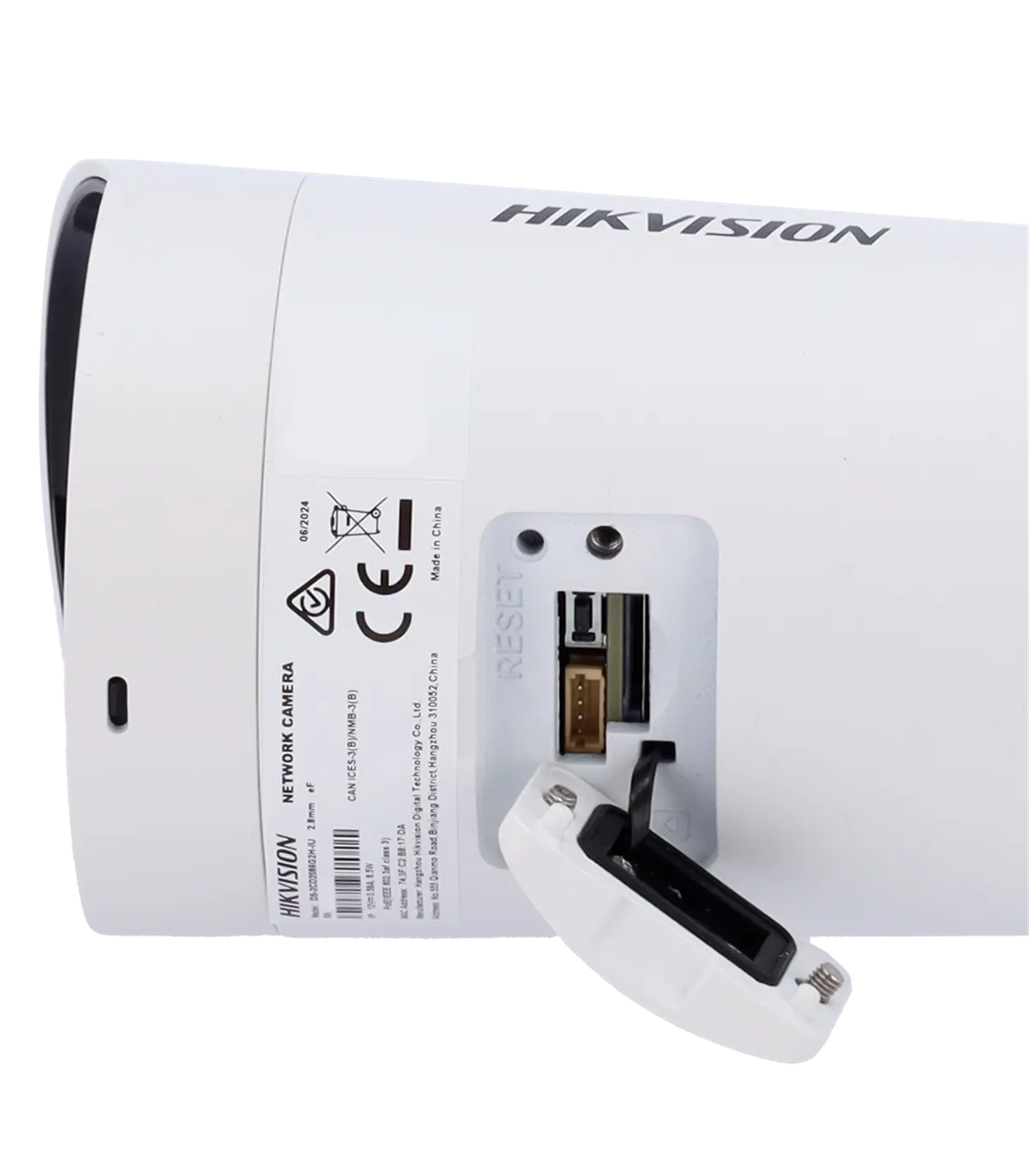

| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |

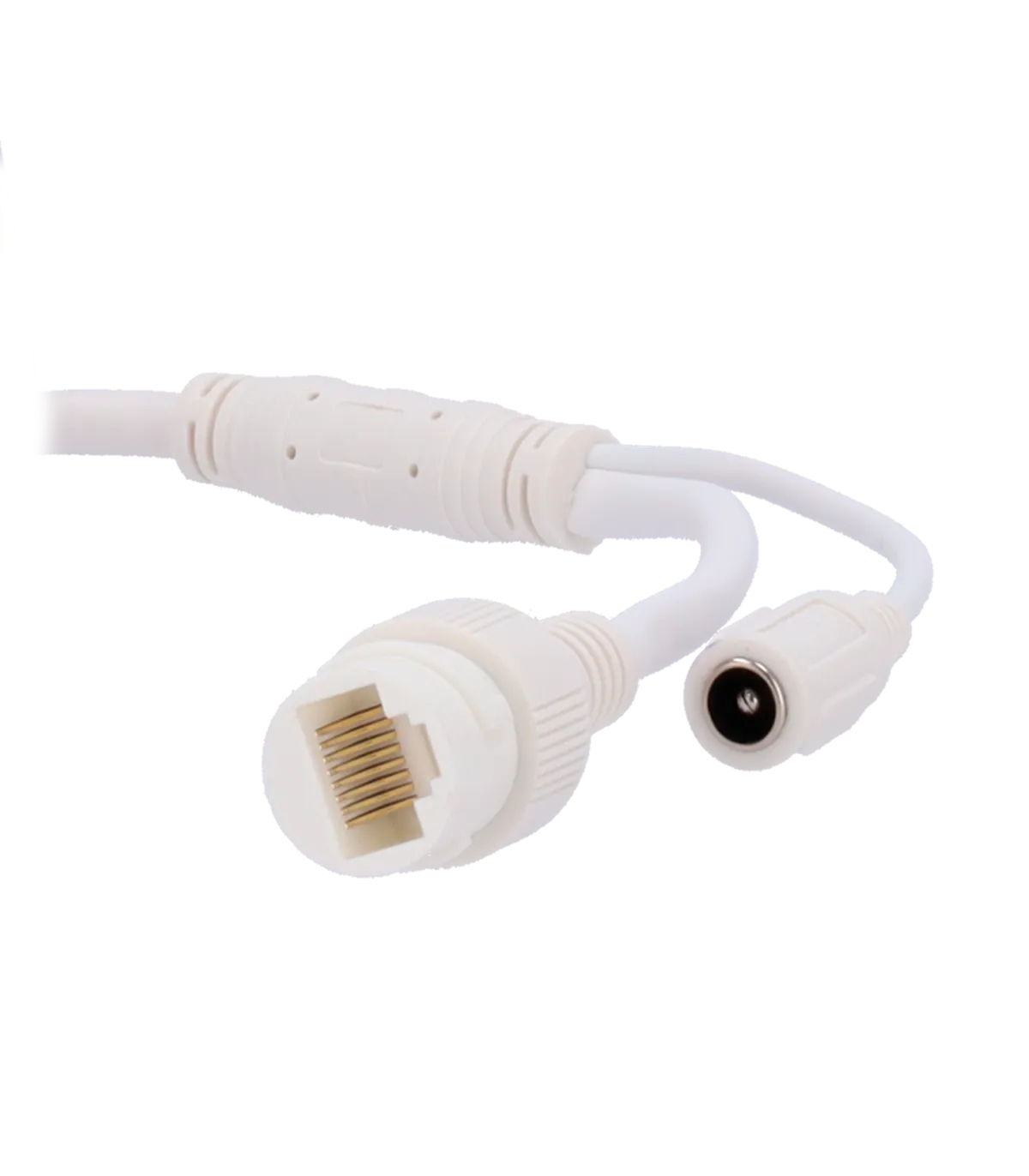

| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI |
| Power Supply | DC 12 V / 580 mA / 7 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 74.4 mm x 179.2 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø screw hole 55 mm / 3 screws |
| Weight | 525 g |
The DS-2CD2086G2H-IU(2.8mm)(eF) is ideally suited for a variety of surveillance applications, particularly in commercial and residential settings. For instance, a retail store can deploy this camera at entry points to ensure remote monitoring of customer traffic and enhance security. With its 8 Megapixel resolution, the camera captures clear images, even in low-light conditions, thanks to its DarkFighter technology. Additionally, the AcuSense feature allows for intelligent motion detection, significantly reducing false alarms triggered by non-human movements. This is particularly beneficial in busy environments where accurate monitoring is crucial. The camera's IP67 rating ensures durability against harsh weather, making it suitable for outdoor installations. Furthermore, the integrated microphone provides audio capabilities, enhancing the overall surveillance experience. Overall, the DS-2CD2086G2H-IU(2.8mm)(eF) offers a comprehensive solution for effective security management.
