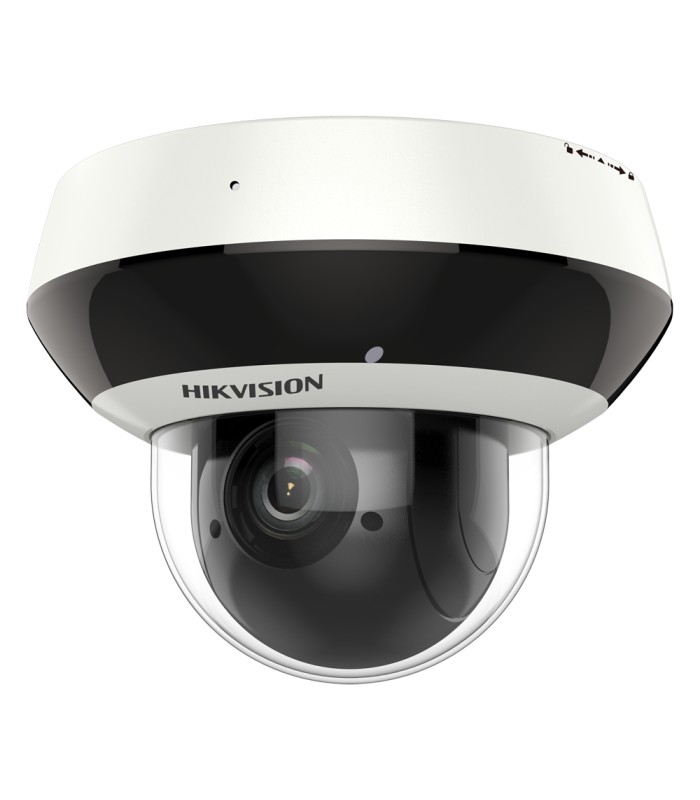

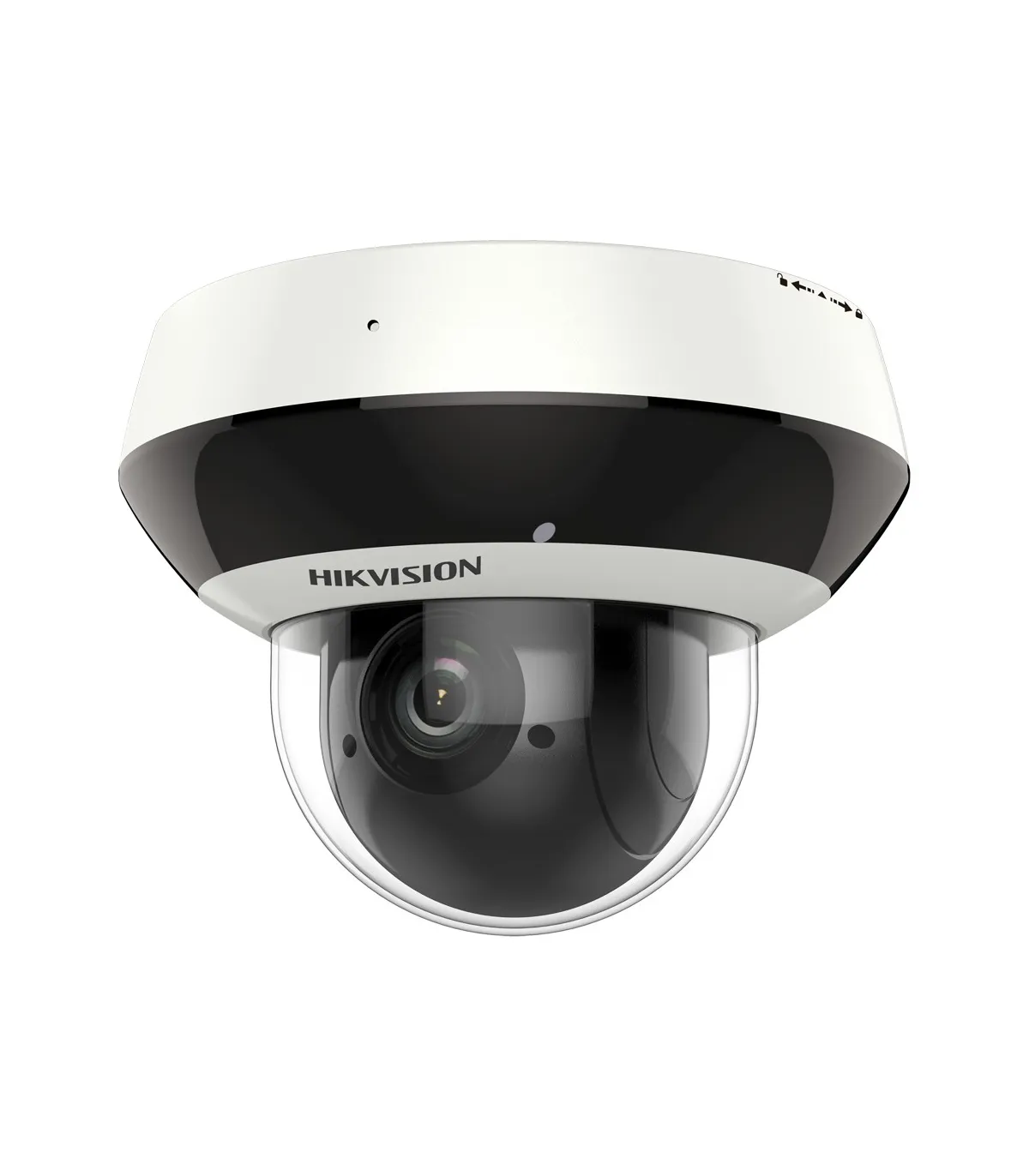

Hikvision 4X IP Motorized Dome DS-2DE2A404IW-DE3/W(C0)(S6)(C)
Brand: HIKVISION VALUE
- Hikvision 4X Motorized IP Dome
- Value Range | microSD 256 GB
- 4 MP | Motorized Lens 2.8~12 mm
- IR 20 m | WDR 120 dB | Wi-Fi | Audio
- PoE | H.265+| IP66 | IK10 | Facial Detection
- WEB, CMS Software, Smartphone, and NVR
Hikvision 4X IP Motorized Dome DS-2DE2A404IW-DE3/W(C0)(S6)(C)
- Hikvision
- Value Range
- Ultra Low Light PTZ IP Camera Powered by DarkFighter
- Half speed 100º/second
- Optical zoom 4X
- 1/2.8" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized varifocal lens 2.8~12 mm
- IR Range 20 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Face Detection
- IR CUT
- WDR (120 dB)
- 3D-DNR
- microSD card slot up to 256GB
- Audio
- Wi-Fi
- PoE 802.3af
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- Waterproof IP66
- Vandal-resistant IK10
Technical specifications
| Brand | HIKVISION |
| Gamma | Value |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main stream rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra stream rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Minimum Illumination | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.5, AGC ON) Black and white: 0.001 Lux @ (F1.5, AGC ON) / 0 lux with IR LEDs range 20 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized varifocal 2.8~12 mm (4X optical zoom) |
| Angle of view (FOV) | 96.7~31.6º (H), 51.1~17.7º (V), 115.1~36.3º (D) |
| DORI | 180 m (D), 71.4 m (W), 36 m (R), 18 m (L) |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/30,000 s |
| Day / Night | Removable ICR mechanical filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Smart Features | Face Detection |
| Pan/Tilt Range | Horizontal: 0~355°, Vertical: 0°~90° |
| Manual speed | Horizontal: 0.1~100 °/s, Vertical: 0.1~100 °/s |
| Speed between Presets | Horizontal: 100°/s, Vertical: 100°/s |
| Preset positions | 300 preset |
| Internal storage | Card slot MicroSD up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Alarms | Not available |
| PTZ control | Via network access |
| Network interface | Ethernet 10 / 100 BaseT WiFi IEEE802.11b, 802.11g, 802.11n, 2.4 GHz - 2.4835 GHz; Bandwidth 20/40 MHz |
| WiFi Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 11.2 W max. / PoE IEEE802.3af |
| Temp. operation | -20º C ~ +60º C |
| Degree of protection | Waterproof IP66 / Vandal-proof IK10 / Surge 4000 V |
| Dimensions (without support) | Ø 130.7 mm x 101.7 mm (H) |
| Base dimensions | base Ø 120 mm / Ø between screws 96 mm / 4 screws |
| Weight (without stand) | 530 g |
Contents
- Hikvision motorized dome IP camera
- Installation material
- Installation template
| Brand | Hikvision |
| Type of camera | Dome |
| Max. Resolution | 4 Megapixel |
| Technology | IP |
| PoE powered | PoE |
