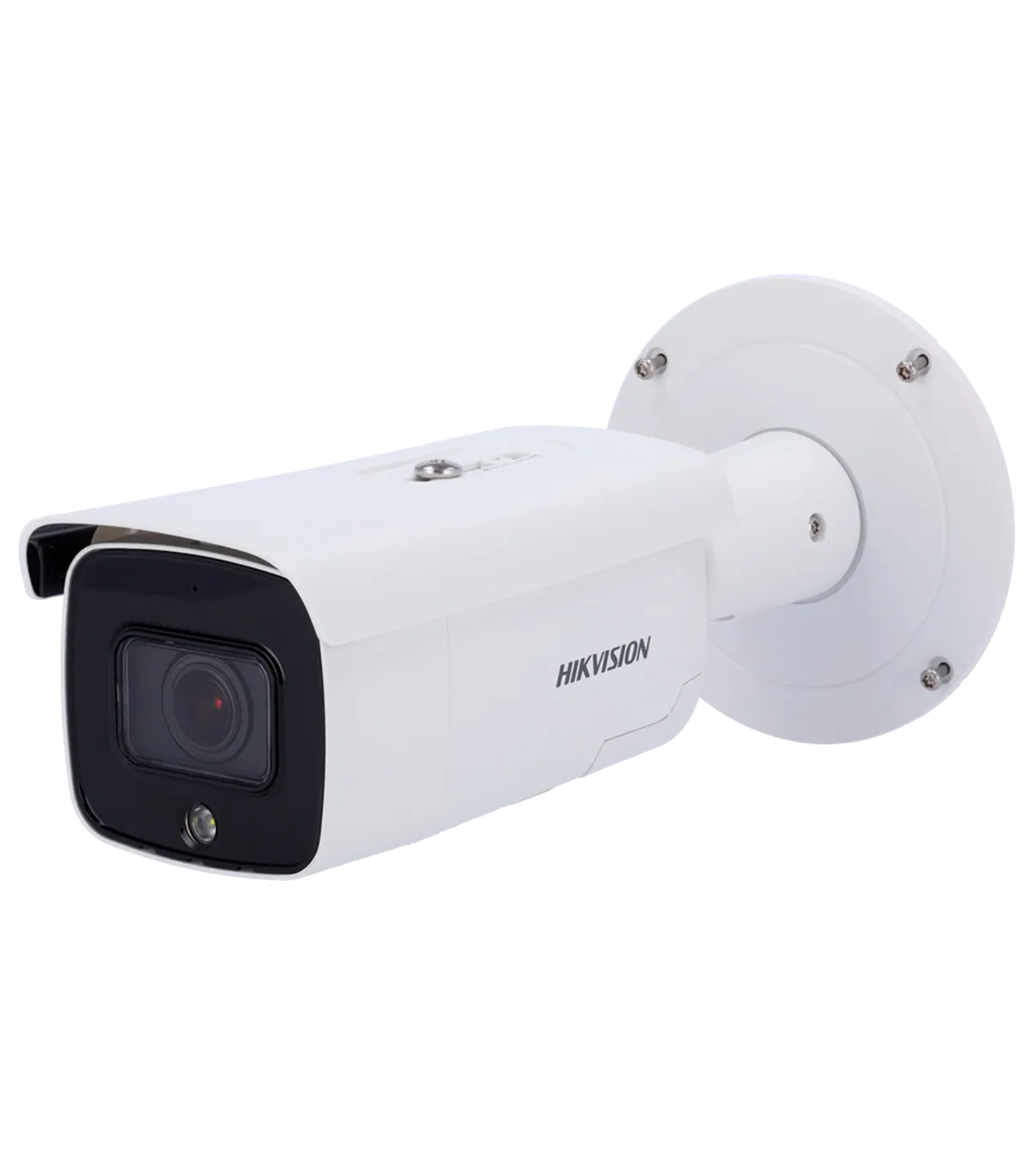

The DS-2CD2686G2-IZSU/SL(2.8-12mm)(C) is a high-performance IP bullet camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in low-light conditions, making it perfect for security monitoring in various settings. With its 8 Megapixel resolution and advanced features such as motion detection and facial recognition, it provides comprehensive coverage and reliable performance.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 108~46°, V: 58~26°, D: 127.4~52° |
| DORI | 86~214m (D), 34.1~84.9 m (O), 17.2~42.8 m (R), 8.6~21.4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. / PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 144.1 mm x 342.7 mm (Fo) |
| Base Dimensions | Ø base 144.1 mm / Ø screw hole distance 96 mm / 4 screws |
| Weight | 1450 g |
The DS-2CD2686G2-IZSU/SL(2.8-12mm)(C) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its 8 Megapixel resolution, users can capture clear images even in low-light conditions, thanks to the DarkFighter technology. The integrated motion detection capabilities allow for real-time alerts, enhancing security by notifying staff of any suspicious activity. Furthermore, the facial recognition feature can assist in identifying known shoplifters, while the AcuSense technology minimizes false alarms by distinguishing between humans and vehicles. This camera's remote monitoring capabilities via smartphone apps and web interfaces ensure that users can keep an eye on their premises from anywhere, making it a versatile solution for modern security needs.
