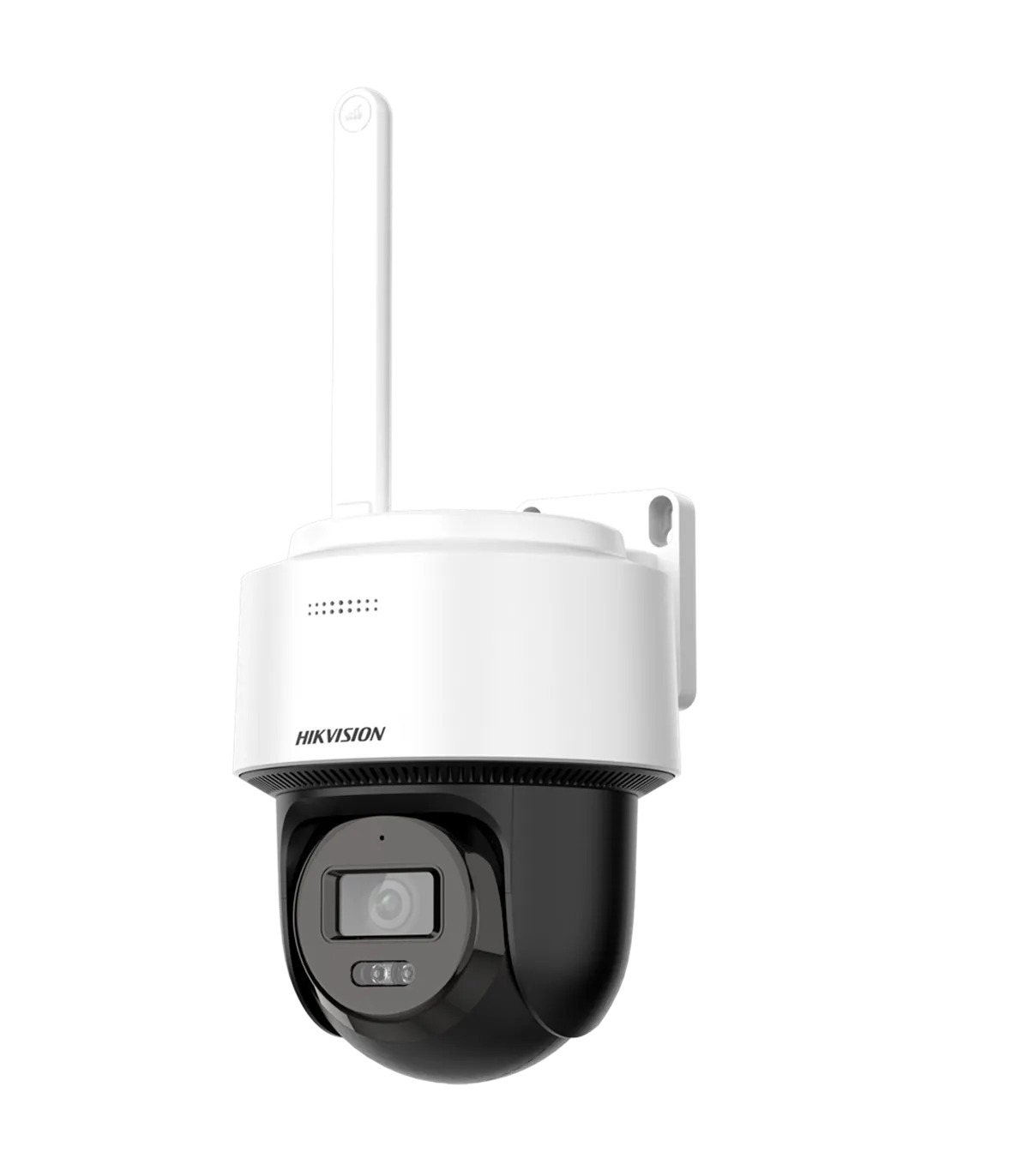

The DS-2DE2C400IWG/W(2.8mm)(W) is a high-performance IP PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 4 Megapixel resolution and advanced features such as motion detection and AcuSense technology. With its robust IP66 waterproof rating, it ensures reliable operation in various weather conditions, making it suitable for commercial and residential security systems.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 768x432, 512x288) |
| Minimum Illumination | Color: 0.01 Lux @ (F1.6, AGC ON) 0 lux with IR range 30 m |
| Compression | H.265 / H.264 |
| Bitrate | 256 Kbps ~ 2 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View (FOV) | 91º (H), 49º (V), 108º (D) |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0~80° |
| Manual Speed | Horizontal: up to 25 °/s, Vertical: up to 20 °/s |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n |
| WiFi Frequency | 2.412 GHz to 2.472 GHz |
| WiFi Encryption Mode | WPA-PSK/WPA2-PSK |
| WiFi Modulation | 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM |
| Wi-Fi Range | Up to 50 m (depending on environmental conditions) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V / 1 A / 10 W max. |
| Operating Temperature | -30º C ~ +50º C |
| Material | Plastic |
| Protection Grade | IP66 |
| Dimensions (without mount) | 163.9 (L) mm x 131.9 mm (W) x 312.6 mm (H) |
| Weight (without mount) | 565 g |
The DS-2DE2C400IWG/W(2.8mm)(W) camera is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. With its remote monitoring capabilities, users can access live feeds from anywhere using the Hik-Connect app or web browser. The camera's AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, ensuring that security personnel are alerted only when necessary. Its IP66 waterproof rating allows for reliable outdoor use, while the integrated microphone and speaker facilitate two-way audio communication. The camera's fixed lens and wide field of view make it an excellent choice for comprehensive coverage in various environments.
