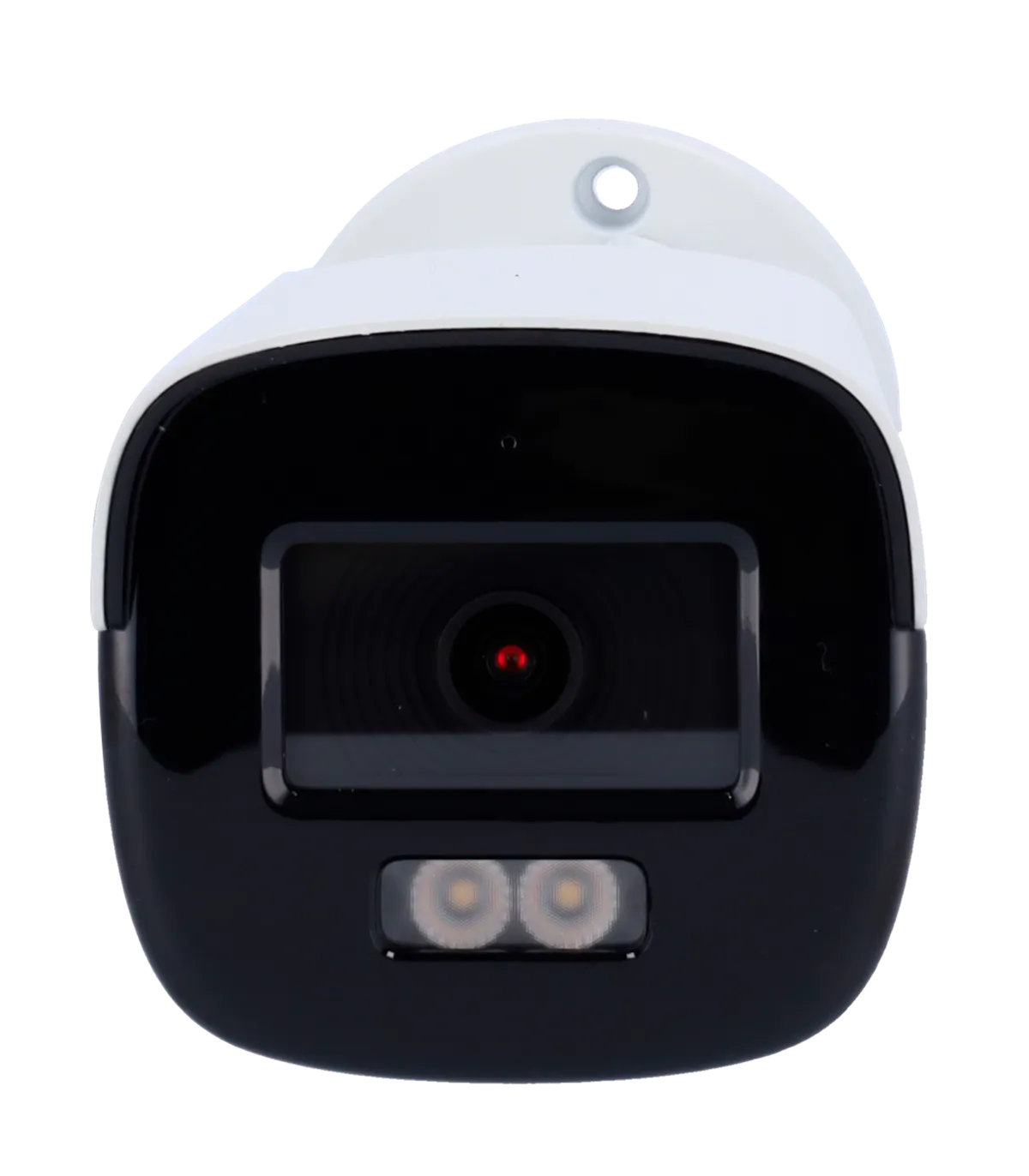

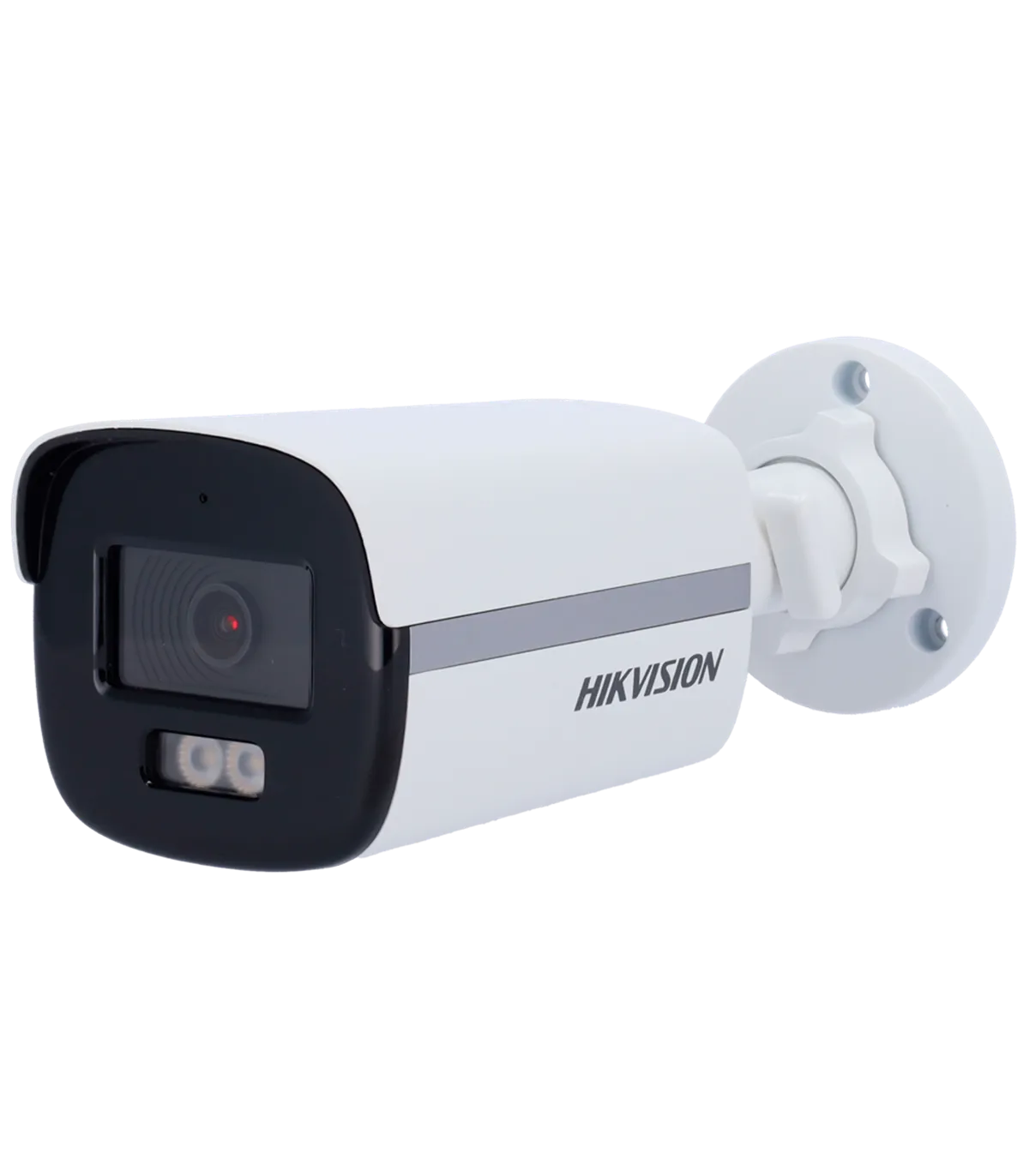

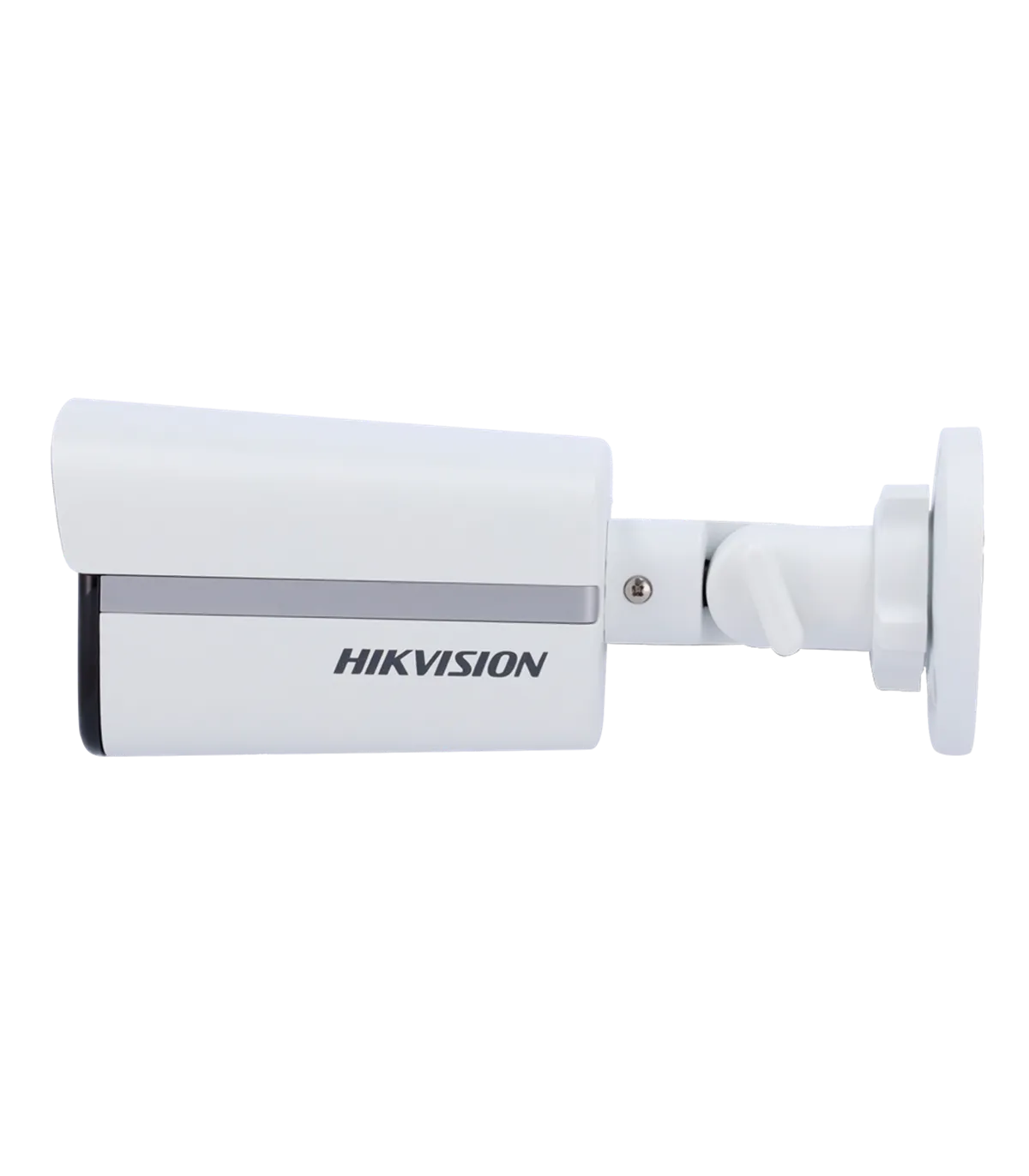

The DS-2CE12KF0T-LFS(2.8mm) is a versatile bullet camera designed for high-definition surveillance in various environments. It is ideal for both indoor and outdoor applications, providing exceptional clarity with its 3K resolution and advanced features. This camera is equipped with a high-performance CMOS sensor and offers a hybrid light capability, making it suitable for low-light conditions. With its robust IP67 waterproof rating, it ensures reliable performance in challenging weather conditions.
| Brand | Hikvision |
| Series | VALUE |
| Image Sensor | High Performance CMOS |
| Maximum Resolution | 3K (2960x1665) at 20 fps |
| Resolution | TVI: 3K (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 105º (H), 60º (V), 143º (D) |
| Minimum Illumination | 0.001 Lux @ (F1.0, AGC ON) 0 Lux with white light range 40 m |
| Supplementary Lighting | Hybrid Light: IR range 40 m White light range 40 m |
| Day/Night | Auto / Color / BW (Black and White) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Audio | Integrated Microphone Audio over coaxial cable in TVI technology |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Smart Light |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 5.2 W max. |
| Protection Rating | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 74.5 mm (H) x 78 mm (W) x 194.2 mm (D) |
| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 500 g |
The DS-2CE12KF0T-LFS(2.8mm) bullet camera is an excellent choice for security installations in retail stores, parking lots, and residential areas. Its 3K resolution ensures that every detail is captured, providing clear images for effective monitoring. The camera's hybrid light technology allows for seamless operation in both day and night conditions, making it ideal for 24/7 surveillance. With a waterproof IP67 rating, it can withstand harsh weather, ensuring durability and reliability. Additionally, the integrated microphone enables audio surveillance, enhancing security measures. The camera's remote monitoring capabilities allow users to access live feeds from anywhere, making it a perfect solution for modern security needs.
