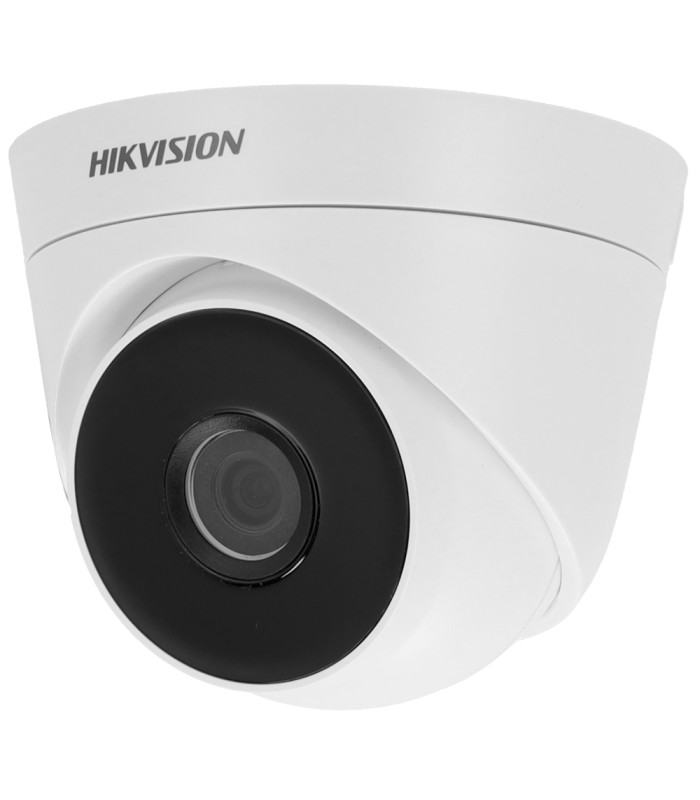

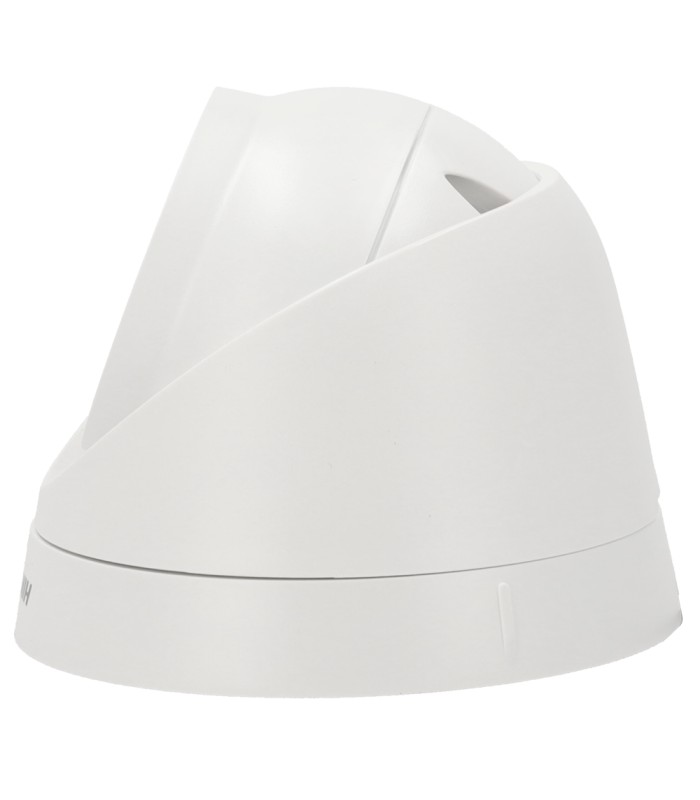

Turret Camera 4 in 1 Core Range Hikvision DS-2CE56D0T-IT3F(3.6mm)(C)
Brand: HIKVISION VALUE
- Hikvision
- Turret Camera 4 in 1 CORE Range
- Resolution 1080p (1920x1080)
- Lens 3.6 mm
- IR range 40 m
- Waterproof IP67
4 in 1 Turret Camera Core Range Hikvision DS-2CE56D0T-IT3F(3.6mm)(C)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Turret Camera
- 2 Mpx CMOS
- 1080p (1920x1080)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- IR Range 40 m
- 2D DNR
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | CORE |
| Image sensor | 2 Mpx progressive scan CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CIV: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79.6º (H), 43.5º (V), 93.7º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (IR range 40 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

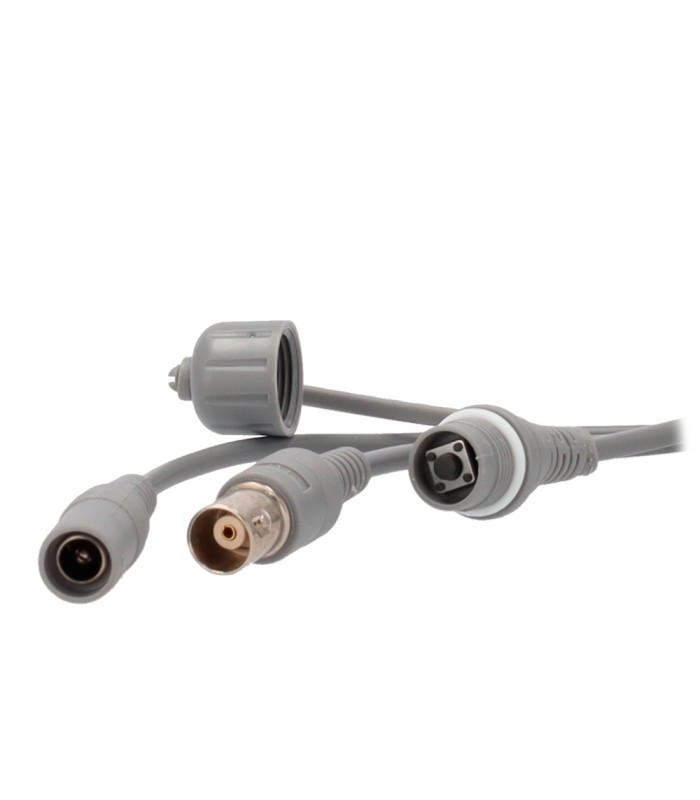

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, 2DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3 W max. |
| Degree of protection | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Plastic |
| Dimensions | Ø 110 mm x 93.2 mm (H) |

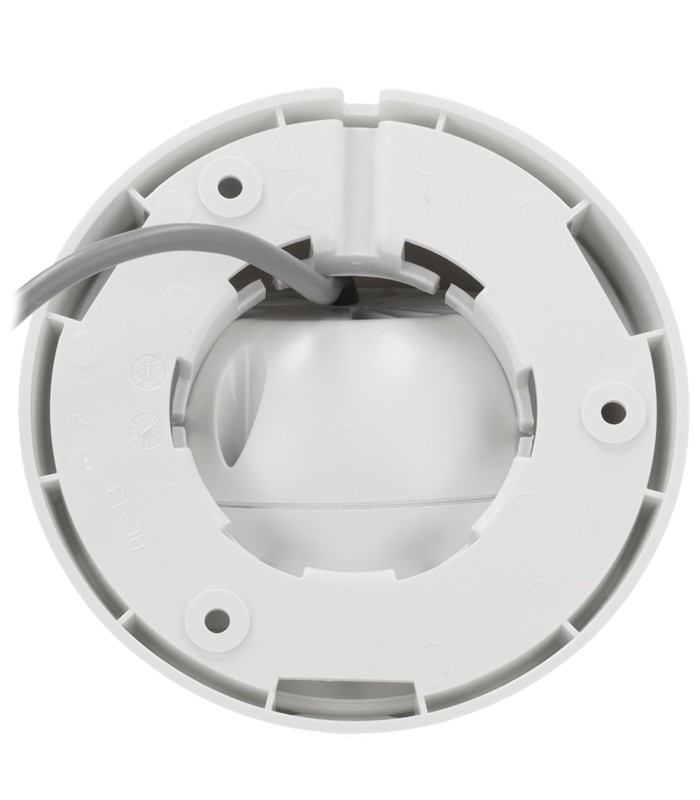

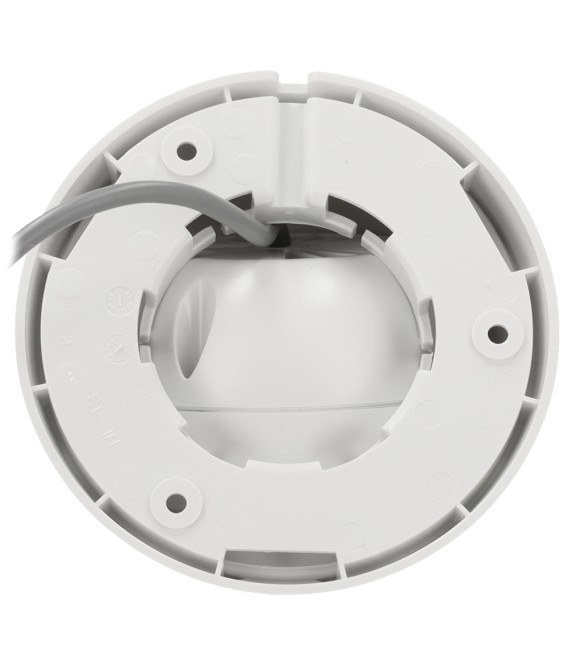

| Base diameter | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 211 g |
Contents
- Hikvision Turret 4n1 Camera
- Mounting material
- Instructions for use
