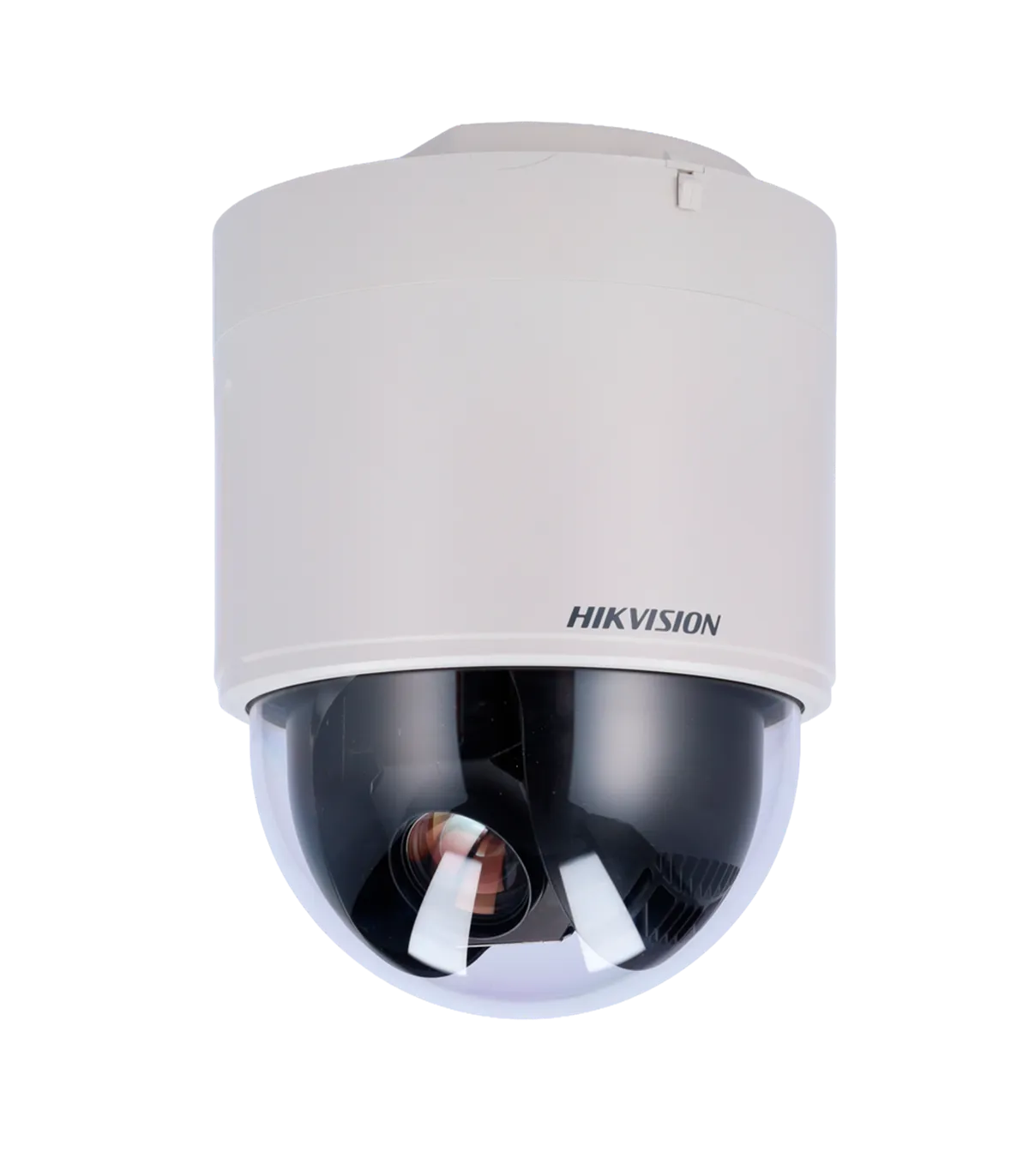

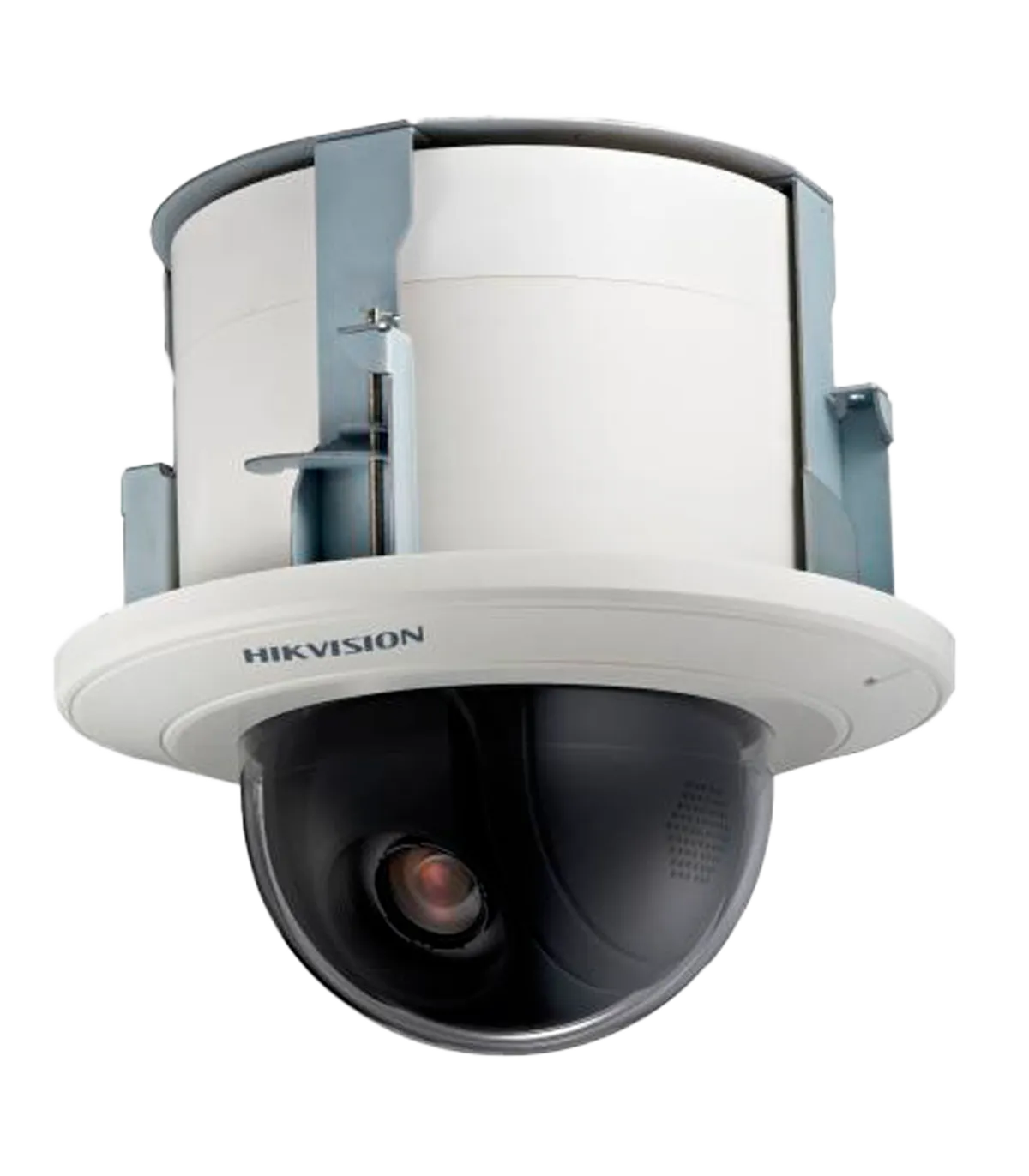

The Hikvision DS-2AE5225T-A3(D) is a high-performance motorized dome camera designed for versatile surveillance applications. It supports multiple video formats including TVI, CVI, AHD, and CVBS, making it suitable for various installation environments. With its advanced imaging capabilities, this camera is ideal for monitoring large areas with precision and clarity.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 1080p (1920x1080) at 25 FPS |
| Video Output | 1 x switchable BNC (TVI/AHD/CVI/CVBS) |
| Minimum Illumination | Color: 0.005 Lux @ F1.6 B/W: 0.001 Lux @ F1.6 |
| Infrared Illumination | Not available |
| Optics | Varifocal 4.8~120 mm (Optical zoom 25X) Autofocus |
| Field of View | 57.6~2.5º (H), 34.4~1.4º (V), 64.5~2.9º (D) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1~1/10,000 s |
| Day/Night | IR cut |
| Noise Reduction | 3D-NR |
| Backlight Compensation | BLC / WDR (120 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Privacy Masks | Up to 8 areas |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -5°~90° auto flip |
| Manual Speed | Horizontal: 0.1° ~250° /s, Vertical: 0.1° ~150° /s |
| Speed Between Presets | Horizontal: 250° /s, Vertical: 150° /s |
| Zoom Speed | 3.6 s for maximum travel |
| Preset Positions | 256 presets, 5 patterns, 10 patrols |
| Communication | RS-485 (Pelco P / Pelco D / HIKVISION) |
| Audio | Not available |
| Alarms | 2 inputs / 1 output |
| Power Supply | AC 24 V / 18 W max. |
| Operating Temperature | -10º C ~ +50º C |
| Protection Rating | Surge protection 4000 V |
| Dimensions (without mount) | 243 mm (H) x 156 (Ø) mm |
| Weight (without mount) | 3 kg |
The Hikvision DS-2AE5225T-A3(D) is ideally suited for both indoor and outdoor surveillance applications, making it a versatile choice for security professionals. Its motorized dome design allows for flexible installation in various environments, such as retail stores, warehouses, and public spaces. The camera's 25X optical zoom and 16X digital zoom capabilities enable users to capture detailed images from a distance, ensuring effective monitoring of large areas. With features like 3D DNR and WDR, the camera performs well in challenging lighting conditions, providing clear images both day and night. Installers can easily integrate this camera into existing security systems using its multiple video output formats, ensuring compatibility with various DVRs and NVRs. The surge protection feature enhances its reliability, making it a robust option for long-term use in diverse settings.
