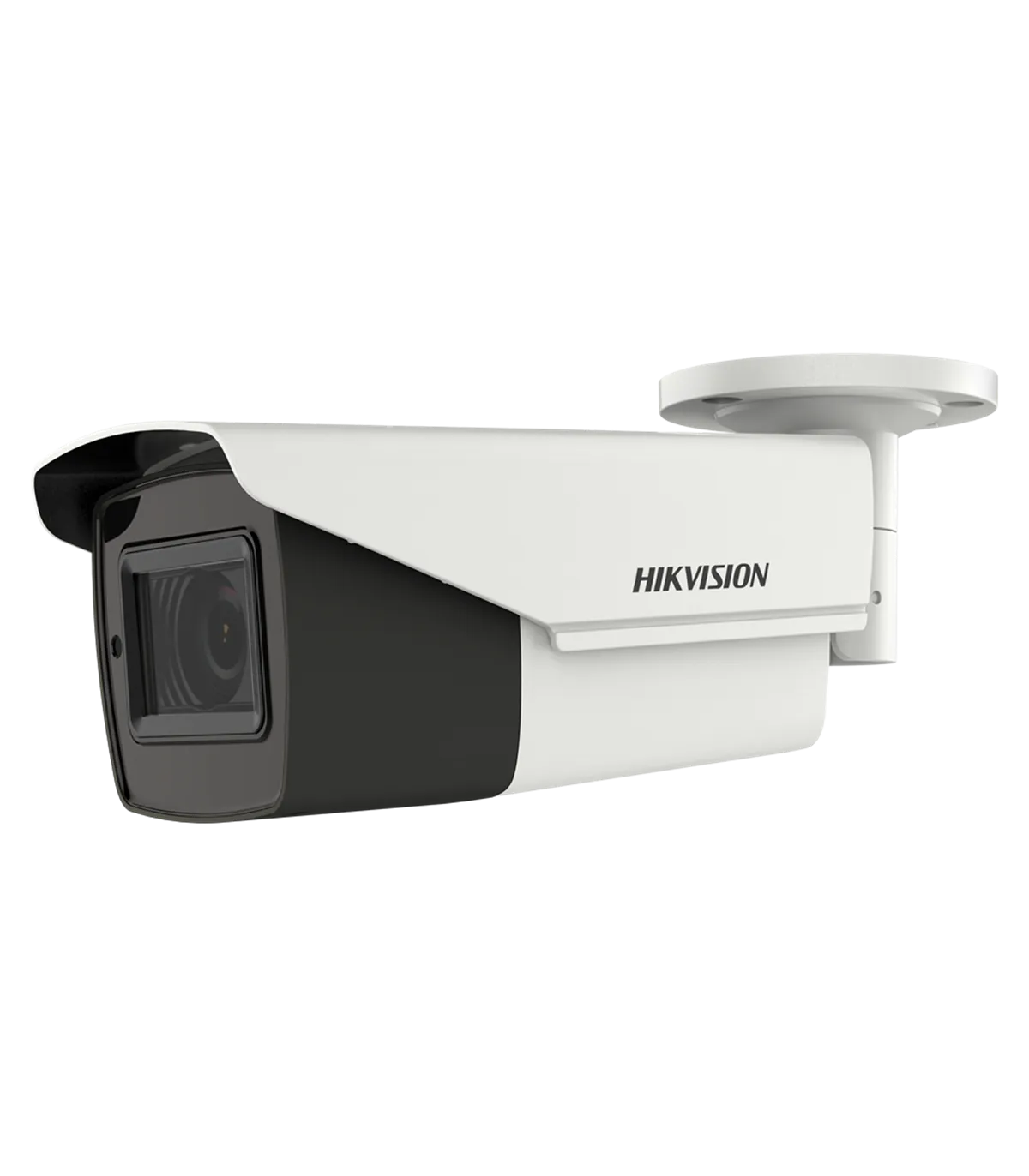

The DS-2CE19U7T-AIT3ZF is a high-performance bullet camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing clear and detailed images in various lighting conditions. With its advanced features, including a 8.29 megapixel progressive scan CMOS sensor and EXIR IR technology, it ensures reliable monitoring day and night. The camera's varifocal motorized lens allows for flexible installation, making it suitable for a wide range of security needs.
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Maximum Resolution | 8 Megapixel (3480 x 2160) at 12.5 fps |
| Resolution | TVI: 8 Mpx (12.5~15 fps), 5 Mpx (20 fps), 4 Mpx (25~30 fps), 2 Mpx (25~30 fps) CVI: 8 Mpx (12.5~15 fps) AHD: 8 Mpx (12.5~15 fps) CVBS: 960H P/N |
| Lens | Motorized varifocal lens 2.7~13.5 mm Autofocus |
| Field of View (FOV) | 108.1~45.6º (H) |
| Minimum Illumination | 0.003 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / Smart EXIR IR range 80 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, 3DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 9.6~14.4 V / 10.8 W max. |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 84.5 mm (H) x 92 mm (W) x 255.1 mm (D) |
| Base Diameter | Ø base 85.3 mm / Ø screw hole distance 70 mm / 3 screws |
| Weight | 925 g |
The DS-2CE19U7T-AIT3ZF is an excellent choice for security professionals looking to enhance surveillance in commercial and residential settings. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its motorized varifocal lens, installers can easily adjust the field of view to cover specific areas of interest, ensuring comprehensive coverage. The camera's IP67 waterproof rating makes it suitable for outdoor installations, providing reliable performance even in harsh weather conditions. Additionally, the EXIR IR technology allows for clear night vision up to 80 meters, making it ideal for 24/7 monitoring. The WDR (130 dB) feature ensures that images remain clear in varying lighting conditions, while the 3D-DNR minimizes noise for enhanced image quality. This combination of features makes the DS-2CE19U7T-AIT3ZF a versatile solution for any security installation.
