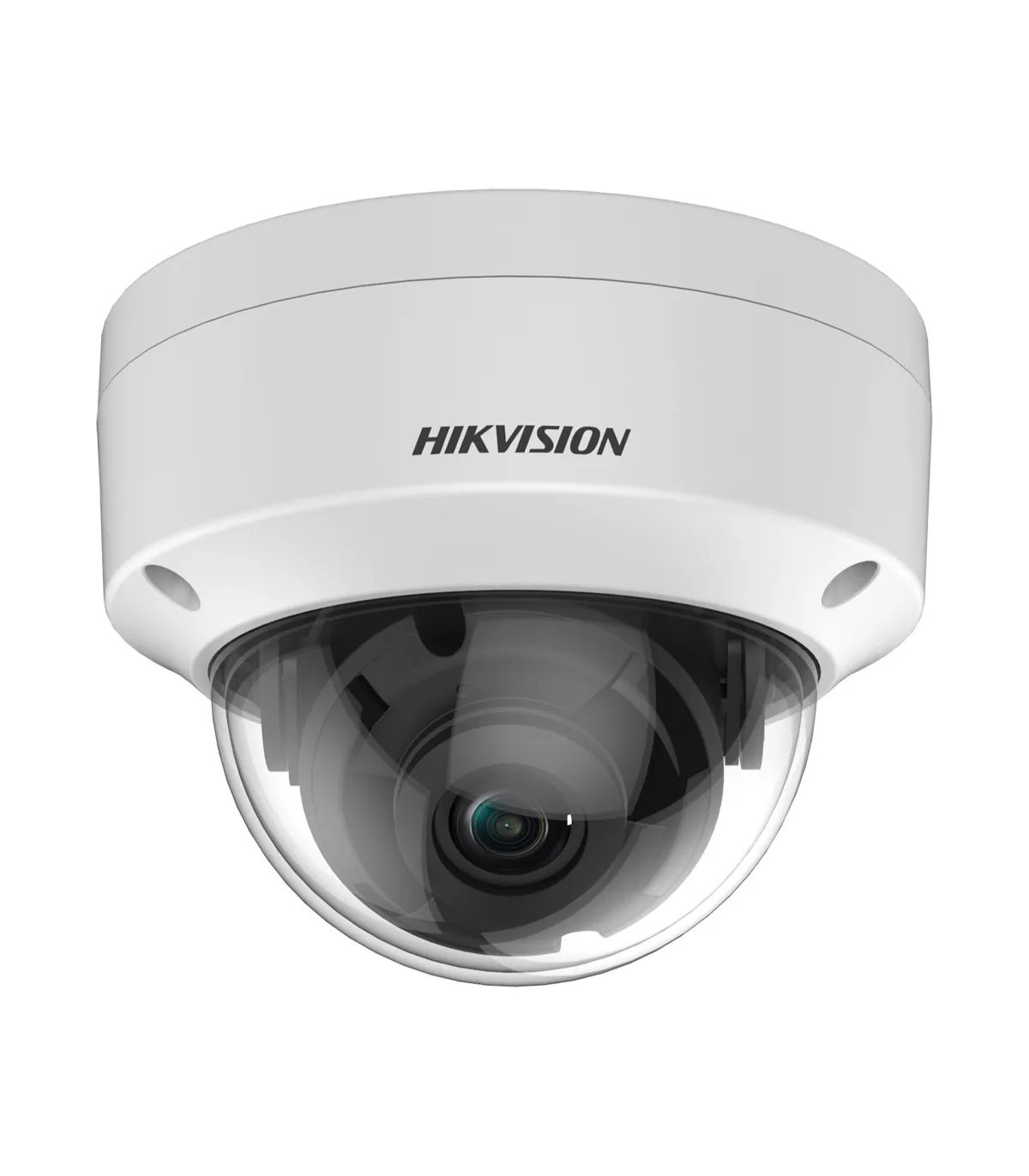

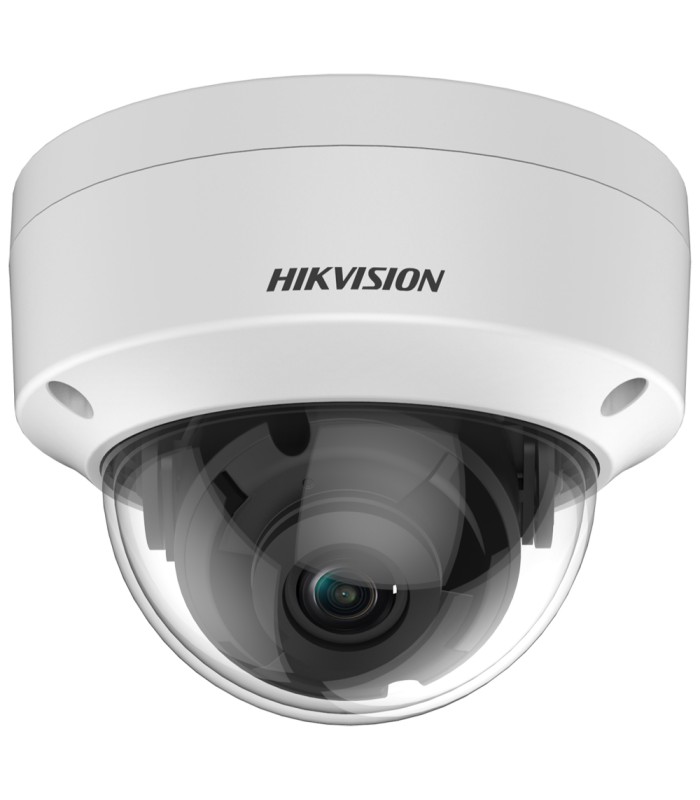

HDTVI Dome Camera Value Range Hikvision DS-2CE57H0T-VPITE(2.8mm)(C)
Brand: HIKVISION VALUE
- Hikvision
- Value Range HDTVI Dome Camera
- 5 Megapixel Resolution (2560x1944)
- 2.8mm Lens
- Smart IR with 20m Range
- IP67 Waterproof, IK10 Vandal-proof
HDTVI Dome Camera Value Range Hikvision DS-2CE57H0T-VPITE(2.8mm)(C)
- Hikvision
- VALUE Range
- HDTVI Dome Camera
- High Performance CMOS
- 5 Megapixel (2560x1944)
- HDTVI output
- 2.8 mm lens
- 0 Lux
- Smart IR Range 20 m
- 2D DNR
- IR CUT
- Waterproof IP67
- Anti-vandal IK10
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image sensor | 5Mpx CMOS |
| Maximum resolution | 5 Megapixel (2560x1944) at 20 fps |
| Resolution | 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) |
| Lens | 2.8 mm |
| Angle of view (FOV) | 85º (H), 63º (V), 110º (D) |
| Minimum illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR Range 20 m) |
| Day / Night | Auto / Color / Black and white (ICR) |
| Video output | 1 x BNC HDTVI |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 2.6 W max. |
| Protection degree | Waterproof IP67, vandal-resistant IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 111 mm x 82.4 mm (Al) |
| Base diameter | Ø base 111 mm / Ø between screws 100.4 mm / 3 screws |
| Weight | 440 g |
Contents
- Hikvision Value HDTVI Dome Camera
- Mounting material
- Instructions for use
