| Brand | Hikvision |
| Range | Value |
| Image Sensor | 3K CMOS |
| Maximum Resolution | 3K (2960x1665) at 20 fps |
| Resolution | TVI: 3K (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4 Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4 Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 110º (H), 60º (V), 143º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON) 0 lux with hybrid light, range 20 m |
| Supplementary lighting | Hybrid light: IR range 20 m White light range 20 m |
| Day/Night | ColorVu: 24 hour color image |

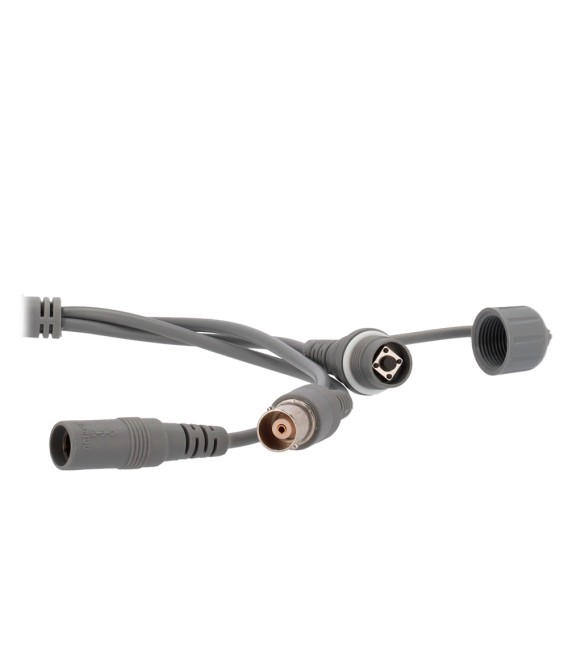

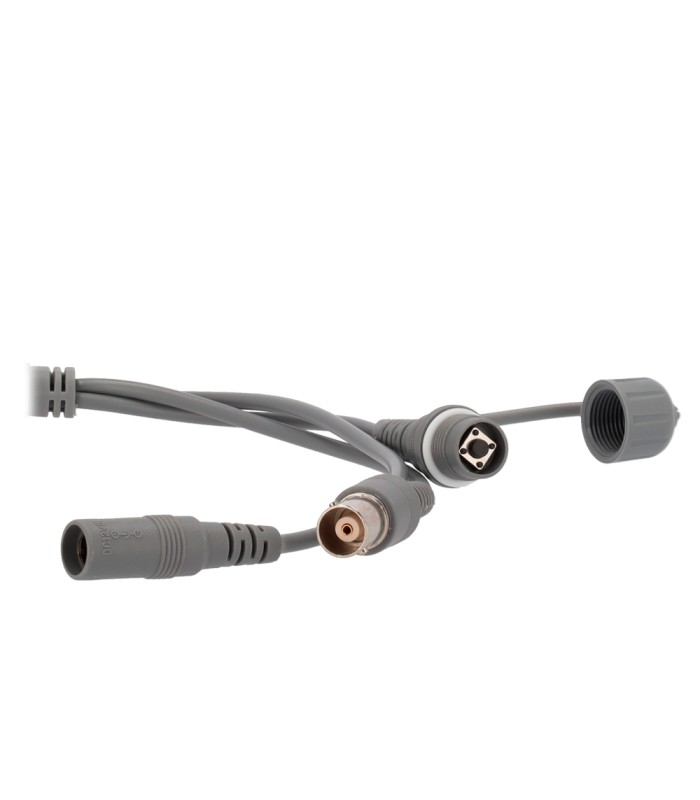

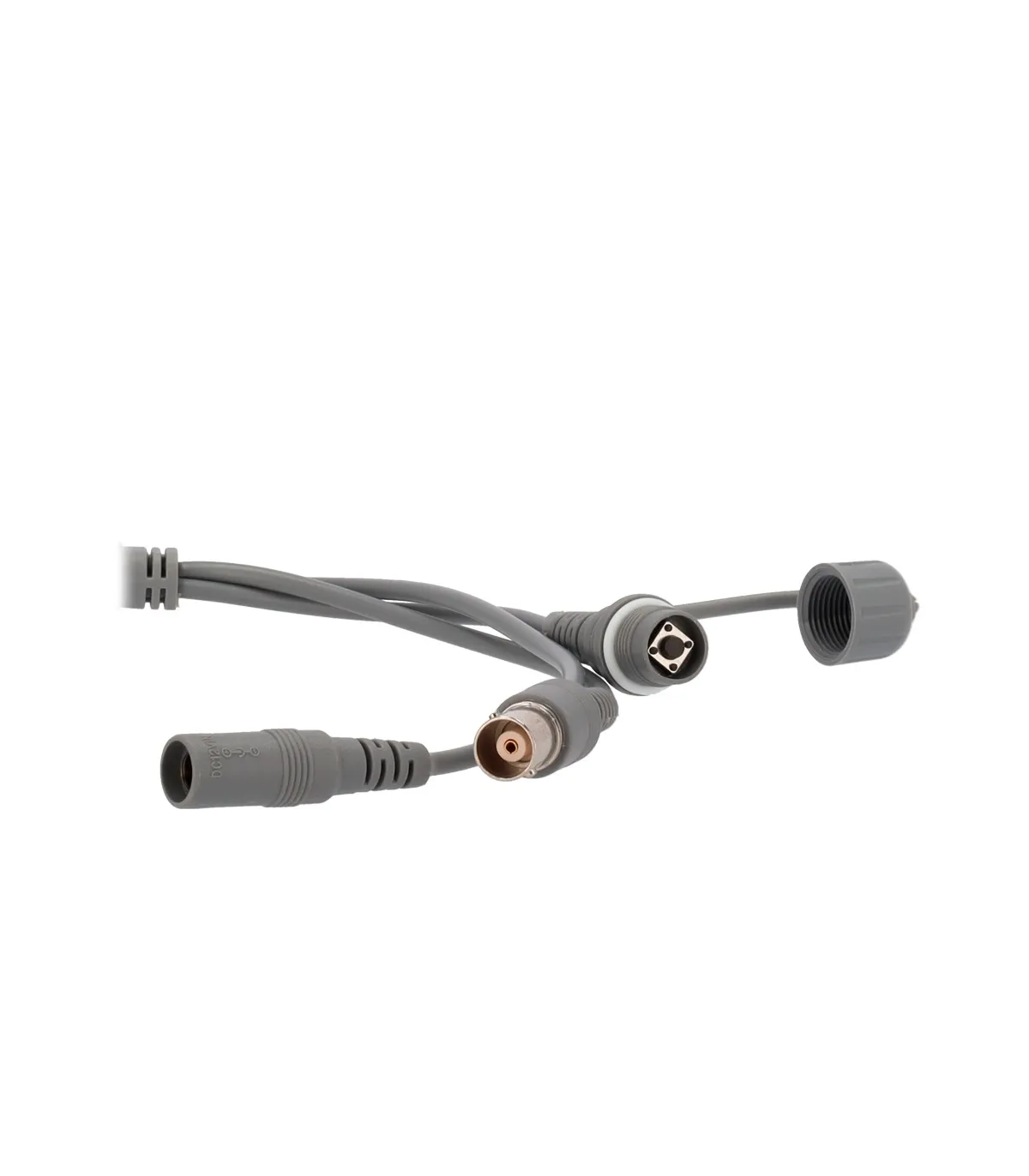

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Switching video output video | Via Switch |
| Audio | Built-in microphone Audio via coaxial cable |
| Basic functions | Menu OSD (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart Light |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.9 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 85.1 mm x 77.62 mm (H) |

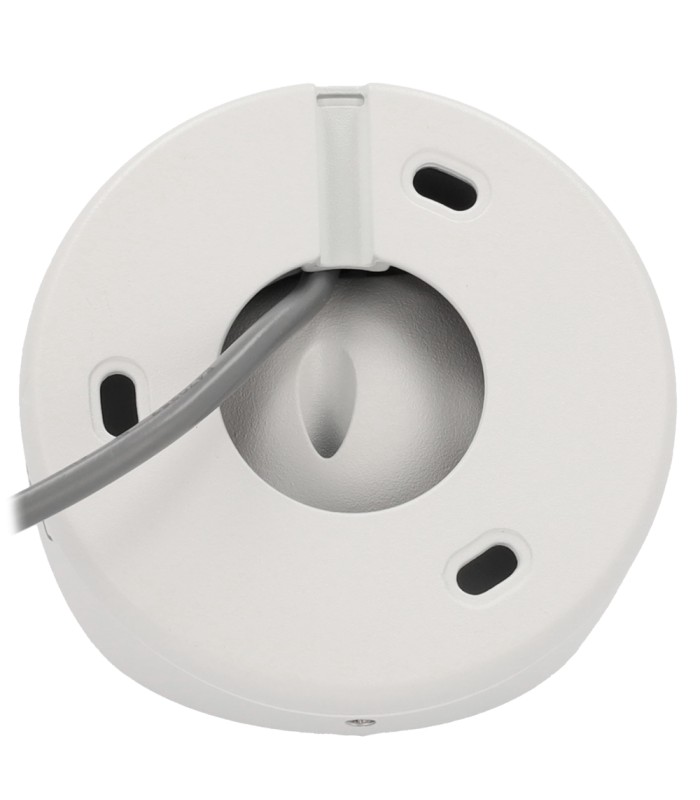

| Base diameter | Ø base 85.1 mm / Ø between screws 60 mm / 3 screws |
| Weight | 330 g |
| ColorVu: 24-hour color image |
