- Hikvision Bullet Camera 4-in-1 Value Range
- 3K (2960x1665) CMOS
- 2.8 mm Lens
- Dual Light: Smart IR 30 m, White Light 20 m
- Audio over Coaxial Cable | Integrated Microphone
- IP67 Waterproof | Metal

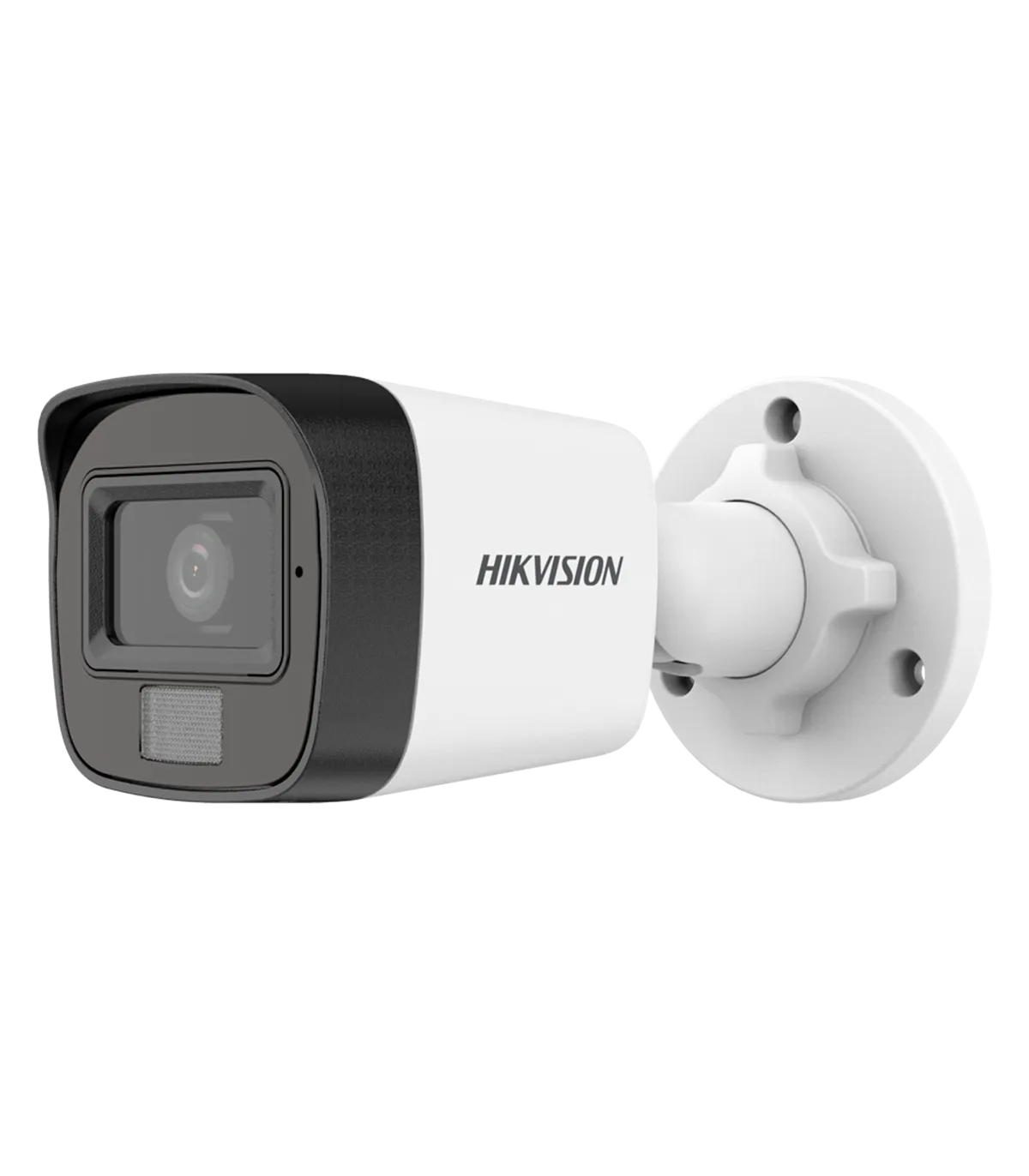

Description & Key Features: DS-2CE16K0T-LFS(2.8mm)
The DS-2CE16K0T-LFS(2.8mm) is a versatile bullet camera designed for high-definition surveillance in various environments. This device is ideal for both residential and commercial applications, providing reliable security with its advanced features. With a 3K resolution and a hybrid light system, it ensures clear images even in low-light conditions. The camera's IP67 waterproof rating makes it suitable for outdoor installations, while its integrated microphone allows for audio monitoring, enhancing overall security.
- Hikvision
- Value Series
- Bullet Camera supporting HDTVI, HDCVI, AHD, and CVBS
- CMOS Sensor
- 3K (2960x1665) Resolution
- 4-in-1 Output
- 2.8 mm Lens
- 0 Lux Minimum Illumination
- Hybrid Light: IR and White Light
- IR Range up to 30 m
- White Light Range up to 20 m
- Audio over Coaxial
- Integrated Microphone
- IR CUT Filter
- IP67 Waterproof Rating
Specifications: DS-2CE16K0T-LFS(2.8mm)
| Brand | Hikvision |
| Series | Value |
| Image Sensor | 3K CMOS |
| Maximum Resolution | 3K (2960x1665) at 20 fps |
| Resolution | TVI: 3K (20 fps), 4 MP (25~30 fps), 1080p (25~30 fps) CVI: 4 MP (25~30 fps) AHD: 5 MP (20 fps), 4 MP (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 104.9º (H), 67.3º (V), 129.8º (D) |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) Black and White: 0 Lux |
| Infrared Illumination | Hybrid Light: Smart IR Range 30 m White Light Range 20 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Configurable OSD Functions | DWDR, AGC, AWB, Smart IR |
| Audio | Integrated Microphone Audio via coaxial cable in TVI technology |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 3.3 W max |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 138.8 (Fo) x Ø 70 mm |
| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 270 g |
Package Contents
- Hikvision Value 4-in-1 Bullet Camera
- Mounting Materials
- User Instructions
Use Case
The DS-2CE16K0T-LFS(2.8mm) camera is perfect for a variety of surveillance applications, including retail stores, warehouses, and residential properties. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer activity and deter theft. With its 3K resolution, users can capture detailed images, ensuring that every face is recognizable. The hybrid light feature allows for effective monitoring even in complete darkness, making it a reliable choice for nighttime security. Additionally, the camera's IP67 waterproof rating ensures durability against harsh weather conditions, making it suitable for outdoor installations. The integrated microphone provides an added layer of security by allowing audio monitoring, which is crucial for capturing conversations during incidents. Overall, the DS-2CE16K0T-LFS(2.8mm) offers a comprehensive solution for enhancing security in various settings.
Data sheet
- Brand
- HIKVISION
- Resolution
- 5 Mpx 3K - formato 16:9
- Technology
- HD-Coaxial
- WDR
- DWDR
- Audio
- Micrófono integrado
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6931847173210
