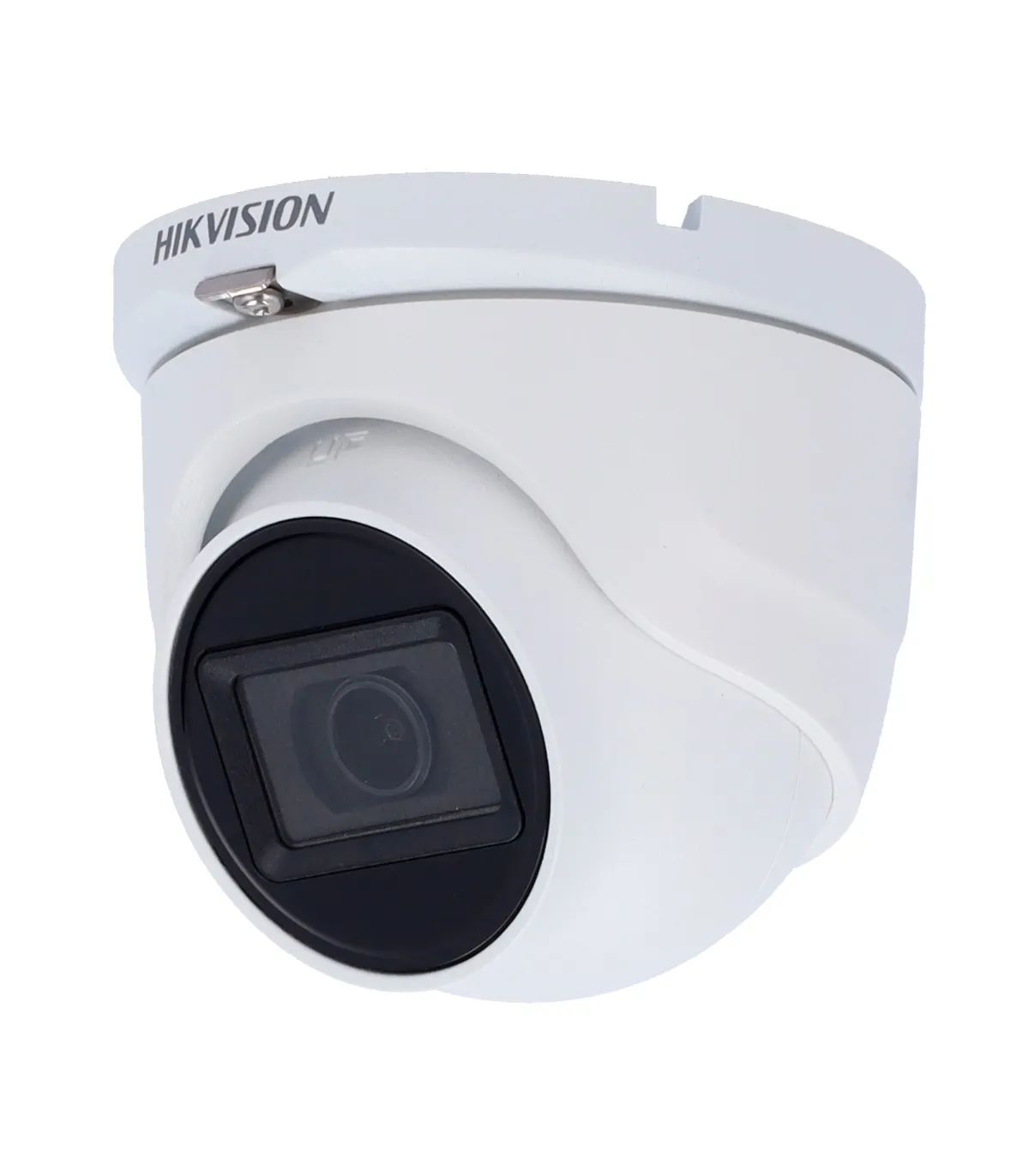

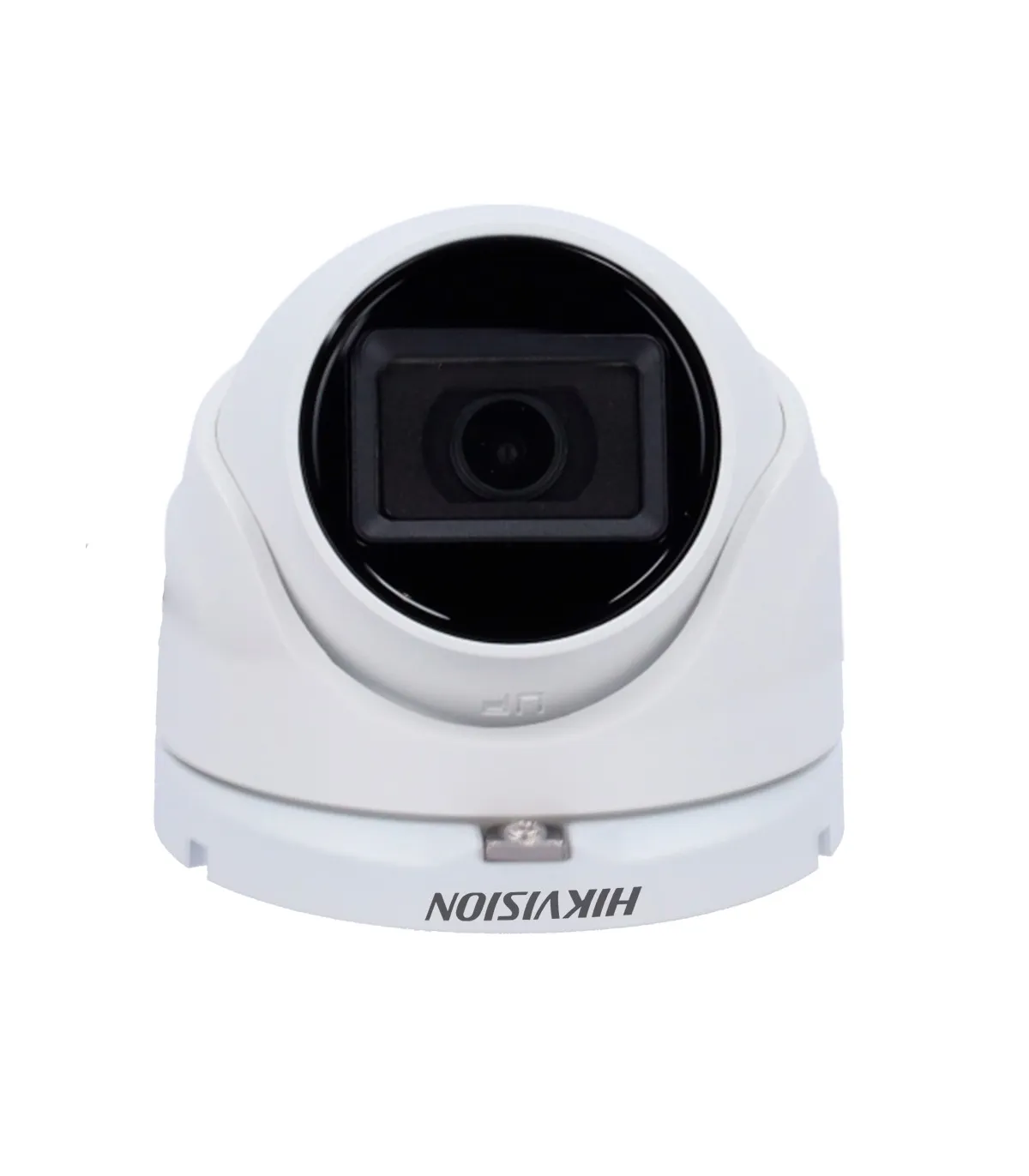

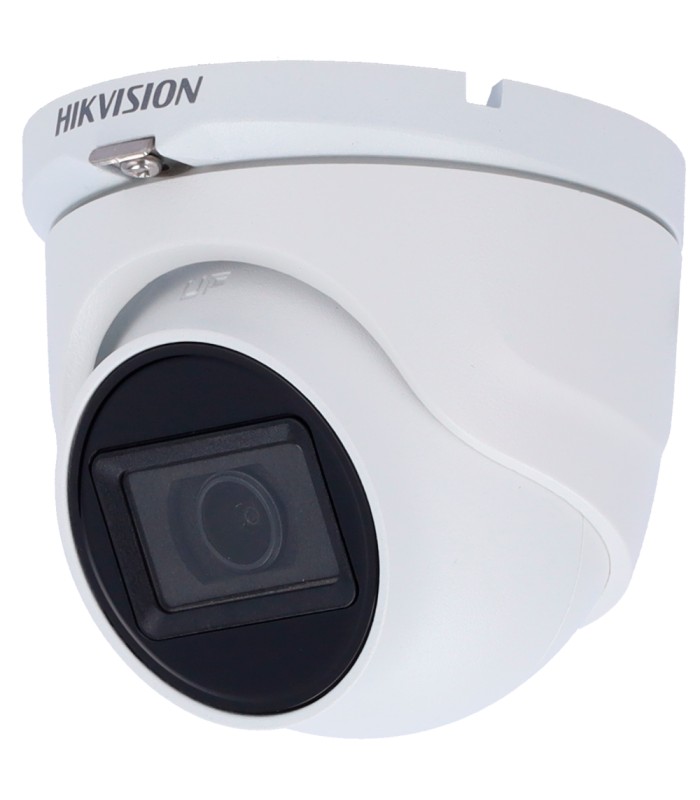

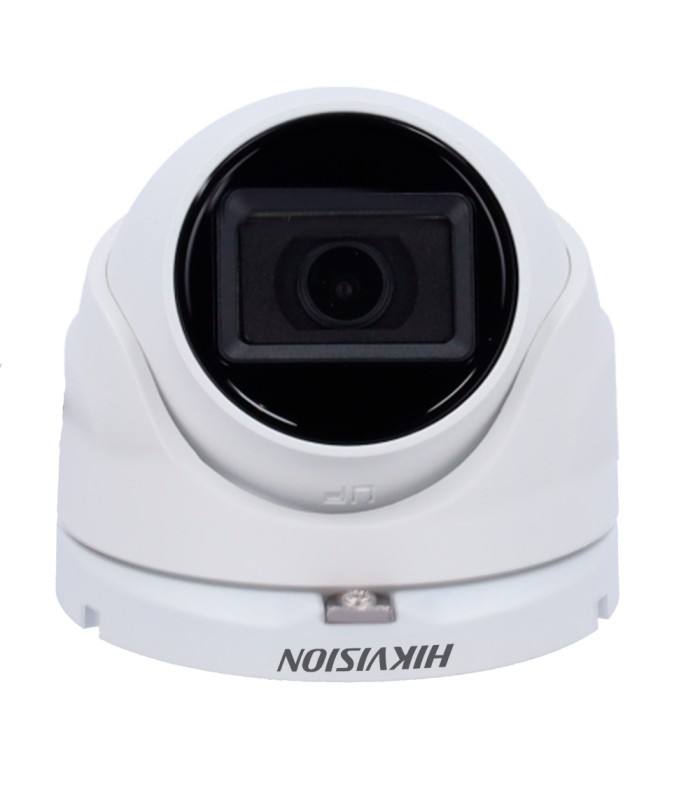

| Brand | Hikvision |
| Range | VALUE |
| Image sensor | 5 Mpx CMOS |
| Maximum resolution | 5 Megapixel (2560x1944) at 20 fps |
| Resolution | TVI: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 80º (H), 63º (V), 105º (D) |
| Minimum illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR Range 30 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

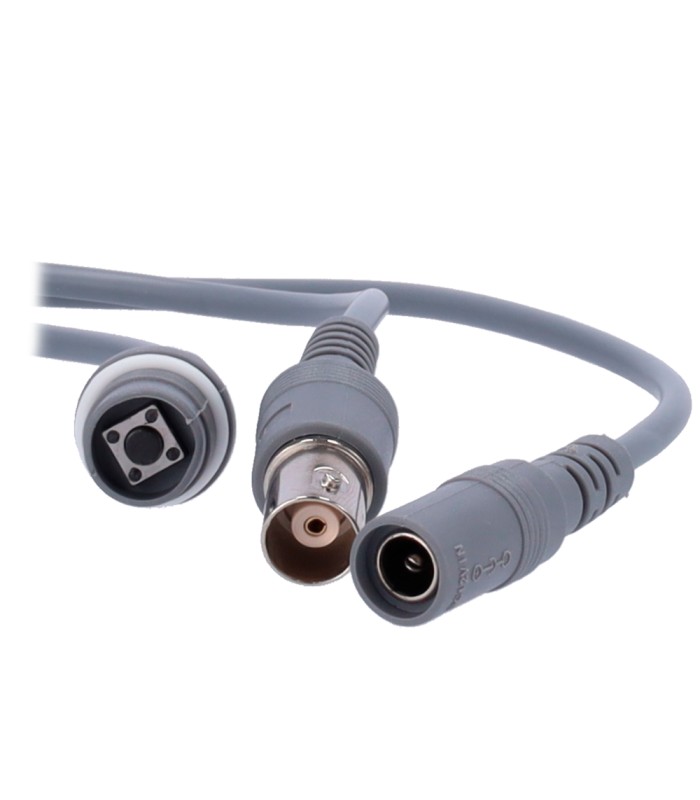

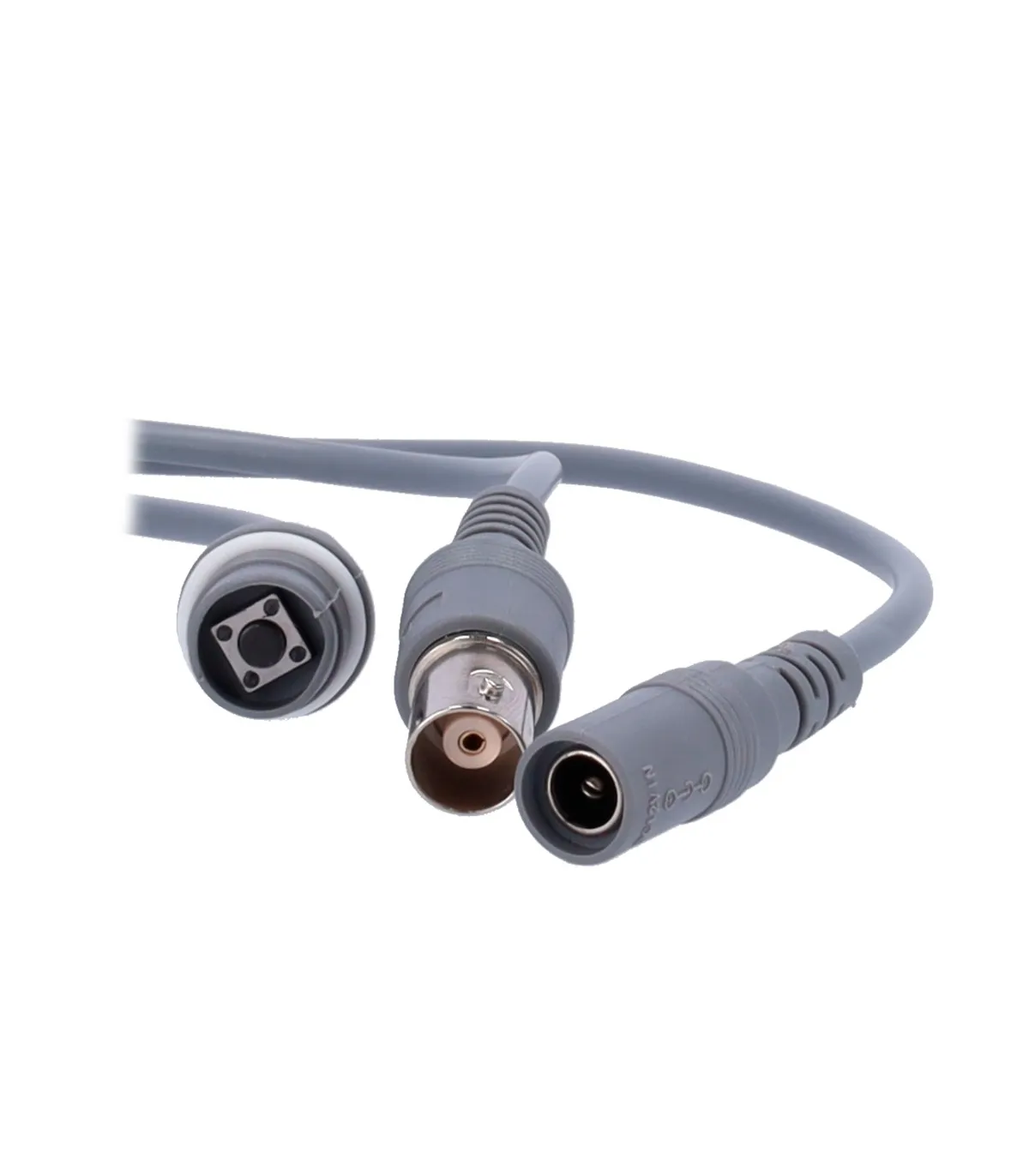

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.3 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |

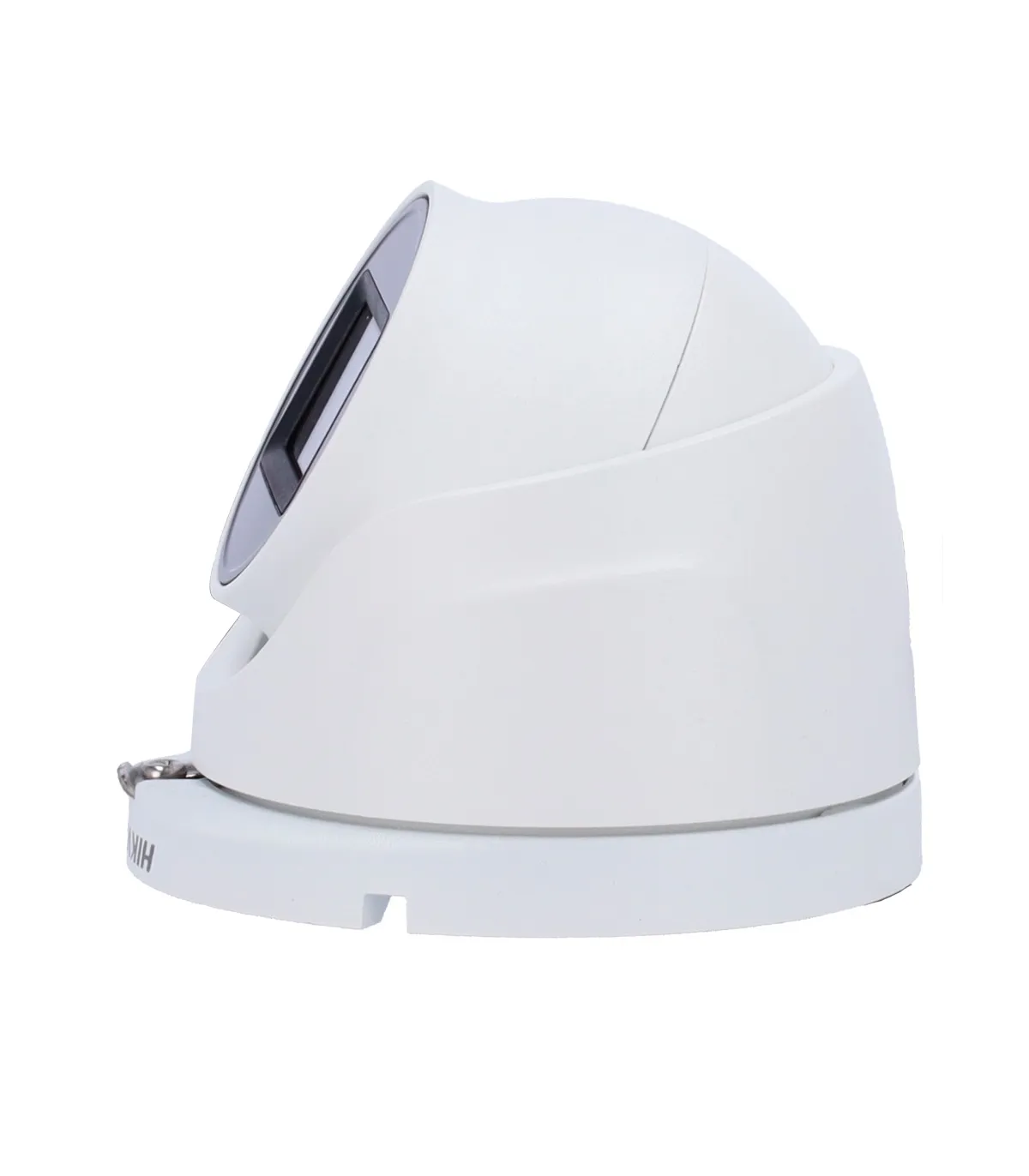

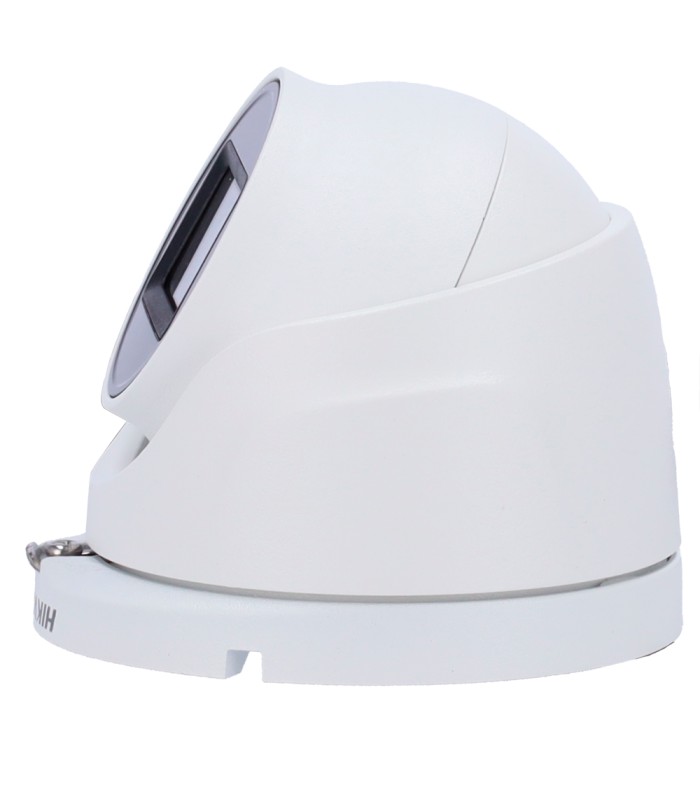

| Dimensions | Ø 82.6 mm x 79.37 mm (H) x 90 mm (Fo) |

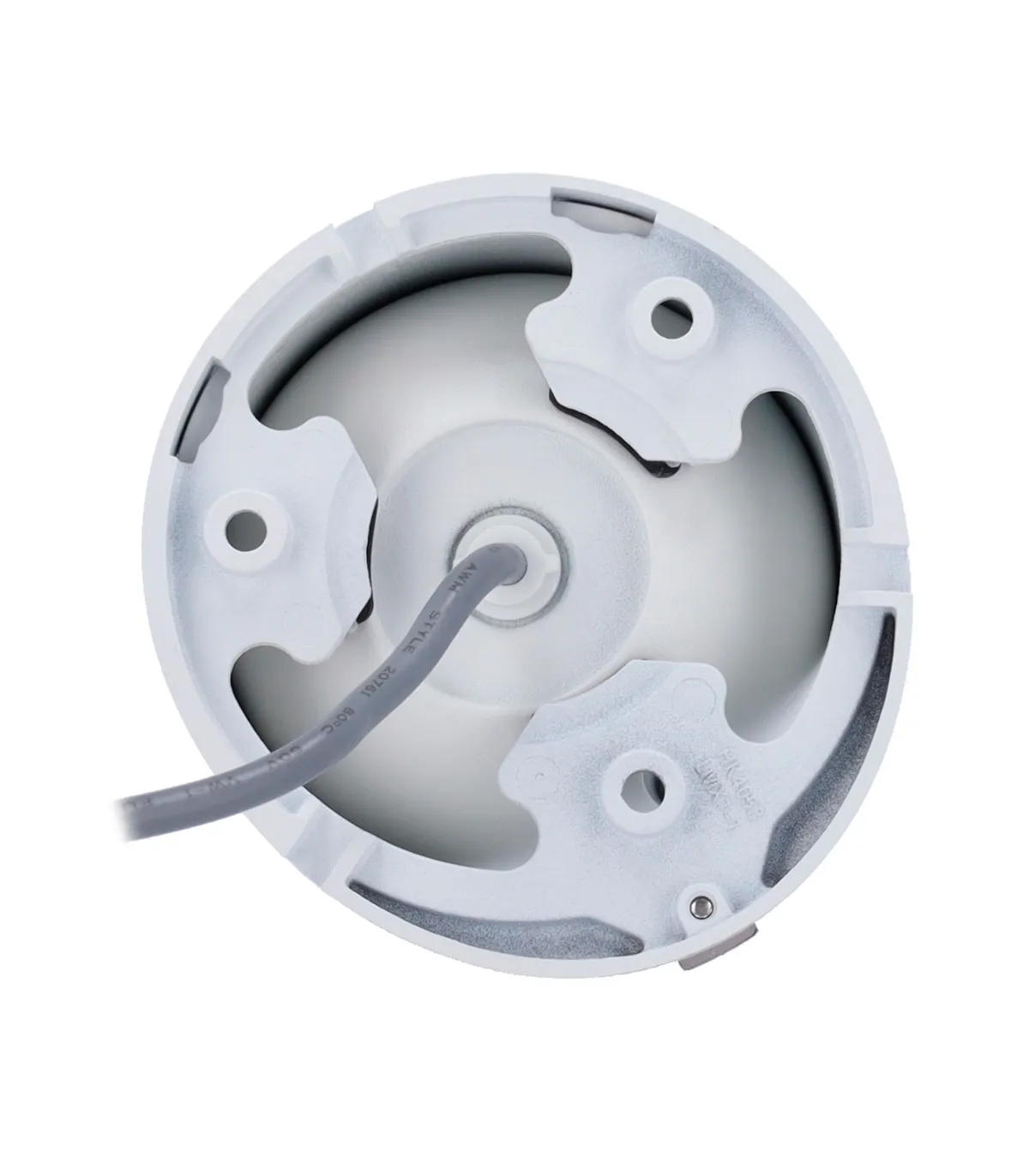

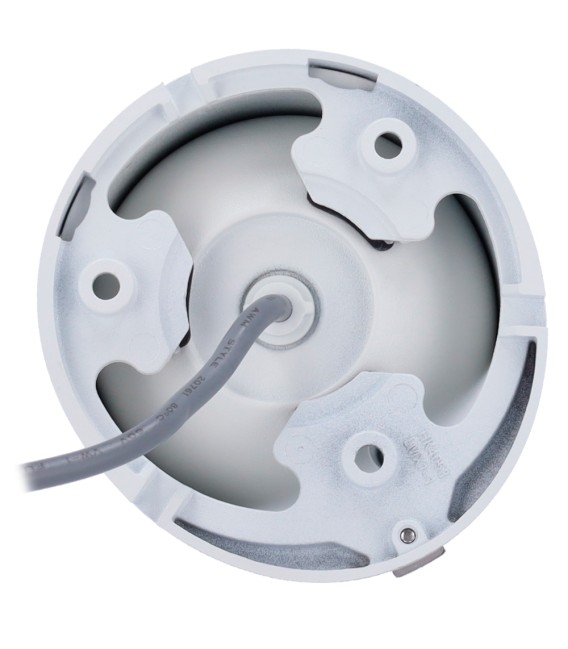

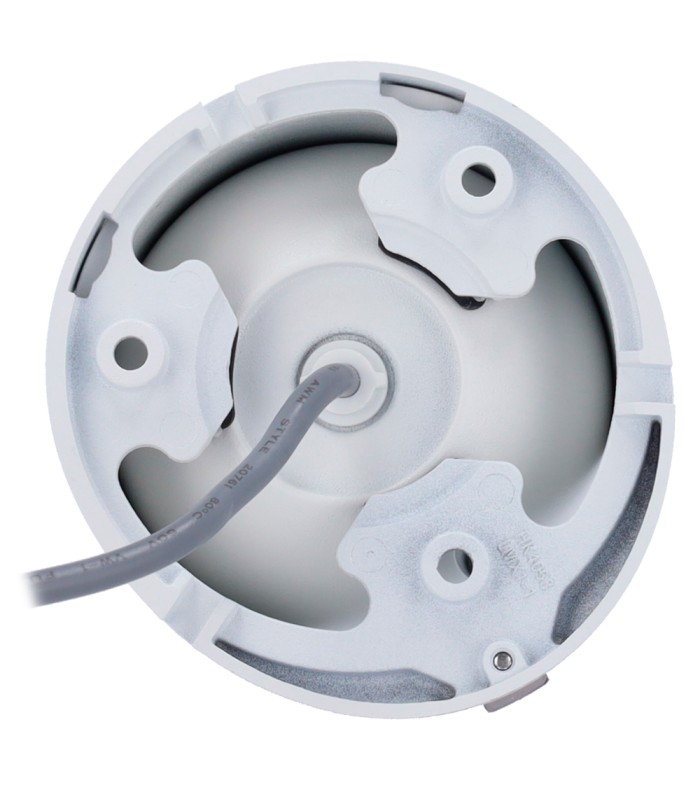

| Base diameter | Ø base 82.6 mm / Ø between screws 60 mm / 3 screws |
| Weight | 289 g |
Data sheet
