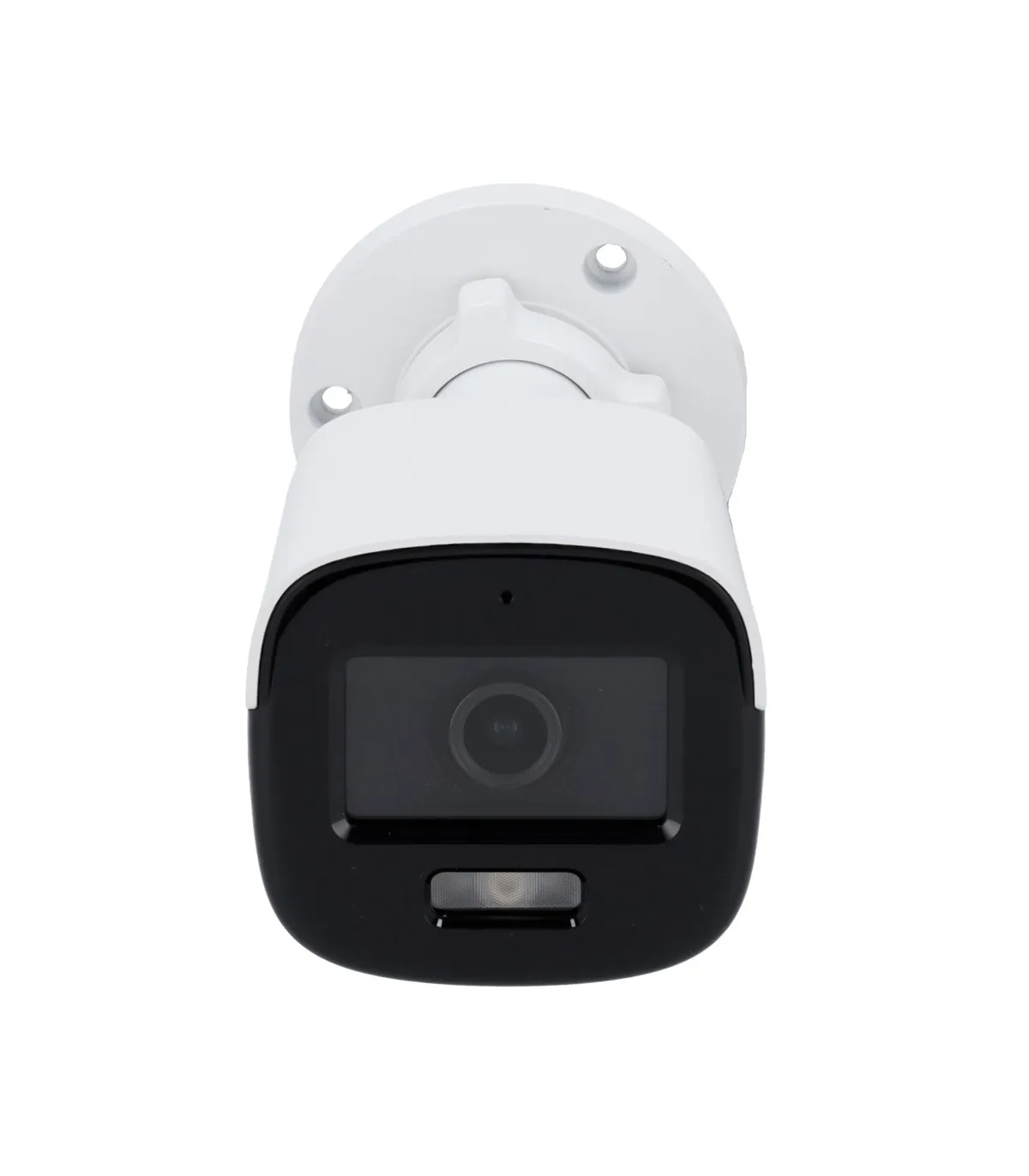

| Brand | Hikvision | |
| Gamma | VALUE | |
| Image Sensor | High Performance CMOS | |
| Maximum resolution | 3K (2960x1665) at 20 fps | |
| Resolution | TVI: 3K (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC >Angle of view (FOV) | 110º (H), 60º (V), 143º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON), 0 lux with white light range 20 m | |
| Supplementary lighting | Hybrid light: -IR range 20 m -White light range 20 m | |
| Day / Night | ColorVu: 24 hour color image | |

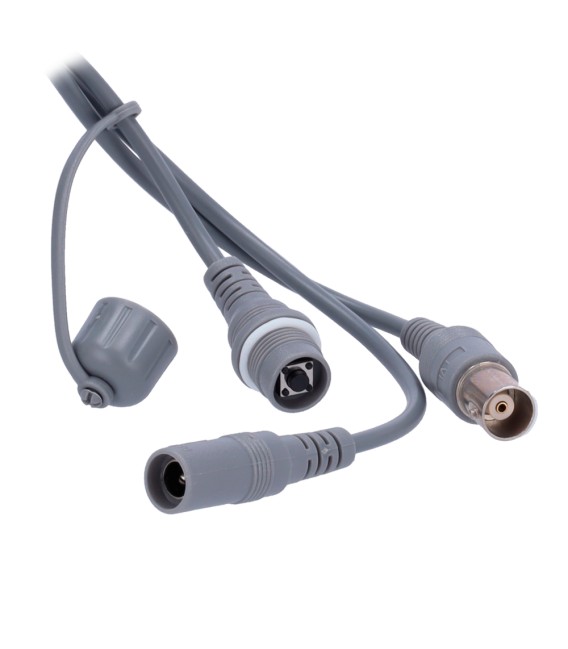

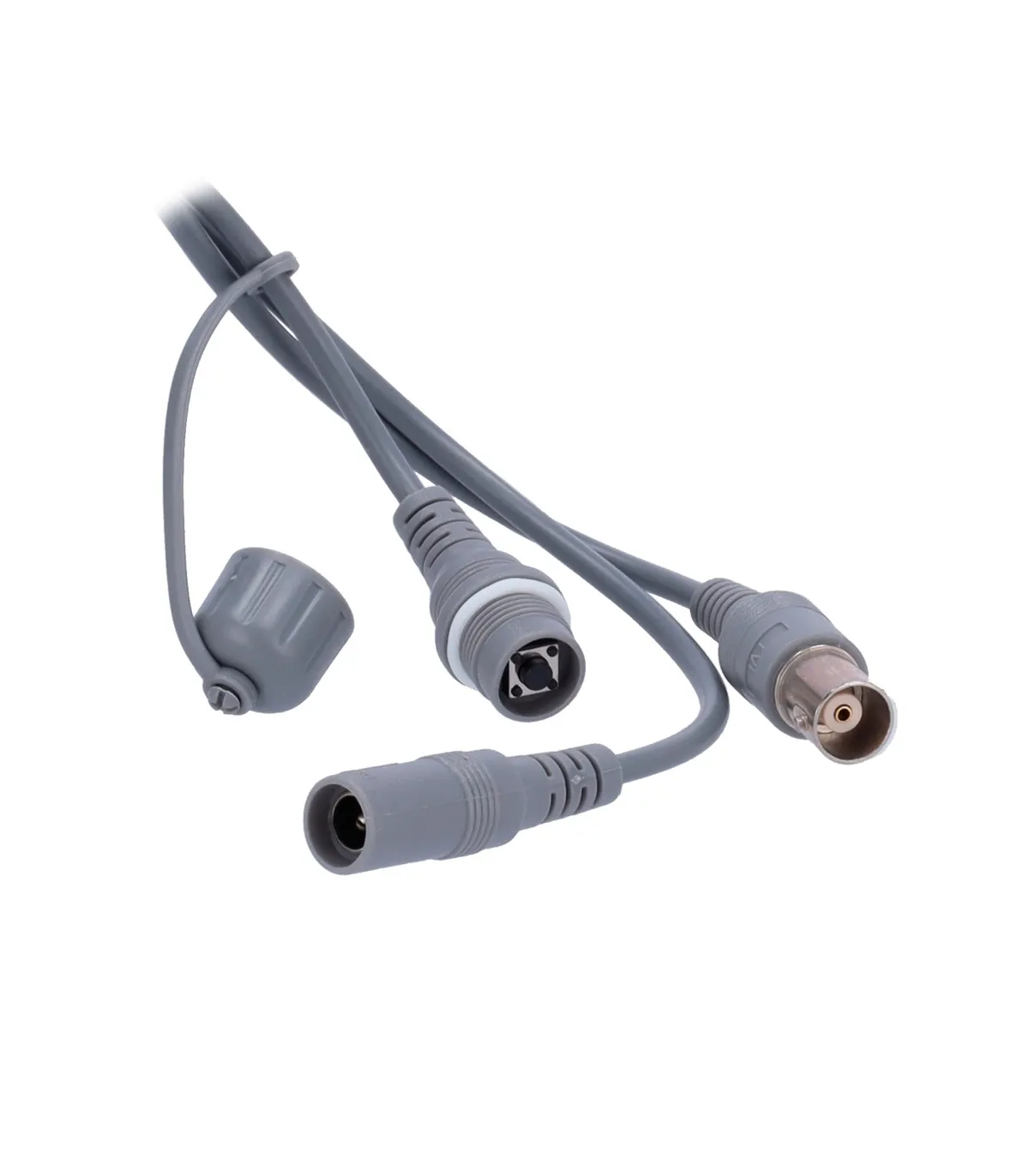

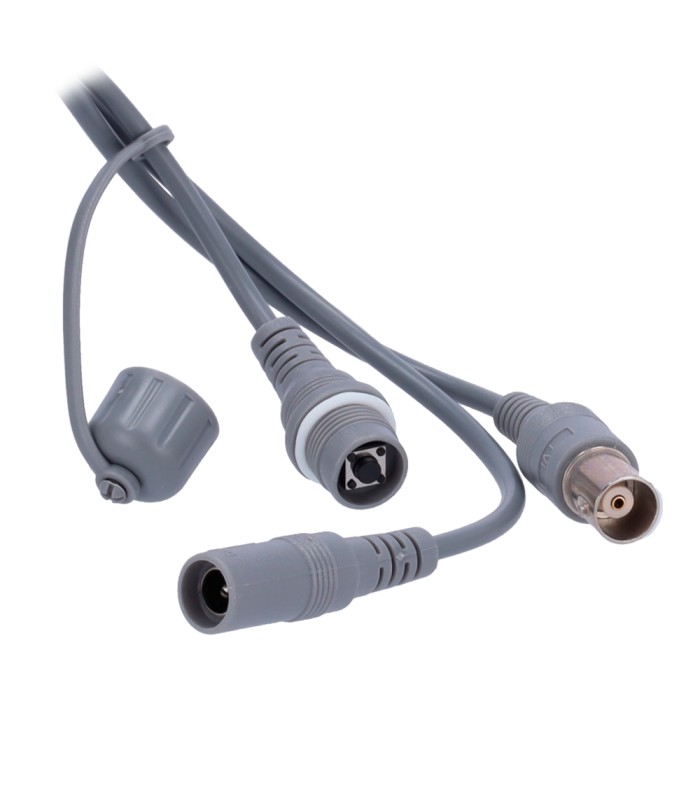

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS | |
| Switching video output video | Via Switch | |
| Audio | Integrated microphone Audio via coaxial cable in TVI technology | |
| Functions basic | OSD menu (remote) | |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Smart Light | |
| Communication | HIKVISION-C | |
| Lens Positioning | 3 Axis | |
| Power | DC 12 V / 3.9 W max. | |
| Protection grade | Waterproof IP67 | |
| Temp. operation | -40º C ~ +60º C | |
| Material | Front cover: Plastic Body: Metal | |
| Dimensions | 70 mm (H) x 70 mm (W) x 161.1 mm (D) | |

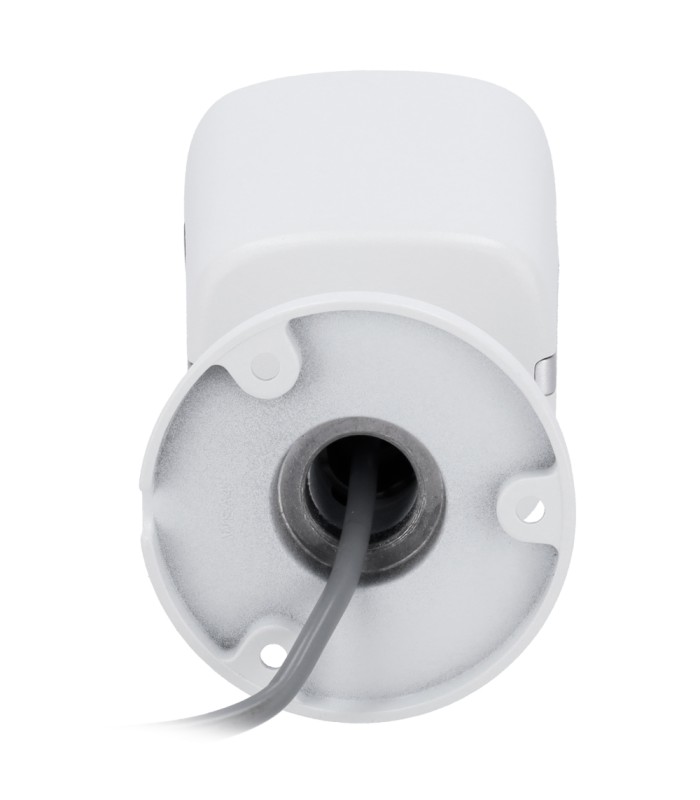

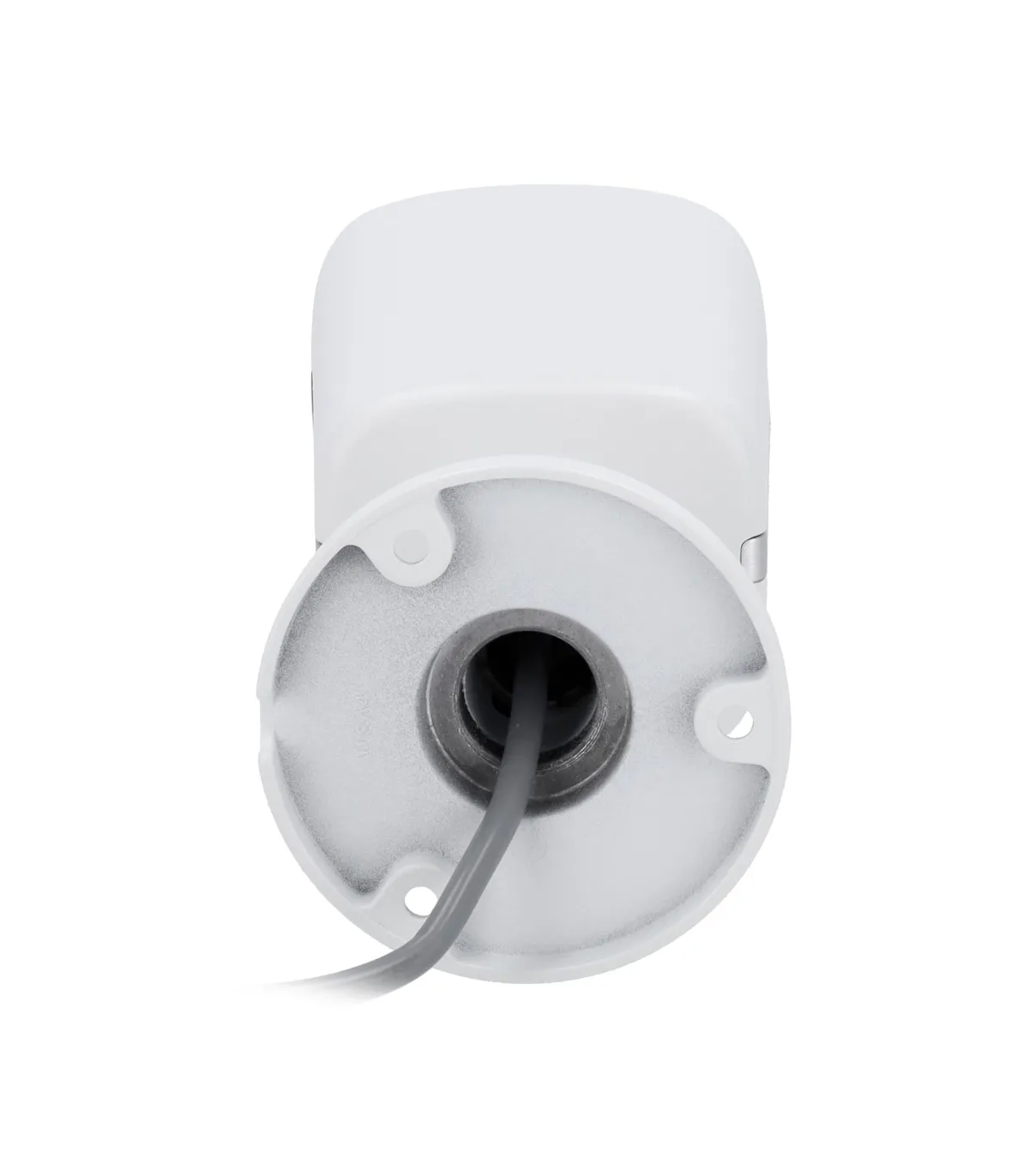

| Base dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws | |
| Weight | 400 g |
