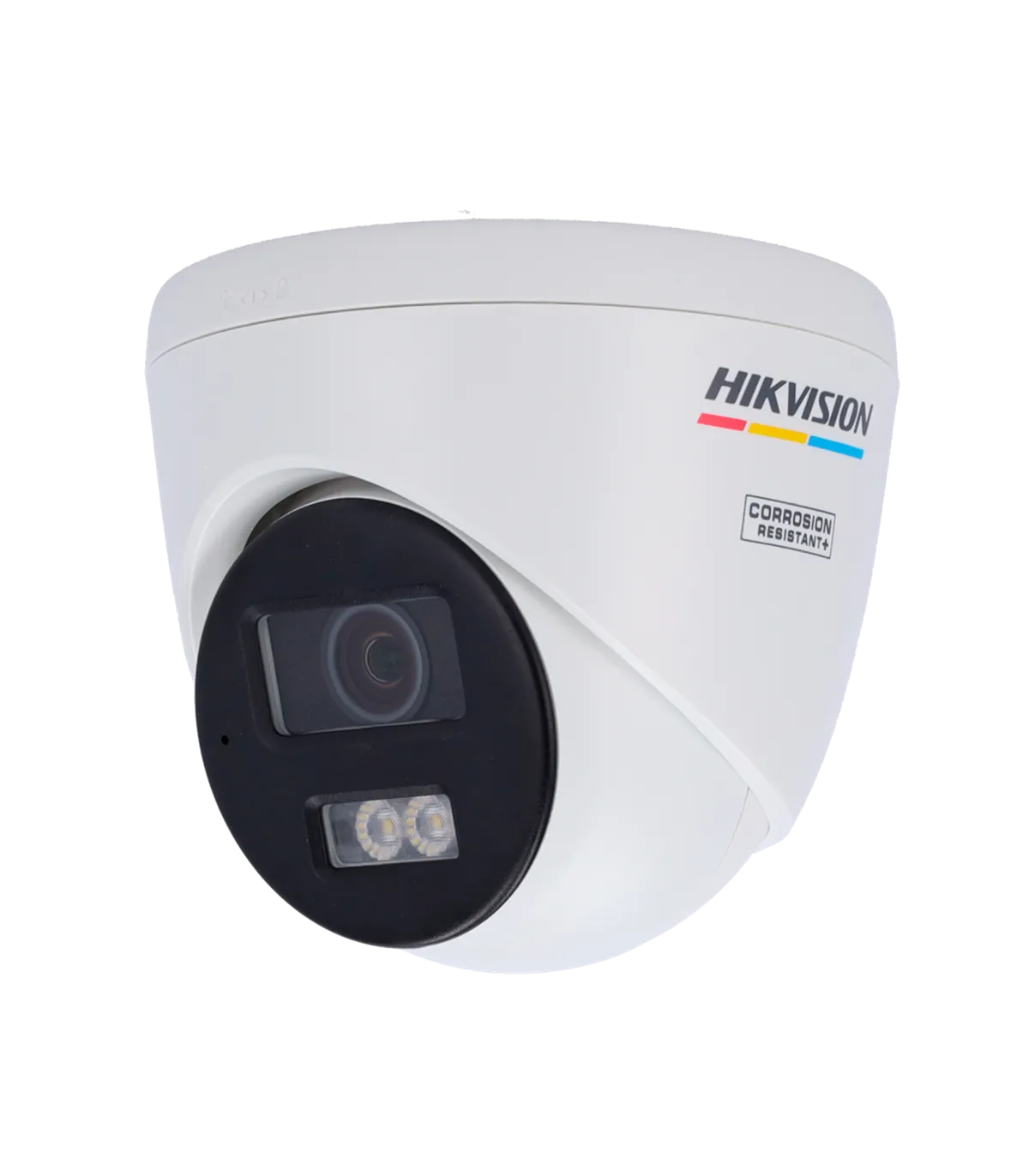

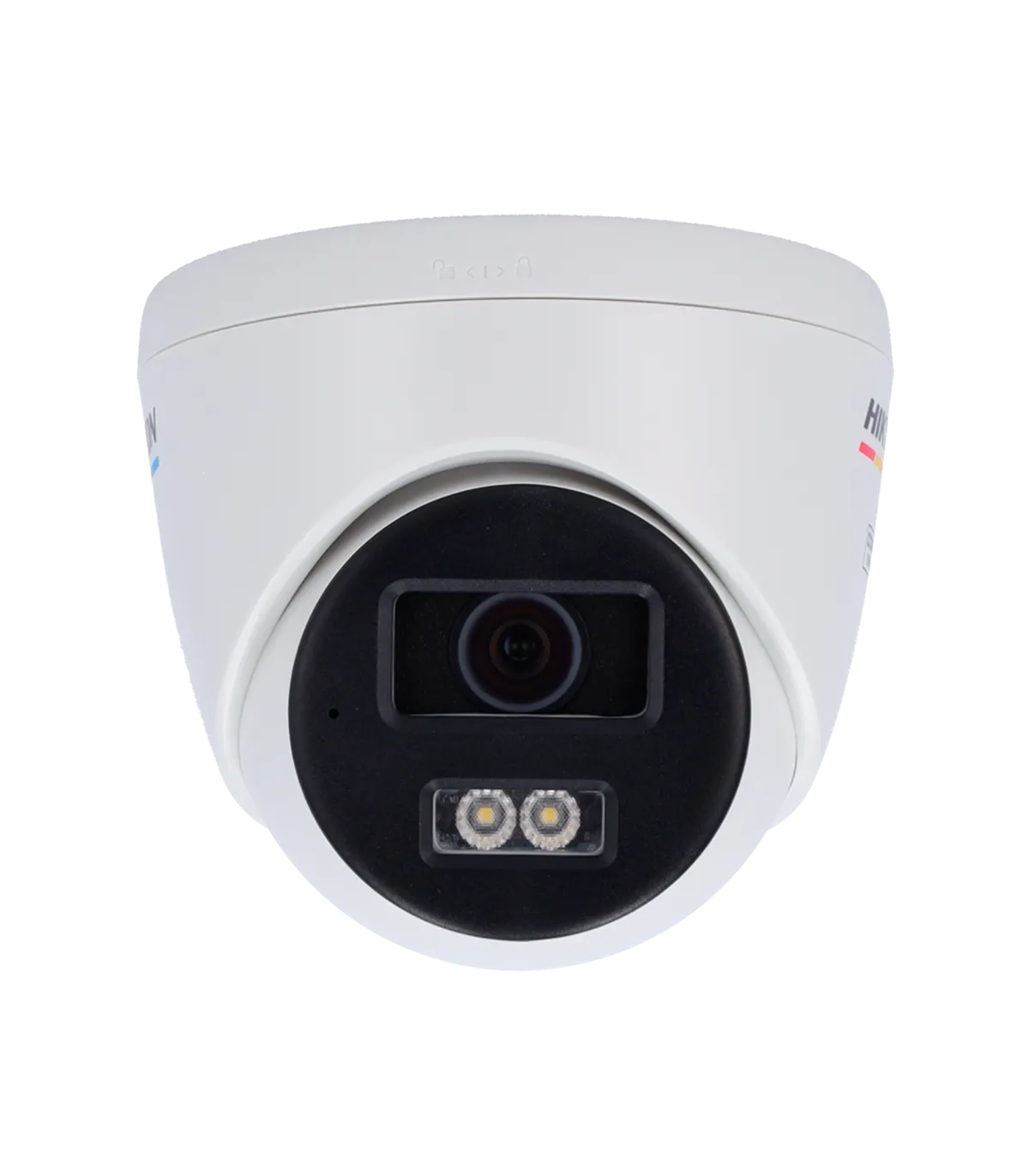

Hikvision DS-2CE72UF3T-LSYE 2.8mm HDTVI 4K ColorVu Dome Camera with 24-Hour Color Imaging IP67
- Hikvision PRO Series HDTVI Dome Camera
- 4K Resolution (3840x2160)
- 2.8 mm Lens | ColorVu: Full Color Night Vision 24/7
- Hybrid Light Range 40 m
- Integrated Microphone | Audio over Coaxial
- IP67 | NEMA4X Corrosion Resistant
Description & Key Features: DS-2CE72UF3T-LSYE(2.8mm)
The DS-2CE72UF3T-LSYE(2.8mm) is a high-performance dome camera designed for advanced surveillance applications. It is best suited for environments requiring continuous monitoring, such as retail stores, parking lots, and public spaces. This camera features 4K resolution for crystal-clear images, ensuring that every detail is captured. With its ColorVu technology, it provides vibrant color images even in low-light conditions, making it an ideal choice for 24/7 surveillance. The device is also equipped with a hybrid light system, allowing for effective illumination up to 40 meters, enhancing visibility in complete darkness.
- Hikvision
- PRO Series
- HDTVI Dome Camera
- High Performance CMOS
- 4K Resolution (3840x2160)
- HD TVI Output
- 2.8 mm Lens
- ColorVu: 24-hour color imaging
- 0 Lux
- Hybrid Light: IR and white light
- Hybrid light range 40 m
- WDR (130 dB)
- 3D DNR
- Integrated microphone
- Audio over coaxial
- IP67 Waterproof
- NEMA4X Corrosion Protection
Specifications: DS-2CE72UF3T-LSYE(2.8mm)
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 4K CMOS |
| Maximum Resolution | 4K (3840x2160) |
| Resolution | 4K (12.5~15 fps) 3K (25~20 fps) 4 MP (25~30 fps) 1080p (25~30 fps) |
| Lens | 2.8 mm |
| Field of View (FOV) | 105º (H), 60º (V), 132º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON) 0 lux with white light |
| Supplementary Lighting | Hybrid light: IR and white light IR range: 40 m White light range: 40 m |
| Video Output | 1 x BNC HDTVI |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light, Privacy Mask |
| Audio | Integrated microphone Audio over coaxial |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 6 W max. |
| Protection Rating | IP67 Waterproof NEMA 4X Corrosion Protection |
| Operating Temperature | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 110 mm x 93 mm (H) |
| Base Diameter | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 370 g |
Package Contents
- Hikvision HDTVI Dome Camera
- Mounting materials
- User instructions
Use Case
The DS-2CE72UF3T-LSYE(2.8mm) is ideal for installation in various settings, including commercial and residential environments. For instance, in a retail store, this camera can be strategically placed at entry points to provide remote monitoring capabilities, ensuring that all activities are recorded in 4K resolution. The integrated microphone allows for audio surveillance, enhancing security measures. With its IP67 waterproof rating, the camera can also be installed outdoors, providing reliable performance in adverse weather conditions. The hybrid light feature ensures that the camera captures clear images both day and night, making it a versatile choice for continuous surveillance. Additionally, the easy installation process and 3-axis lens positioning make it user-friendly for installers, ensuring optimal coverage of the monitored area.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4K
- Technology
- HD-Coaxial
- Audio
- Micrófono integrado
- Lens
- 2.8 mm
- Compatible models
- DS-1281ZJ-S,DS-1281ZJ-S,DS-1280ZJ-TR13,DS-1280ZJ-TR13,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-110-TRS,DS-1272ZJ-110-TRS
Specific References
- EAN13
- 6936422168957
