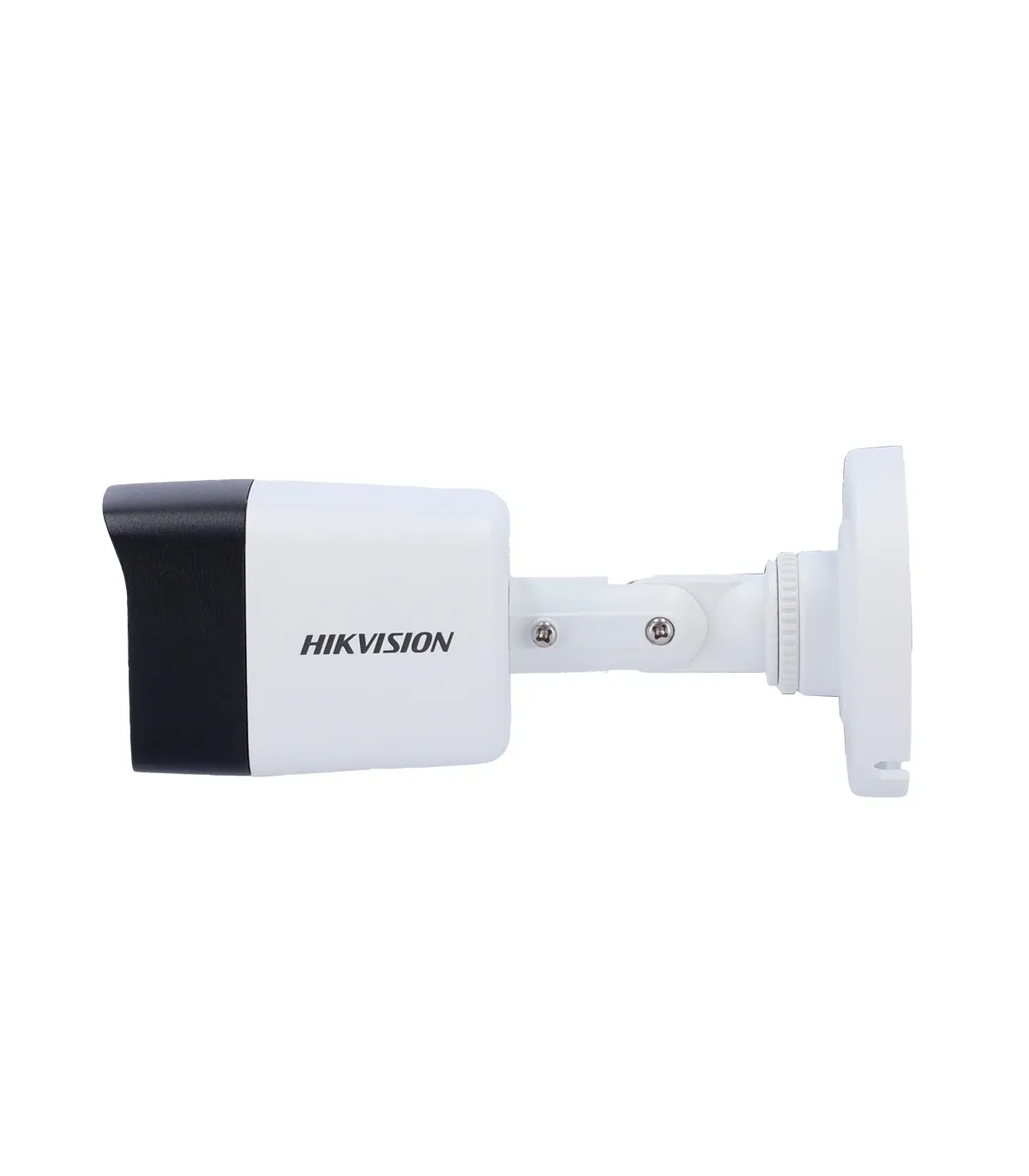

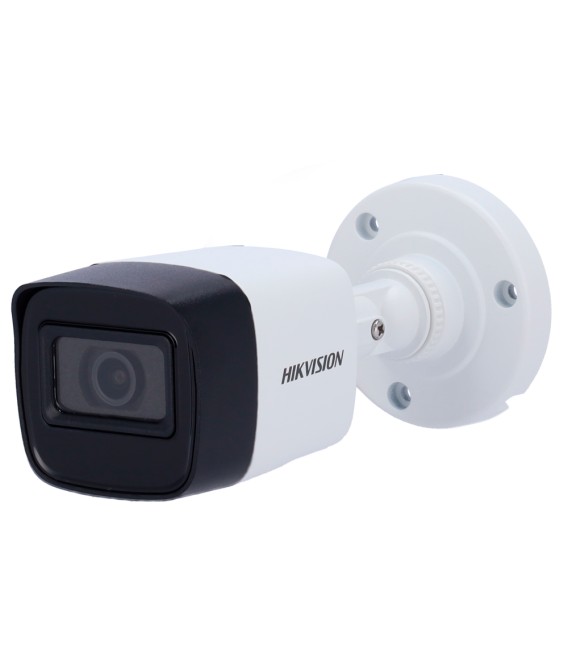

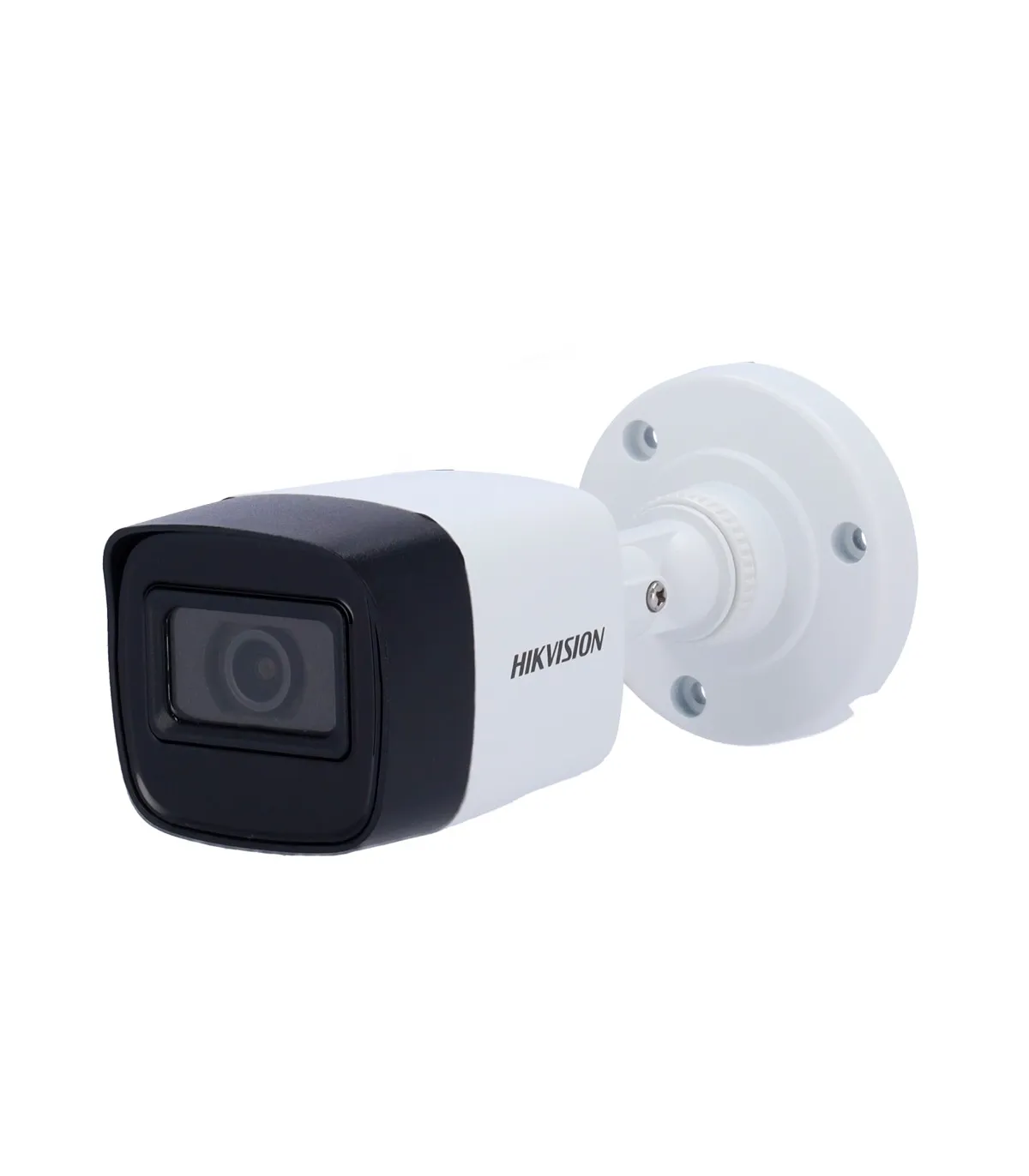

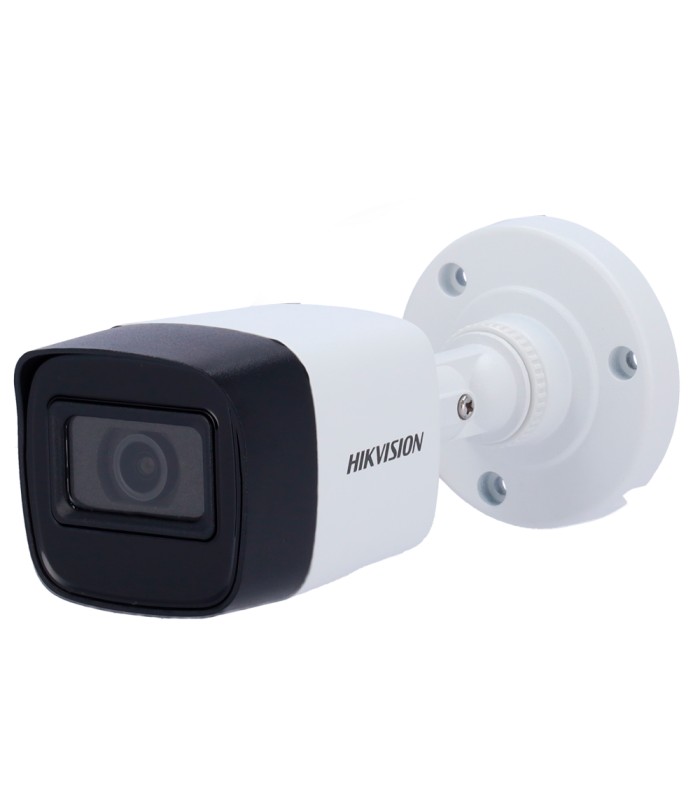

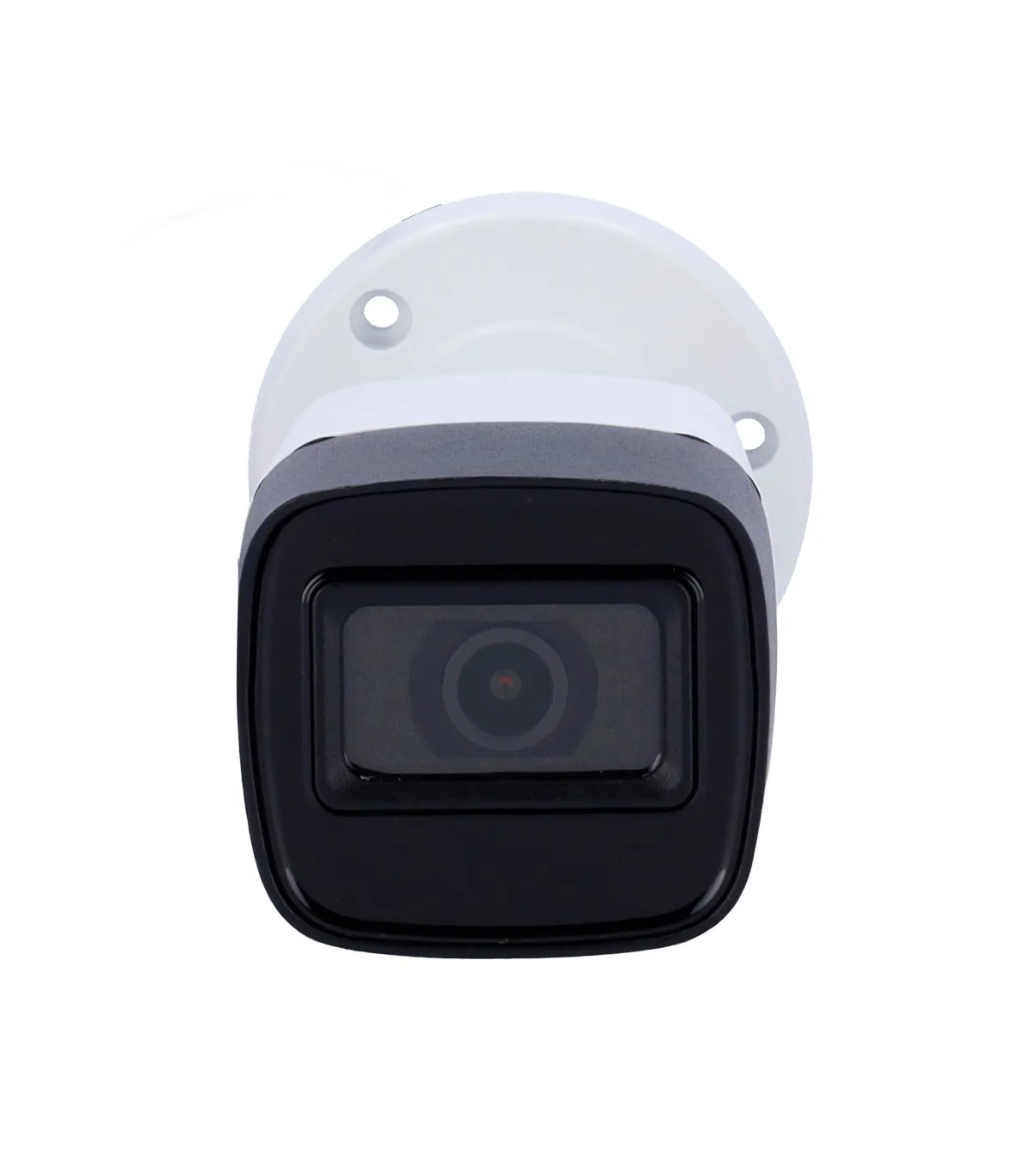

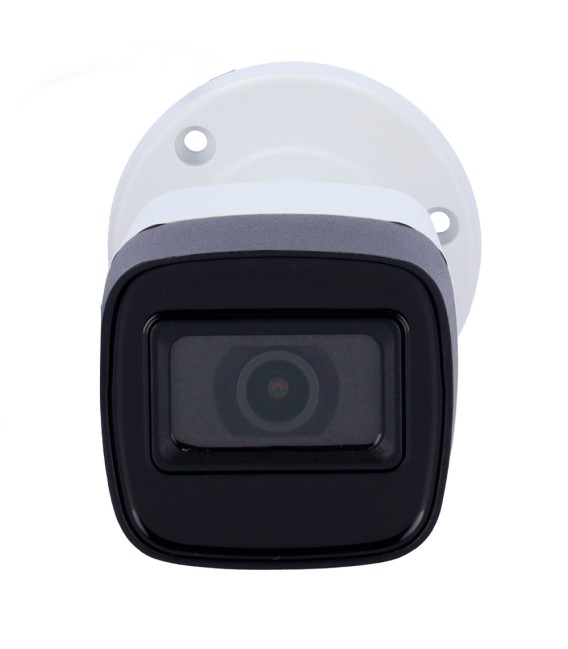

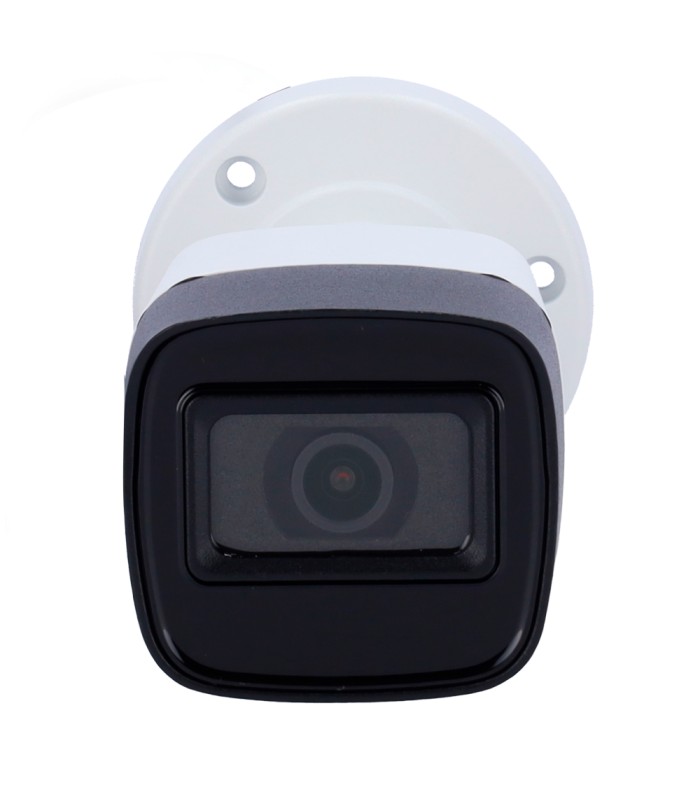

4in1 Bullet Camera Core Range Hikvision DS-2CE16D0T-ITF(3.6mm)(C)
- Hikvision
- 4in1 CORE Range Bullet Camera
- Resolution 1080p
- 3.6mm Lens
- Waterproof IP67
- EXIR IR Range 30m
€24.91
Reference:
DS-2CE16D0T-ITF(3.6mm)(C)
Brand:
4in1 Bullet Camera Core Range Hikvision DS-2CE16D0T-ITF(3.6mm)(C)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Bullet Camera
- High Performance CMOS
- 1080p (1920x1080)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- EXIR IR range 30 m
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79.6º (H), 43.5º (V), 93.7º (D) |
| Minimum illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / Smart EXIR IR Range 30 m |
| Day / Night | Auto / Color / Black and White (ICR) |

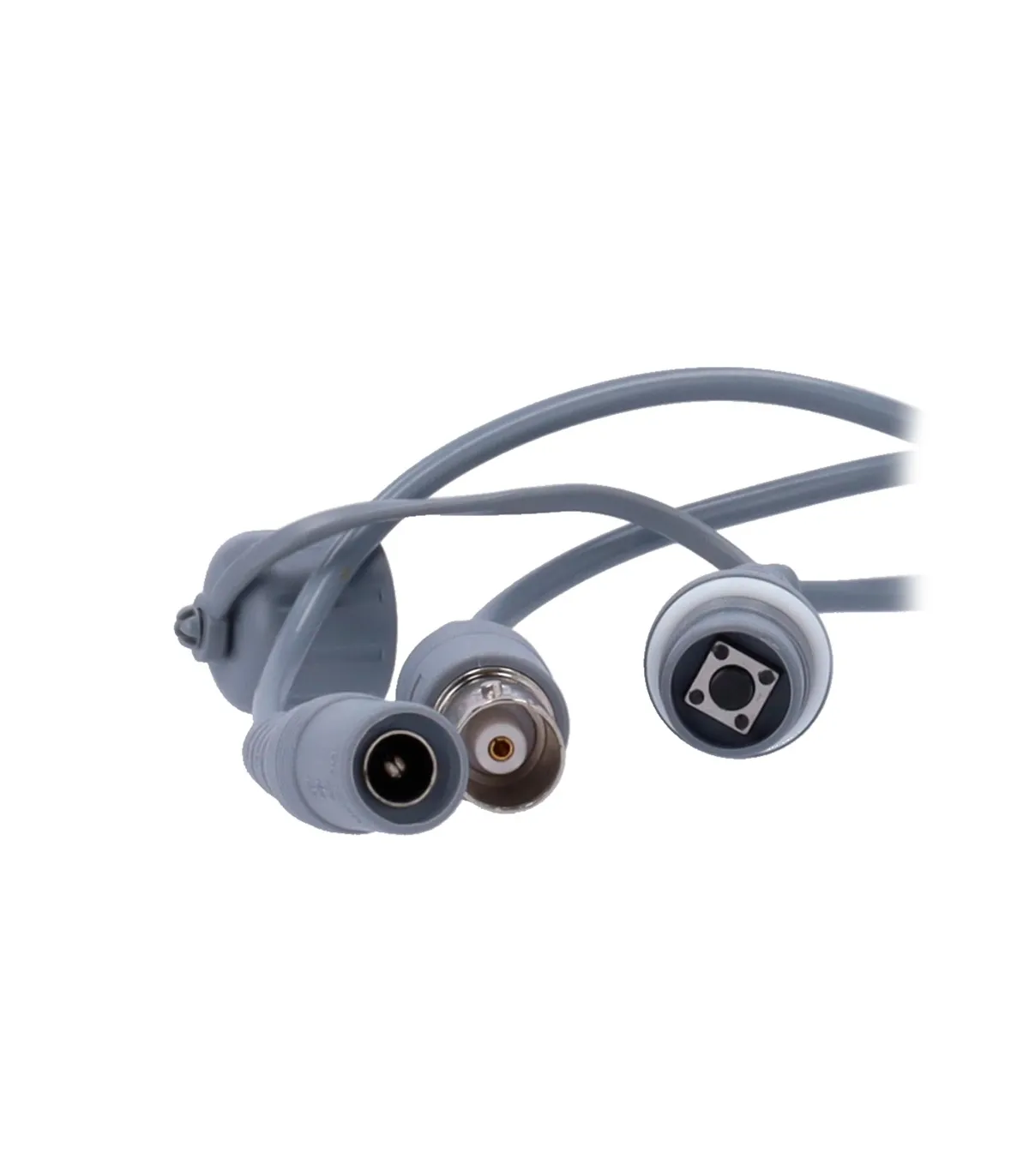

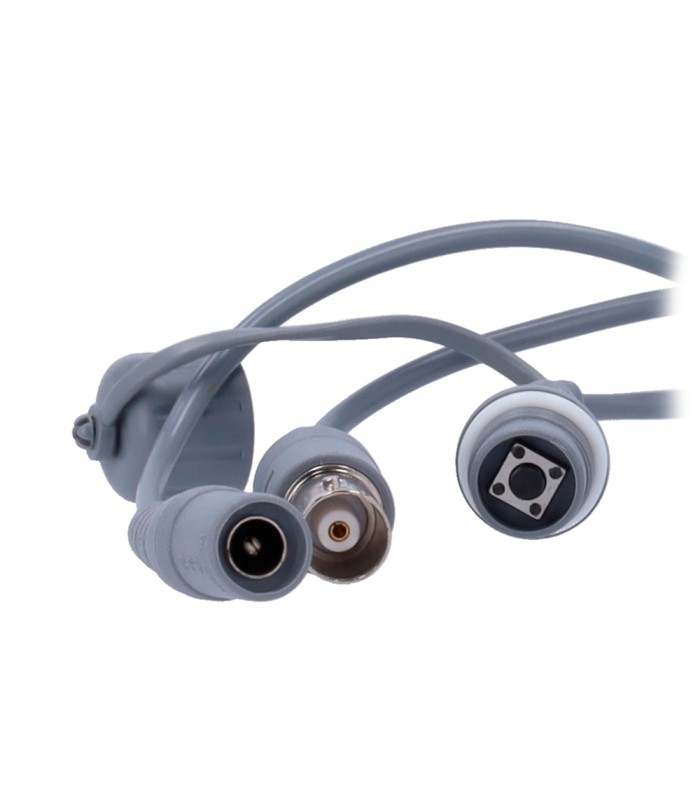

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | DWDR, BLC, HLC, 2DNR, AGC, AWB, AE, Mirror function, |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 308 mA, 3 W max |
| Degree of protection | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 57.9 (Fo) × 60.9 (W)× 138.8 (H) mm |

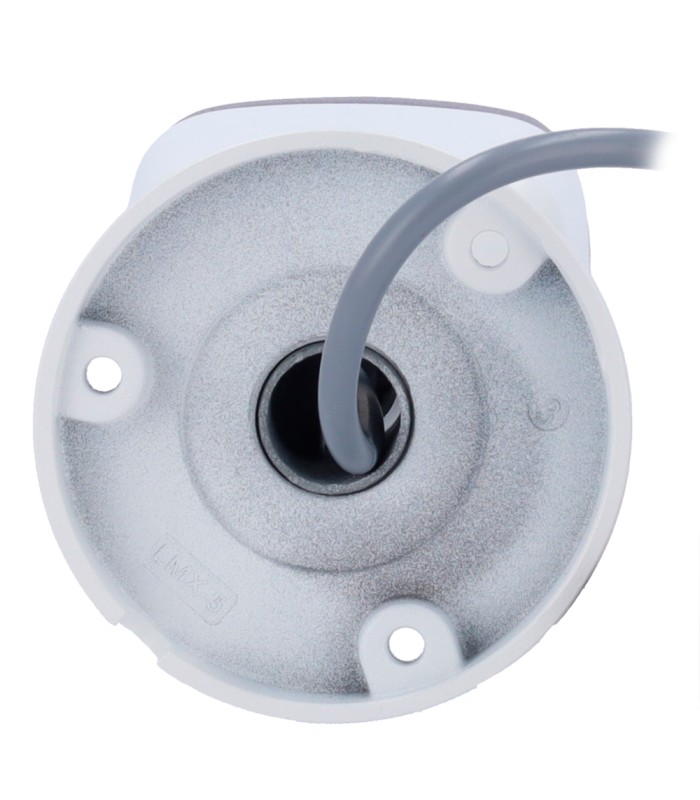

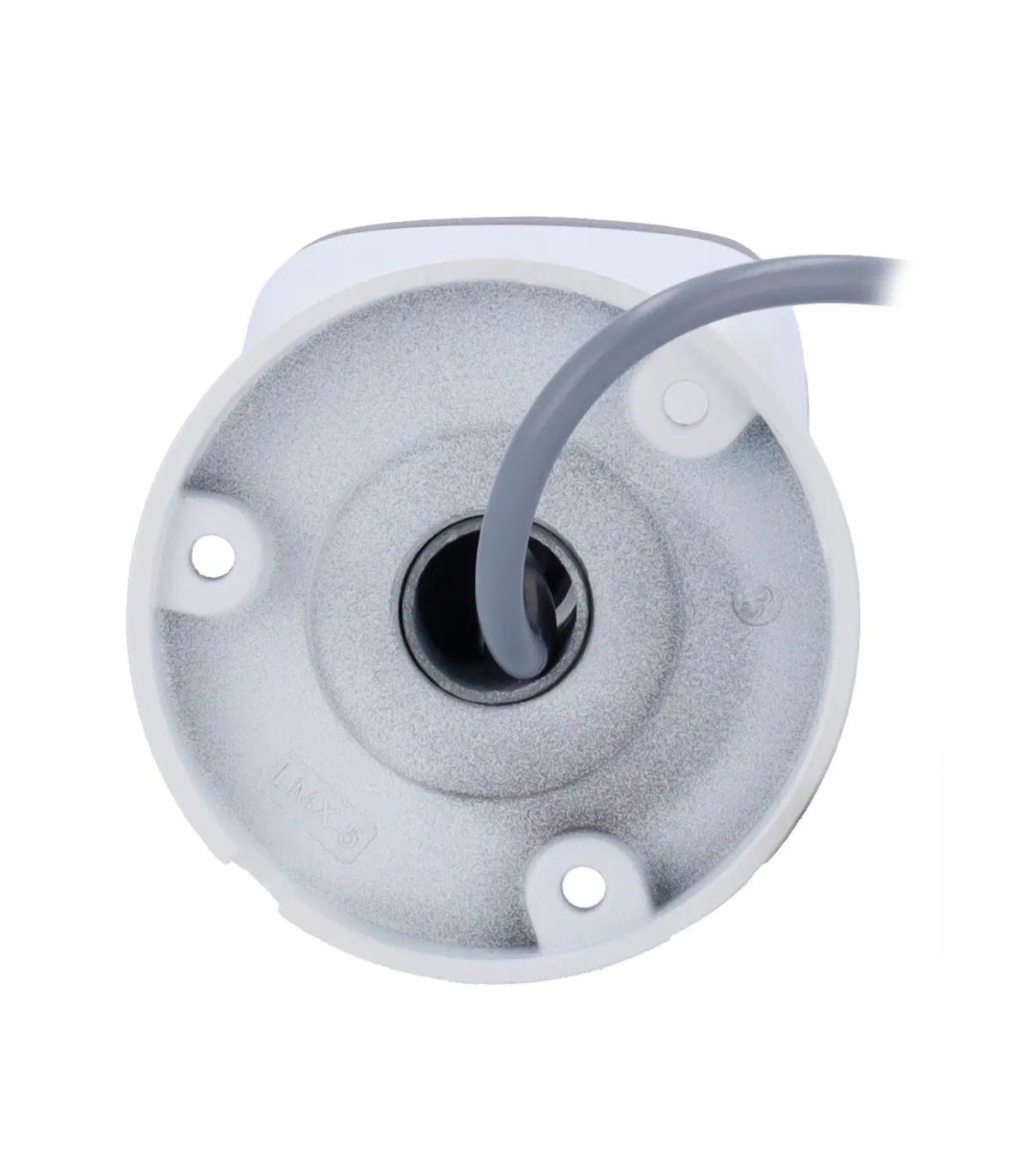

| Base diameter | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 257 g |
Contents
- Hikvision 4N1 Bullet Camera
- Mounting material
- Instructions for use
DS-2CE16D0T-ITF(3.6mm)(C)
Data sheet
- Brand
- Hikvision
- Type of camera
- Bullet
- Resolution
- 2 MP / 1080p
- Technology
- HD-Coaxial
- WDR
- Sí
- IR Distance
- 30 m
- White light
- No
- Audio
- Sin audio
- SD Slot
- Ranura MicroSD
- IP Rating
- IP67
- Use
- Outdoor
- Range
- Hikvision Pro
- Functions
- Auto seguimiento
- POE
- No
- Lens
- Fija
- Product type
- Camera
- Connectivity
- Ethernet
Specific References
- EAN13
- 6954273693688
