- Hikvision Bullet Camera 4-in-1 PRO Series
- Resolution 2 MP (1920x1080)
- Lens 3.6 mm
- White Light Range 20 m
- ColorVu: 24-hour Full Color Night Vision
- IP67 Waterproof | Integrated Microphone

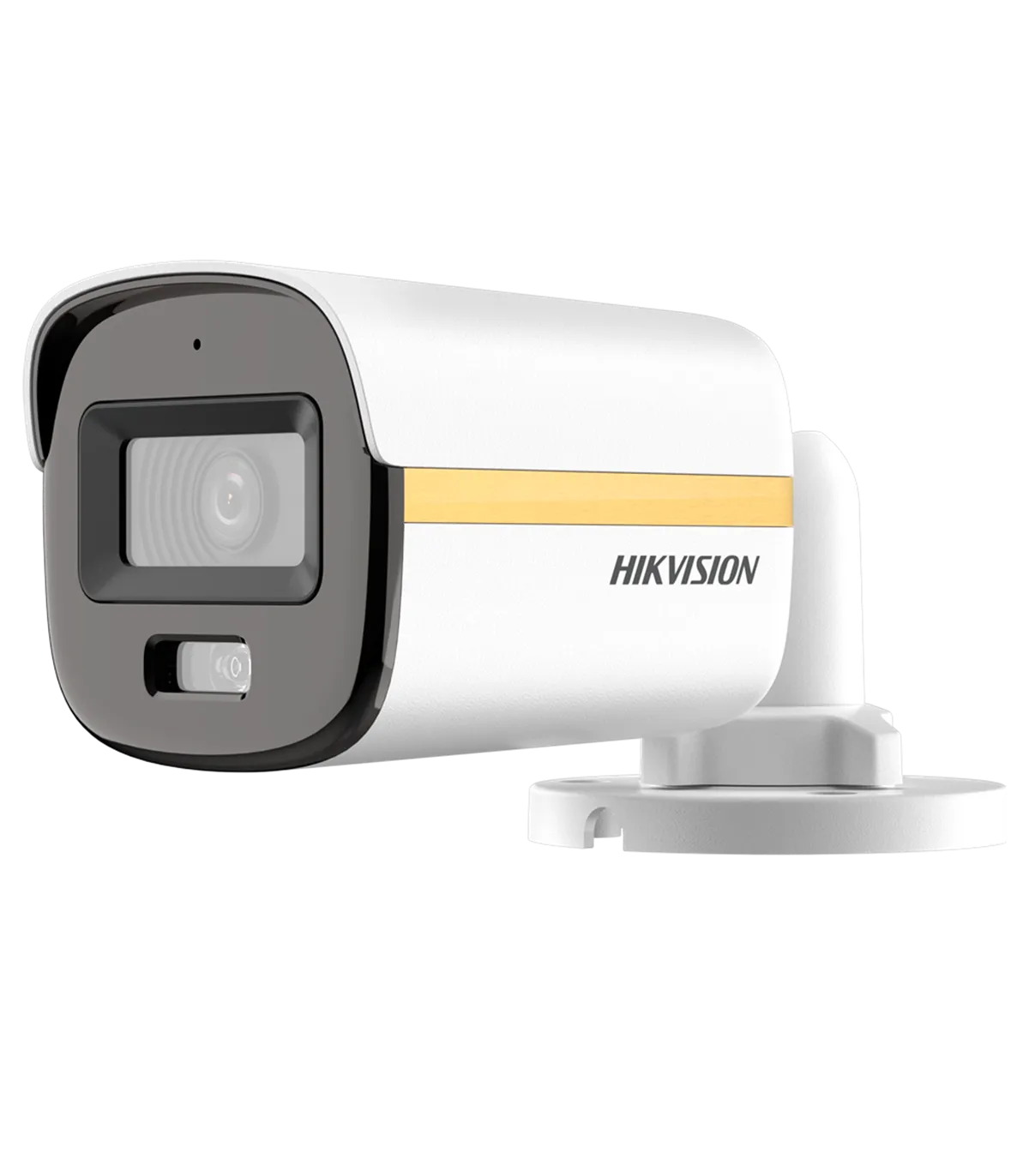

Description & Key Features: DS-2CE10DF3T-FS(3.6mm)
The DS-2CE10DF3T-FS(3.6mm) is a high-performance bullet camera designed for versatile surveillance applications. Ideal for both residential and commercial environments, this camera offers exceptional image quality with its 2 MPx resolution and ColorVu technology, ensuring clear color images even in low-light conditions. With features such as IP67 waterproofing and a 3.6 mm lens, it is well-suited for outdoor installations, providing reliable security monitoring around the clock.
- Hikvision
- PRO Series
- Bullet Camera HDTVI, HDCVI, AHD, and CVBS
- High Performance CMOS
- Resolution 2 MPx (1920x1080)
- 4-in-1 Output
- 3.6 mm Lens
- 0 Lux
- White Light
- White Light Range 20 m
- ColorVu: 24-hour color imaging
- WDR (130 dB)
- 3D DNR
- Integrated Microphone
- Audio over coaxial cable using TVI technology
- Waterproof IP67
Specifications: DS-2CE10DF3T-FS(3.6mm)
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | High Performance CMOS |
| Maximum Resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080P@25/30fps, CVI: 1080P@25/30fps, AHD: 1080P@25/30fps, CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Field of View (FOV) | 77º (H), 42º (V), 91º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 lux with white light range 20 m ColorVu: 24-hour color imaging |
| Day/Night | Color |
| Supplementary Lighting | White light range 20 m |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, AGC, AWB, 3DNR, Smart Light, Mirror Effect |
| Audio | Integrated Microphone Audio over coaxial cable using TVI technology |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 4.2 W max. |
| Protection Rating | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 65.2 mm (H) x 68.4 mm (W) x 161.1 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 388 g |
Package Contents
- Hikvision PRO 4-in-1 Bullet Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE10DF3T-FS(3.6mm) bullet camera is an excellent choice for installers looking to enhance security in various settings. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer activity and deter theft. With its 24-hour color imaging capability, users can maintain visibility even in low-light conditions, ensuring comprehensive surveillance. The IP67 waterproof rating makes it suitable for outdoor installations, protecting it from harsh weather. Additionally, the integrated microphone allows for audio monitoring, providing a complete security solution. The camera's 3D DNR technology ensures clear images by reducing noise, making it ideal for high-traffic areas. Overall, the DS-2CE10DF3T-FS(3.6mm) offers a robust and reliable option for effective security monitoring.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- HD-Coaxial
- WDR
- WDR (130 dB)
- Audio
- Micrófono integrado
- Lens
- 3.6 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6941264047599
