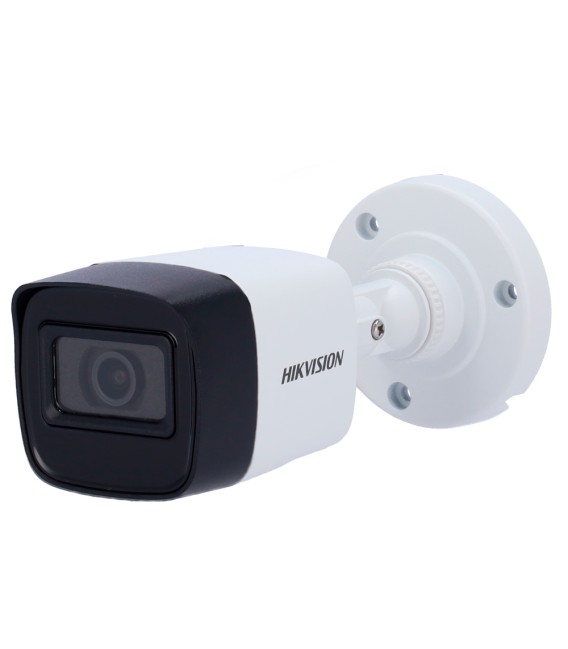

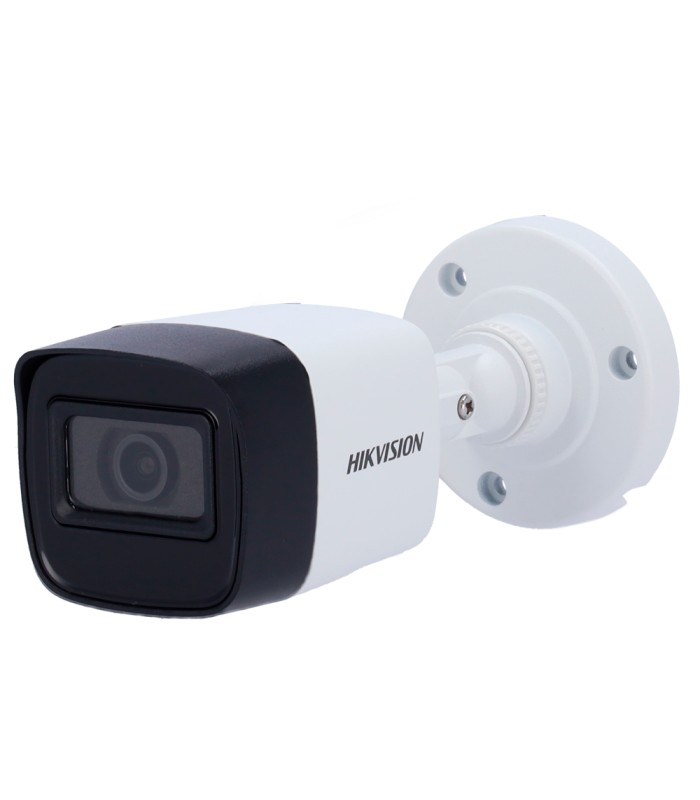

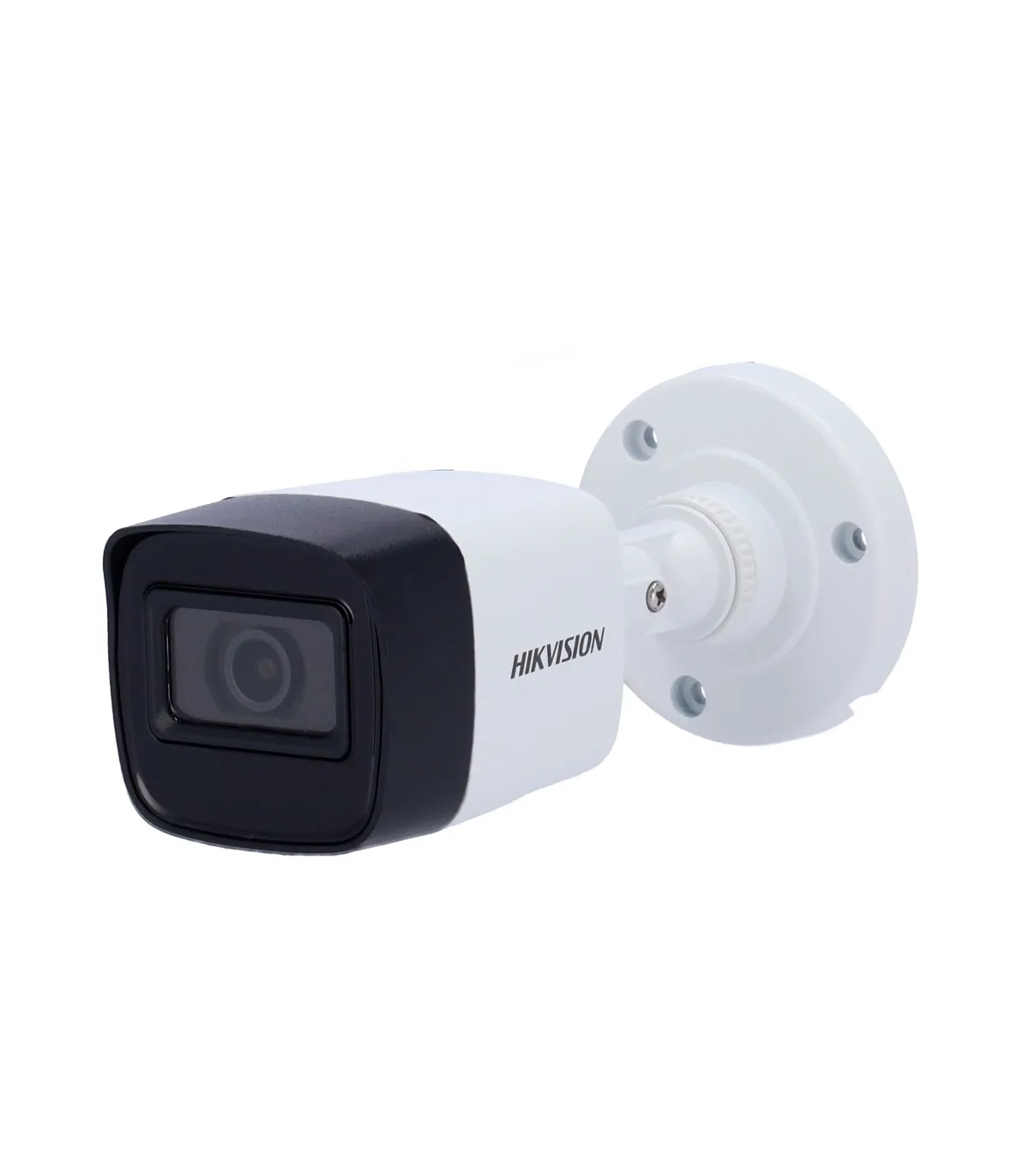

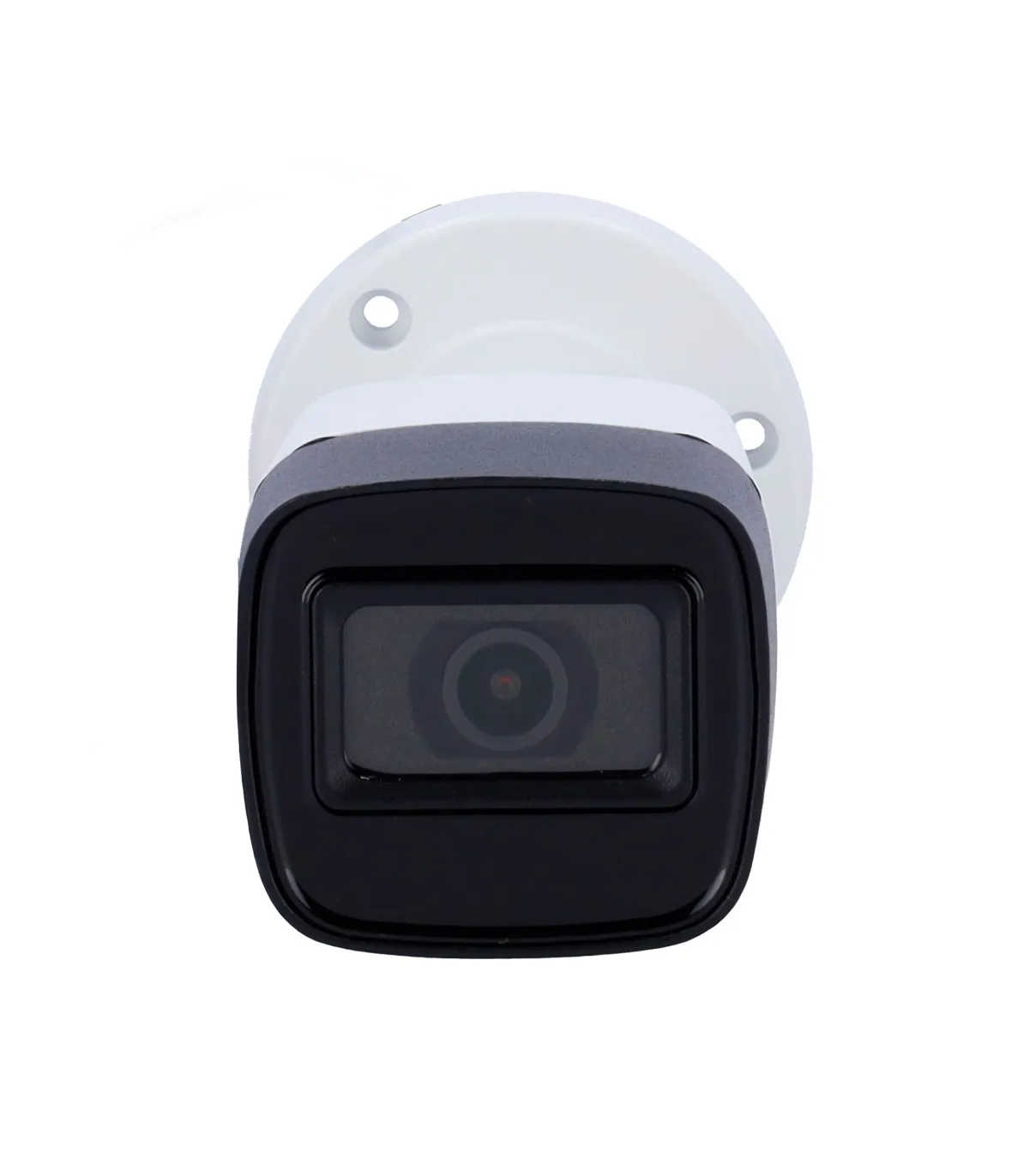

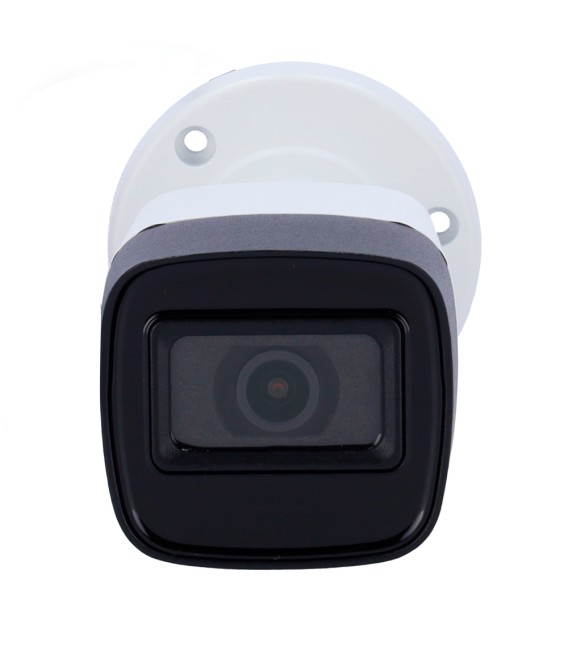

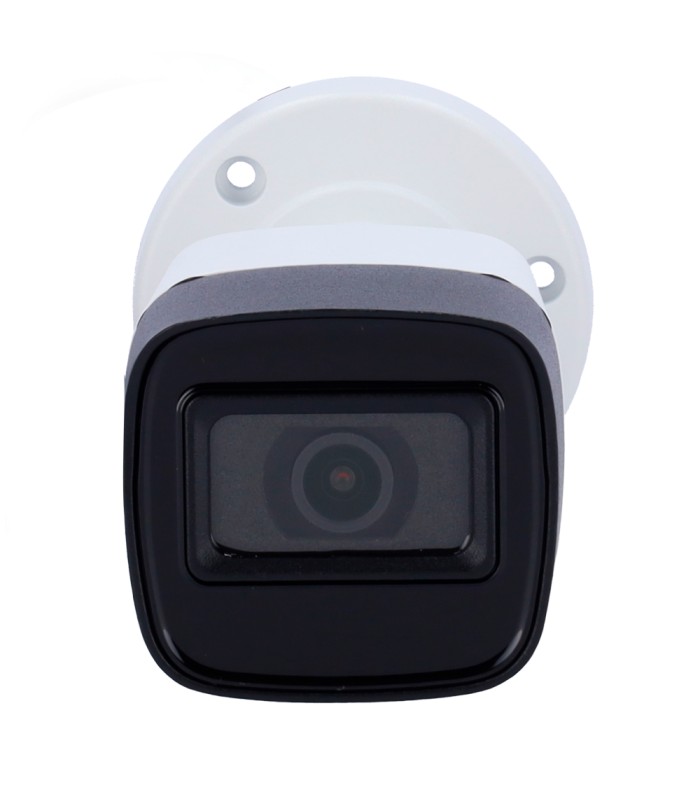

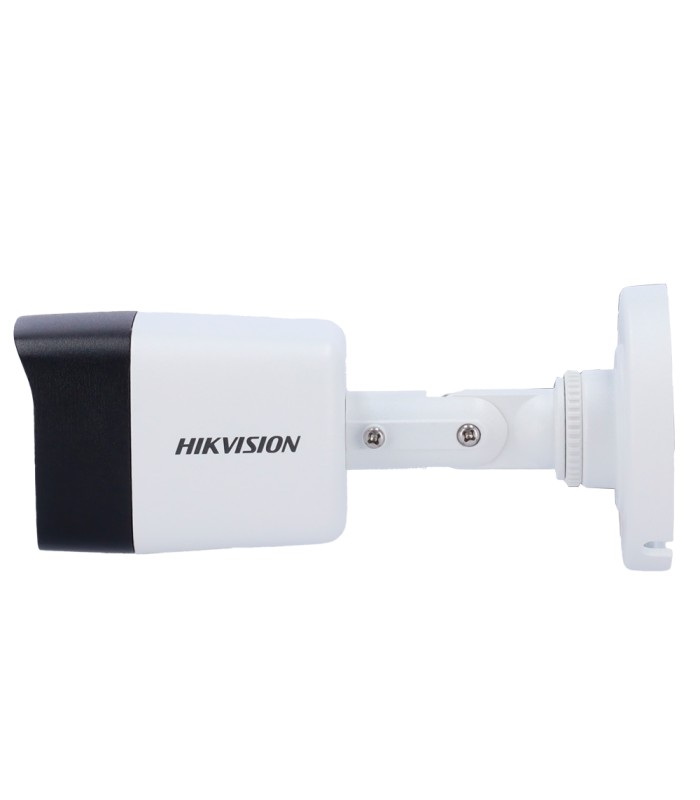

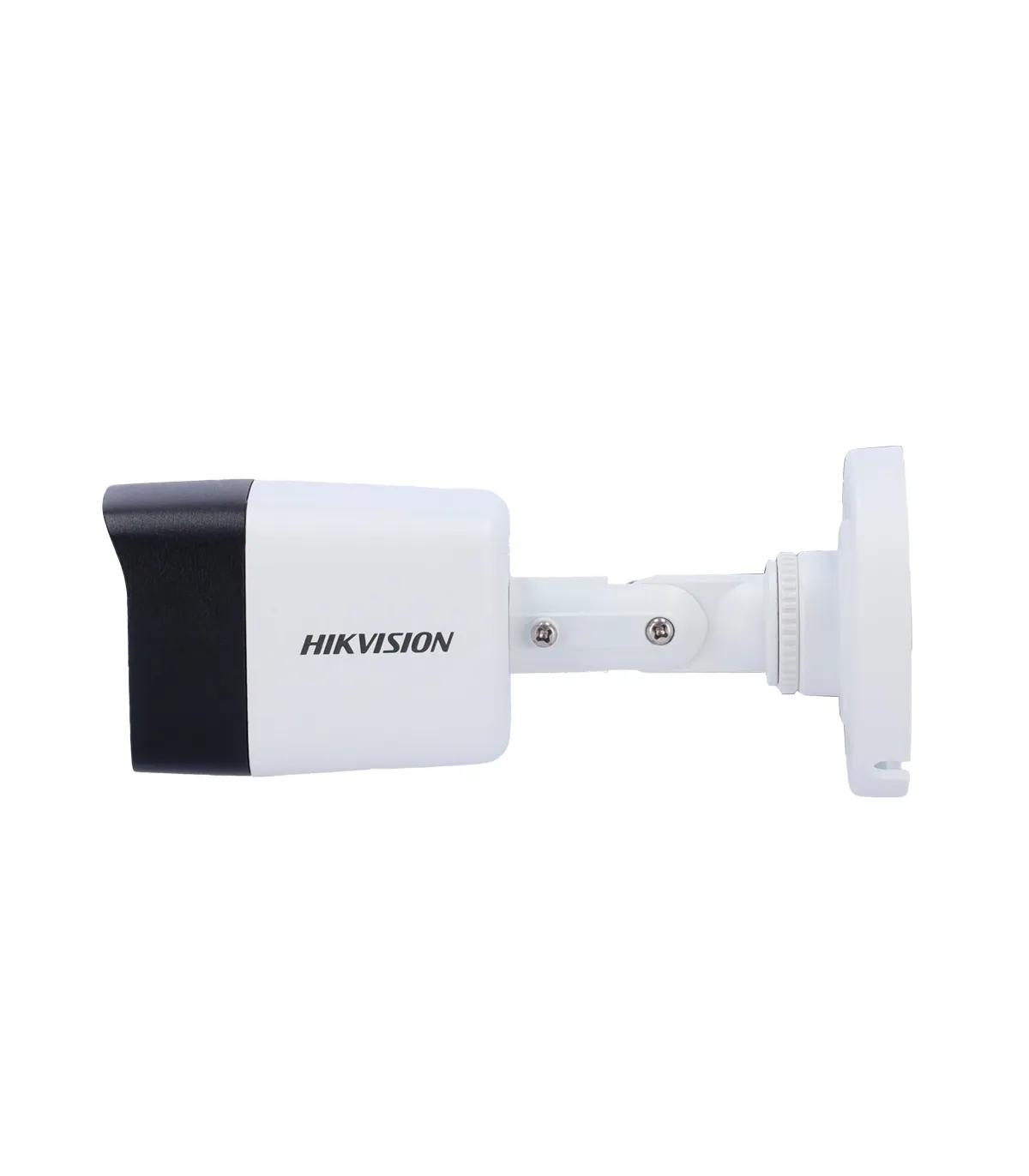

4in1 Bullet Camera Core Range Hikvision DS-2CE16H0T-ITF(3.6mm)(C)
Brand: HIKVISION VALUE
- Hikvision
- Bullet Camera 4in1 CORE Range
- 5 Megapixel Resolution
- 3.6 mm Lens
- IR Range 30 m
- Waterproof IP67
4in1 Bullet Camera Core Range Hikvision DS-2CE16H0T-ITF(3.6mm)(C)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Bullet Camera
- High Performance CMOS
- 5 Megapixel (2560x1944)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- IR range 30 m
- 2D DNR
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 5Mpx (2560x1944) at 20fps |
| Resolution | TVI: 5Mpx (20fps), 4Mpx (25~30 fps), 1080p (25~30 fps) AHD: 5Mpx (20fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps), 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 80°(H), 63° (V), 105° (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR range 20 m) |
| Day / Night | Auto / Color / Black and white (ICR) |

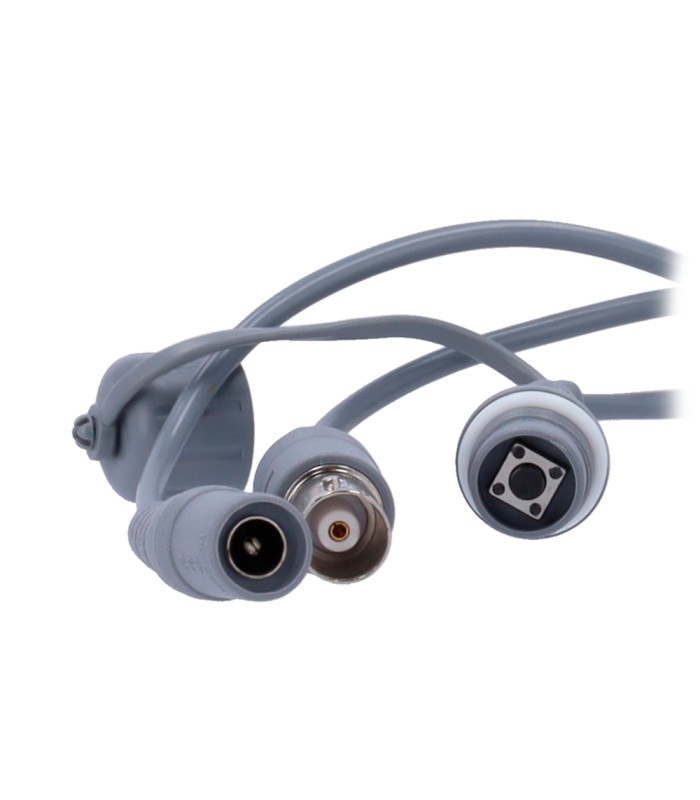

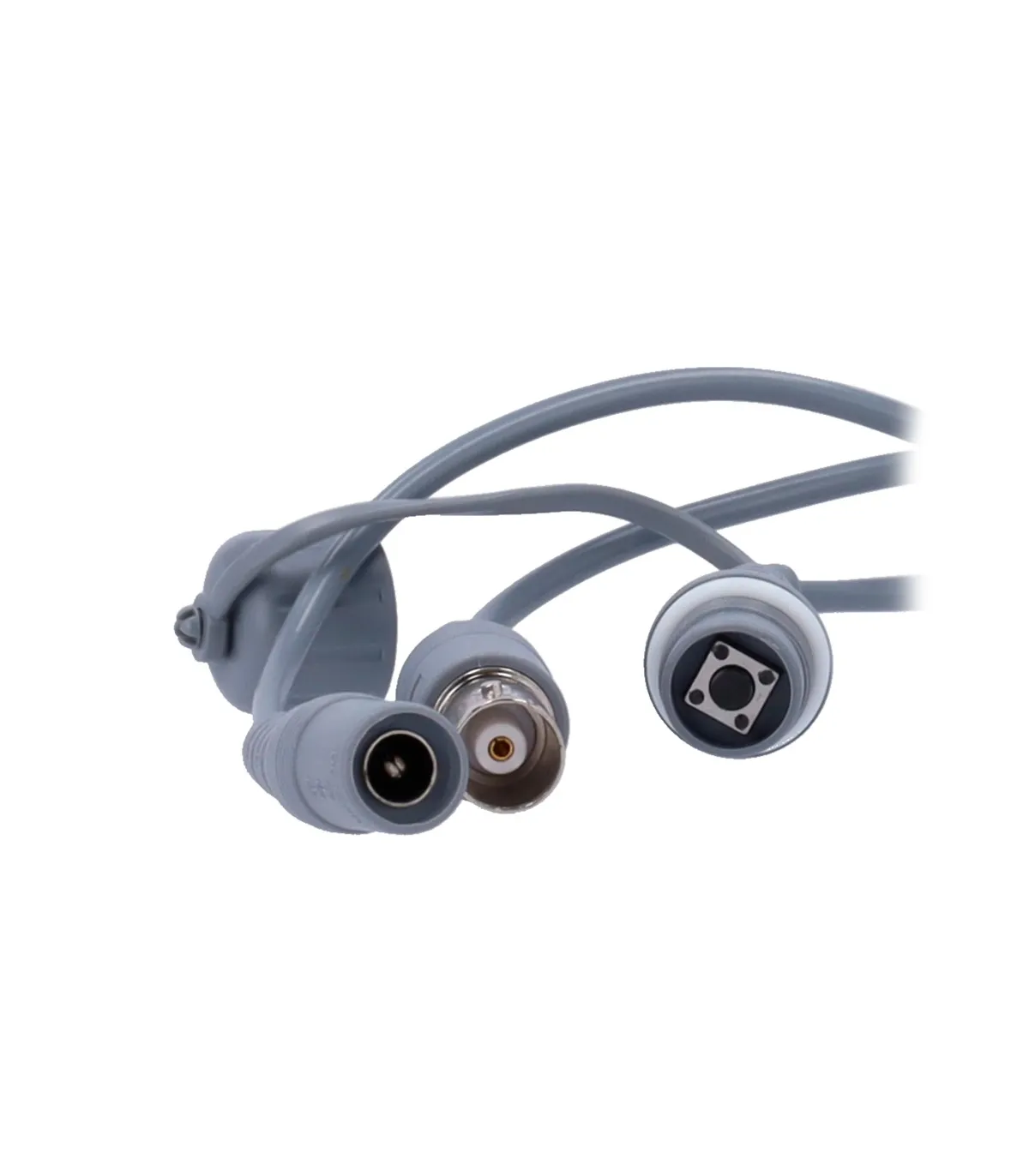

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.3 W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 60.9 mm (W) × 57.9 mm (H) × 138.8 mm (Fo) |

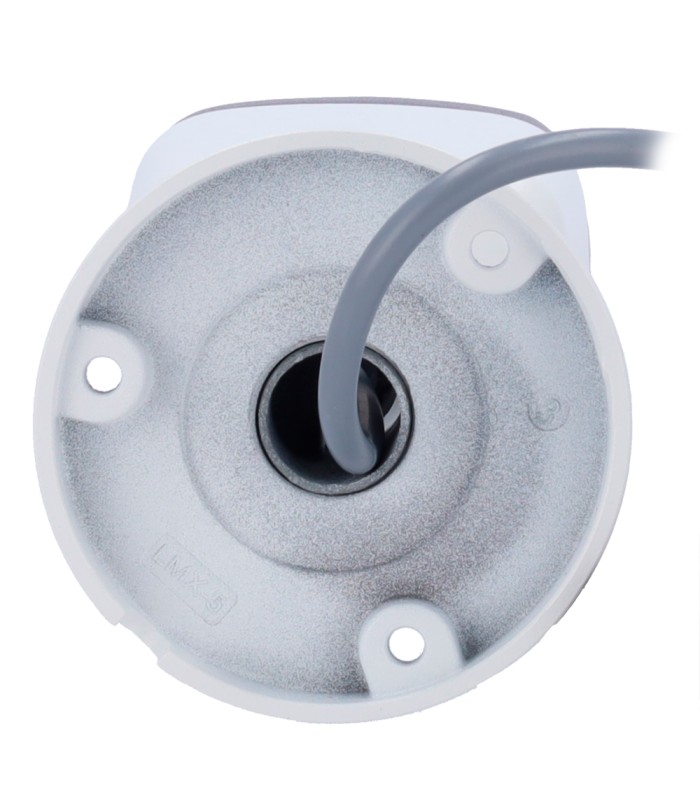

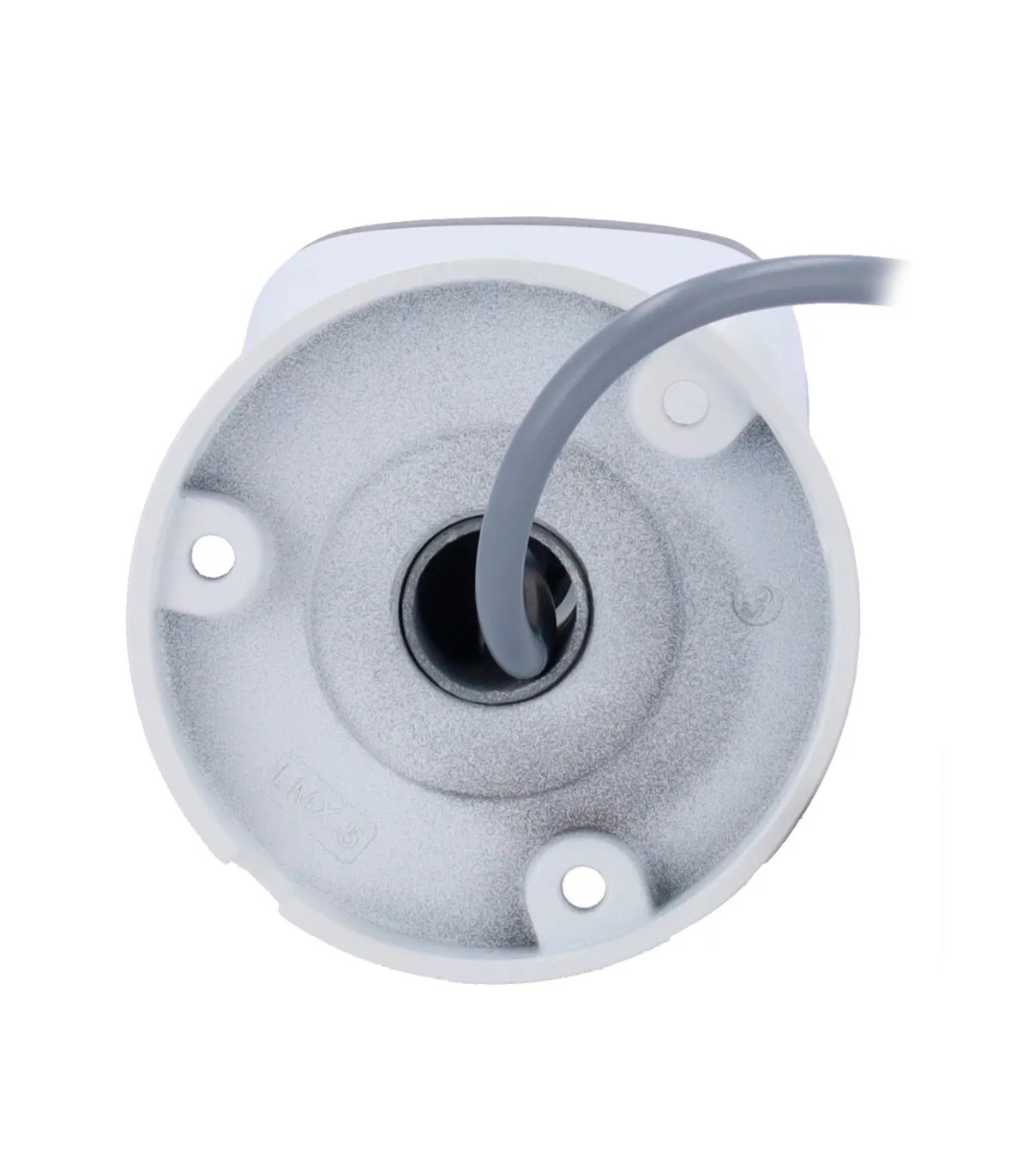

| Base diameter | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 258 g |
Contents
- Hikvision 4N1 Bullet Camera
- Mounting material
- Instructions for use
