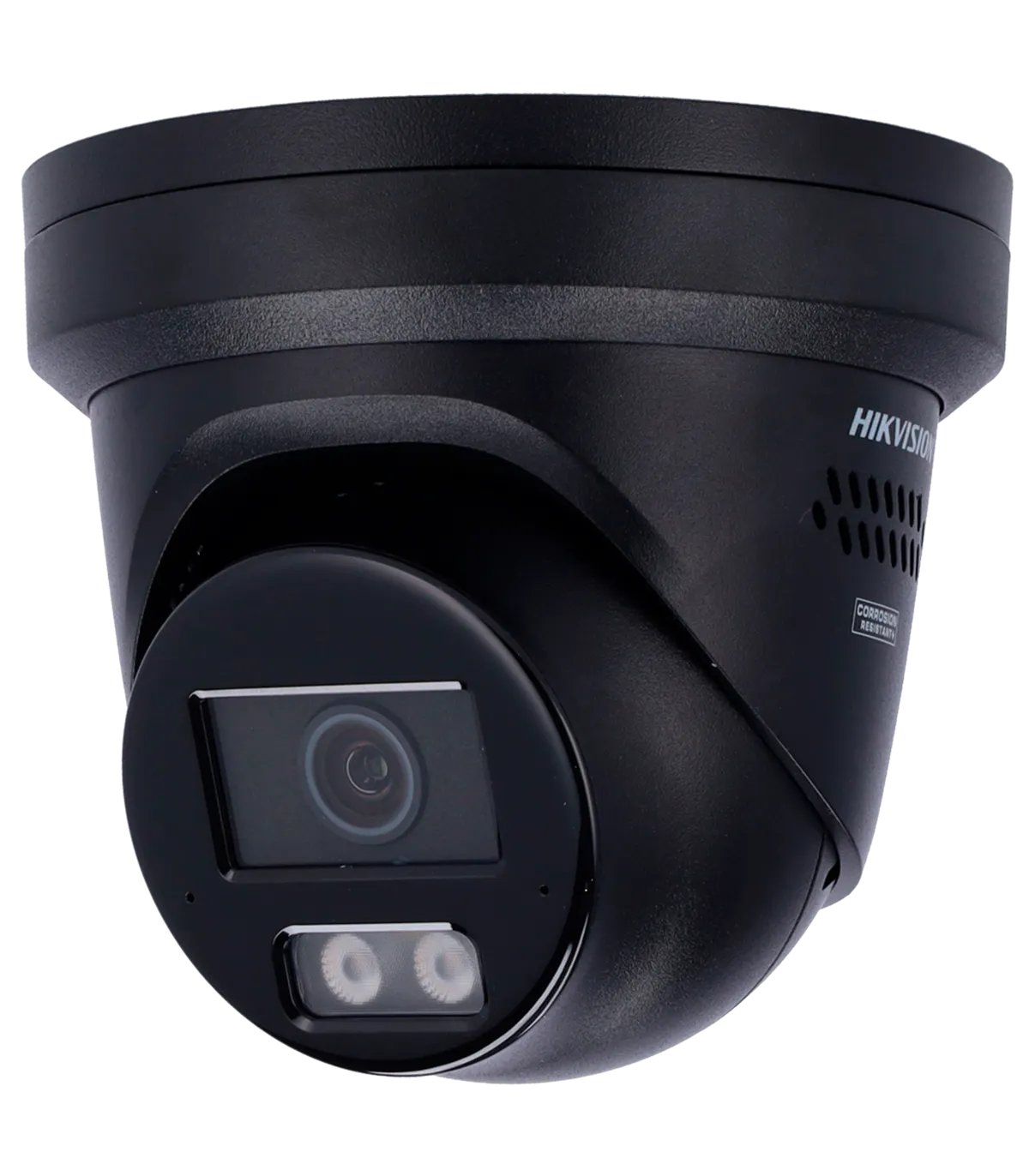

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for both residential and commercial settings, where enhanced visibility is crucial for security. Utilizing advanced sensor technology and lenses with a super aperture, it captures more light, ensuring greater clarity and detail without the need for additional lighting. The integration of HikAI-ISP, an intelligent image processor, optimizes visual quality by reducing noise and enhancing sharpness in challenging conditions.
The intelligence features of AcuSense 3.0 allow for precise detection of humans and vehicles, making it a valuable asset for security professionals. Additionally, it includes Audio 2.0 for more efficient communication.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of greater static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) 1 Input / 1 Output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Alarm | 1 Input / 1 Output |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1.29A / 15.5W max. / PoE IEEE802.3at |
| Protection Rating | IP67 waterproof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 138.3 mm (Ø) x 115.4mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 128 mm / 3 screws |
| Weight | 820 g |
In a typical deployment scenario, the DS-2CD2347G3-LIS2UY/SL(2.8mm)/BLACK camera can be installed in a retail environment to enhance security and monitoring capabilities. With its 24/7 color imaging and advanced motion detection features, store owners can effectively monitor customer activity and deter potential theft. The integration of AcuSense 3.0 allows for precise identification of human and vehicle movements, significantly reducing false alarms. This camera's dual microphone system enhances audio monitoring, providing clear communication in case of incidents. Additionally, the remote access capabilities enable security personnel to monitor live feeds from anywhere, ensuring a proactive approach to security management. The robust IP67 waterproof rating ensures reliable performance in various weather conditions, making it suitable for both indoor and outdoor installations.
