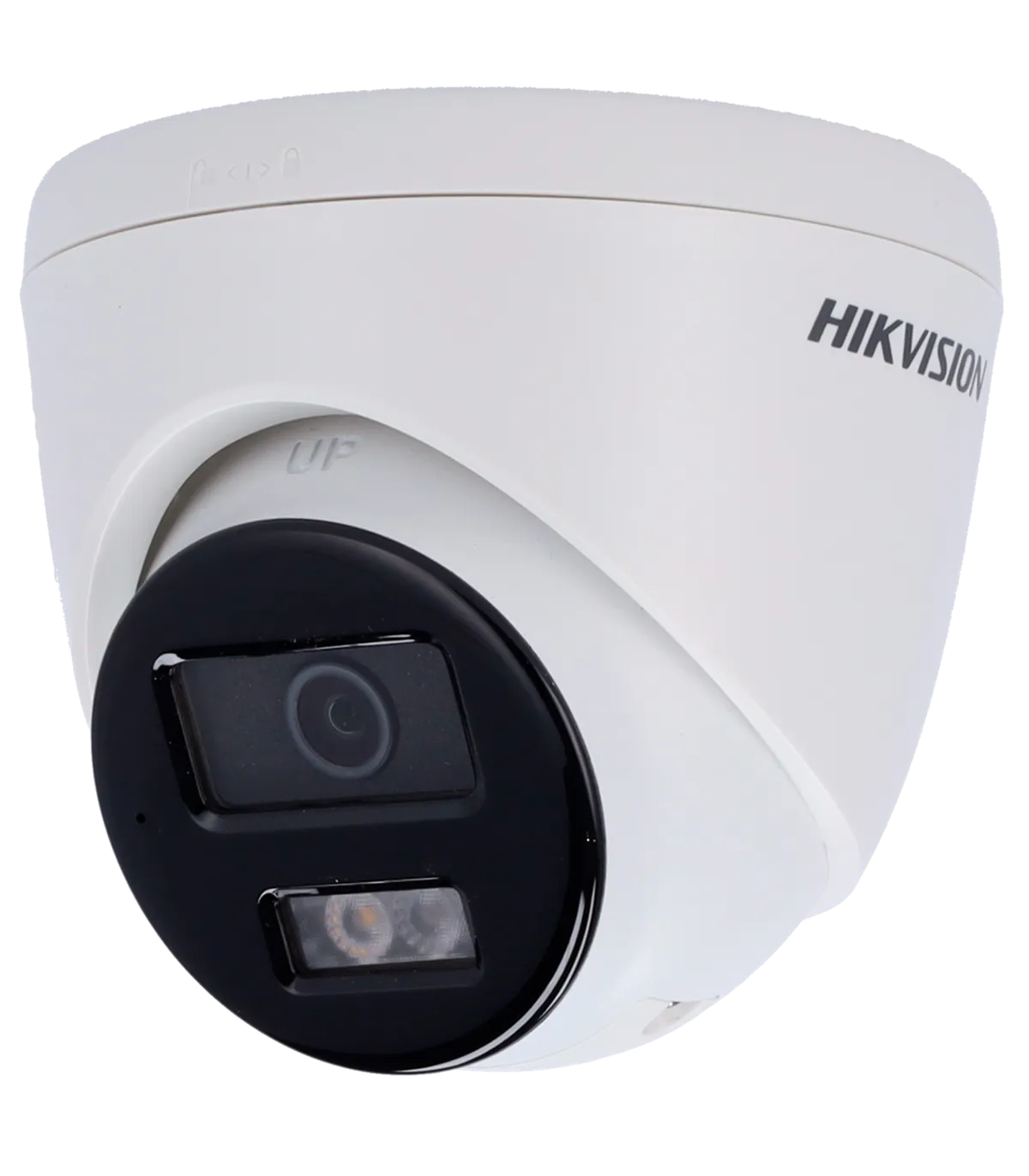

The DS-2CD1323G2-LIUF/SL(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, it is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. This camera integrates seamlessly with existing security systems, making it a versatile choice for enhancing security monitoring in commercial and residential settings.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 56°, D: 121° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White Light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 102.7mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1323G2-LIUF/SL(2.8mm) is particularly well-suited for retail environments where security surveillance is paramount. Installers can easily set up this plug-and-play camera to monitor entrances and exits, ensuring that all activities are captured in high-definition. With its motion detection capabilities, the camera can alert users to any suspicious activity in real-time, enhancing overall security. The integrated microphone and speaker allow for two-way audio communication, making it ideal for customer service interactions or deterring potential intruders. Additionally, the camera's IP67 waterproof rating ensures reliable performance in various weather conditions, making it a robust choice for outdoor installations. This camera not only provides peace of mind but also integrates seamlessly with existing security systems, allowing for comprehensive remote monitoring through mobile applications.
