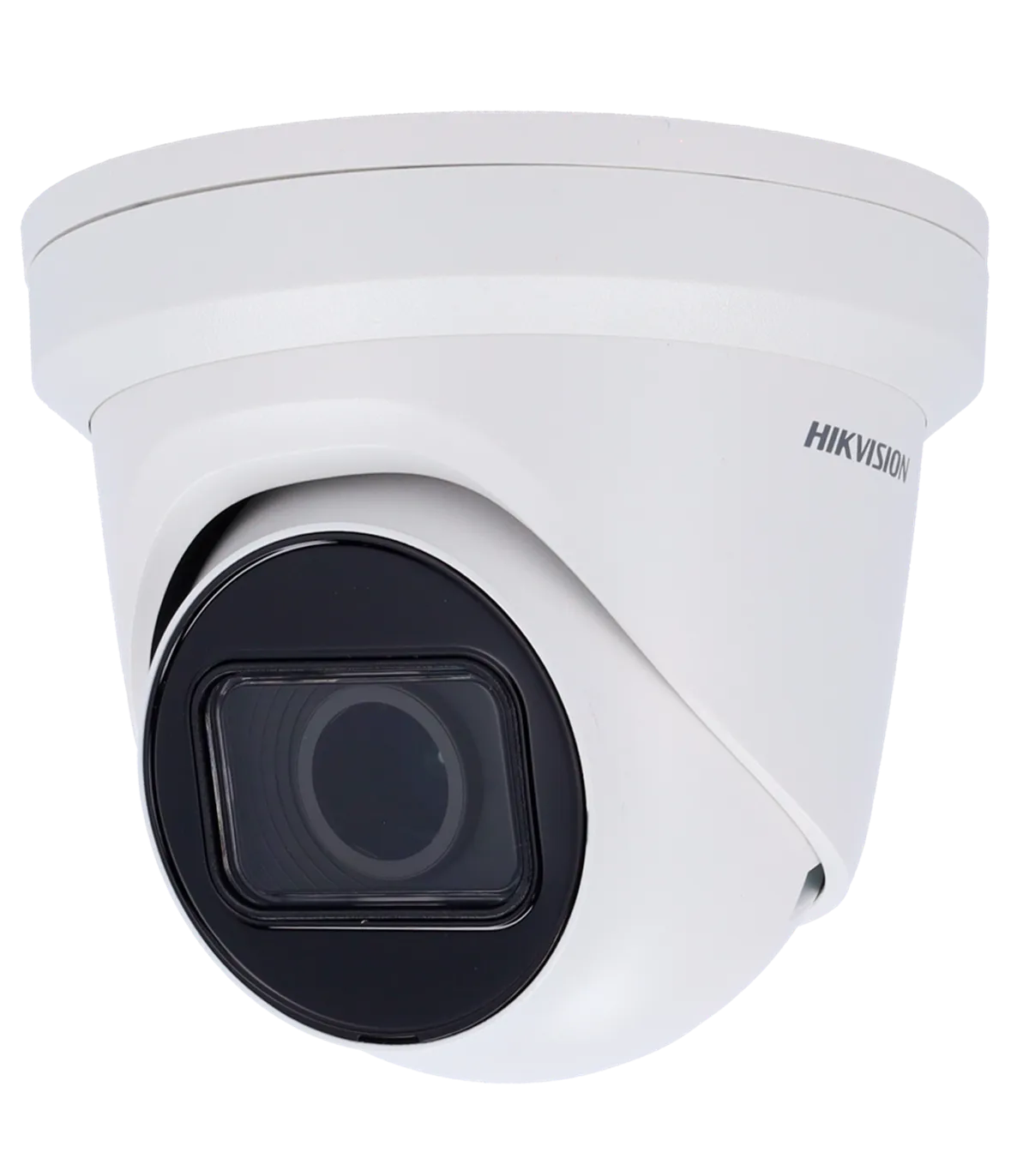

- Hikvision PRO Series Turret IP Camera
- 2 Megapixel Resolution (1920x1080)
- Motorized Varifocal Lens 2.8~12 mm
- IR Range 40 m | Motion Detection 2.0
- AcuSense | Face Detection | Alarms | Audio
- MicroSD | IP67 | IK10 | PoE
Description & Key Features: DS-2CD2H23G2-IZS(2.8-12mm)
The DS-2CD2H23G2-IZS(2.8-12mm) is a high-performance IP turret camera designed for professional surveillance applications. It is ideal for monitoring large areas such as parking lots, retail stores, and public spaces, providing clear and detailed images even in low-light conditions. This camera features advanced motion detection capabilities and AcuSense technology, which significantly reduces false alarms by distinguishing between humans and vehicles. With its robust design and IP67 weatherproof rating, it is suitable for both indoor and outdoor installations.
- Hikvision
- PRO Series
- IP Turret Camera
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- IR range 40 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE (IEEE802.3af)
- Weatherproof IP67
- Vandal-proof IK10
Specifications: DS-2CD2H23G2-IZS(2.8-12mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.6~31.7°, V: 54.7~17.7°, D: 130.3~36.4° |
| DORI | 44.1~137.9 m (D), 17.5~54.7 m (O), 8.8~27.5 m (R), 4.4~13.8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 920 mA / 11 W max. PoE IEEE802.3af |
| Protection Rating | Weatherproof IP67 Vandal-proof IK10 |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 126 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø screw spacing 96 mm / 4 screws |
| Weight | 830 g |
Package Contents
- Hikvision IP Turret Camera
- Installation materials
- User instructions
Use Case
The DS-2CD2H23G2-IZS(2.8-12mm) camera is perfect for a variety of surveillance scenarios, particularly in retail environments where security is paramount. For instance, a store owner can install this camera at the entrance to monitor customer traffic and deter theft. With its motorized varifocal lens, the camera allows for flexible adjustments to capture the best angles, ensuring comprehensive coverage of the area. The IR range of 40 meters enables clear night vision, making it suitable for 24/7 monitoring. Additionally, the remote access feature allows the owner to view live footage from their smartphone, providing peace of mind while away from the premises. The integration of AcuSense technology further enhances security by minimizing false alarms, allowing the owner to focus on genuine threats. Overall, this camera is an excellent choice for enhancing security in various settings.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 40 m
- Audio
- 1 Entrada / 1 Salida
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1280ZJ-PT6,DS-1280ZJ-PT6,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1273ZJ-140B,DS-1273ZJ-140B,DS-1273ZJ-140,DS-1273ZJ-140,DS-1271ZJ-140,DS-1271ZJ-140
Specific References
- EAN13
- 6941264073680
