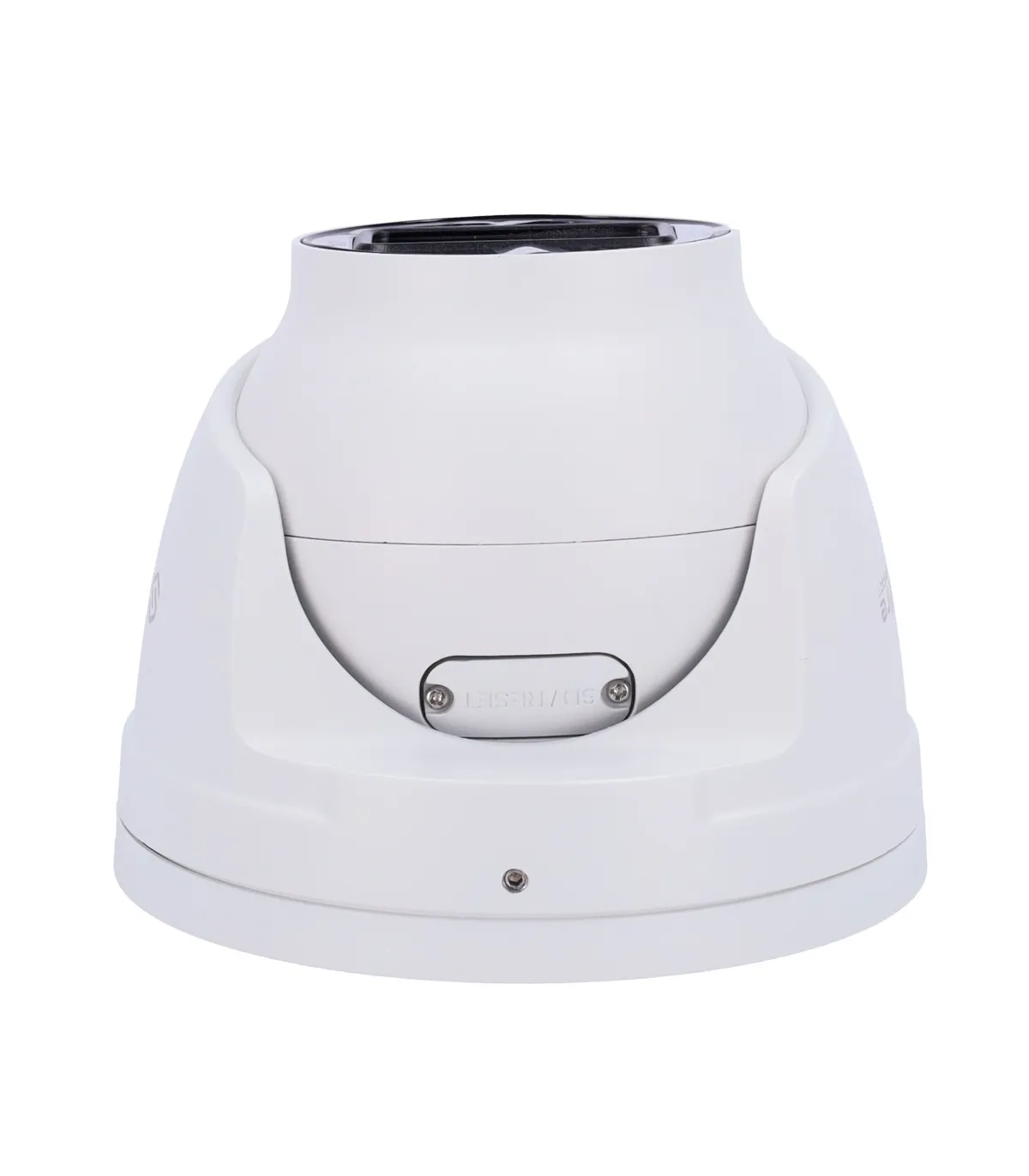

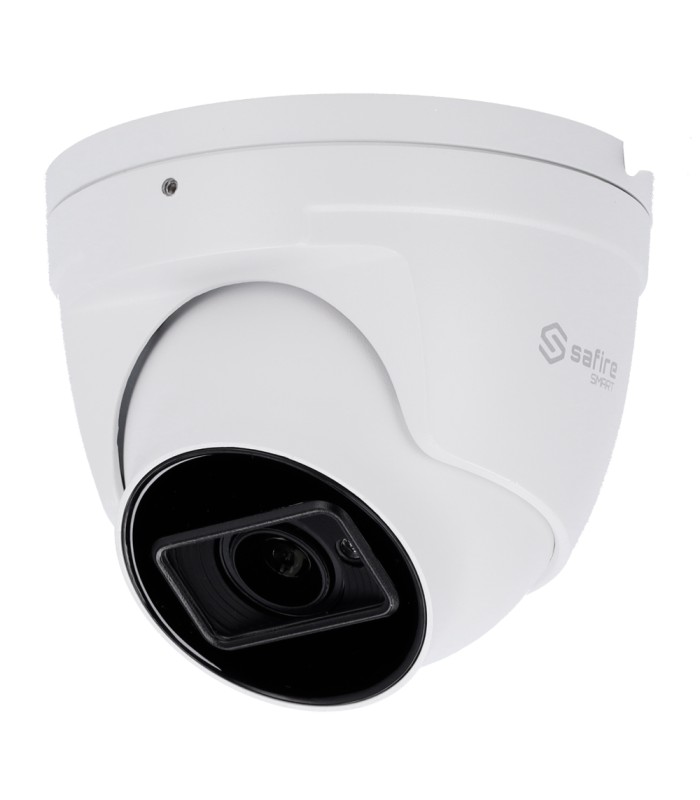

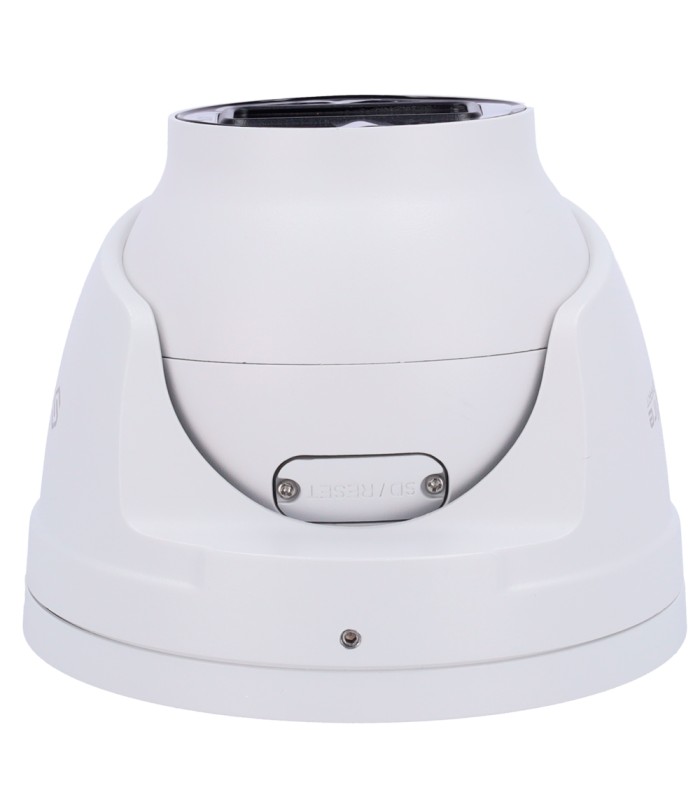

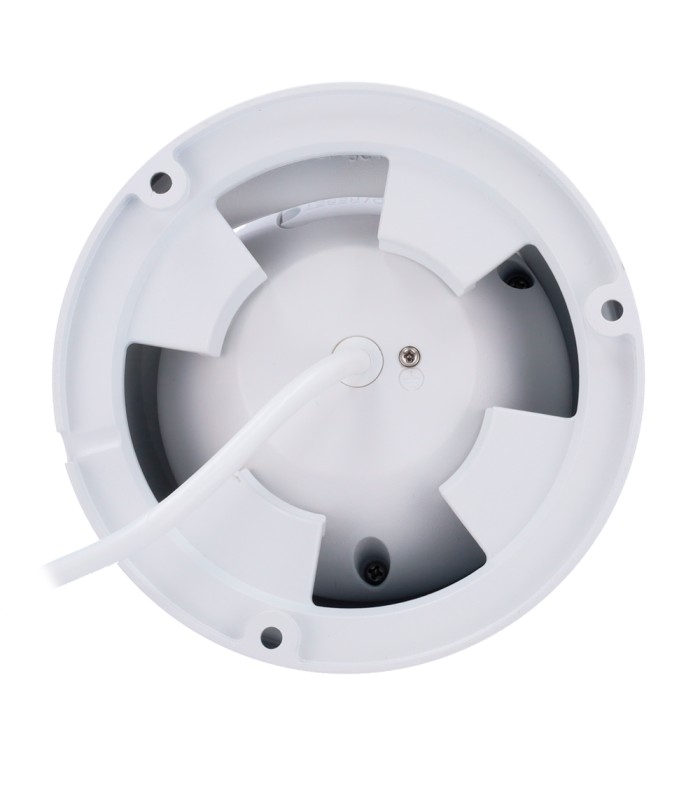

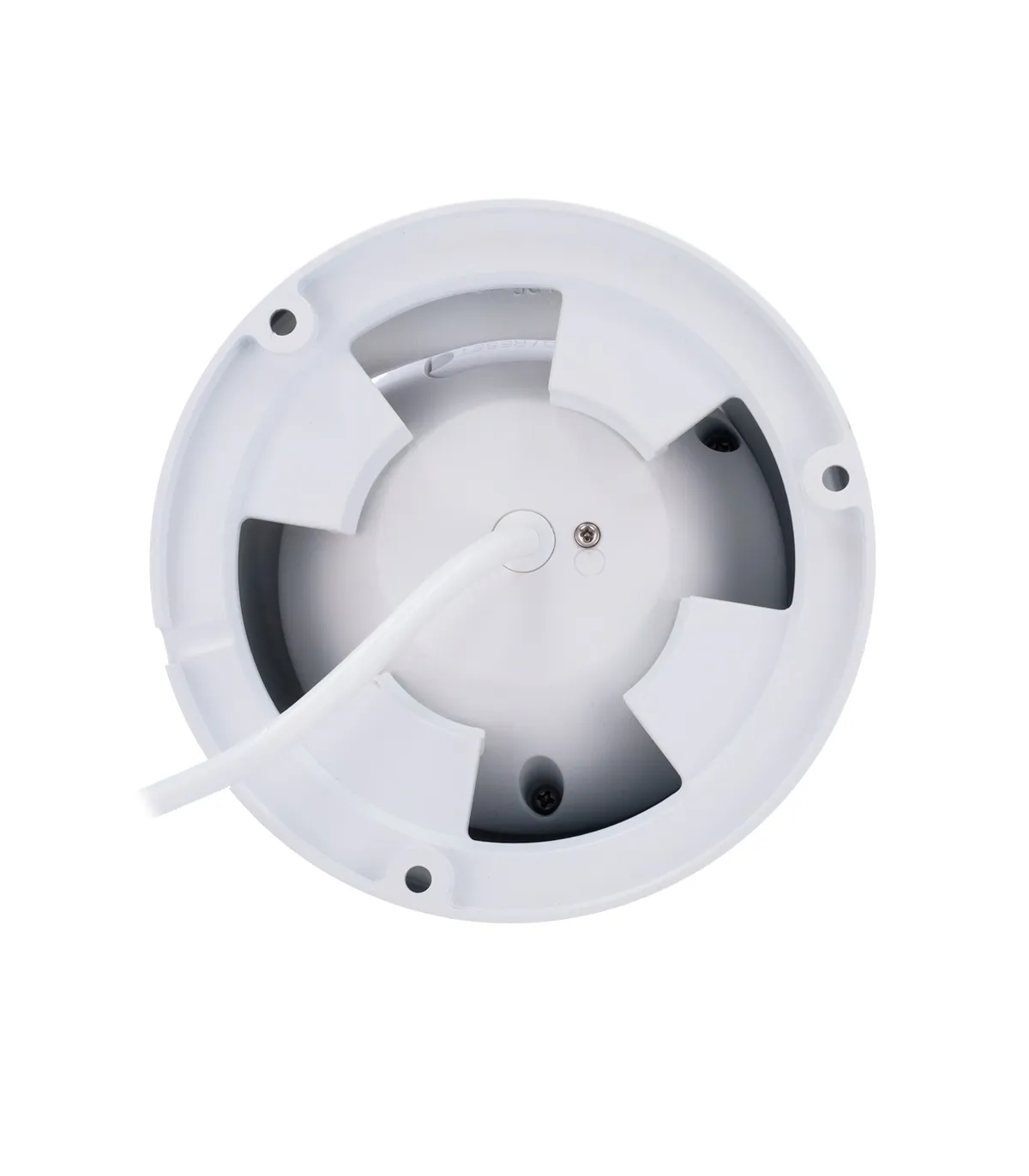

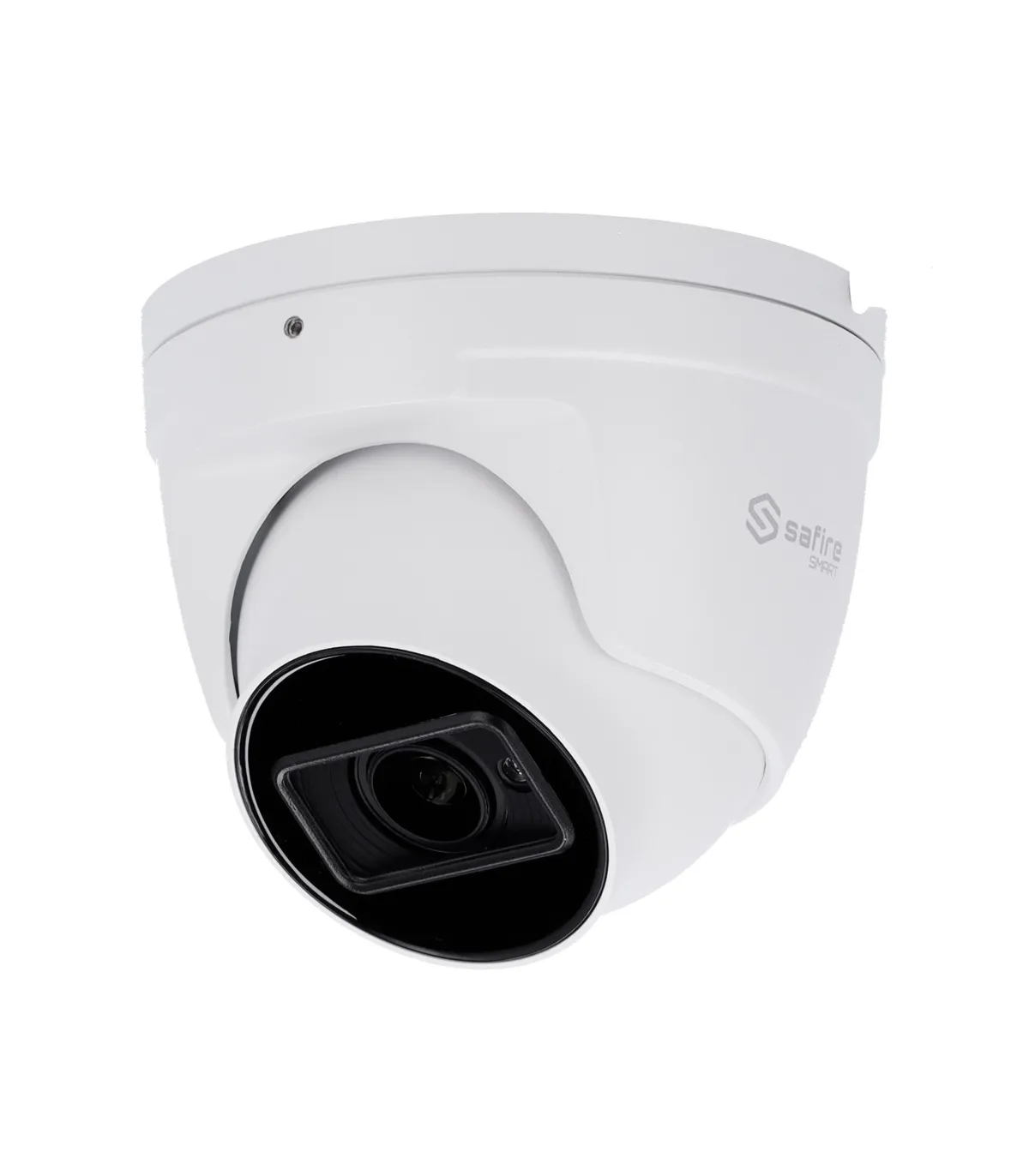

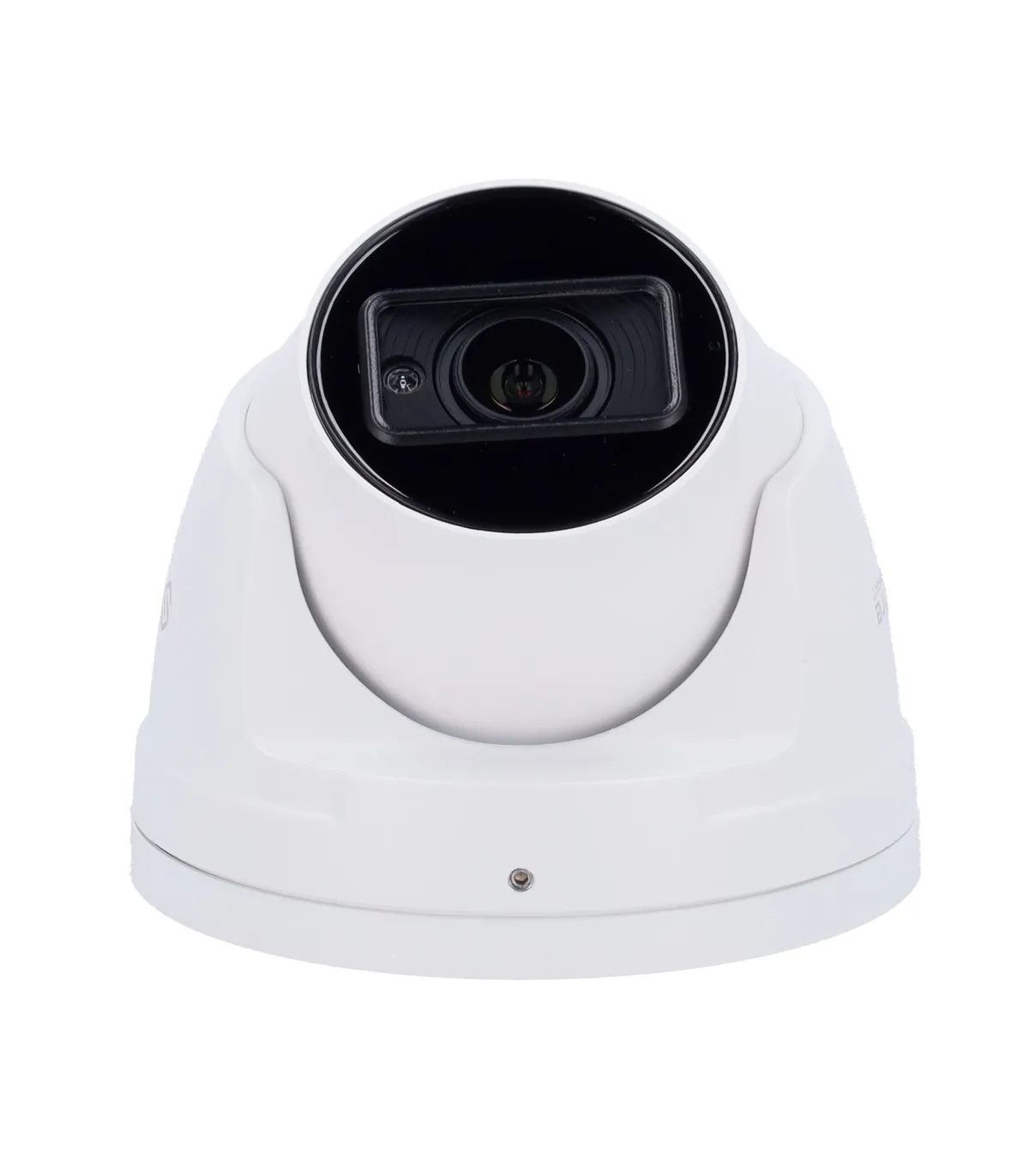

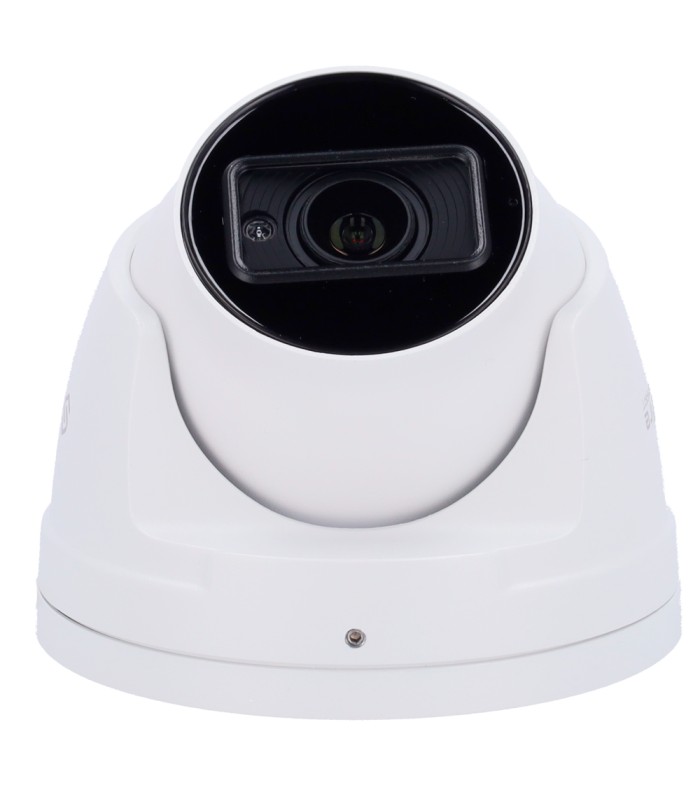

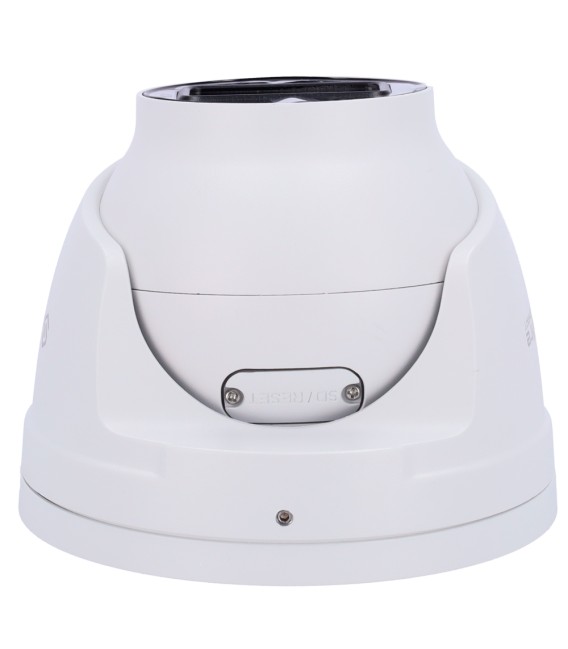

Advanced I2 AI Range IP Dome Camera SF-IPT520ZA-8I2
Brand: SAFIRE SMART
- Safire Smart
- Advanced I2 AI range IP Dome Camera
- Resolution 8 Megapixel (3840x2160)
- 2.8-12 mm Motorized Lens | Audio | IR 50m
- Advanced AI: Video Metadata and Facial Detection
- IP67 Waterproofing | PoE (IEEE802.3af)
I2 Advanced AI range IP Dome Camera SF-IPT520ZA-8I2
- Safire Smart
- I2 range with Advanced Artificial Intelligence
- IP Turret Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8-12 mm lens
- 0 Lux
- IR range 50 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Built-in microphone
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-vehicle detection motorized
- Facial Capture
- Video metadata
- Counting of humans, vehicles and non-motorized vehicles
- WEB interface, CMS, Smartphone and NVR
- MicroSD card up to 256GB
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | I2 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Minimum Illumination | Color: 0.015 Lux @(F1.4, AGC ON), 0 Lux with IR |
| Range IR | 50 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) HFR mode: 60 FPS (1080P / 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF, VGA, 480x240) |
| Rate Third Stream | 25 FPS (720P, D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12Mbps |
| Optical | Motorized 2.8-12 mm |
| Angle of view (FOV) | H: 97-32°, V: 57-18°, D: 115-36° |
| DORI | W: 80 m (D), 32 m (W), 16 m (R), 8 m (L) T: 273 m (D), 109 m (W), 55 m (R), 27 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Function mirror, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence: Classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Facial detection and face capture Counting of people, vehicles and non-motorized vehicles Video metadata (feature extraction): - Human: up to 13 characteristics (clothing color, hat, backpack, ...) - Vehicle: up to 5 characteristics (color, type, make, model and direction) - Non-motorized vehicle: Up to 1 characteristics Other intelligent events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | Integrated microphone / 1 Input |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Alarms | Not available |
| Internal storage | MicroSD card up to 256GB |
| EIS (Electronic Image Stabilizer) | Yes |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 875 mA / 10.5W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 130.7 (Ø) x 109.3(H) mm |
| Weight | 876 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
