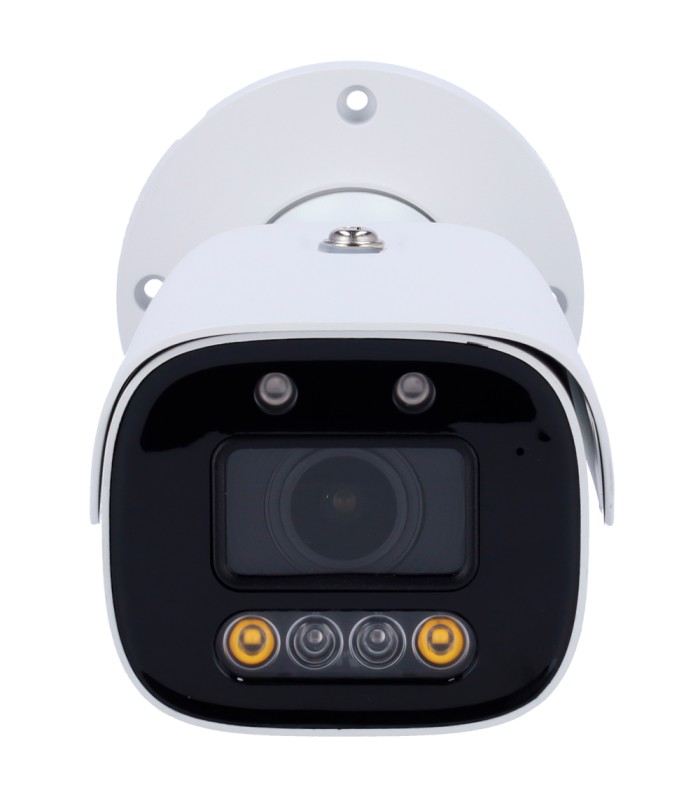

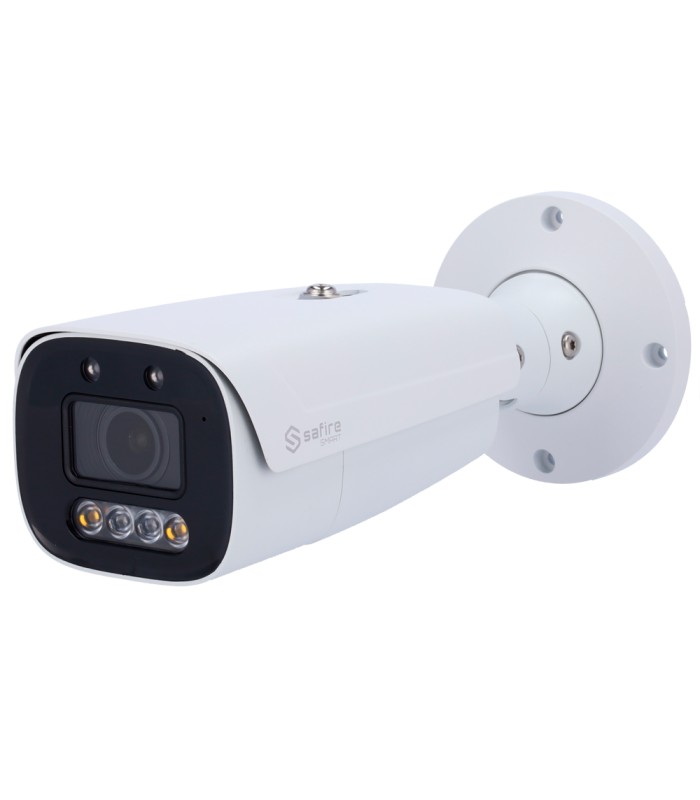

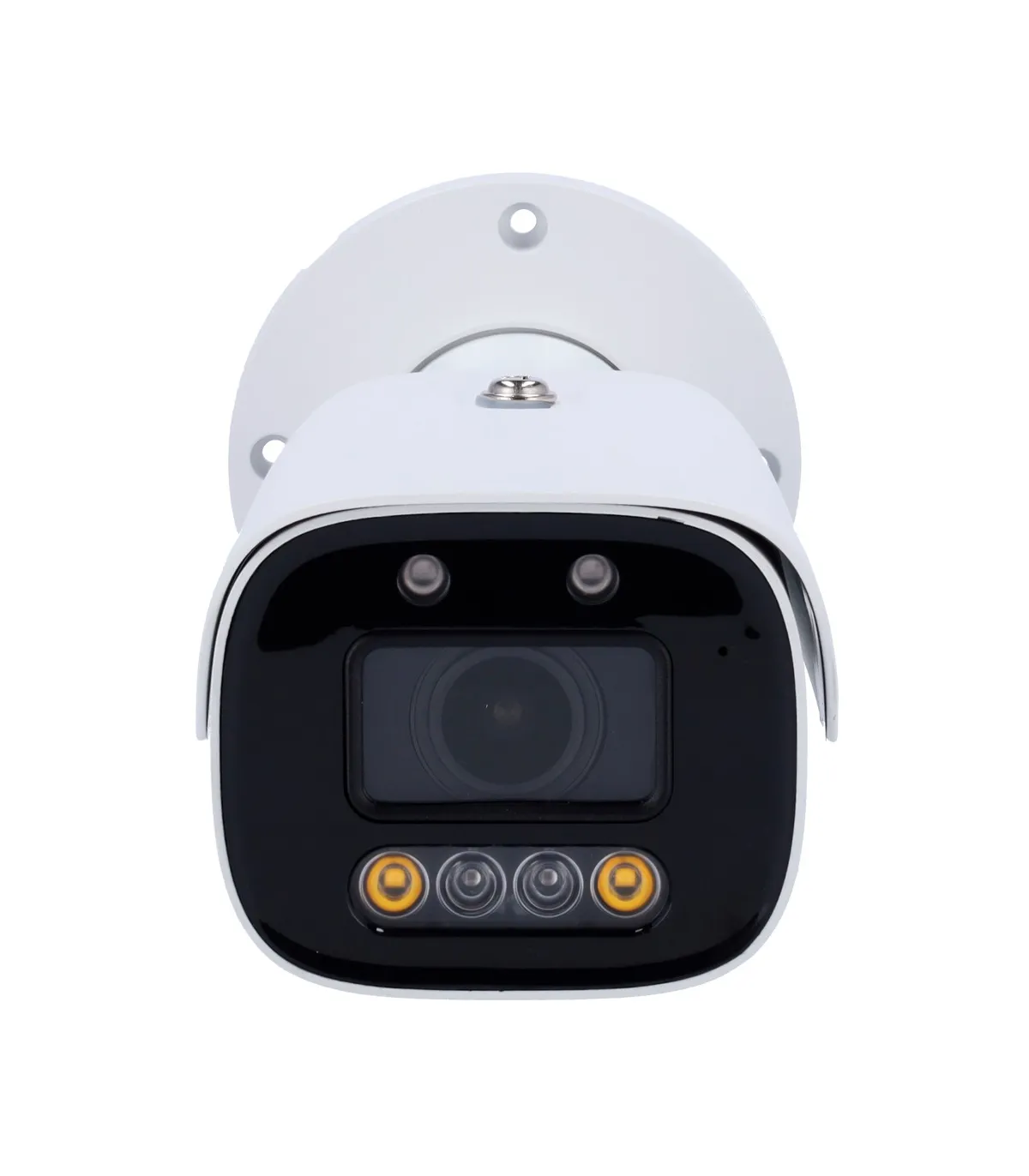

I1 range IP Bullet Camera with Active Deterrence SF-IPB580ZCA-8I1-SL
Brand: SAFIRE SMART
- Safire Smart
- I1 range IP Bullet Camera with Active Deterrence
- Resolution 8 Megapixel (3840x2160)
- 2.8-12 mm lens | MIC & Speaker | Dual light 50m
- AI: Human and vehicle classification
- IP67 waterproof | PoE (IEEE802.3af)
I1 range IP Bullet Camera with Active Deterrence SF-IPB580ZCA-8I1-SL
- Safire Smart
- I1 range with Artificial Intelligence
- IP Bullet Camera
- 1/1.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Motorized lens 2.8-12 mm
- 0 Lux
- Dual light: IR and white LED range 50 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Microphone and speaker integrated
- Audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Facial Capture
- Video metadata
- Human, vehicle and non-motorized vehicle counting
- Active deterrence: Red and blue flash with personalized audio message
- WEB interface, CMS, Smartphone and NVR
- Compatible with ONVIF
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | I1 with active deterrence |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Minimum illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with LED |
| Lighting range | IR: 50m White LED: 50m |
| Day/night | Mechanical ICR filter removable |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF, VGA, 480x240) |
| Third Stream Rate | 25 FPS (720P, D1, 480x240, CIF) |
| Compression | H.265+, H.264+, H.265, H.264 |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Optics | Motorized 2.8 ~ 12 mm |
| Angle of view (FOV) | H: 113-46°, V: 59-26°, D: 136-54° |
| DORI | W: 76 m (D), 31 m (W), 15 m (R), 8 m (I) T: 187 m (D), 75 m (W), 37 m (R), 19 m (I) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Image Detection movement | Yes |
| Intelligent Functions | Advanced Artificial Intelligence based classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Face Detection and Face Capture Counting people, vehicles and non-motorized vehicles Other intelligent events: abandoned object, removed object, Video exceptions (scene change, video loss, ...) |
| Active Deterrence | Red and blue LED flash / Customized sound warning Activated from an intelligence event artificial *Message customization from web interface or Safire Smart APP |
| Audio | Integrated microphone and speaker, 1 Input / 1 Output |
| Compression audio | G711A / U |
| Alarm | 1 Input / 1 Relay |
| Network interface | Ethernet 10 / 100M BaseT |

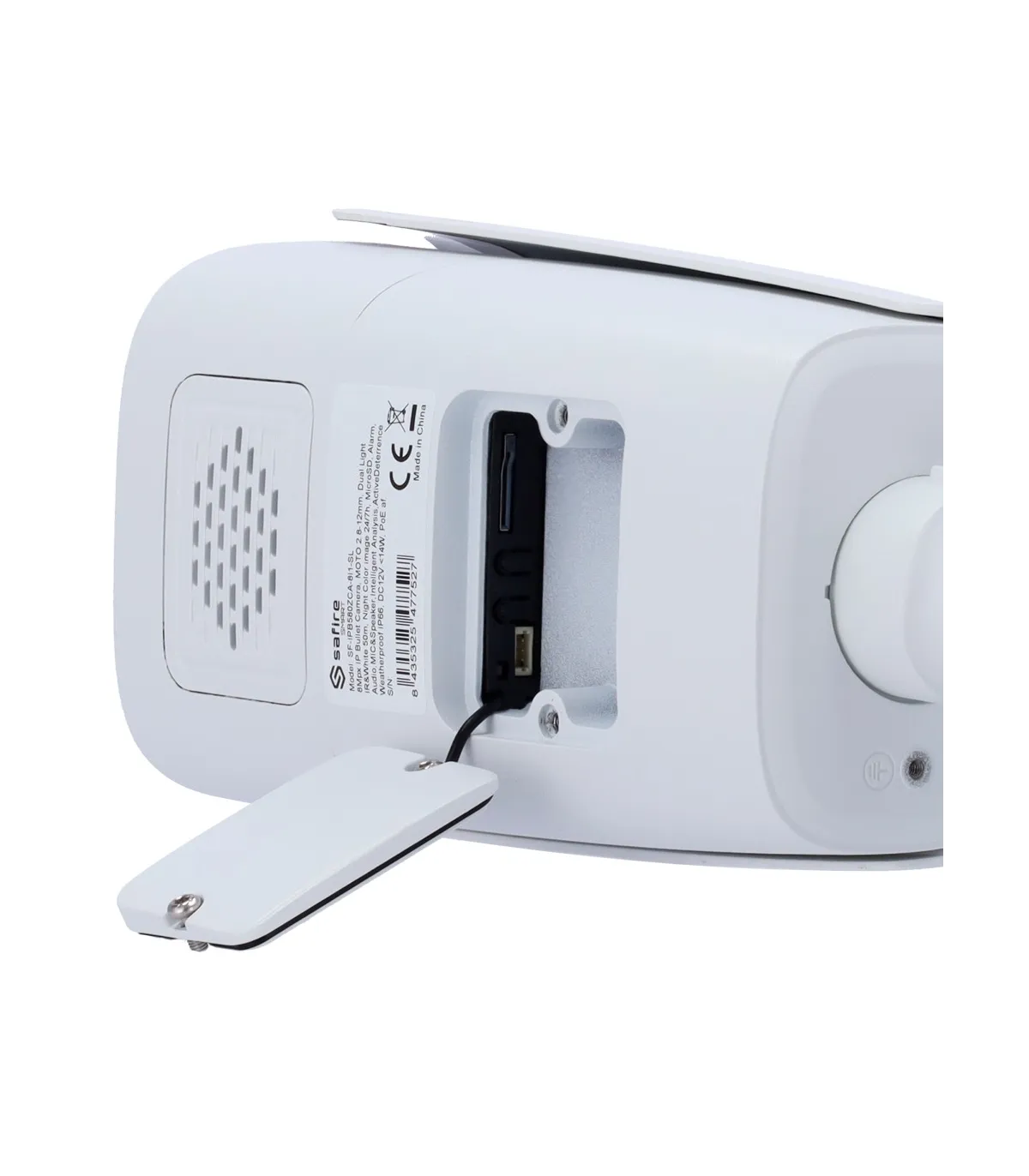

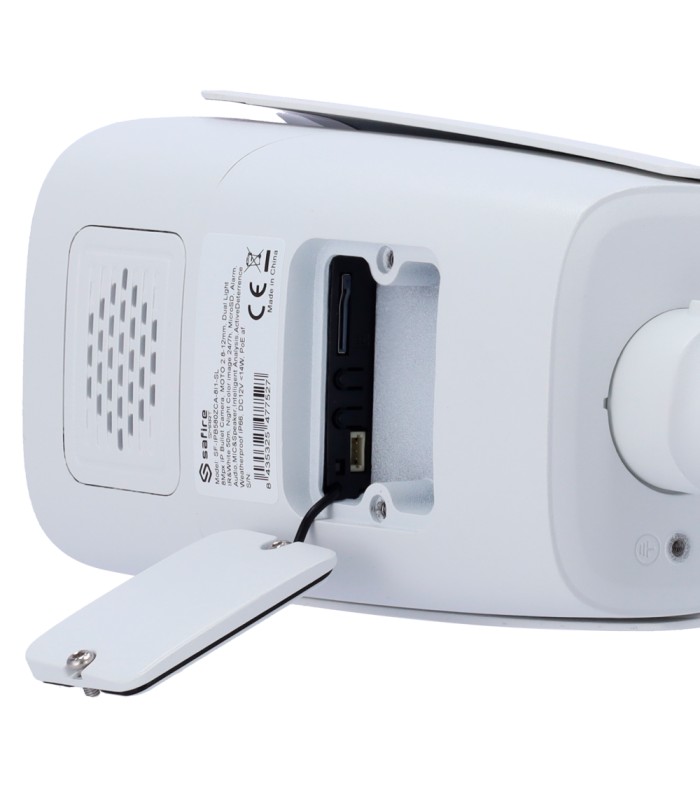

| Internal storage | microSD card up to 256GB |
| Remote access | Web Browser, Safire Smart Smartphone App, Software PC Safire Smart VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / 1.16A / 14 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 278.3 (Fo) × 100.2 (W) x 88.7 (H) mm |
| Weight | 1004 g |
Contents
- Safire Smart I1 IP Bullet Camera
- Installation material
- Quick installation guide
