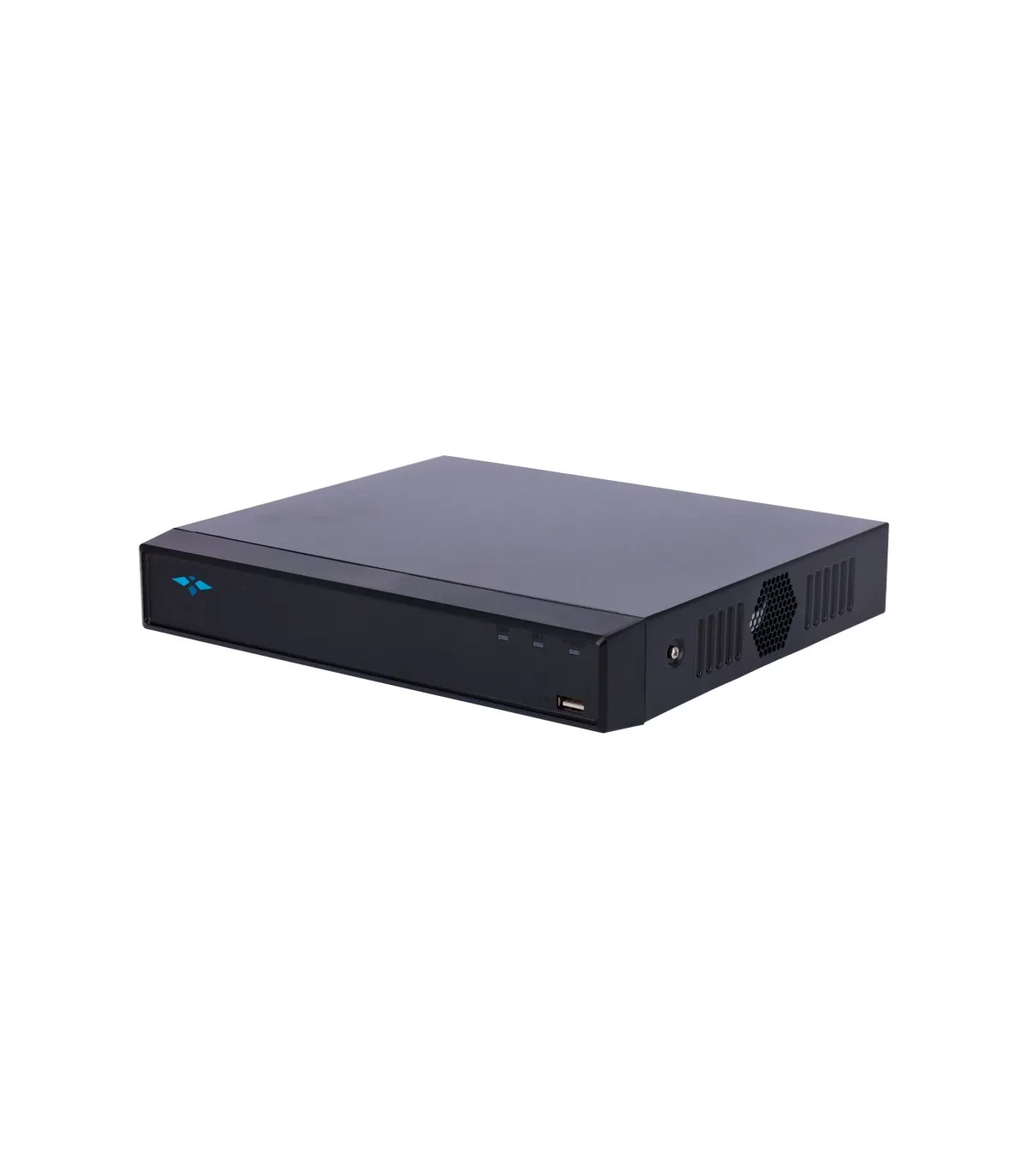

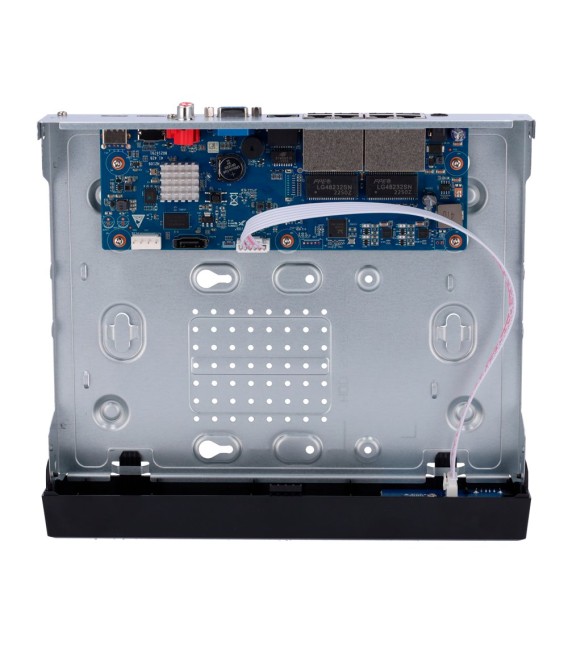

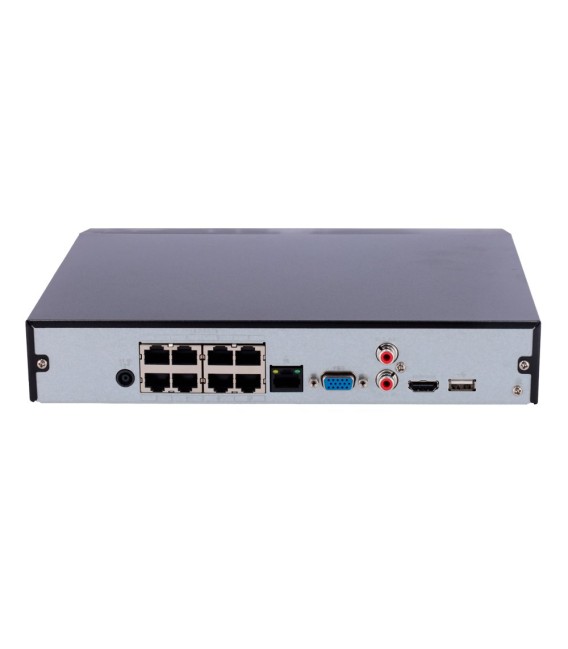

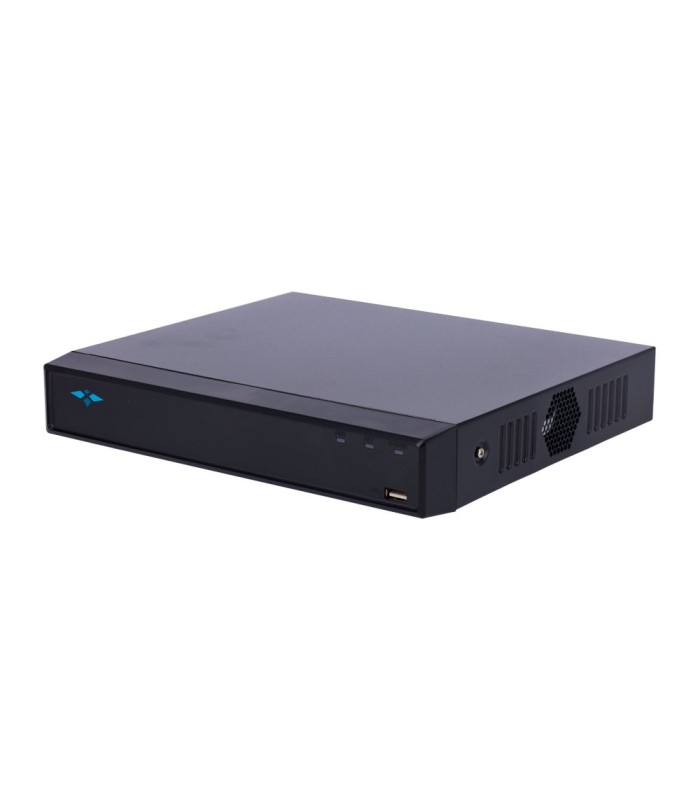

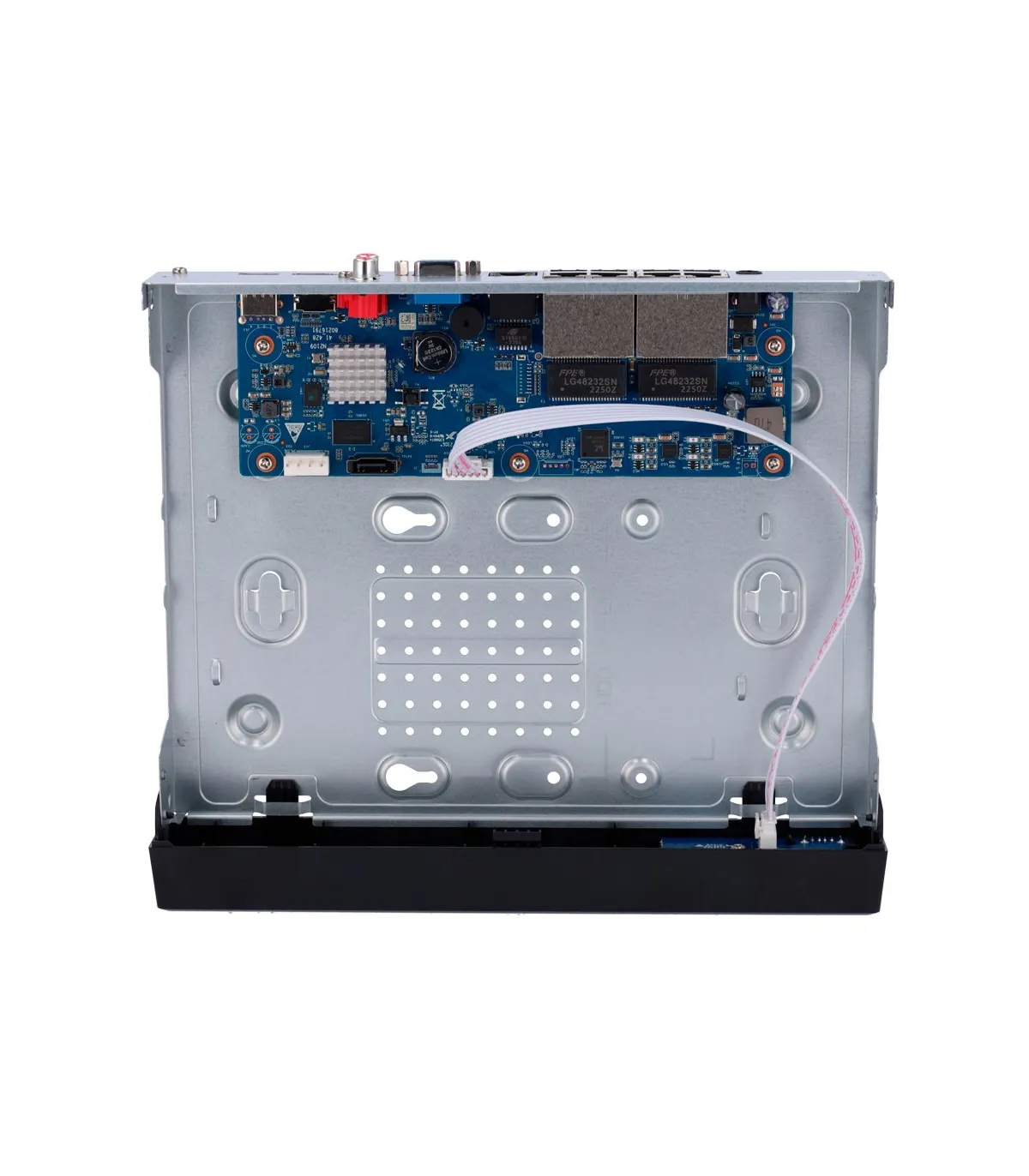

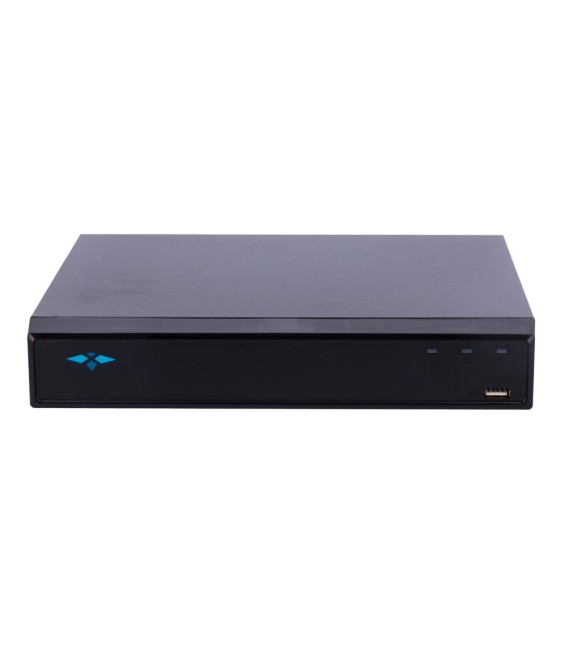

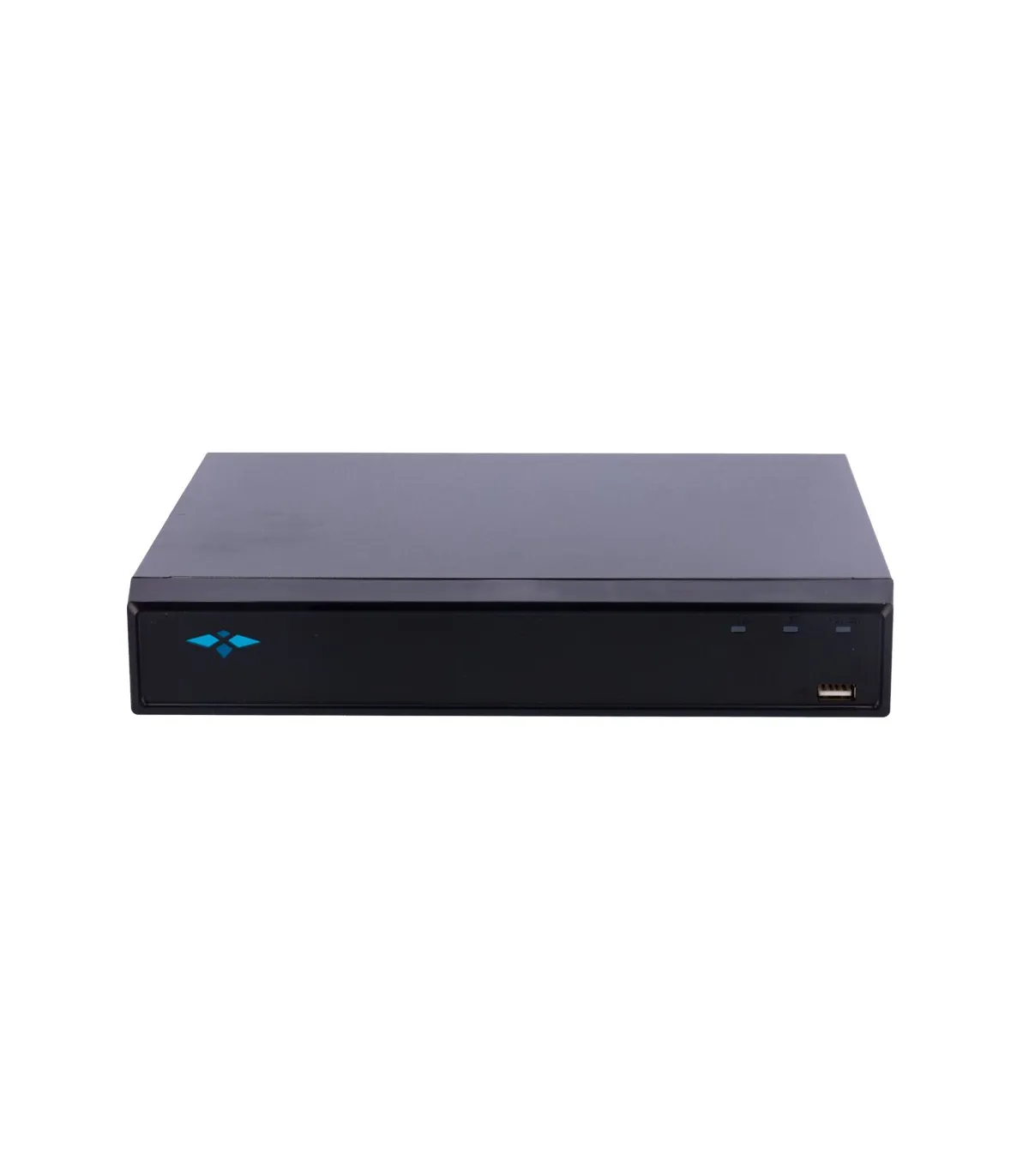

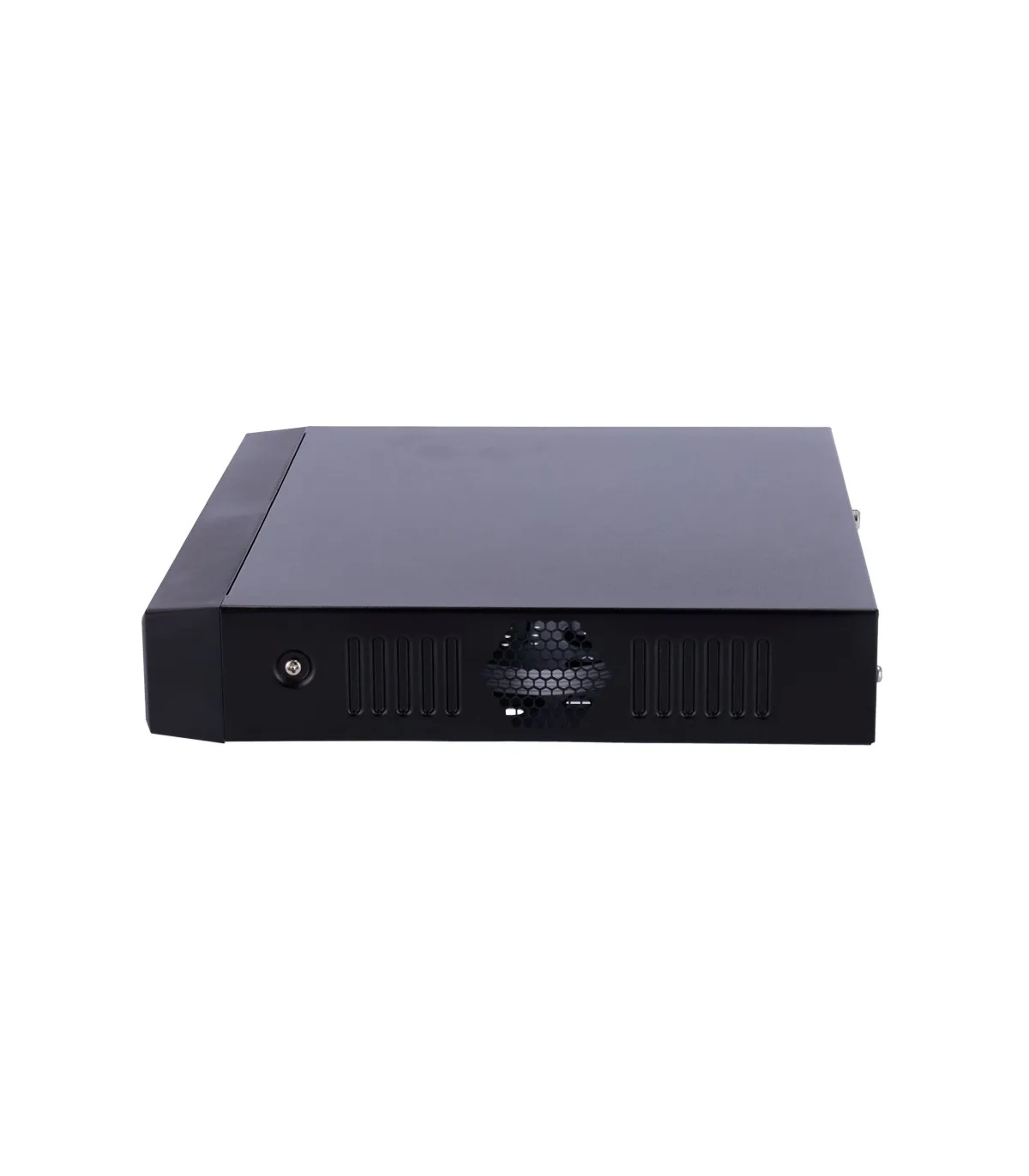

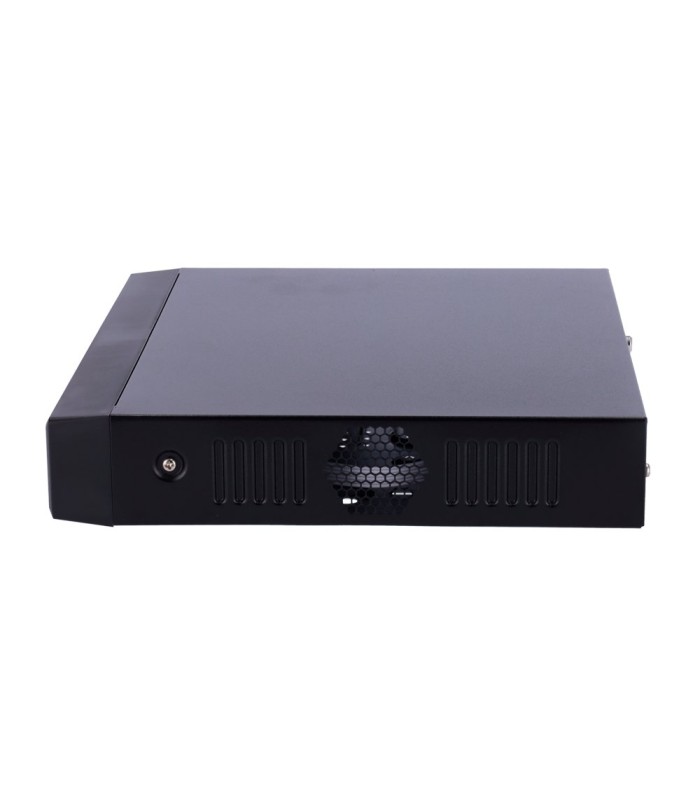

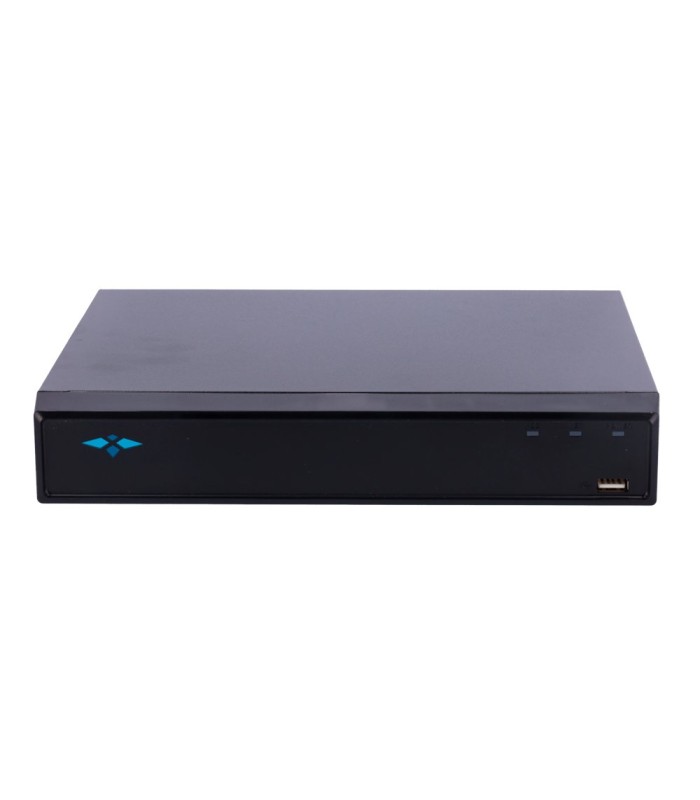

X-Security AI IP Recorder XS-NVR2108-S38P
Brand: X-SECURITY
- X-Security AI IP Recorder
- 8 CH IP video / 8 PoE ports
- Maximum recording resolution 12 MP
- Bandwidth 80 Mbps
- Full HD HDMI and VGA output
IP Recorder X-Security AI XS-NVR2108-S38P
- X-Security
- AI IP Recorder
- 8 CH
- Supported bandwidth 80 Mbps
- Supports Perimeter protection and SMD Plus
- Maximum resolution 12 Mpx
- Smart H.265 / H.265 / Smart H.264 / H.264 Compression
- VGA and HDMI Full HD output
- 1 HDD
- 8 PoE ports
- WEB, CMS (DSS/PSS), Smartphone, and NVR interface
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE | 8 PoE ports IEEE802.3at/af |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Two-way Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265 / H.265 / Smart H.264 / H.264 |
| Decoding Capacity | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Total Bandwidth | 80 Mbps record |
| Recording Resolution | 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1 |
| ONVIF | Profile T/S/G |
| AI Functions | Perimeter protection / SMD Plus |
| AI Performance per camera (Number of Channels) | 4 |
| SMD Plus per camera | SMD Plus 4-channel (AI per camera), secondary filtering for humans and motor vehicles |
| Internal Storage | 1 HDD SATA 3.5" up to 16 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet) |
| Remote Access | Browser, Mobile phone application, or PSS software |
| Power Supply | DC 48 V-53 V / 2.0 A |
| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 1.94 Kg (without HDD) |
Content
- NVR X-SECURITY Recorder
- Mouse
- Ethernet Cable
- AC/DC Adapter 48 V-53 V / 2.0 A
- User Manual
- CD with manual and software
