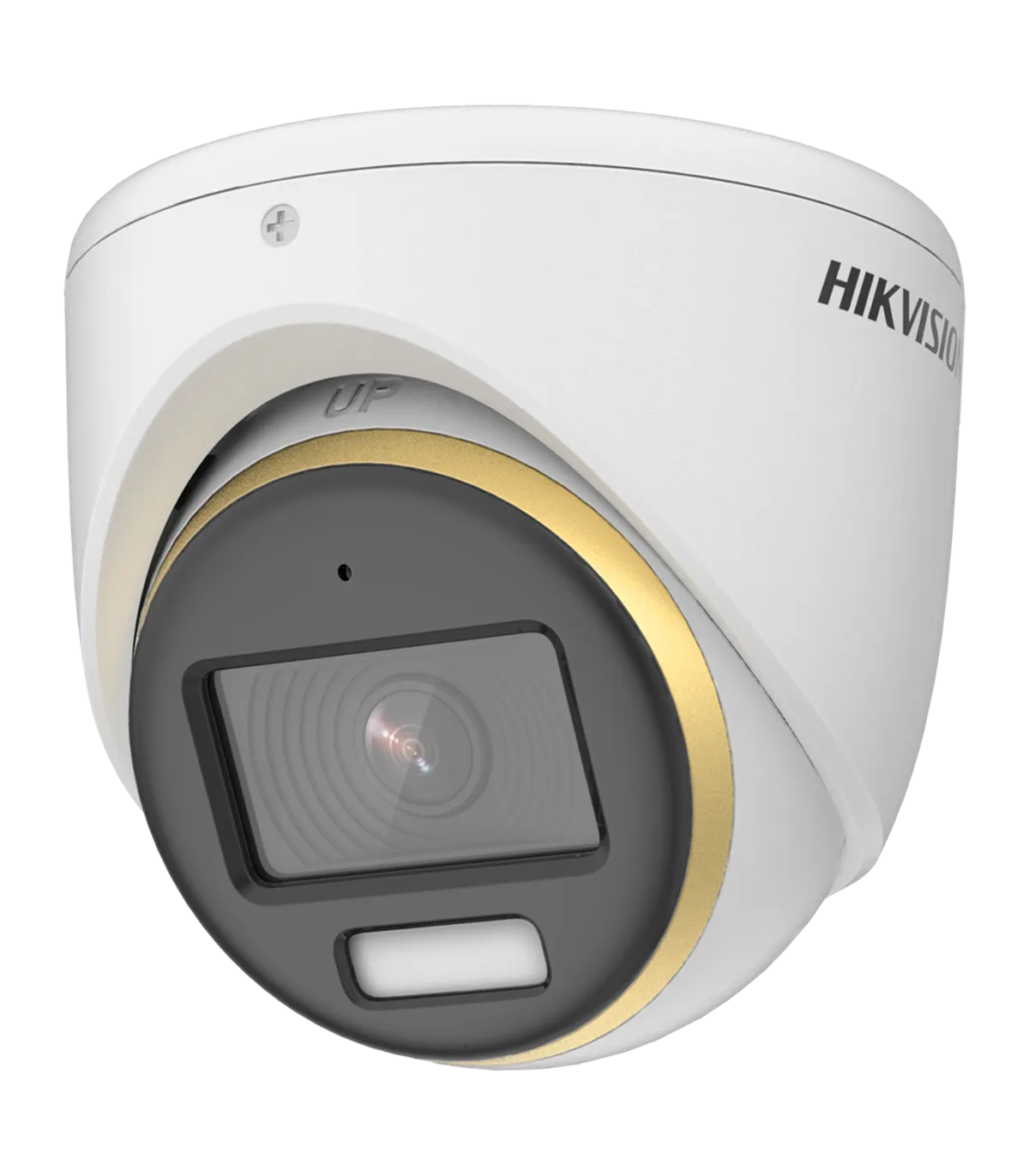

The DS-2CE70DF3T-MFS(2.8mm) is a high-performance turret camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing clear and detailed images around the clock. With its ColorVu technology, it delivers vibrant color images even in low-light conditions, making it perfect for security in various settings. The camera features a 2 MP resolution and a 2.8 mm lens, ensuring a wide field of view and high-quality video output. Its robust design includes an IP67 waterproof rating, making it suitable for challenging weather conditions.
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 98º (H), 52º (V), 116º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON) 0 Lux with white light, range 20 m |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light, Mirror effect, Privacy mask |
| Audio | Integrated microphone Audio over coaxial |
| Alarm | Visual alarm |
| Motion Detection | Yes |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 4.2 W max. |
| Protection Rating | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 85.1 mm x 77.62 mm (H) |
| Base Diameter | Ø base 85.1 mm / Ø between screws 60 mm / 3 screws |
| Weight | 312 g |
The DS-2CE70DF3T-MFS(2.8mm) turret camera is an excellent choice for a variety of surveillance applications, including retail stores, parking lots, and residential areas. Its 24-hour color imaging capability ensures that users can monitor their premises effectively, even in low-light conditions. The camera's motion detection feature allows for immediate alerts, enhancing security by notifying users of any suspicious activity. With its IP67 waterproof rating, the camera can withstand harsh weather, making it suitable for outdoor installations. Additionally, the integrated microphone and audio over coaxial functionality provide an added layer of security by allowing users to hear what is happening in the monitored area. This camera is designed for easy installation and configuration, making it a reliable choice for both professional installers and end users looking for a robust surveillance solution.
