| Brand | X-Security |
| Range | EASY |
| Image Sensor | 2 MPx Progressive CMOS |
| Maximum Resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 102º, V: 60º, D: 129º |
| DORI | 41.1 m (D), 16.5 m (O), 8.3 m (R), 4.1 m (I) |
| Lens Positioning | 3-axis |
| Minimum Illumination | 0.01 Lux @(F2.0, AGC ON) 0 lux with dual light |
| Supplementary Illumination | Dual Light (IR + White Light) range 40 m |
| Day/Night | Mechanical ICR filter |
| Electronic Shutter | 1/25~1/100000 s |

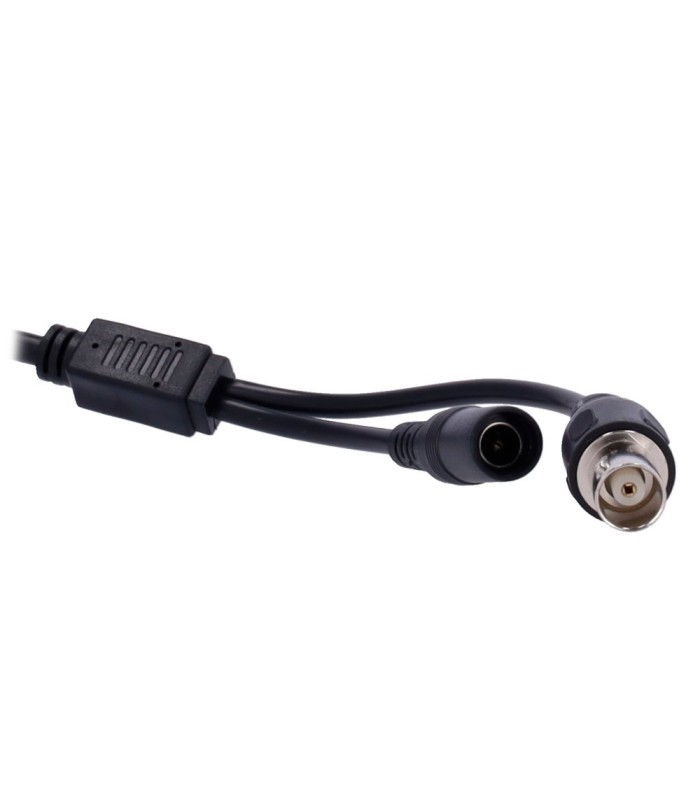

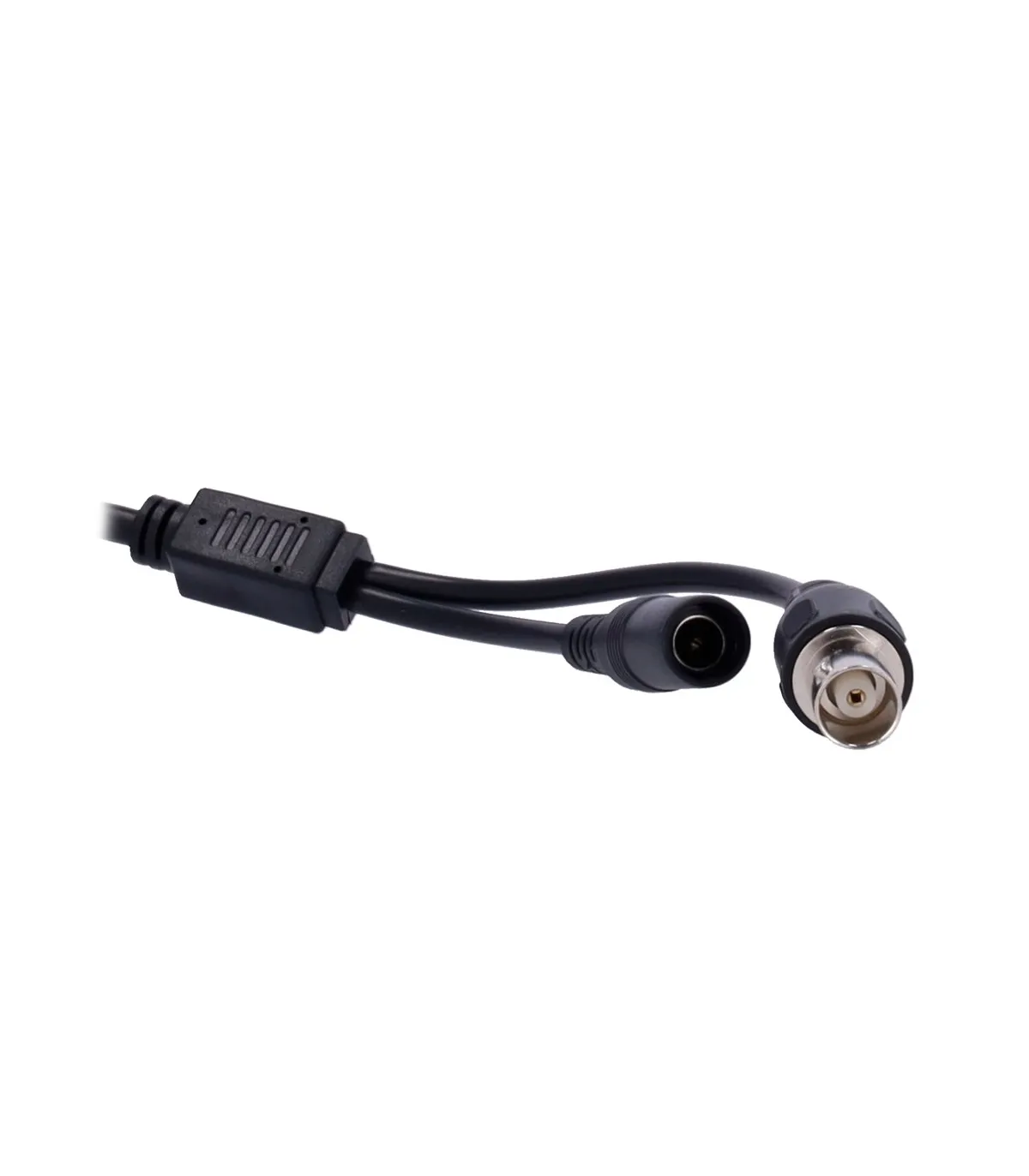

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through switch |
| Basic Functions | OSD Menu |
| Image Enhancements | DWDR, 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirror Effect |
| Audio | Integrated Microphone Audio via coaxial in CVI technology |
| Power | DC 12 V / 4.1 W max. |
| Protection Rating | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | Ø 106 mm x 99.2 mm (H) |

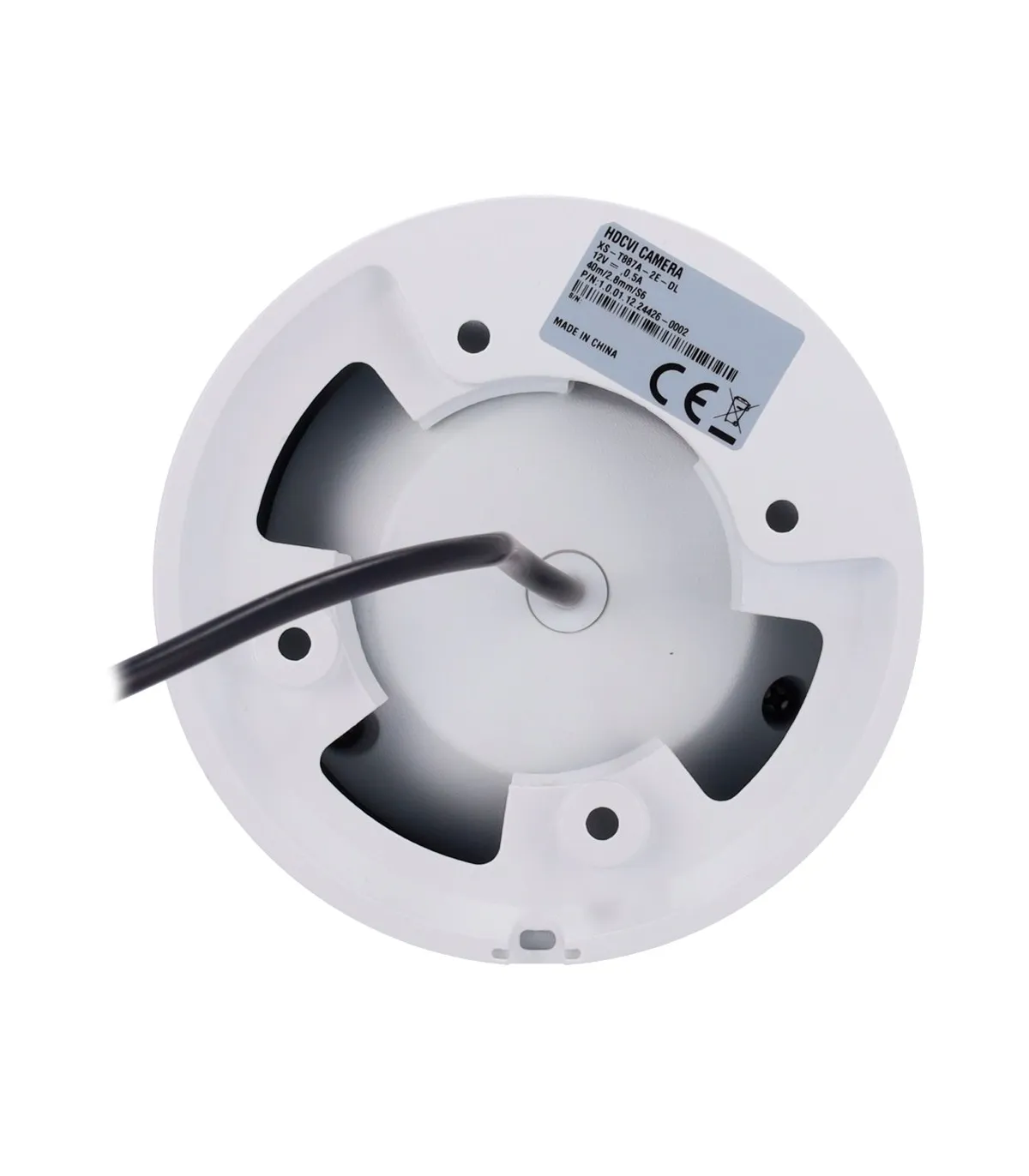

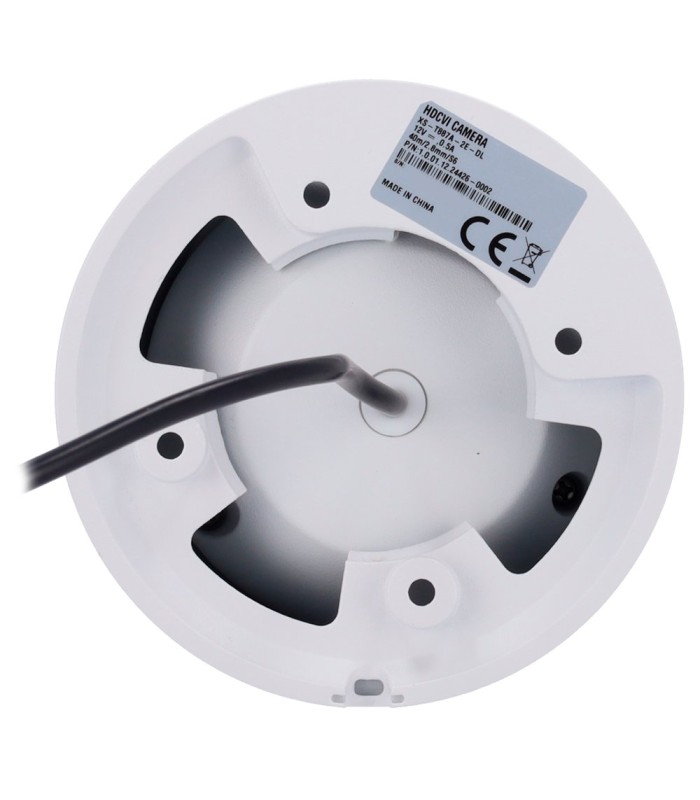

| Base Dimensions | Ø base 106 mm / Ø between screws 69 mm / 4 screws |
| Weight | 450 g |
Data sheet
