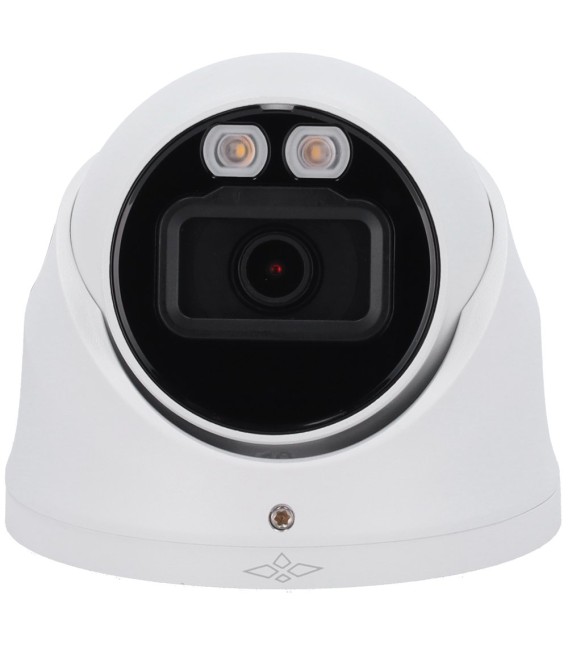

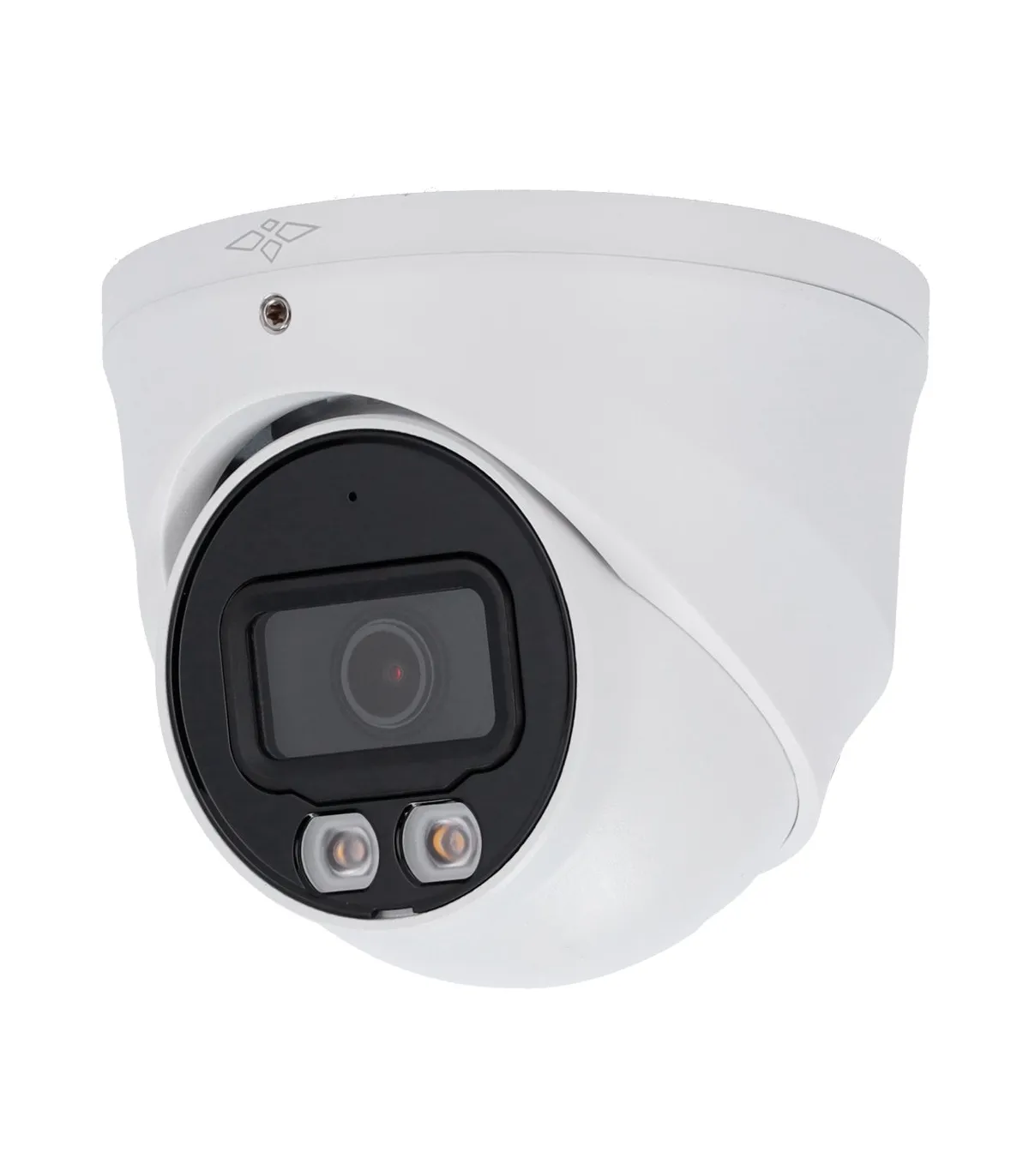

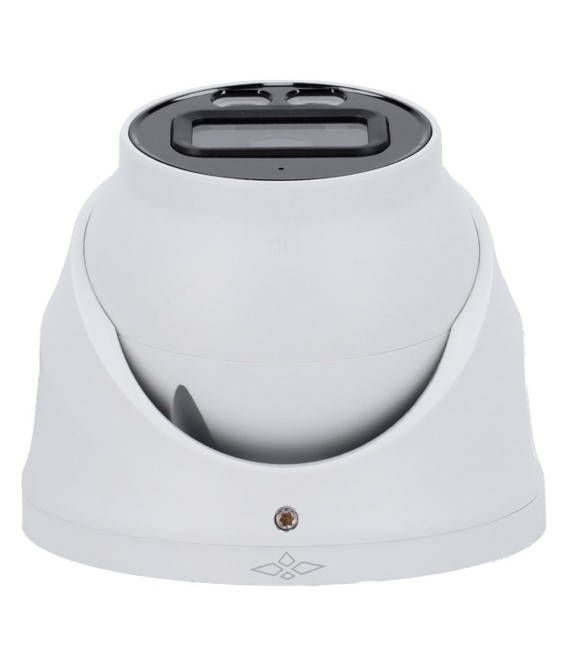

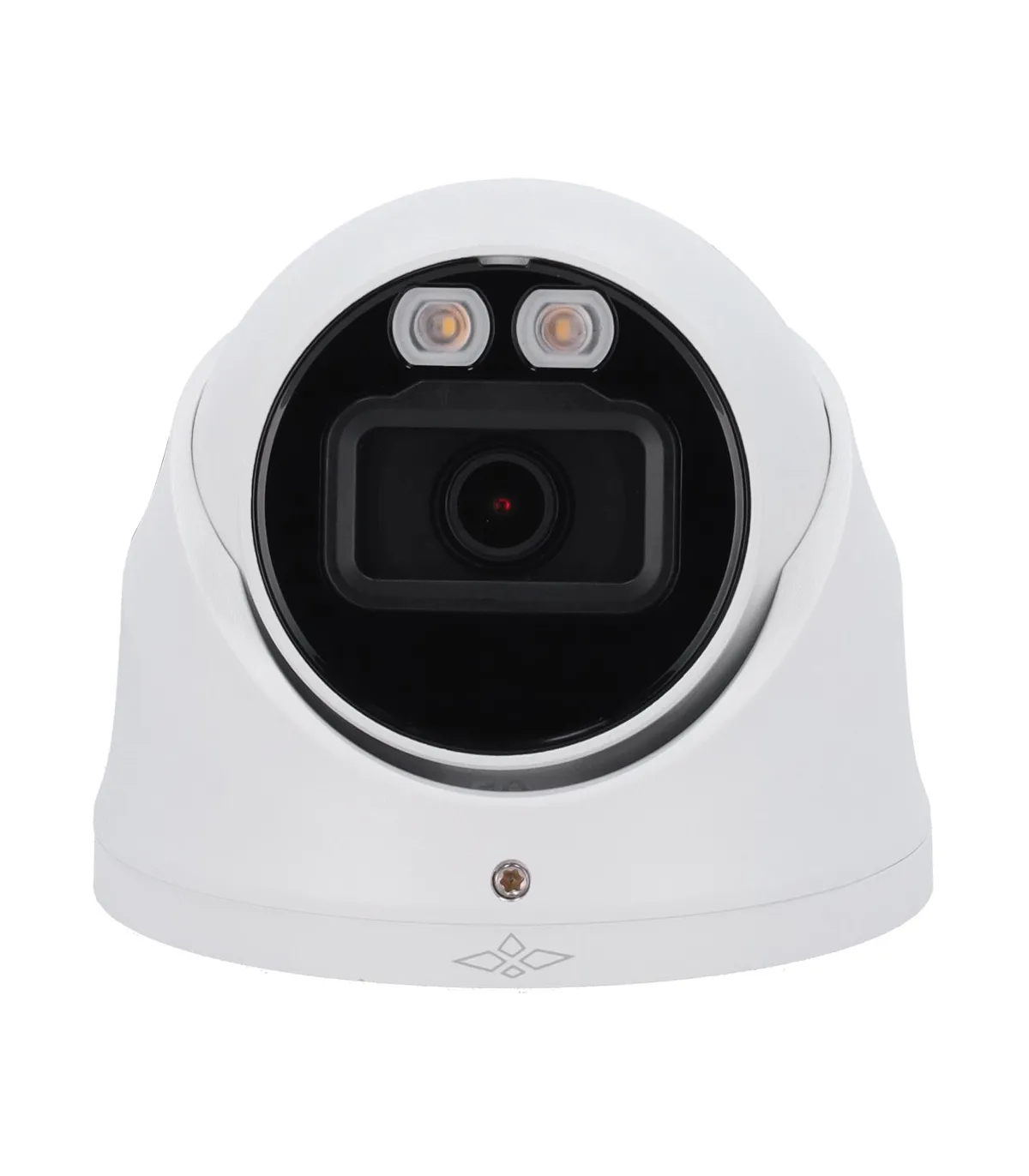

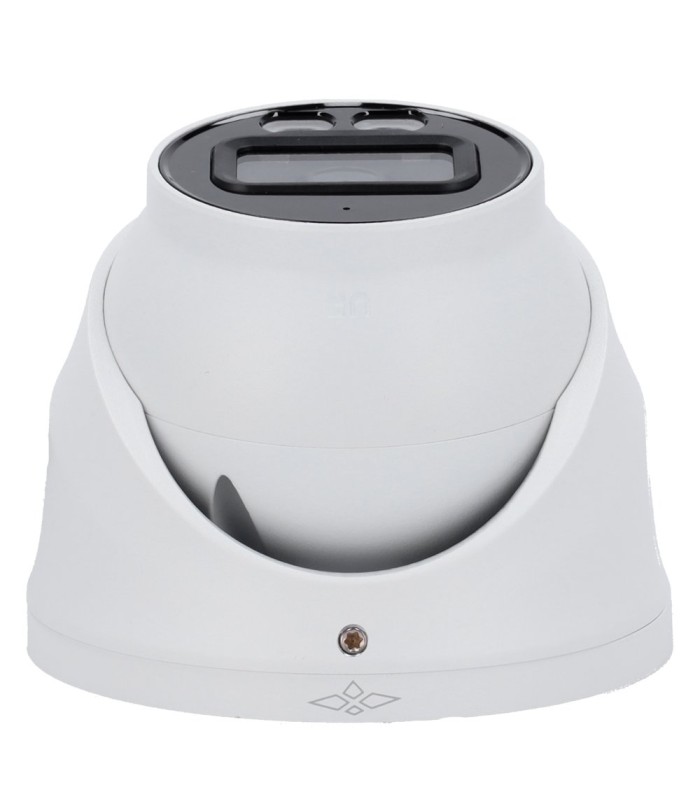

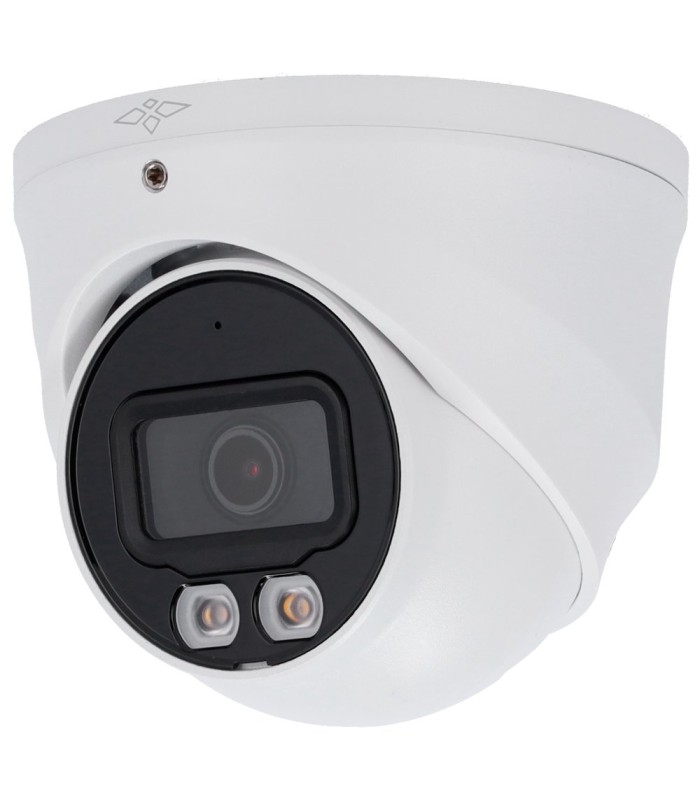

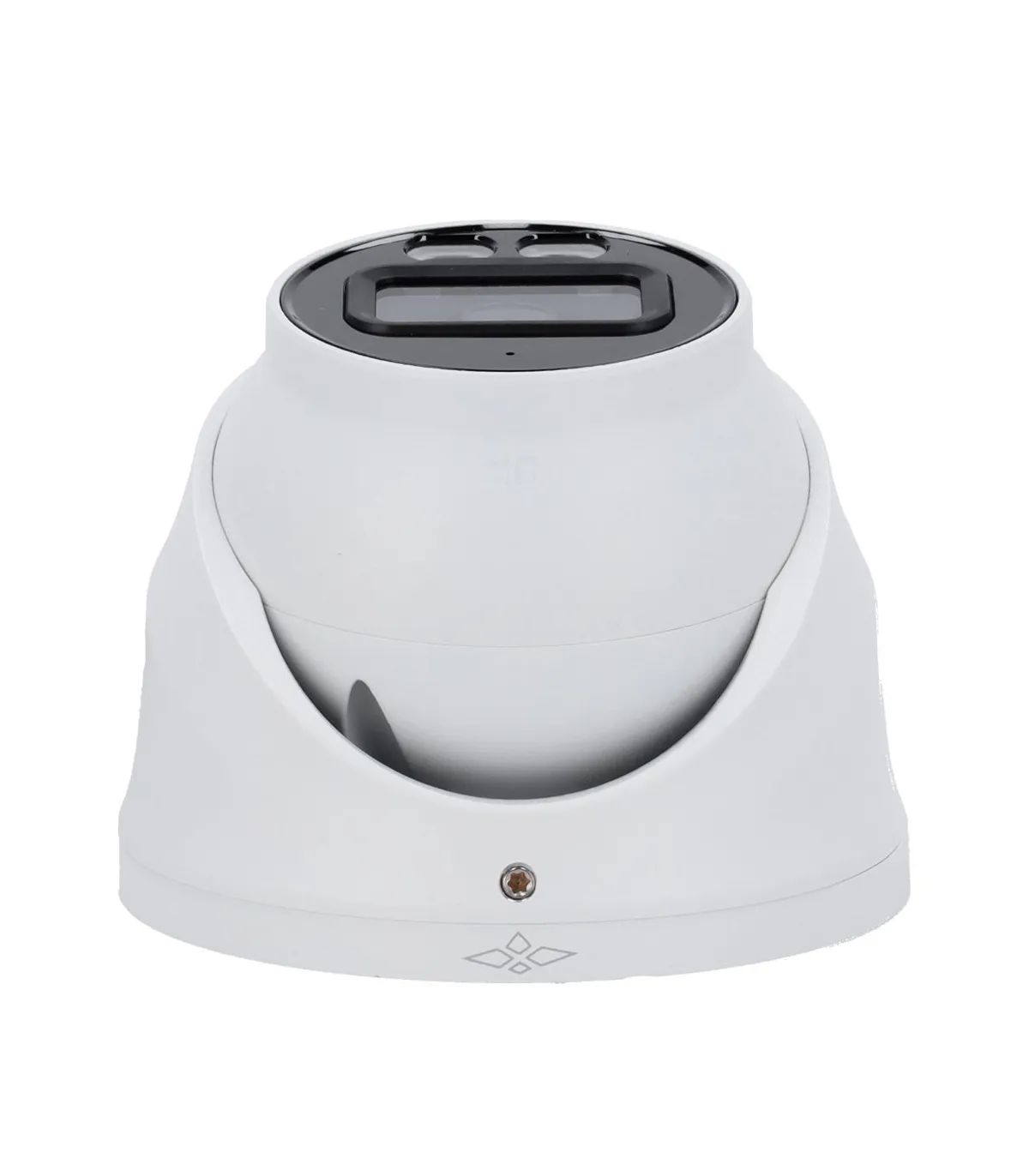

X-Security HDCVI Turret Camera XS-T744A-8P-DL
Brand: X-SECURITY
- X-Security HDCVI Turret Camera
- 4K CMOS
- 3.6mm Lens
- WDR (120dB)
- Dual Light: IR + White, 40m range | Microphone
X-Security HDCVI Turret Camera XS-T744A-8P-DL
- X-Security
- HDCVI Turret Camera
- 4K CMOS
- 4K (3840x2160)
- HDCVI Output
- 2.8 mm Lens
- Color 0.005 Lux
- 0 Lux - Dual light: IR and white light with a range of 40 m
- Integrated microphone
- DWDR
- 3DNR
- IP67 Waterproof
Technical Specifications
| Brand | X-Security |
| Range | Lite |
| Image Sensor | 4K CMOS |
| Maximum Resolution | CVI: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: 4K@15 fps TVI: 4K@15 fps CVBS: 960H |

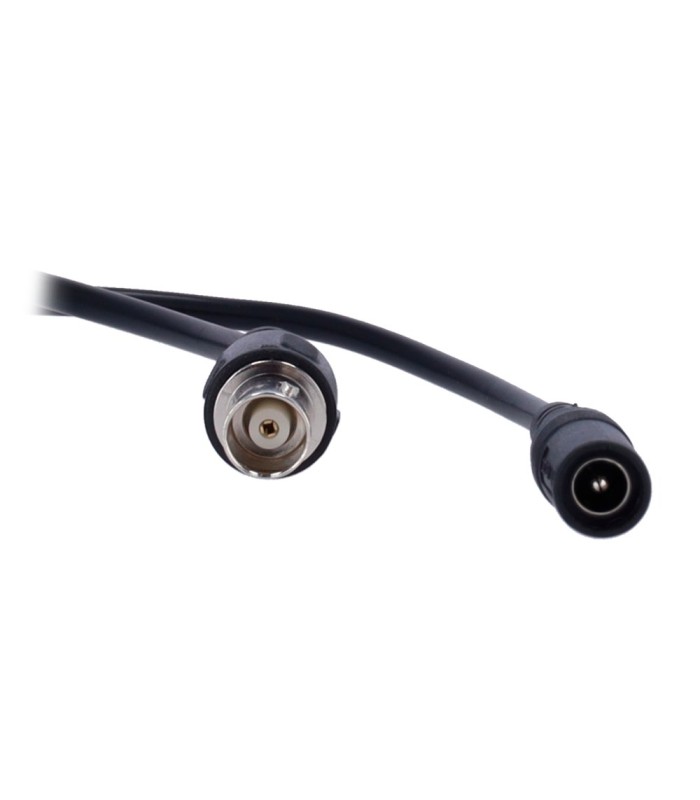

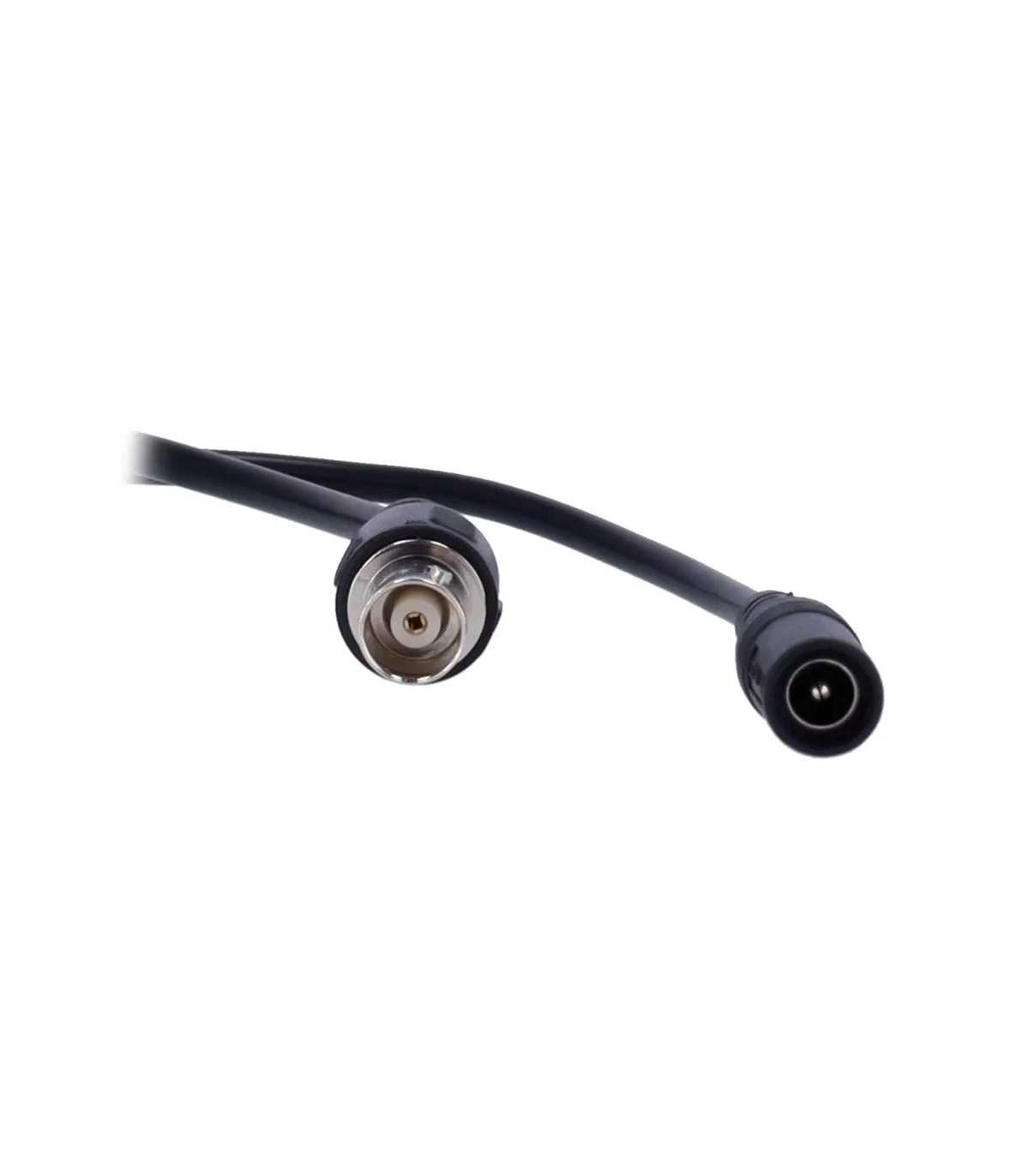

| Video Output | 1 x BNC CVI/TVI/AHD/CVBS |
| Optics | 3.6 mm |
| Day/Night | Removable ICR mechanical filter |
| Minimum Illumination | 0.005 Lux (Color), 0 Lux (IR On) |
| Lighting Range | Intelligent dual lighting: IR up to 40 m White LED up to 40 m (Turns on when there is a target in range) |
| Basic Functions | OSD Menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD Functions | WDR 120 dB, Smart IR, AWB, AGC, BLC, HLC, 3DNR |
| Audio | Integrated microphone |
| Power | DC 12 V / 5.7 W max. |
| Protection Grade | IP67 Waterproof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 198.4×80.2×76.2 mm |
| Weight | 480 g |
Content
- X-Security Bullet Camera
- Installation materials
- User instructions
