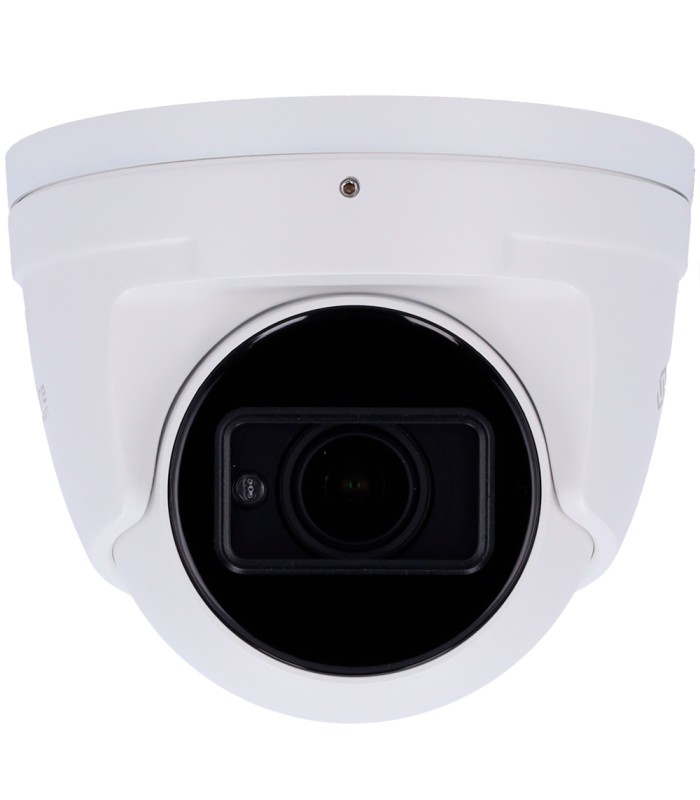

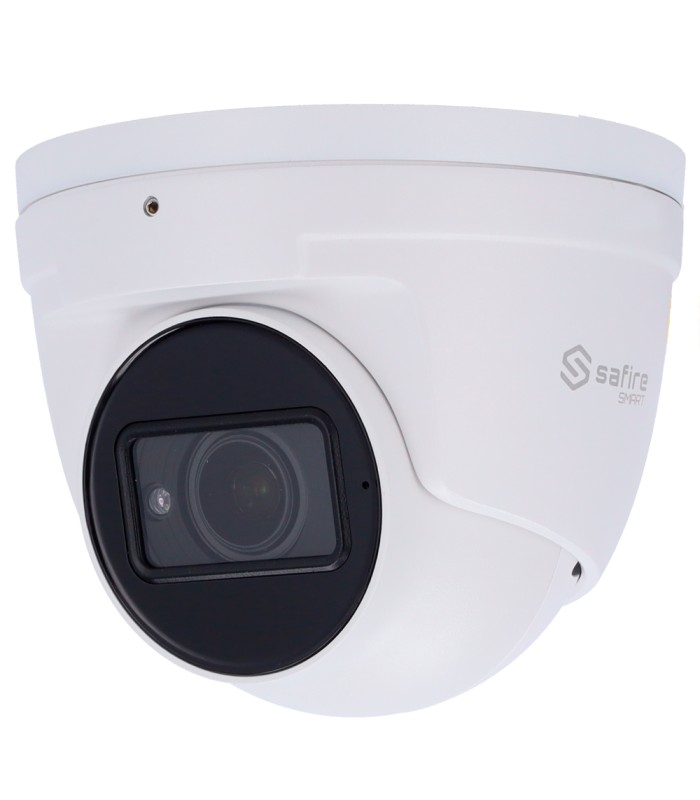

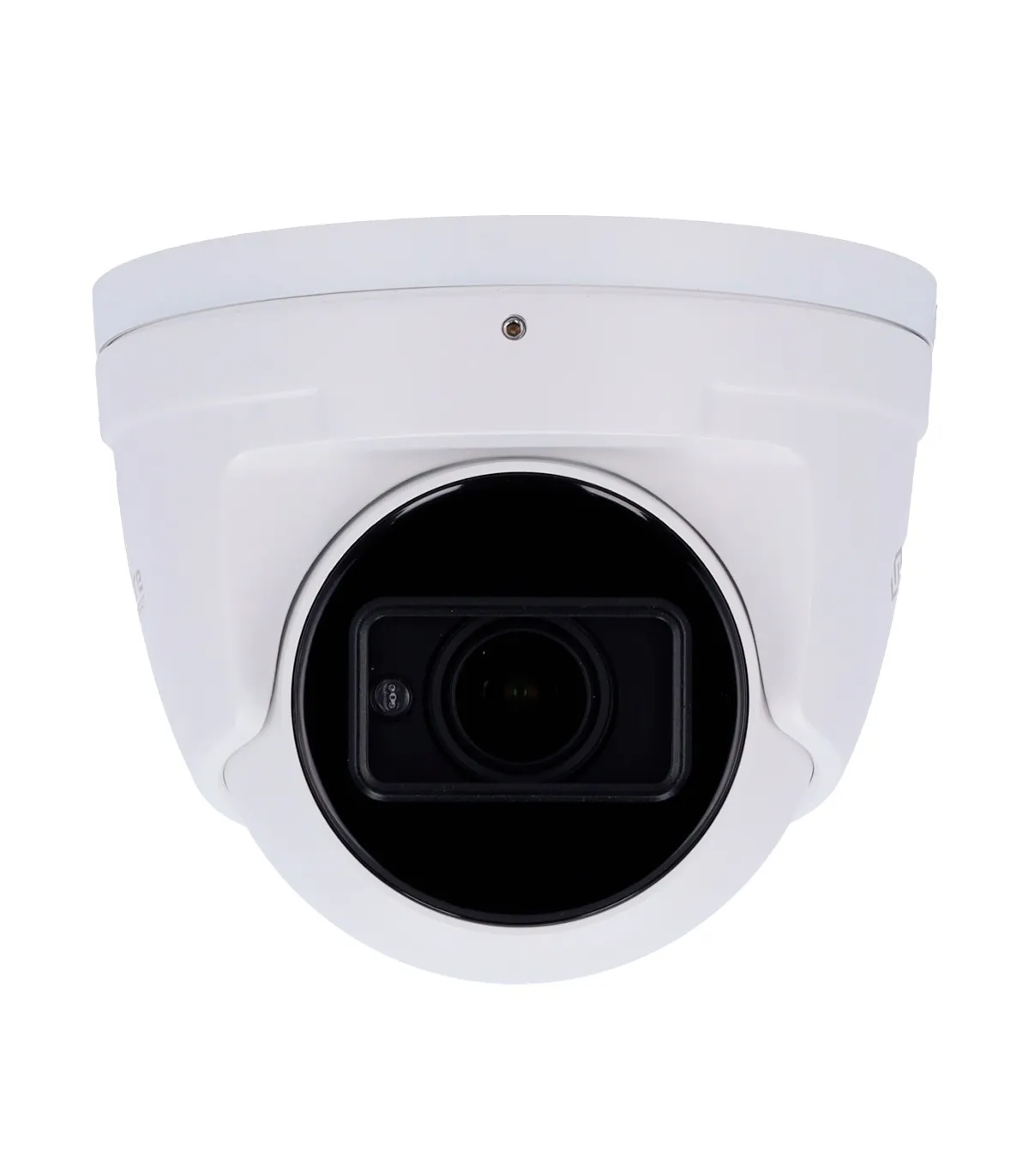

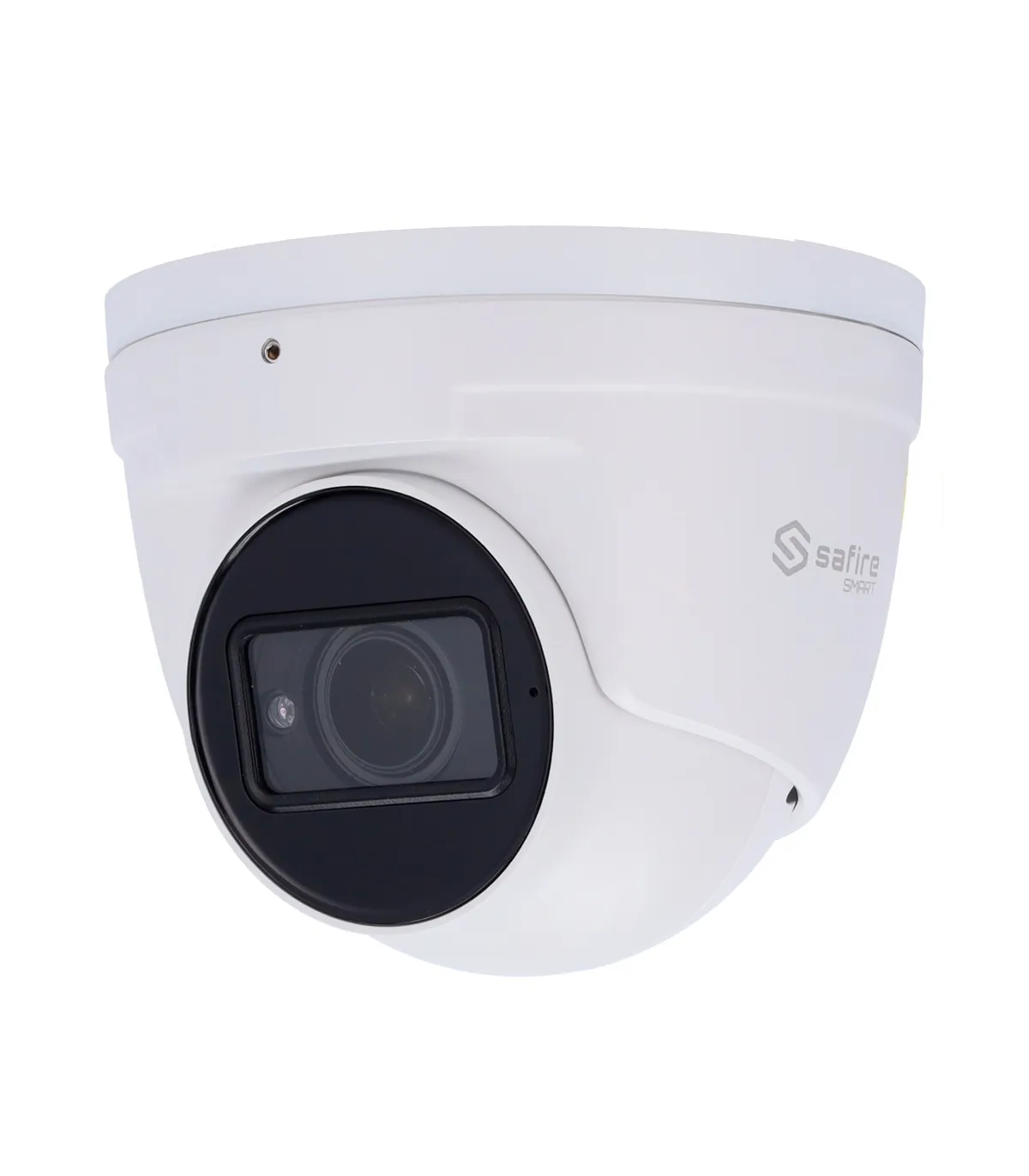

Turret 4 in 1 Camera E1 Range SF-T520ZSA-2E1
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Turret Camera E1 Range
- 2 Mpx (1920x1080), 1/2.8" CMOS Starlight
- Motorized Lens 2.8~12 mm | IR range 50 m
- 120 dB WDR, HLC, BLC, AGC
- Waterproof IP67 | Integrated microphone
Turret 4 in 1 Camera E1 Range SF-T520ZSA-2E1
- Safire Smart
- E1 Professional Range high quality and performance
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.8"
- 2Mpx (1920x1080)
- 4 in 1 output
- Motorized Lens 2.8~12mm
- 0 Lux
- IR Range 50 m
- 3D DNR
- IR CUT
- Mirror
- HLC, BLC, AGC, 120 dB WDR
- Waterproof IP67
- Built-in microphone
Technical specifications
| Brand | Safire Smart |
| Range | E1 Professional, high quality and performance |
| Image sensor | 1/2.8" CMOS |
| Resolution maximum | 2 Mpx (1920x1080) |
| Resolution | 2Mpx (25fps/30fps) |
| Lens | Motorized 2.8~12 mm (H: 88.6º~34.4º, V: 57.5º~19.7º, D: 96.47º~39º) |
| Minimum illumination | 0.001 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / IR range up to 50 m (ICR) |
| Day / Night | Auto / Color / BW (Black and White) |

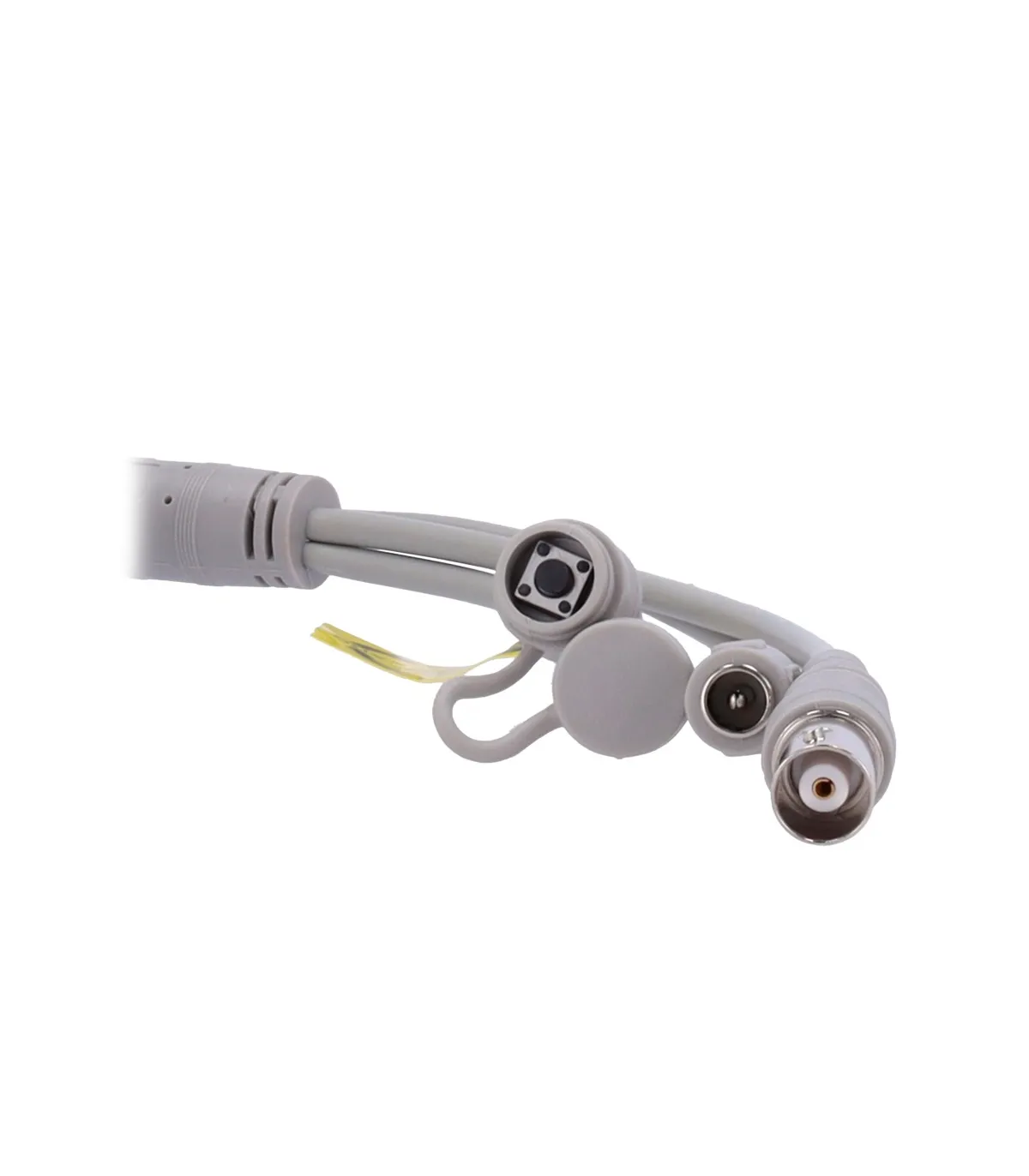

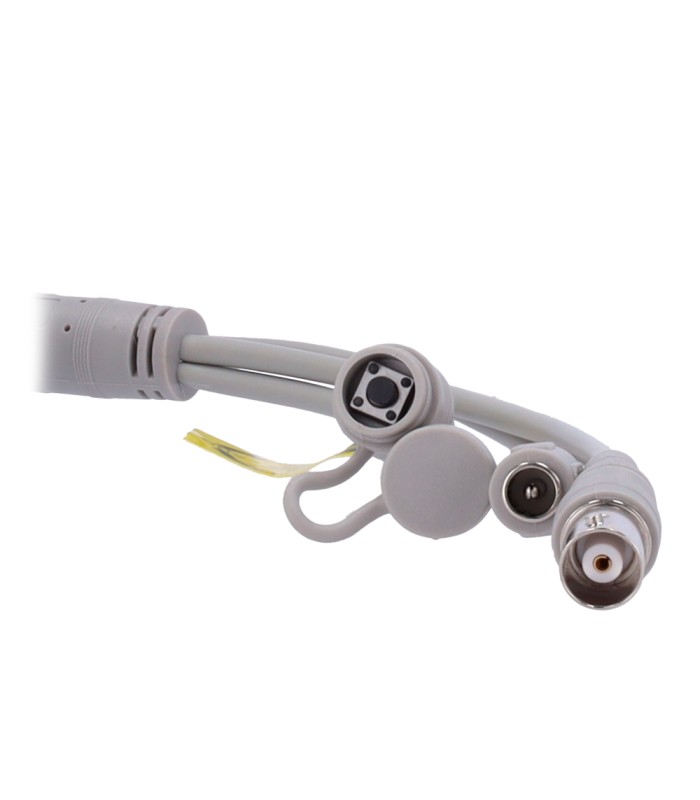

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via DVR (HDTVI by default) |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| WDR | 120 dB |
| Positioning Lens | 3 Axis |
| Power | DC 12 V / 700 mA, 8.5 W max |
| Degree protection | Waterproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 99.6 (H) x 111.5 (Ø) mm |
| Weight | 557 g |
Contents
- Safire Smart turret chamber
- 4 plugs and 4 screws for assembly
- Quick assembly guide
- Installation template
