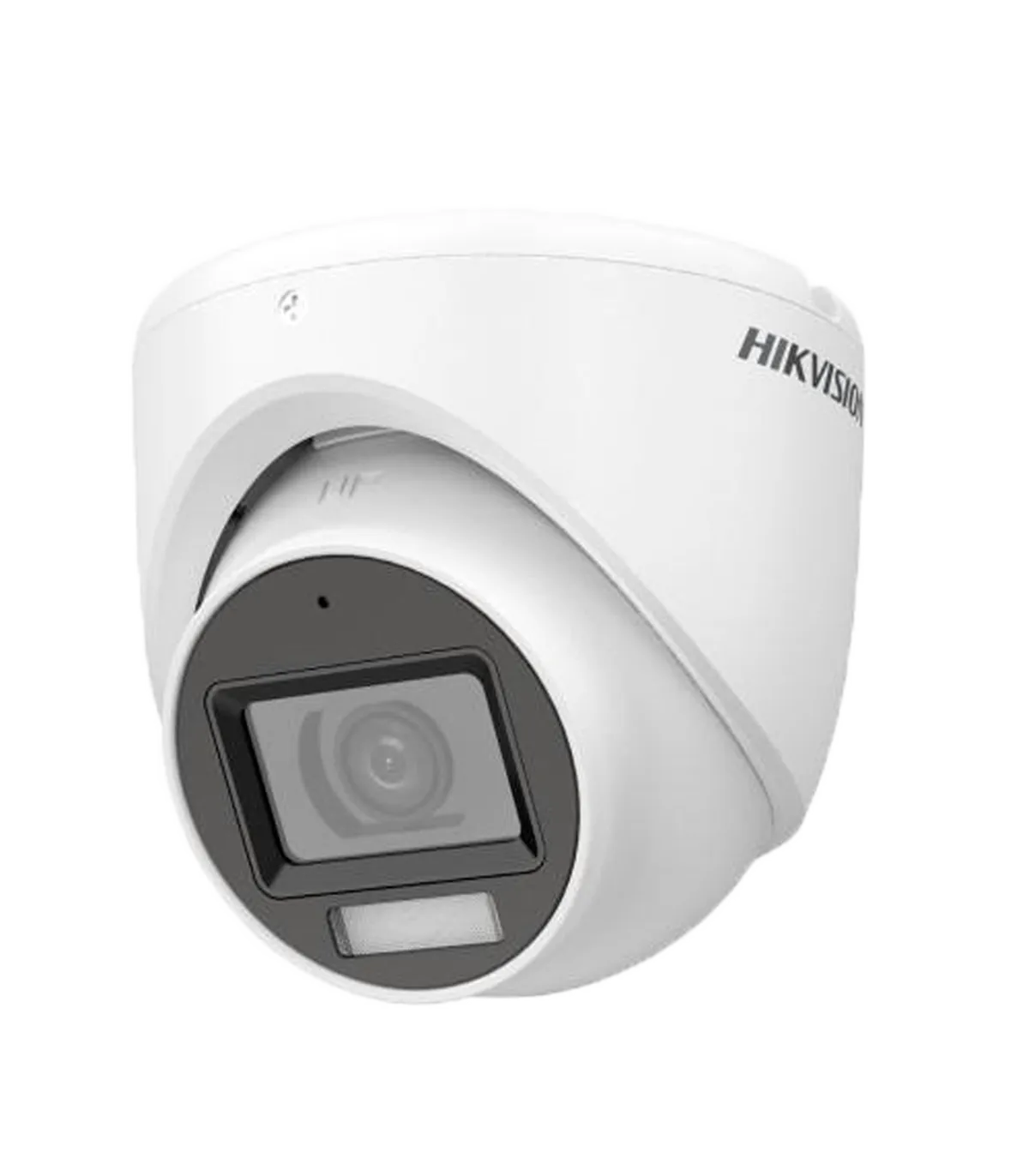

Hikvision 2K Turret Camera 2.8 mm Lens 30 m IR DS-2CE76G0T-LMFS(2.8mm)
- Hikvision 4-in-1 Turret Camera Value Range
- 2K Resolution (2304x1296)
- 2.8 mm Lens
- Audio over Coaxial Cable | Integrated Microphone
- Hybrid Light: IR 30 m, White Light 20 m
- IP67 Waterproof | Metal
Description & Key Features: DS-2CE76G0T-LMFS(2.8mm)
The DS-2CE76G0T-LMFS(2.8mm) is a versatile turret camera designed for high-definition surveillance in various environments. This device is ideal for both residential and commercial applications, providing exceptional image quality and reliable performance. With its 2K resolution and hybrid lighting capabilities, it ensures clear visibility even in low-light conditions. The camera's robust construction and IP67 waterproof rating make it suitable for outdoor installations, while its integrated microphone allows for audio monitoring, enhancing security measures.
- Hikvision
- Value Series
- Turret Camera HDTVI, HDCVI, AHD, and CVBS
- High Performance CMOS
- Resolution 2K (2304x1296)
- 4-in-1 Output
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- IR Range 30 m
- White Light Range 20 m
- Audio over Coaxial
- Integrated Microphone
- IR CUT
- Metal Housing
- Waterproof IP67
Specifications: DS-2CE76G0T-LMFS(2.8mm)
| Brand | Hikvision |
| Series | Value |
| Image Sensor | High Performance CMOS |
| Maximum Resolution | 2K (2304x1296) |
| Resolution | TVI: 2K (20 fps), 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 105º (H), 60º (V), 129º (D) |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON) |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 20 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (Remote) |
| Configurable OSD Functions | DWDR, BLC, HLC, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Audio | Integrated Microphone Range 5 m Audio over Coaxial in TVI Technology |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 3.9 W max. |
| Protection Rating | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 85.1 mm x 80 mm (H) |
| Base Diameter | Ø base 85.1 mm / Ø between screws 60 mm / 3 screws |
| Weight | 295 g |
Package Contents
- Hikvision Value 4-in-1 Turret Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE76G0T-LMFS(2.8mm) is an excellent choice for installers looking to enhance security in retail environments, parking lots, or residential areas. With its 2K resolution and hybrid lighting capabilities, this camera provides clear images day and night, ensuring comprehensive surveillance coverage. The integrated microphone allows for audio monitoring, which is crucial for capturing incidents as they happen. Its IP67 waterproof rating ensures durability against harsh weather conditions, making it suitable for outdoor installations. Additionally, the camera's remote monitoring capabilities enable users to access live feeds from anywhere, enhancing security management. This combination of features makes the DS-2CE76G0T-LMFS(2.8mm) a reliable solution for any security system.
Data sheet
- Brand
- HIKVISION
- Resolution
- 3 Mpx
- Technology
- HD-Coaxial
- WDR
- DWDR
- Audio
- Micrófono integrado
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-110-TRS,DS-1272ZJ-110-TRS
Specific References
- EAN13
- 6936422146207
