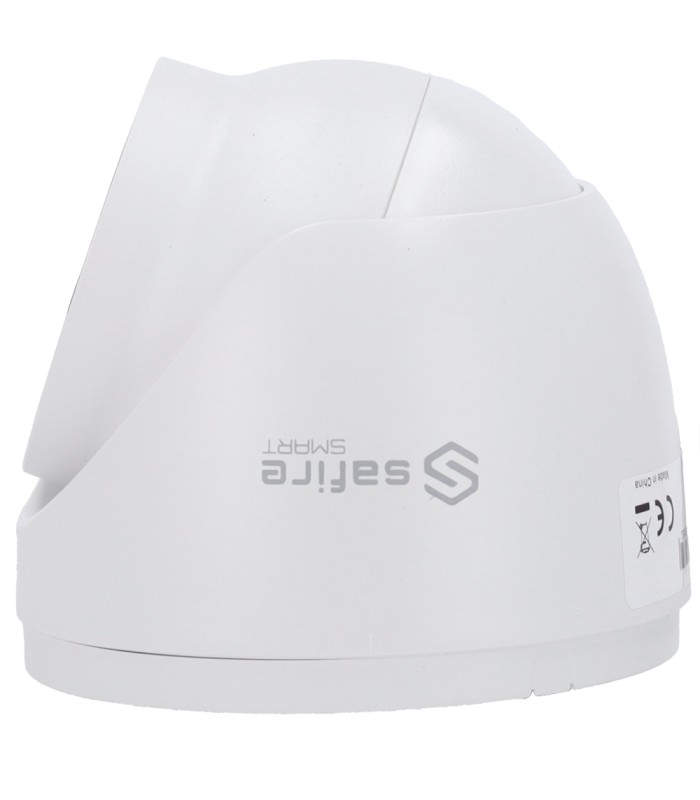

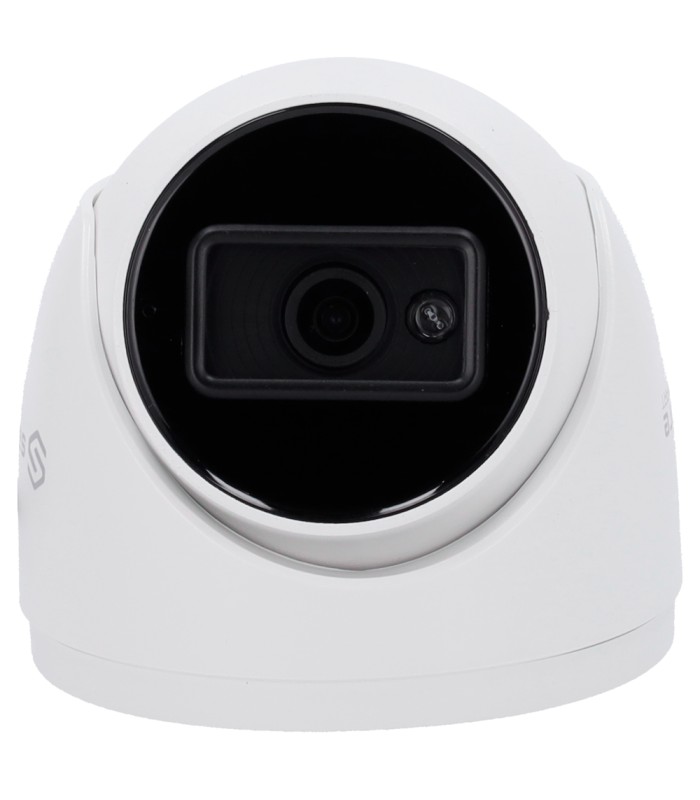

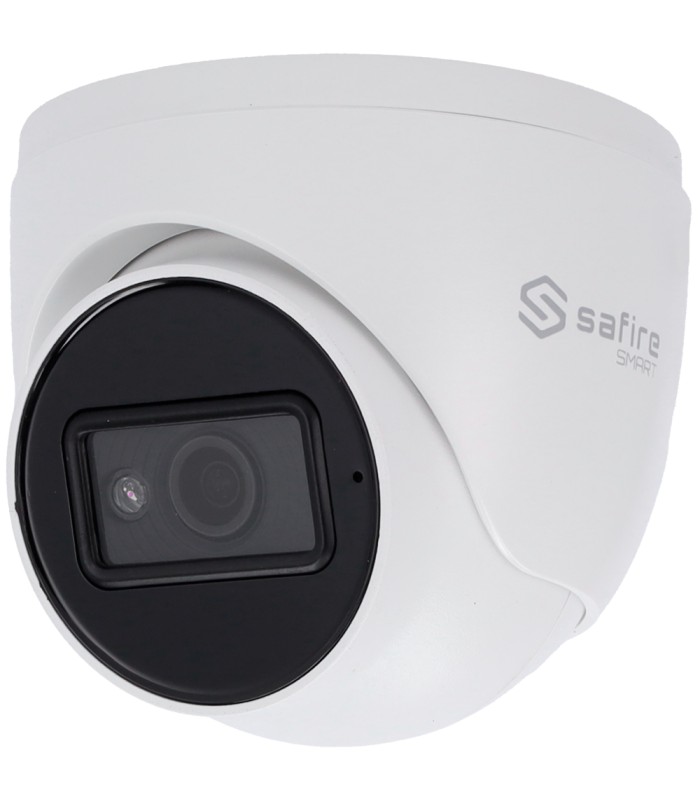

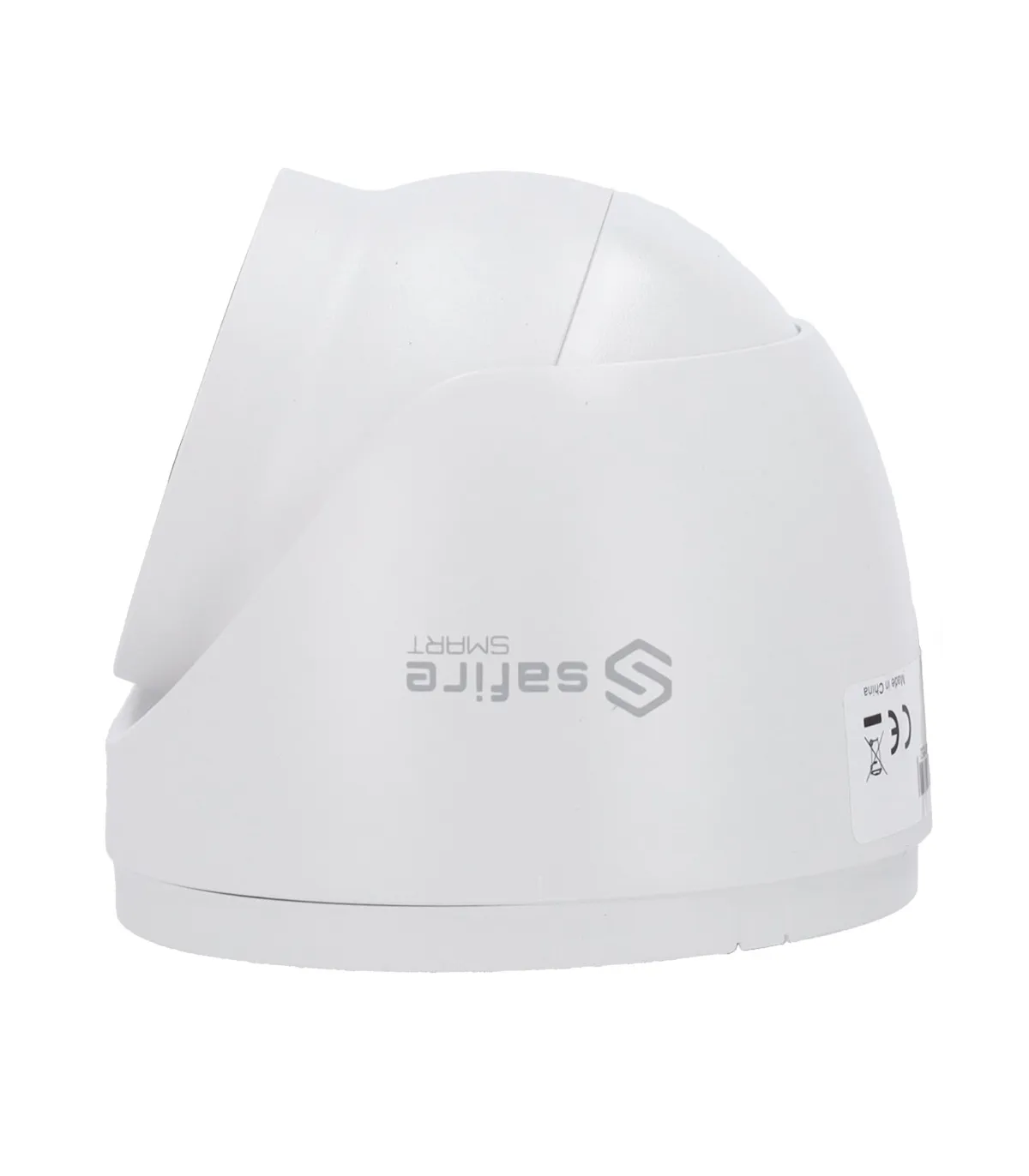

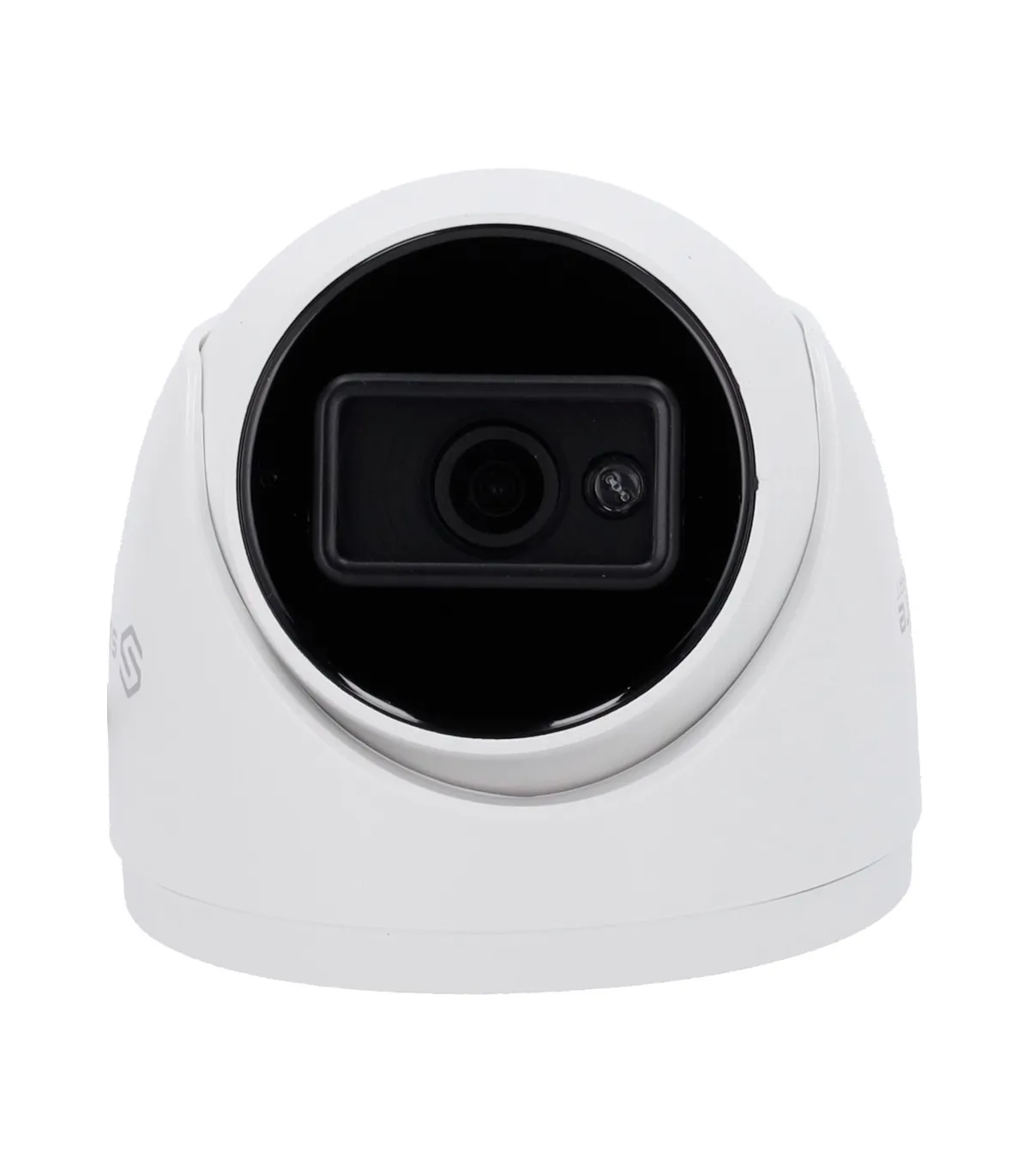

Turret Camera 4 in 1 Range B1 SF-T010A-5B1-0360
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Turret Camera B1 Range
- 5 Mpx ((2560x1936), 1/2.5" CMOS
- 3.6 lens | IR range 20 m
- DWDR, HLC, BLC, AGC
- Waterproof IP67
Turret 4 in 1 Camera B1 Range SF-T010A-5B1-0360
- Safire Smart
- Economic B1 Range
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.5"
- 5Mpx (2560x1936)
- 4 in 1 output
- 3.6mm lens
- 0 Lux
- IR Range 20 m
- 2D DNR
- IR CUT
- Mirror
- HLC, BLC, AGC, DWDR
- Built-in microphone, audio over coaxial
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | B1 Economy |
| Image Sensor | 1/2.5" CMOS |
| Resolution maximum | 5 Mpx (2560x1936) |
| Resolution | 5MP@20fps /4MP@30fps |
| Lens | 3.6 mm (H: 88.6º, V: 72.4º, D: 101.3º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / IR range up to 20 m (ICR) |
| Day / Night | Auto / Color / BW (Black and White) |

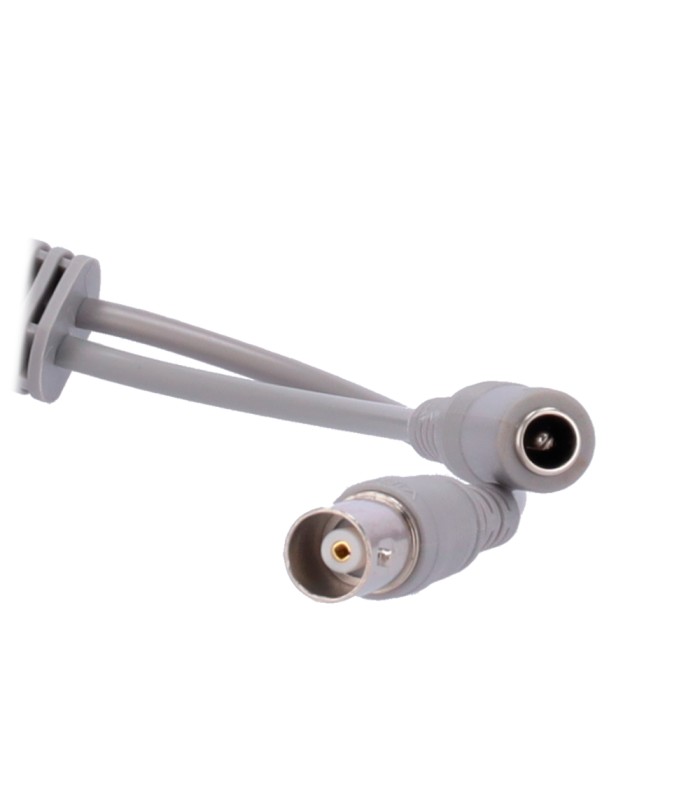

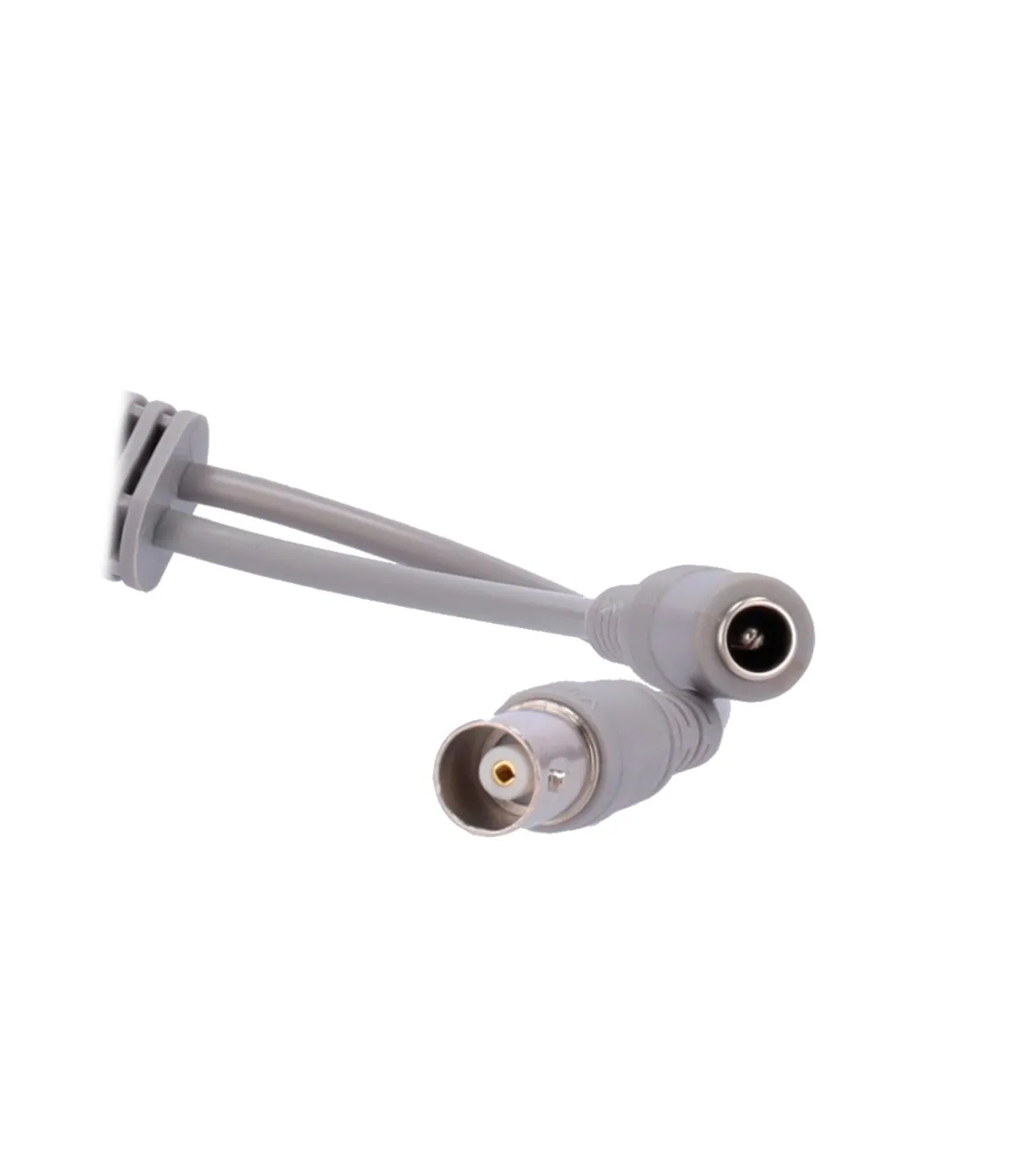

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via DVR (HDTVI by default) |
| Audio | Built-in microphone, audio over coaxial |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |

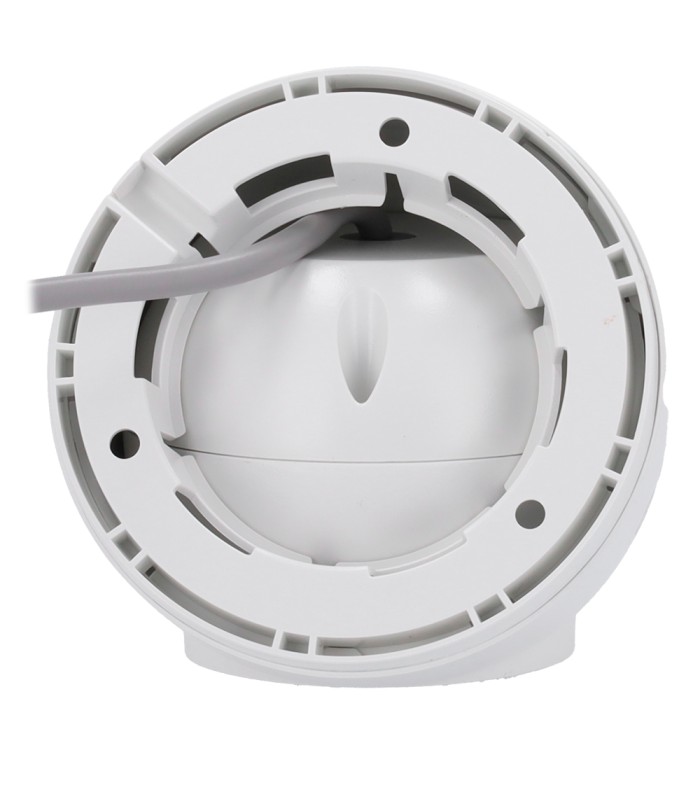

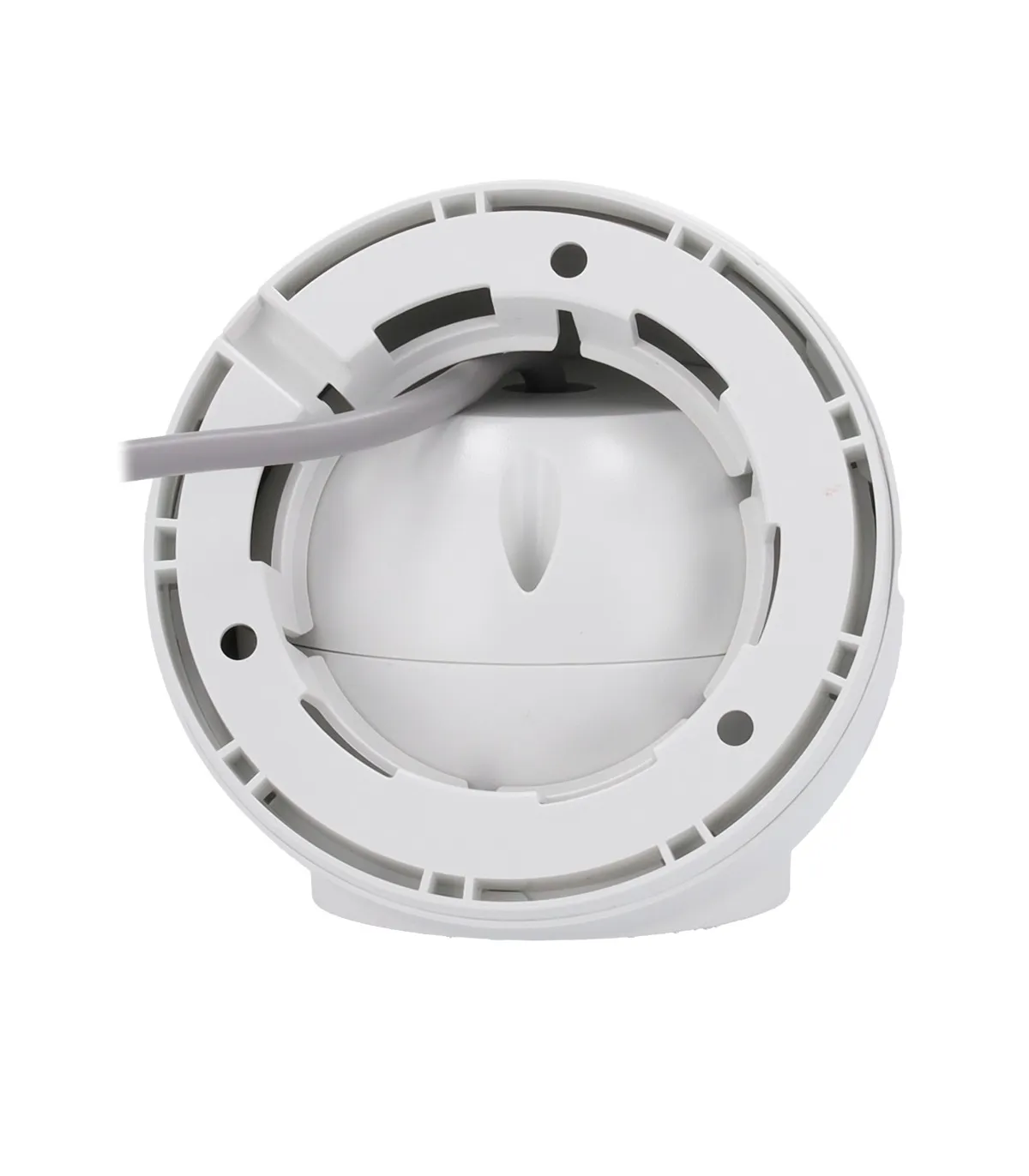

| Lens Positioning | 3 Axis |
| Power | DC 12 V / 250 mA, 3W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 82.8 (H) x 94.8 (Ø) mm |
| Weight | 200 g |
Contents
- Safire Smart turret chamber
- 3 plugs and 3 screws for assembly
- Quick assembly guide
- Installation template
