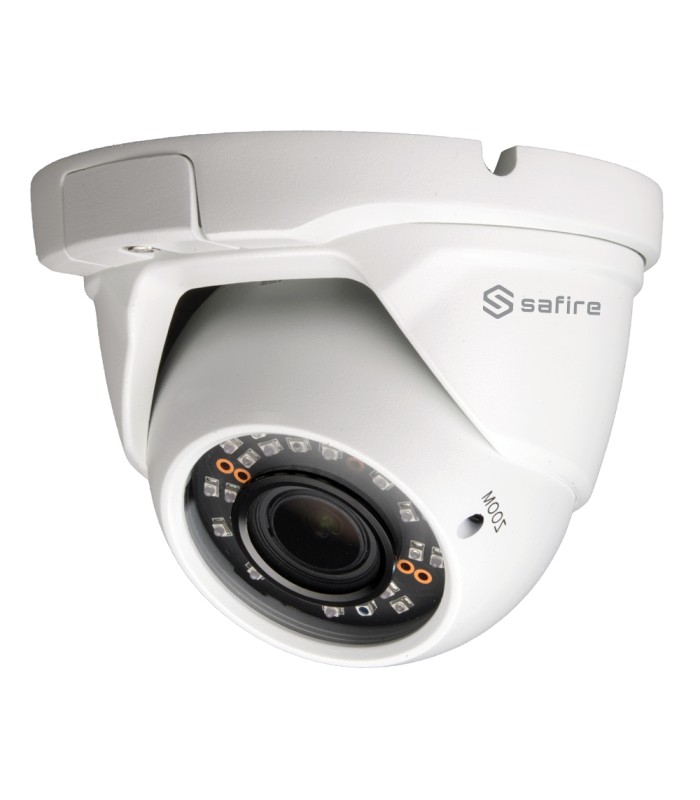

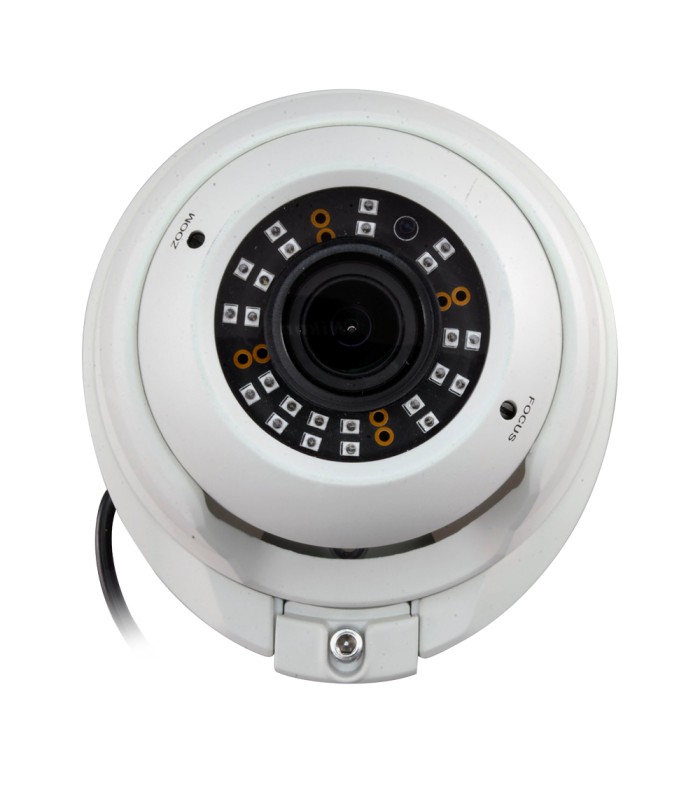

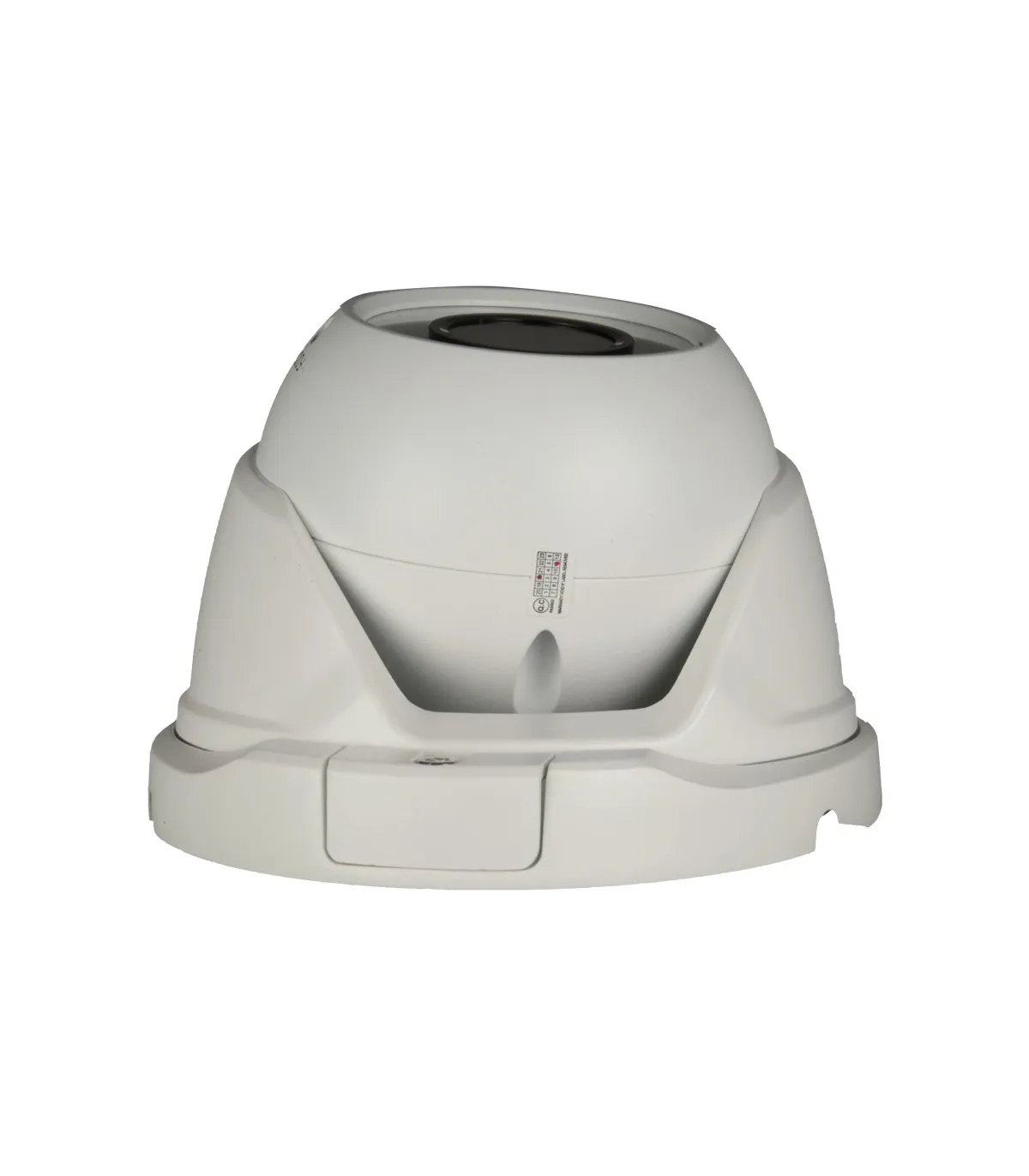

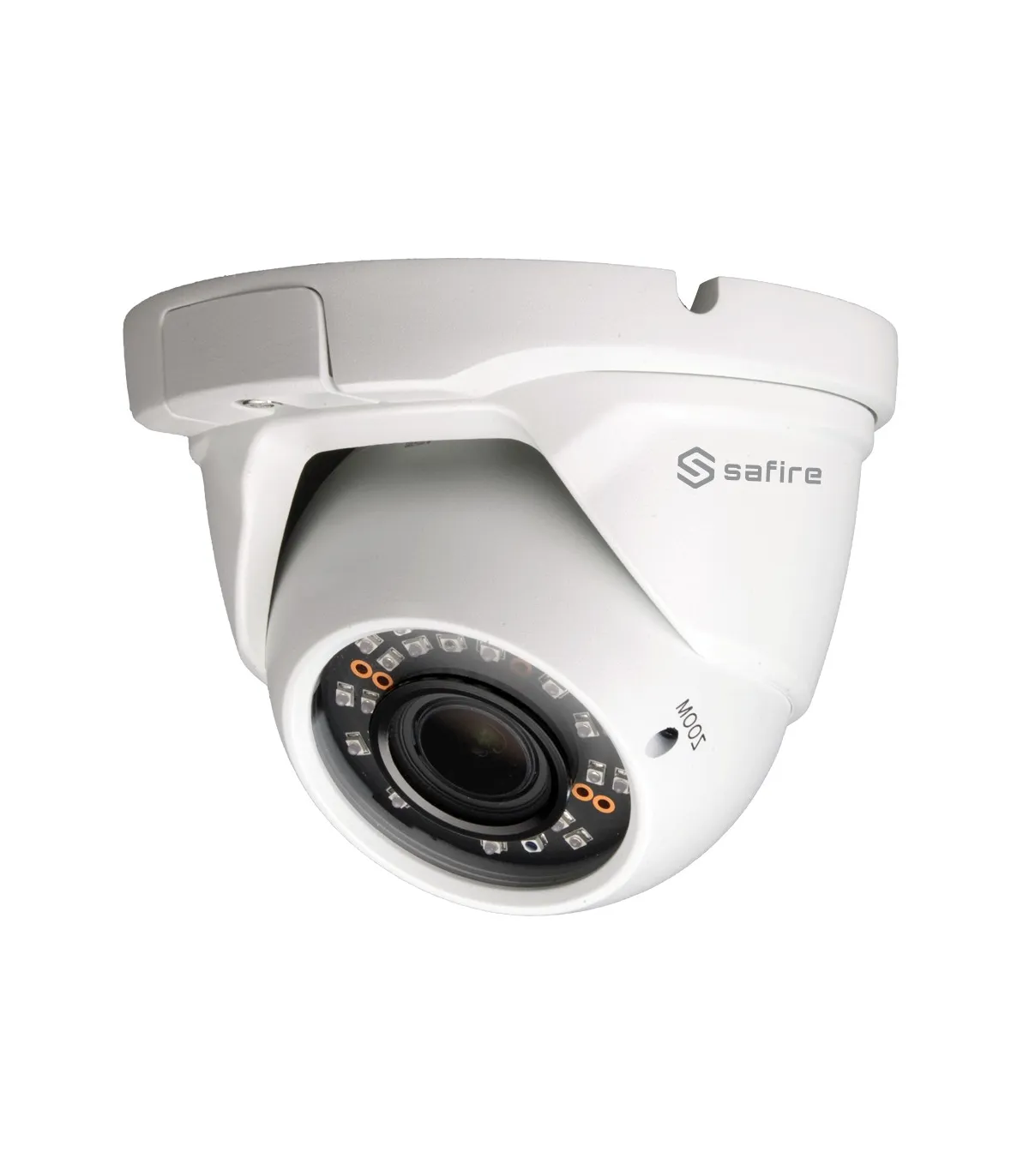

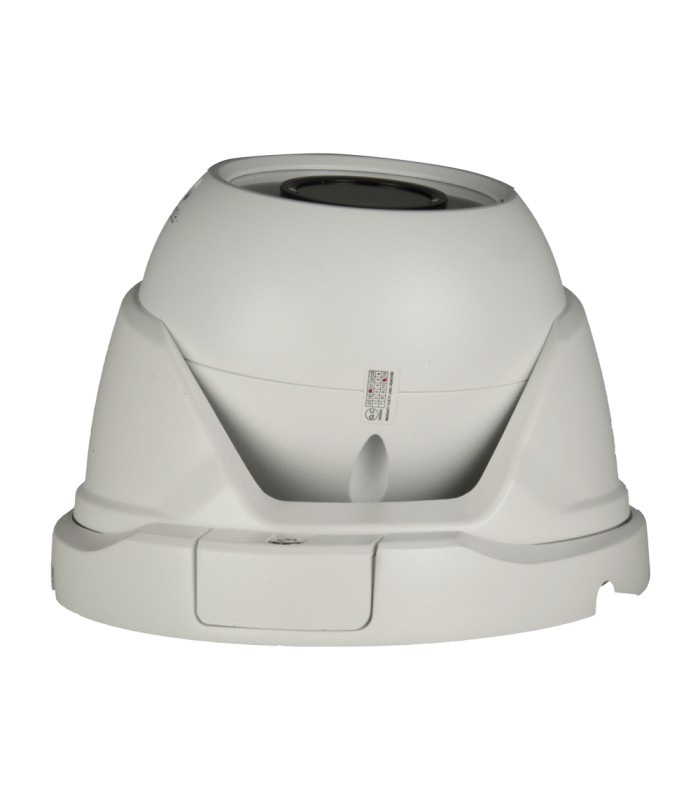

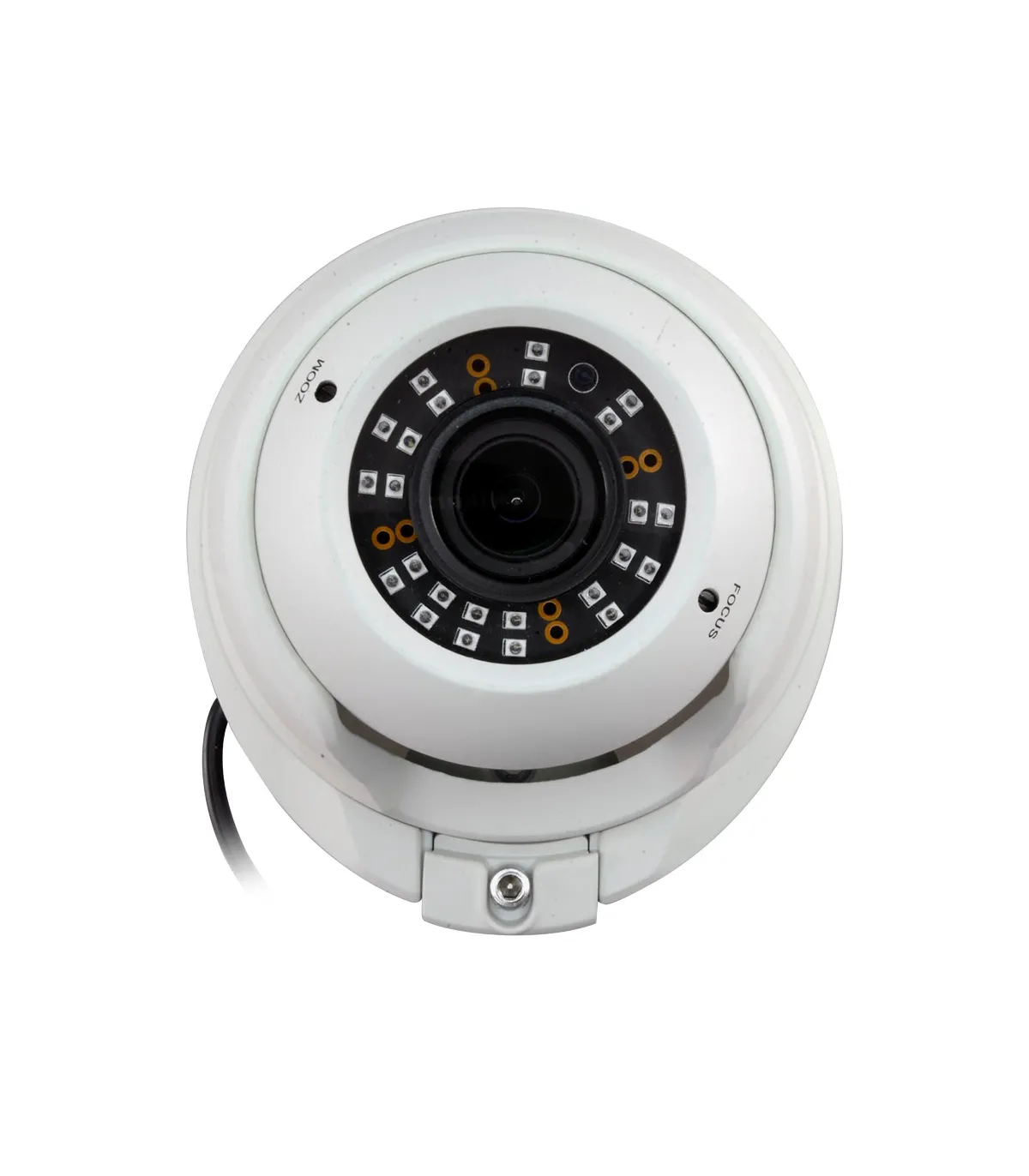

Turret 4N1 Safire Camera ECO Range SF-T955V-2E4N1
- Safire
- Turret HDTVI, HDCVI, AHD and Analog Camera
- ECO Range
- 1/3" SOI 2 Mpx
- 1080p (1920x1080)
- 4 in 1 output
- Varifocal lens 2.7~13.5 mm
- 0 Lux
- Smart IR Matrix Range 30 m
- 3D DNR
- IR CUT
- Waterproof IP66
Technical specifications
| Brand | Safire |
| Range | ECO |
| Image sensor | 1/3" SOI 2 Mpx |
| Maximum resolution | 2 Mpx (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) / 720p (25~30 fps) AHD: 1080p (25~30 fps) / 720p (25~30 fps) CVI: 1080p (25~30 fps) / 720p (25~30 fps) CVBS: PAL / NTCS |
| Lens | Varifocal 2.7~13.5 mm |
| Angle of view (FOV) | 105º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / Smart IR Matrix LEDs (range 30 m) |
| Day / Night | Auto / Color / BW (black and white) |

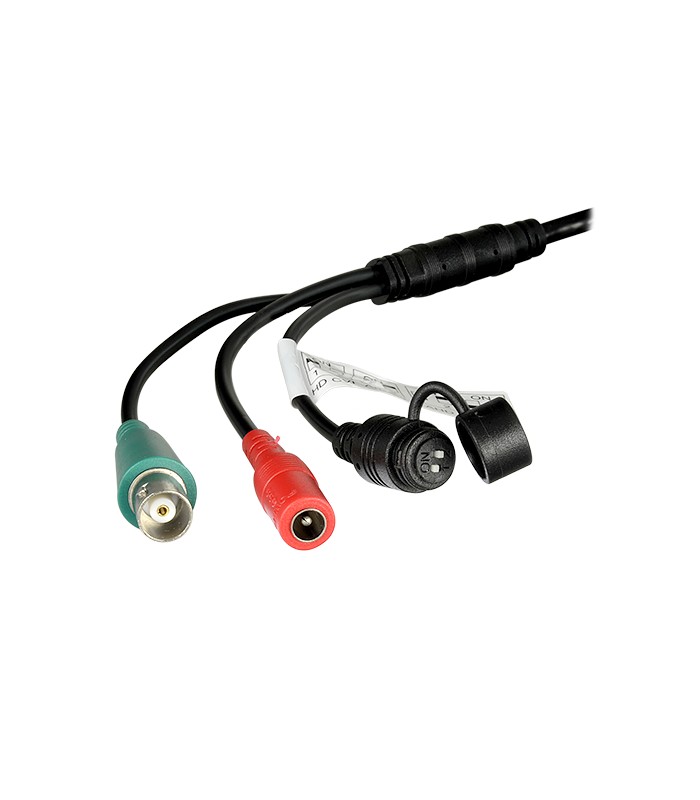

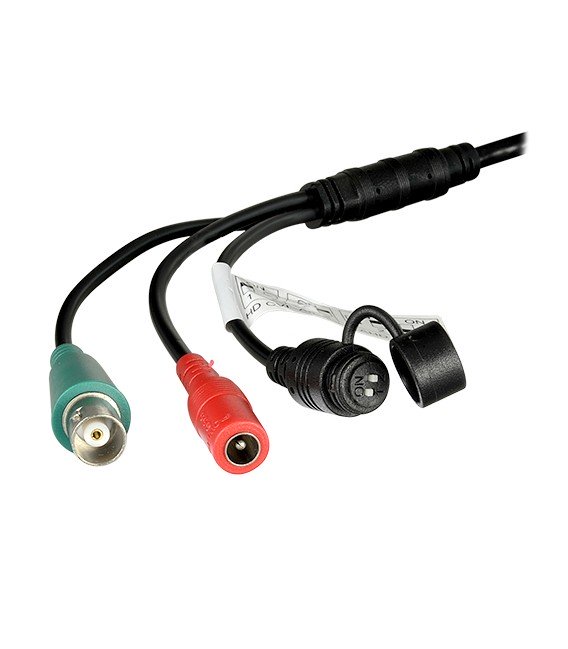

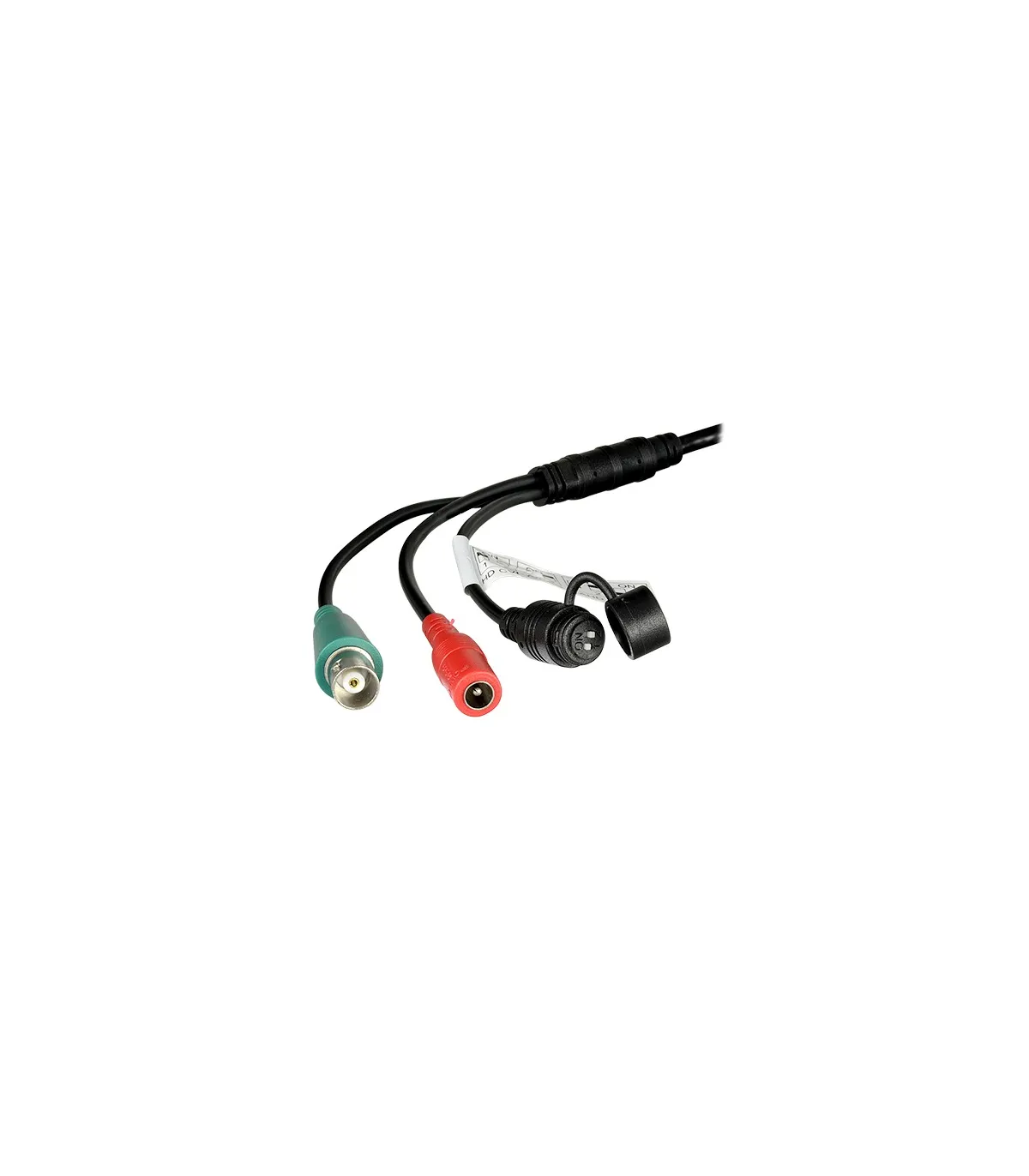

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D DNR, AE, ATW, AWB, BLC, FLC, Smart IR |
| Alarm | Not available |
| Audio | Not available |
| Power | DC 12 V / 420 mA, 5 W max. |
| Protection degree | Waterproof IP66 |
| Temp. operation | -10º C ~ +55º C |
| Material | Metal |
| Dimensions | 89 (Fo) x 134 (W) x 145 (H) mm |

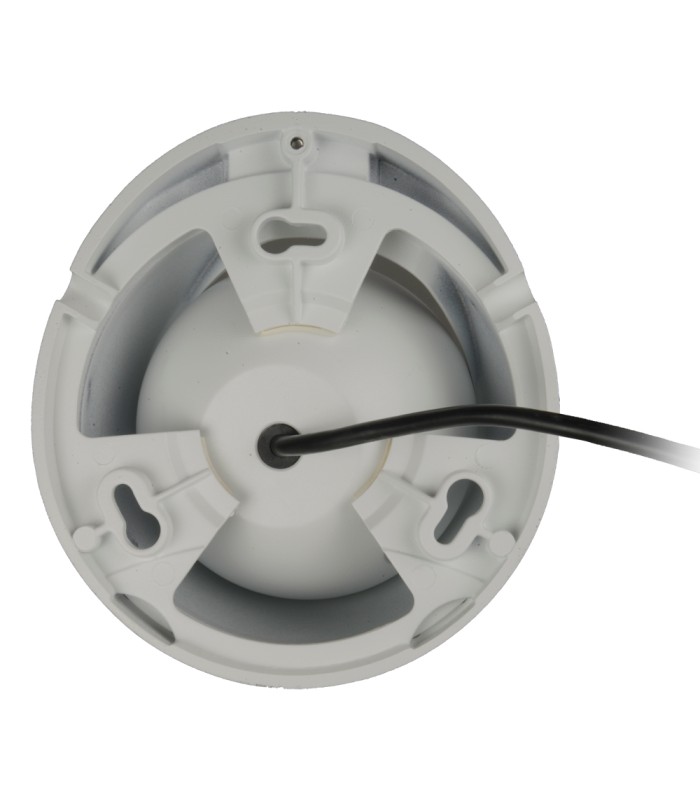

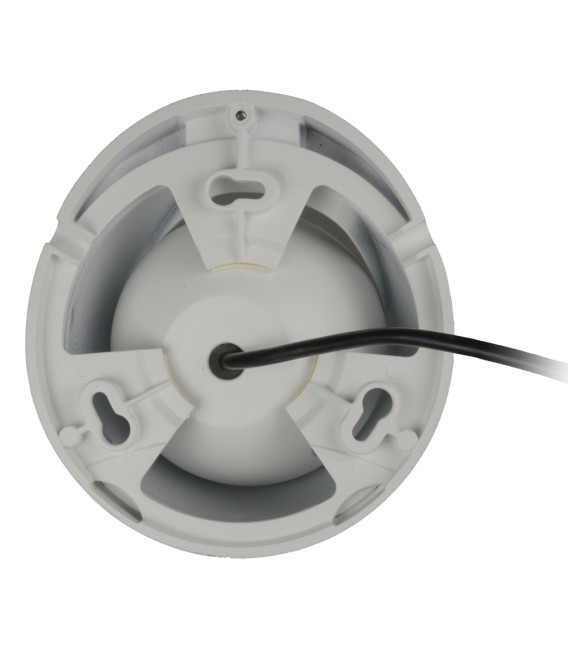

| Base diameter | 96 (Ø) mm / 3 screws |
| Weight | 800 g |
Contents
- Turret 4N1 Safire Camera
- Installation material
- Instructions for use
