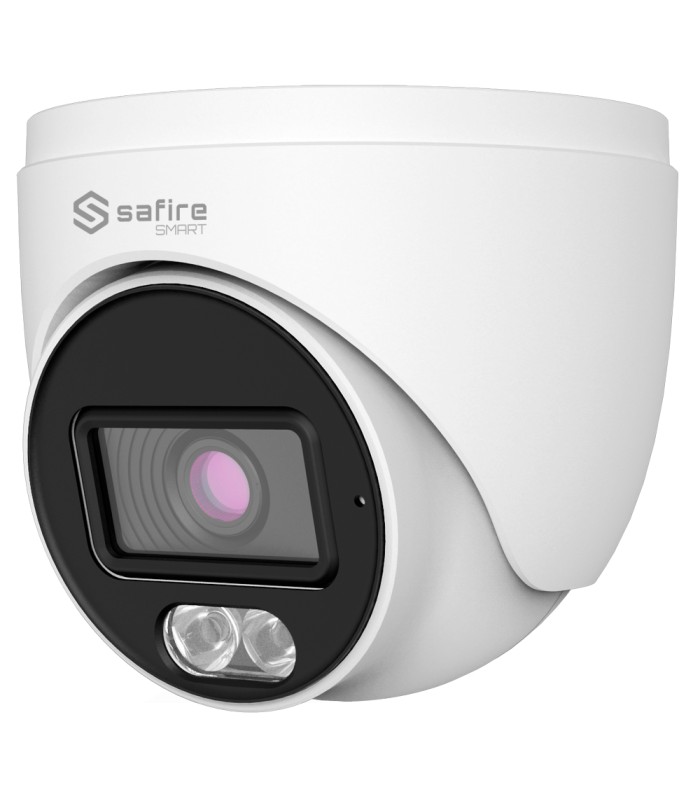

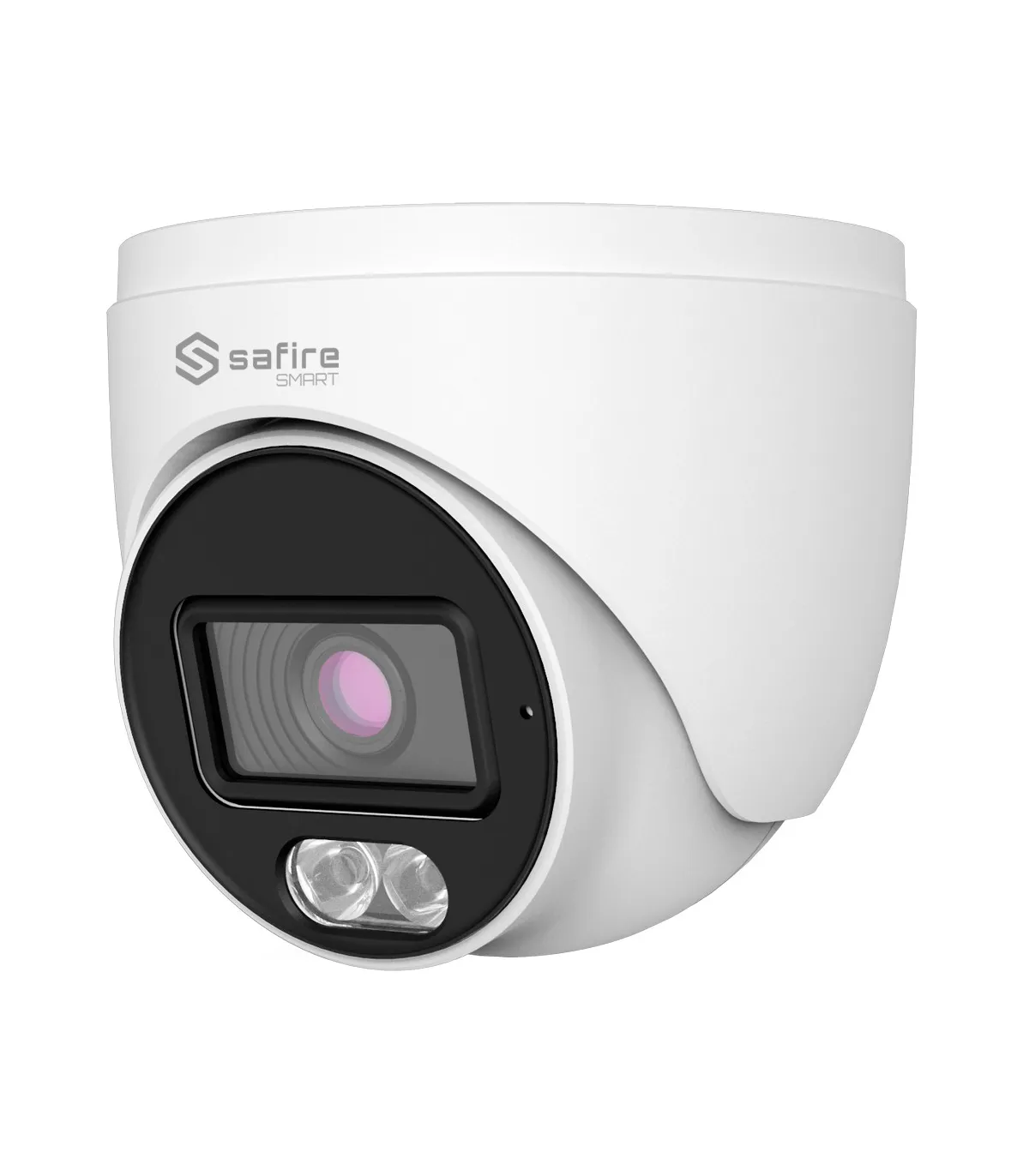

Turret Camera 4 in 1 Range B1 SF-T010CA-2B1
Brand: SAFIRE SMART
- Safire Smart
- 4-in-1 Turret Camera B1 Range
- 2 Mpx (1920x1080), 1/2.8" CMOS
- 2.8mm lens | White LED lighting 20 m
- DWDR, HLC, BLC, AGC
- Waterproof IP67
Turret 4 in 1 Camera Range B1 SF-T010CA-2B1
- Safire Smart
- Economic B1 Range Night Color
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.8"
- 2Mpx (1920x1080)
- 4 in 1 output
- 2.8mm lens
- Color image 24/7
- 0 Lux
- Range 20 m White LED
- 2D DNR
- Mirror
- HLC, BLC, AGC, DWDR
- Built-in microphone, audio over coaxial
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Gamma | B1 Economy Night color |
| Image sensor | 1/2.8" CMOS |
| Resolution maximum | 2 Mpx (1920x1080) |
| Resolution | 2Mpx (25fps) |
| Lens | 2.8 mm (H: 106.8º, V: 74.3º, D: 114.2º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| LED lighting | Up to 20 m with white LED |
| Day / Night | Auto / Color / BW (Black and White) |
| Output video | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via DVR (HDTVI by default) |
| Audio | Built-in microphone, audio over coaxial |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | DWDR, 2D-DNR, AWB, ATW, BLC, AGC, Mirror |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 300 mA, 4W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 82.8 (H) x 94.6 (Ø) mm |
| Weight | 390 g |
Contents
- Safire Smart turret chamber
- 3 plugs and 3 screws for assembly
- Quick assembly guide
- Installation template
