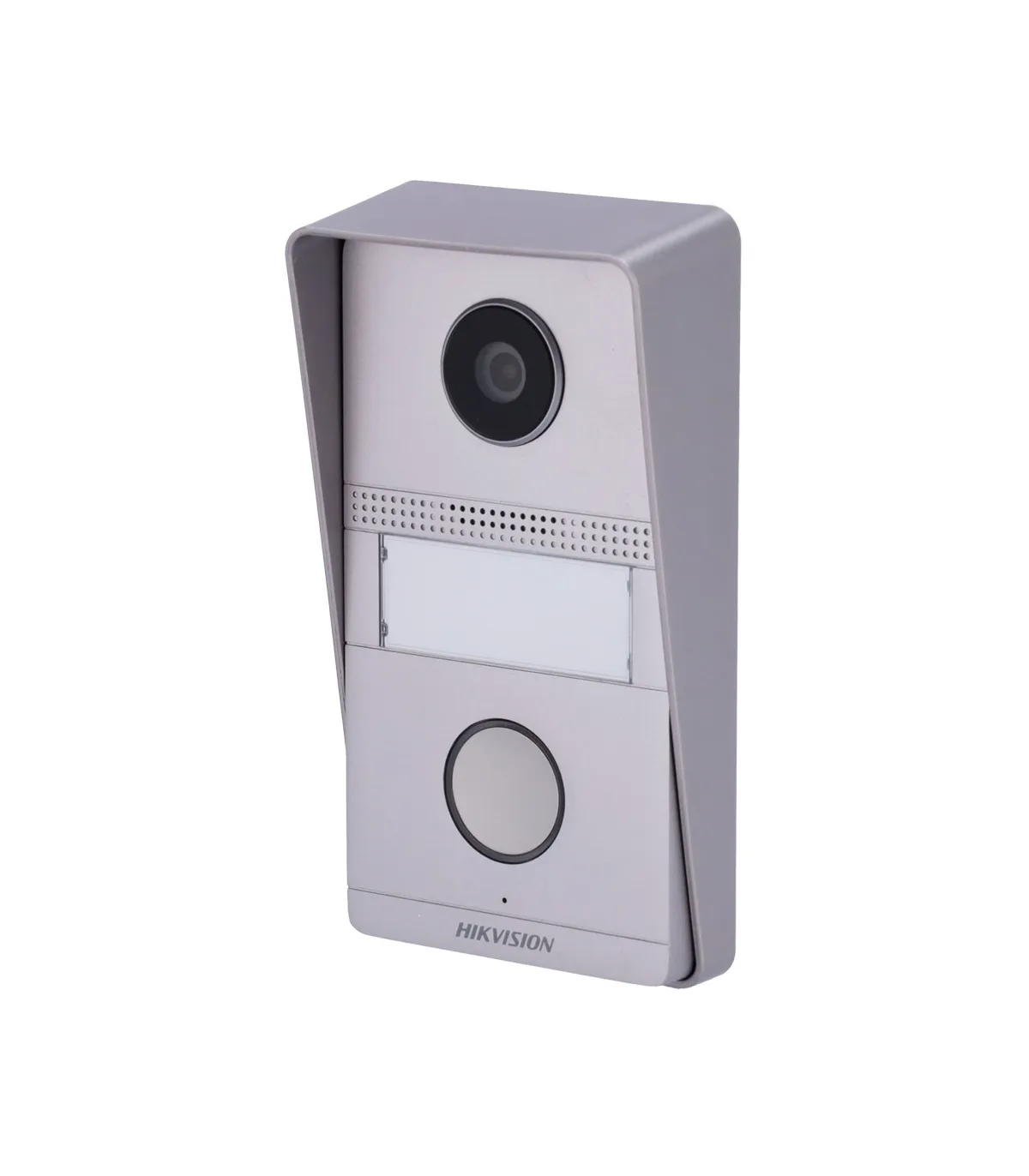

Hikvision DS-KV1101-ME2/Surface analog 2-wire video intercom

Hikvision DS-KV1101-ME2/Surface analog 2-wire video intercom

Hikvision DS-KV8113-WME1 - 2MP IP Outdoor Station Mifare Card Reader Wifi Aluminum Web Access
  • 2-wire analog video intercom
  • 2 Mpx camera | Two-way audio
  • 2 relays
  • Plug & Play
  • Suitable for outdoor use IP65 | IK07
  • Surface mount
Read moreShow less
€87.90
Out of Stock
✆ Ask on WhatsApp
Reference:
DS-KV1101-ME2/Surface
Brand:
Hikvision
Description

Hikvision DS-KV1101-ME2/Surface 2-wire analog video intercom

  • Hikvision
  • 2-wire analog video intercom with 2 Mpx camera
  • Plug & Play
  • Wide-angle lens
  • Integrated speaker and microphone
  • Vision night
  • 2-wire connection
  • Remote monitoring through indoor monitor
  • Surface mounting
  • Personalization label with LED
  • Suitable for outdoor use IP65
  • Vandal-resistant IK07

Technical specifications

BrandHikvision
ModelDS-KV1101-ME2/Surface
Operating systemEmbedded analog operating system
Image sensor2 Mpx CMOS low illumination with IR and white LEDs
View angleH: 100º, V: 69º
AudioTwo-way audio with microphone and speaker
KeyboardMechanical call button with LED personalization label
Outputs2 x relay outputs (powers lock up to 12 V / 1 A)
Inputs1 x monitor input, 4 x alarm inputs, 2 x push button, 2 x door sensor, 1x tamper
Communication2 wires
PowerDC 48 V / 500 mA max. (via 2-wire monitor)
Protection degreeSuitable for outdoor use IP65
Vandal-resistant IK07
MaterialAluminum alloy
Temp. operation-30º C ~ +60º C
Dimensions150 (H) x 82 (W) x 23.5 (D) mm
Weight345 g

Contents

  • Hikvision video intercom exterior panel
  • Mounting material
  • Instructions for use
Read moreShow less
Product Details
DS-KV1101-ME2/Surface

Data sheet

Brand
Hikvision
Resolution
2 MP
Use
Outdoor

Specific References

EAN13
6941264079149
Attachments
DS-KV1101-ME2_Surface_EN.pdf
Download (100.35KB)
