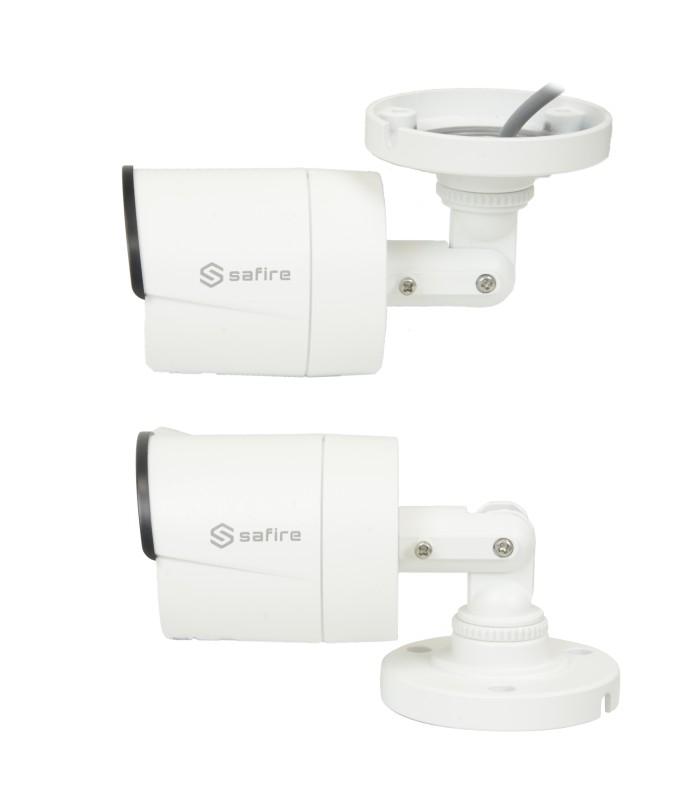

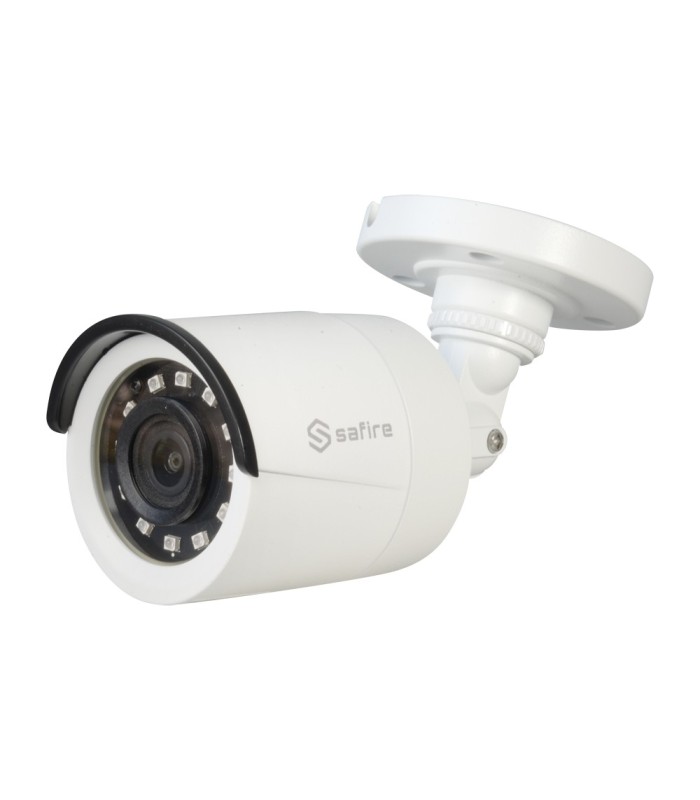

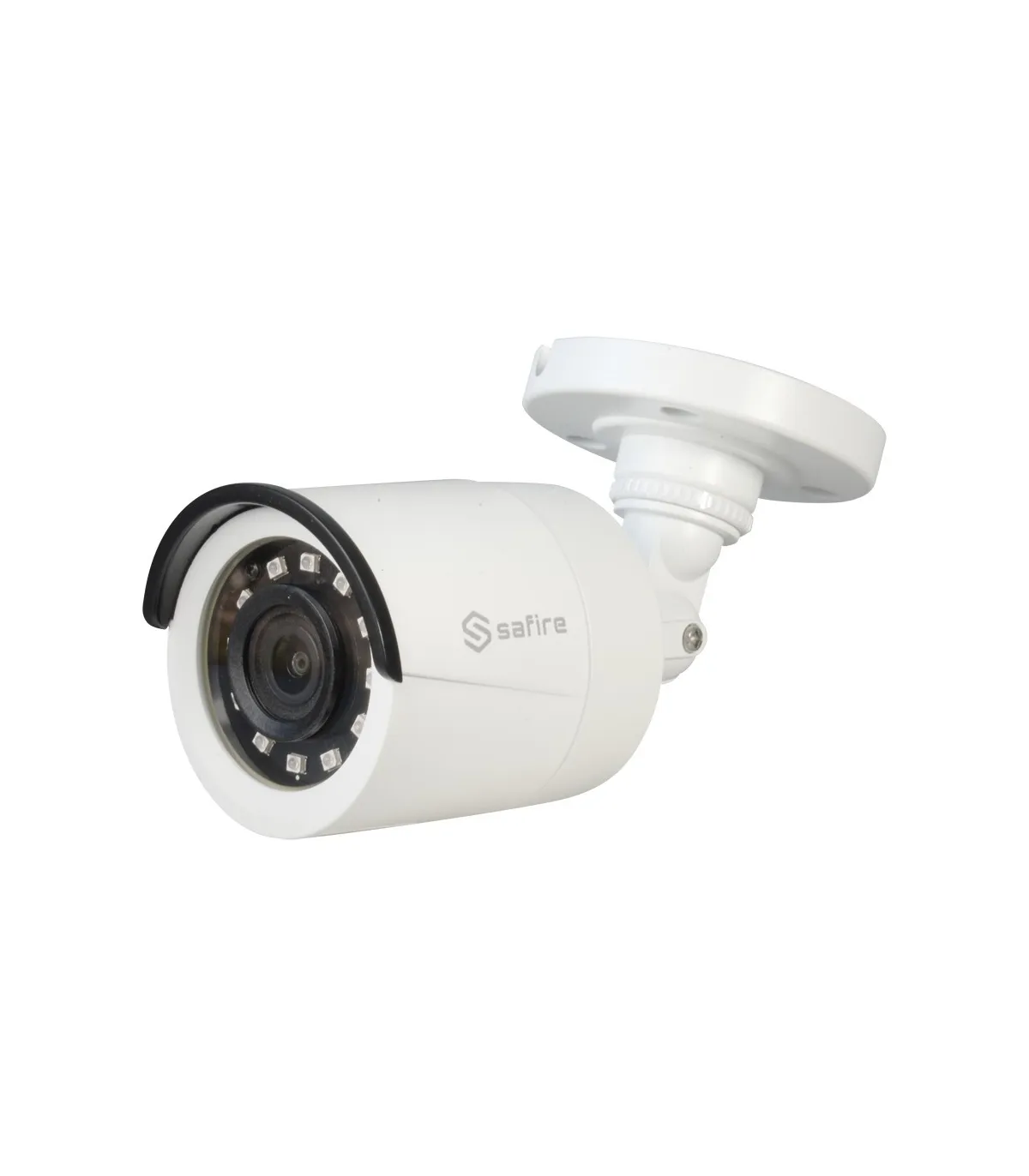

Safire Bullet Camera ECO Range SF-B022-2E4N1
- Safire
- HDTVI, HDCVI, AHD and Analog Bullet Camera
- ECO Range
- High Performance CMOS
- 1080p (1920x1080)
- 4 in output 1
- 2.8 mm lens
- 0 Lux
- Smart IR Matrix Range 25 m
- 2D DNR
- IR CUT
- DWDR
- Waterproof IP67
Technical specifications
| Brand | Safire |
| Range | ECO |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 106.4º (H), 57.9º (V), 124.6º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |

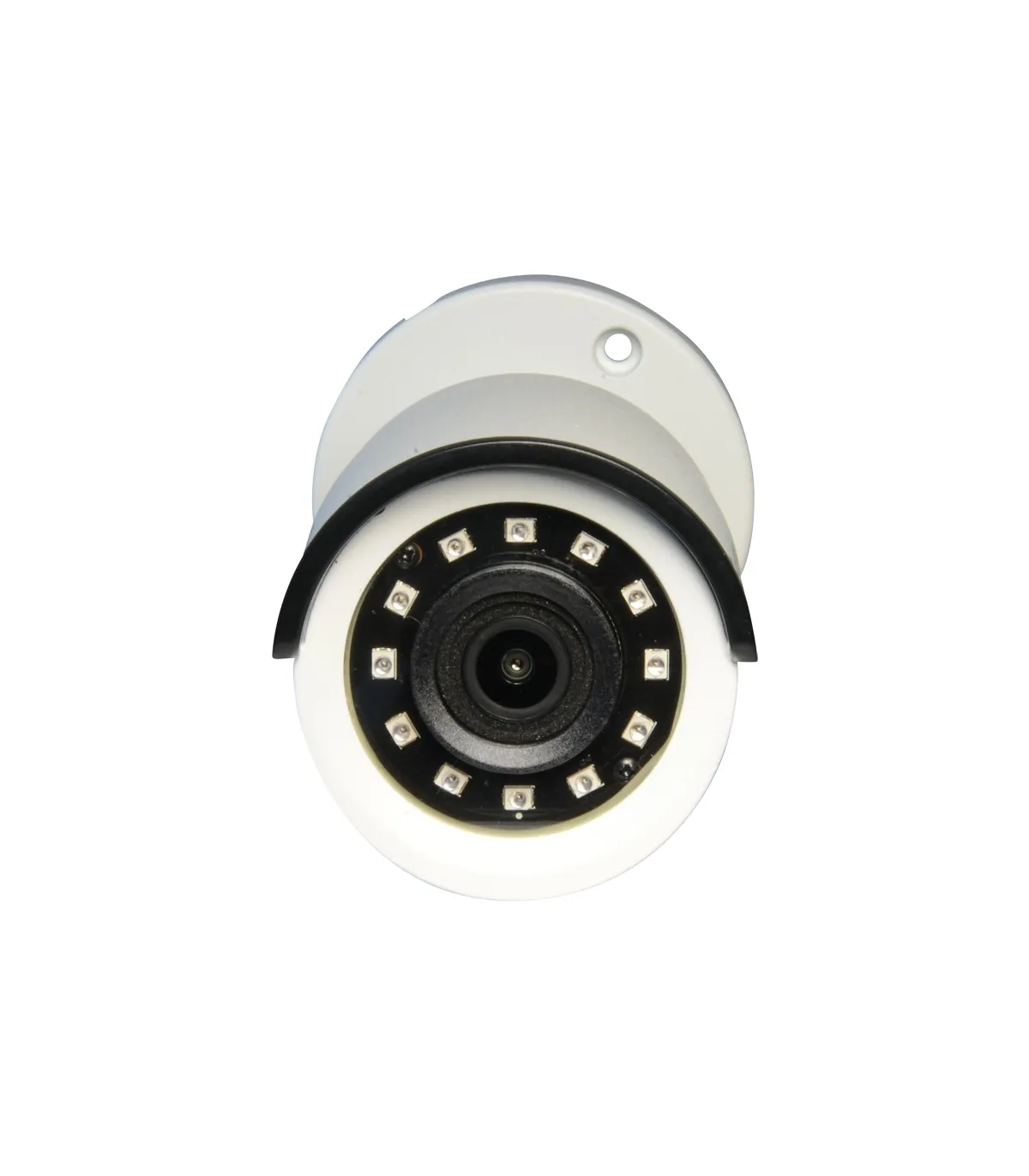

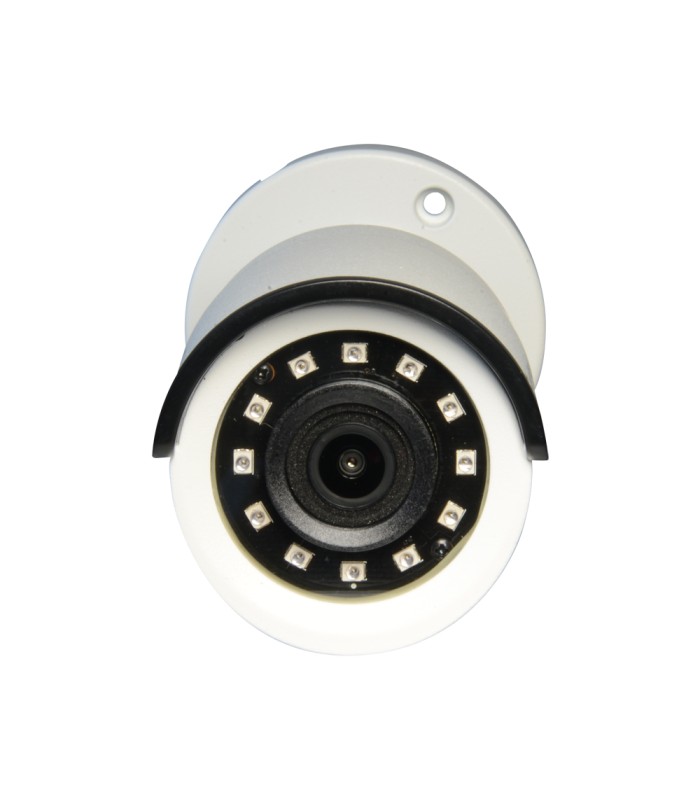

| Infrared illumination | 0 Lux / Smart IR Matrix LEDs (range 25 m) |
| Day / Night | Auto / Color / BW (black and white) |

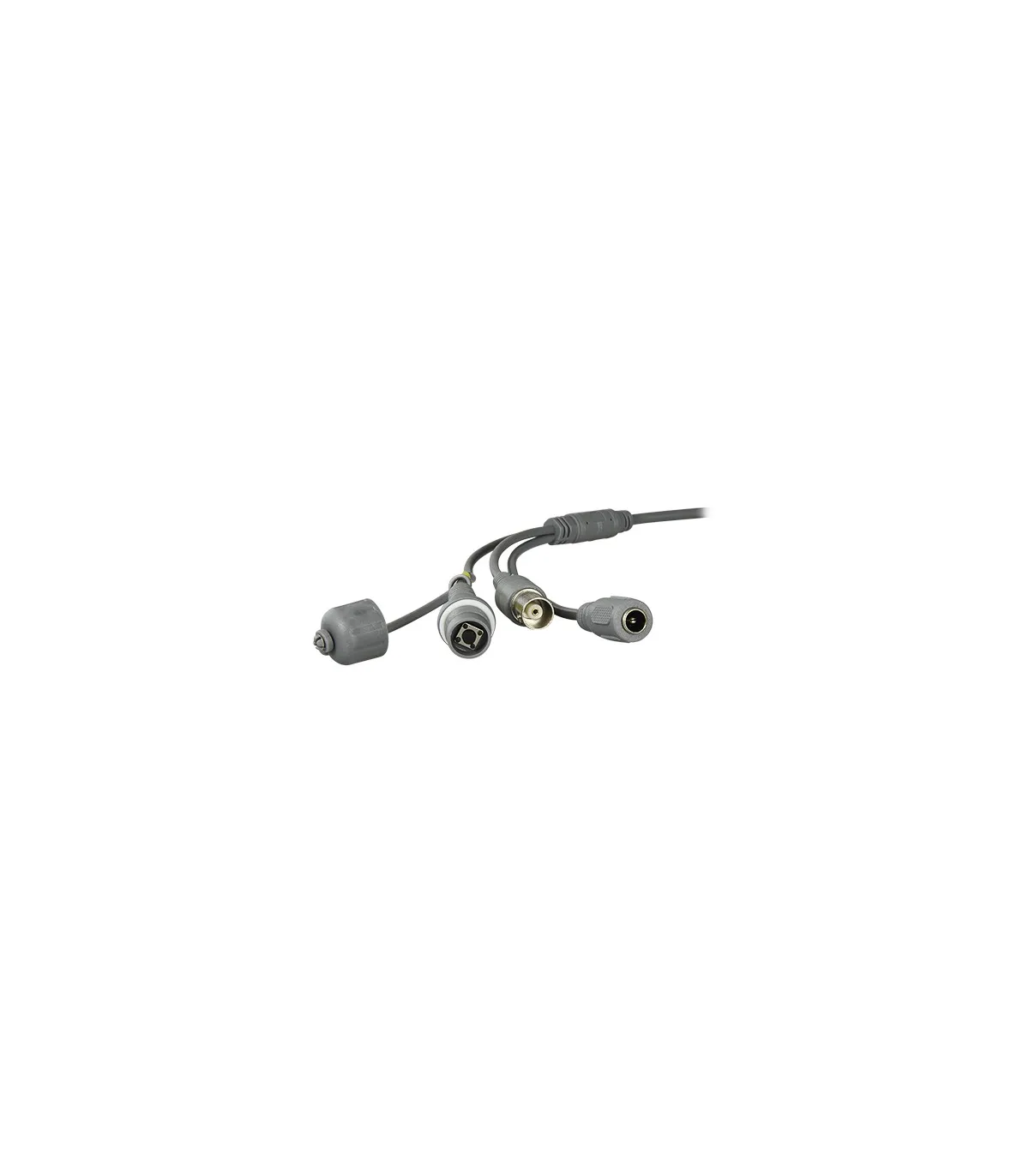

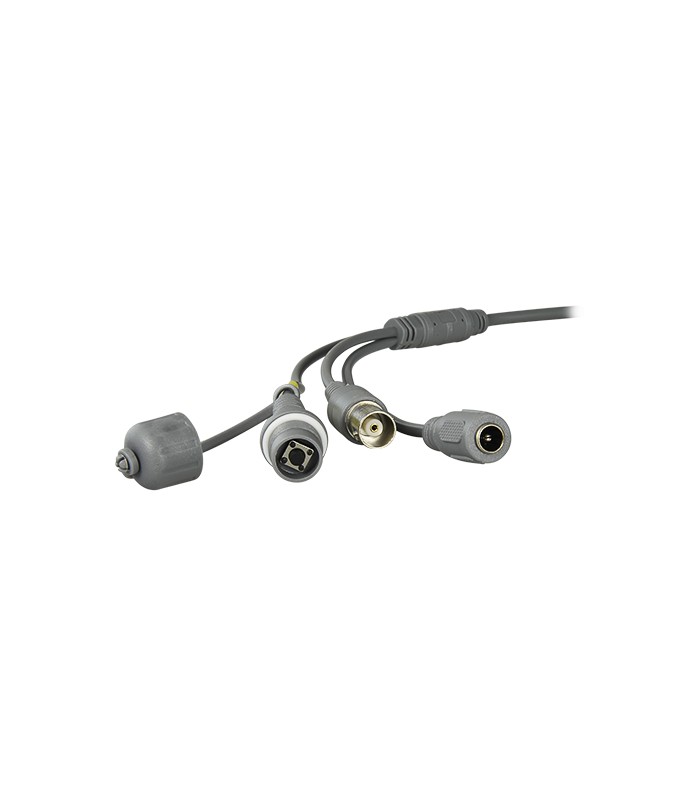

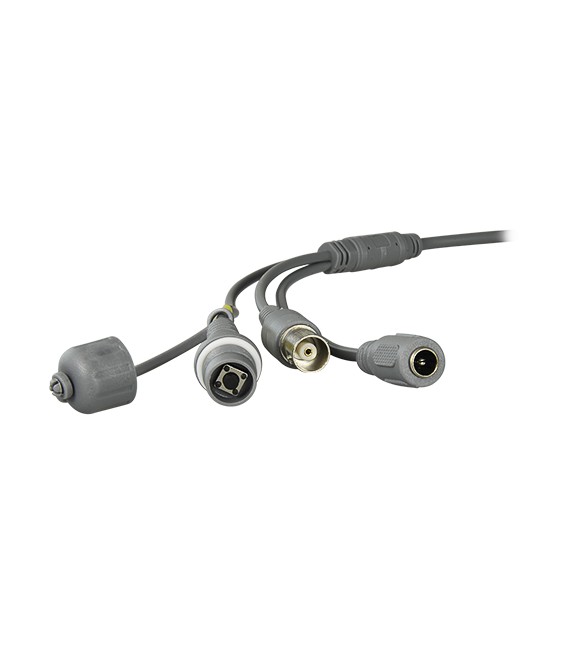

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AWB, ATW, BLC, HLC, AGC, Smart IR |

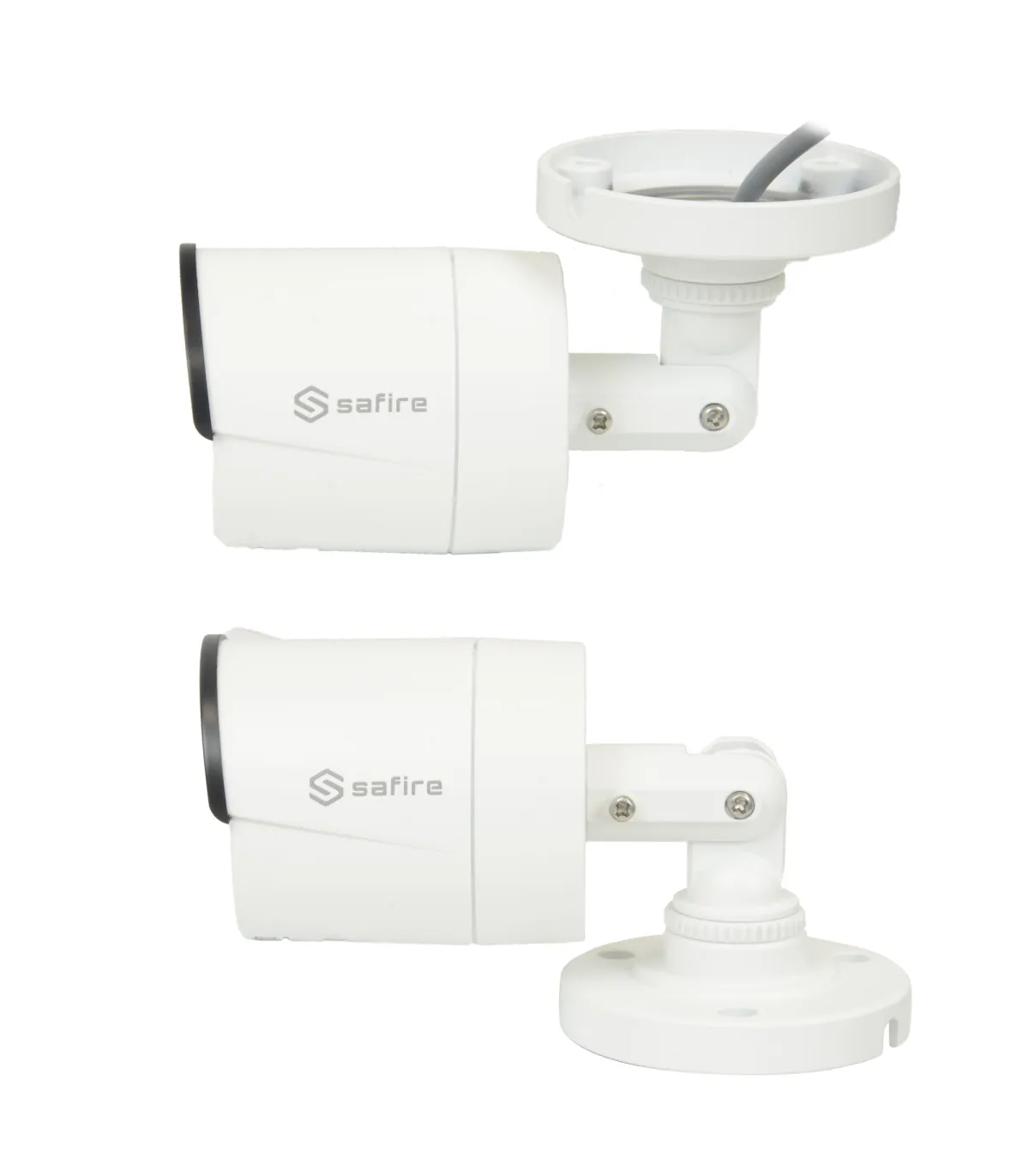

| Lens Positioning | 3 Axis |
| Alarm | Not available |
| Audio | Not available |
| Power | DC 12 V / 333 mA, 3 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 137.8 (Fo) x 70 (Ø) mm |

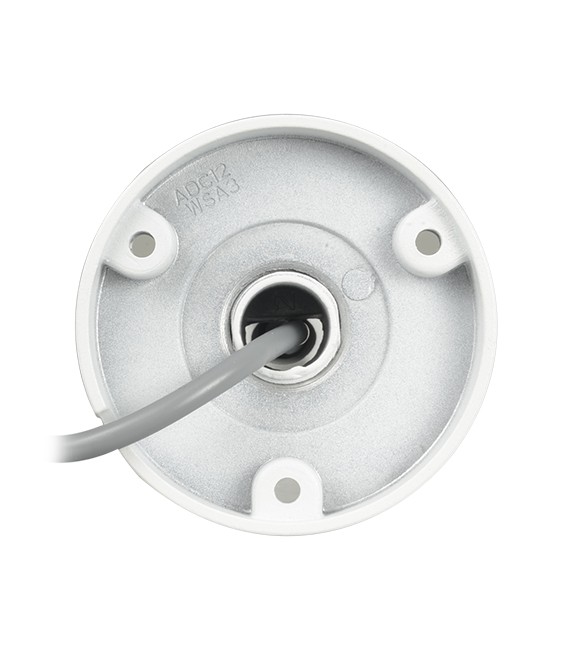

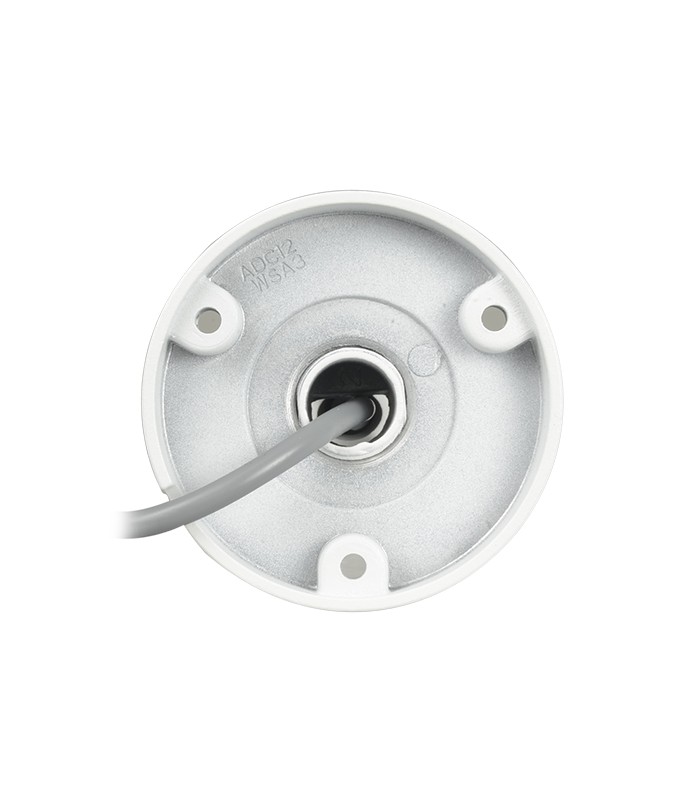

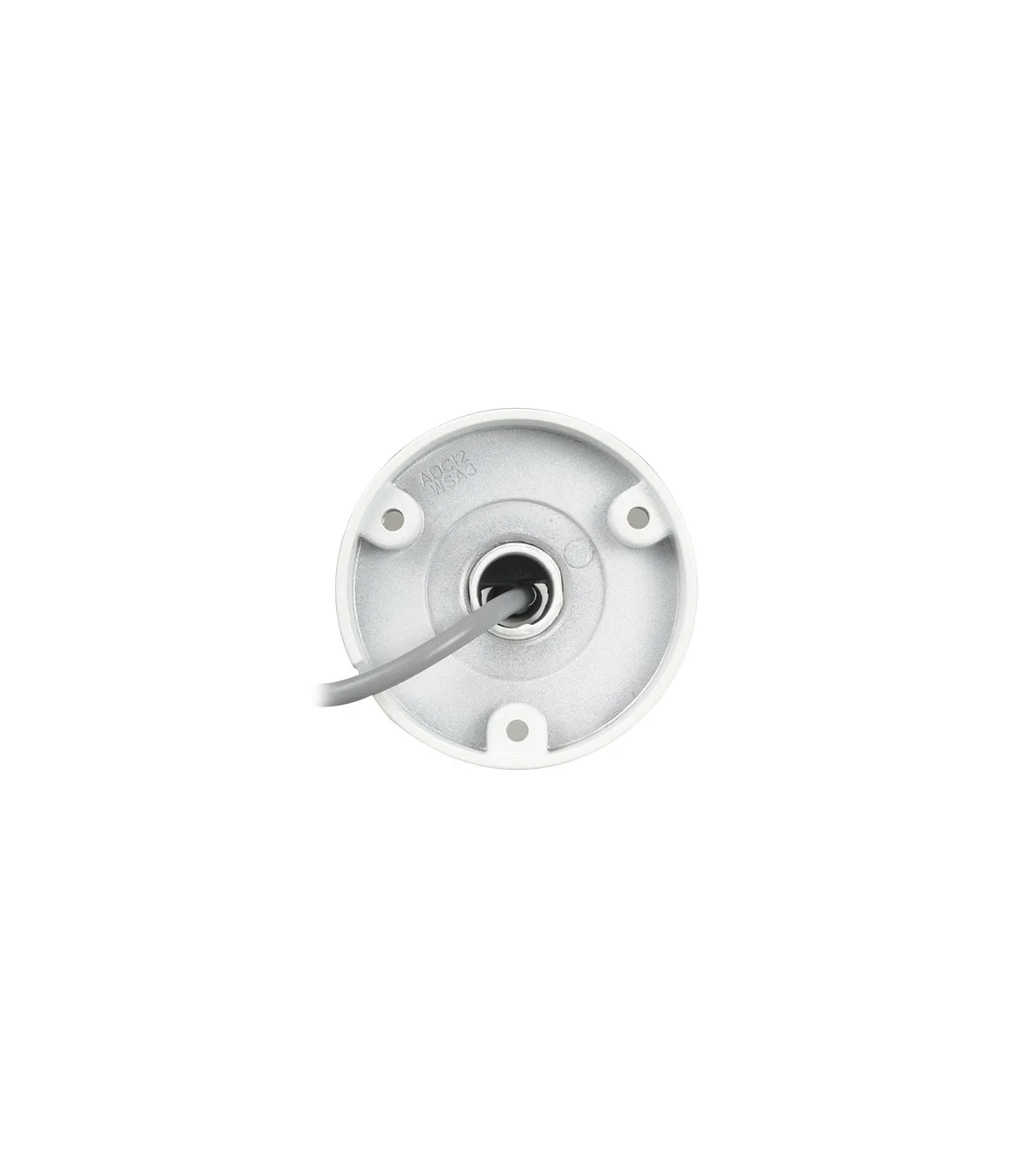

| Base diameter | 55 (Ø) mm / 3 screws |
| Weight | 260 g |
Contents
- 4N1 Safire Bullet Camera
- Installation material
- Instructions for use
