| Brand | Safire |
| Range | Eco |
| Image Sensor | 5 Mpx High Performance CMOS |
| Maximum resolution | 5 Mpx (2560x1944) at 20 fps |
| Resolution | 5 Mpx at 20 fps | 4 Mpx at 25 fps | 1080p at 25 fps |

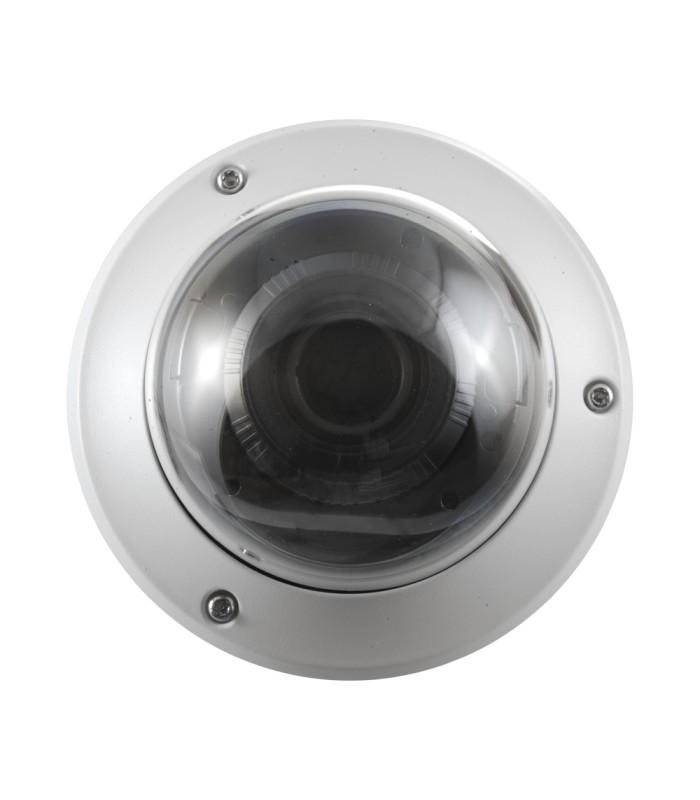

| Lens | Motorized 2.7~13.5 mm (H: 95º - 26º, V: 72º - 20º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / SMART IR Matrix LEDs (40 m) |
| Day / Night | Auto / Color / BW (Black and White) |

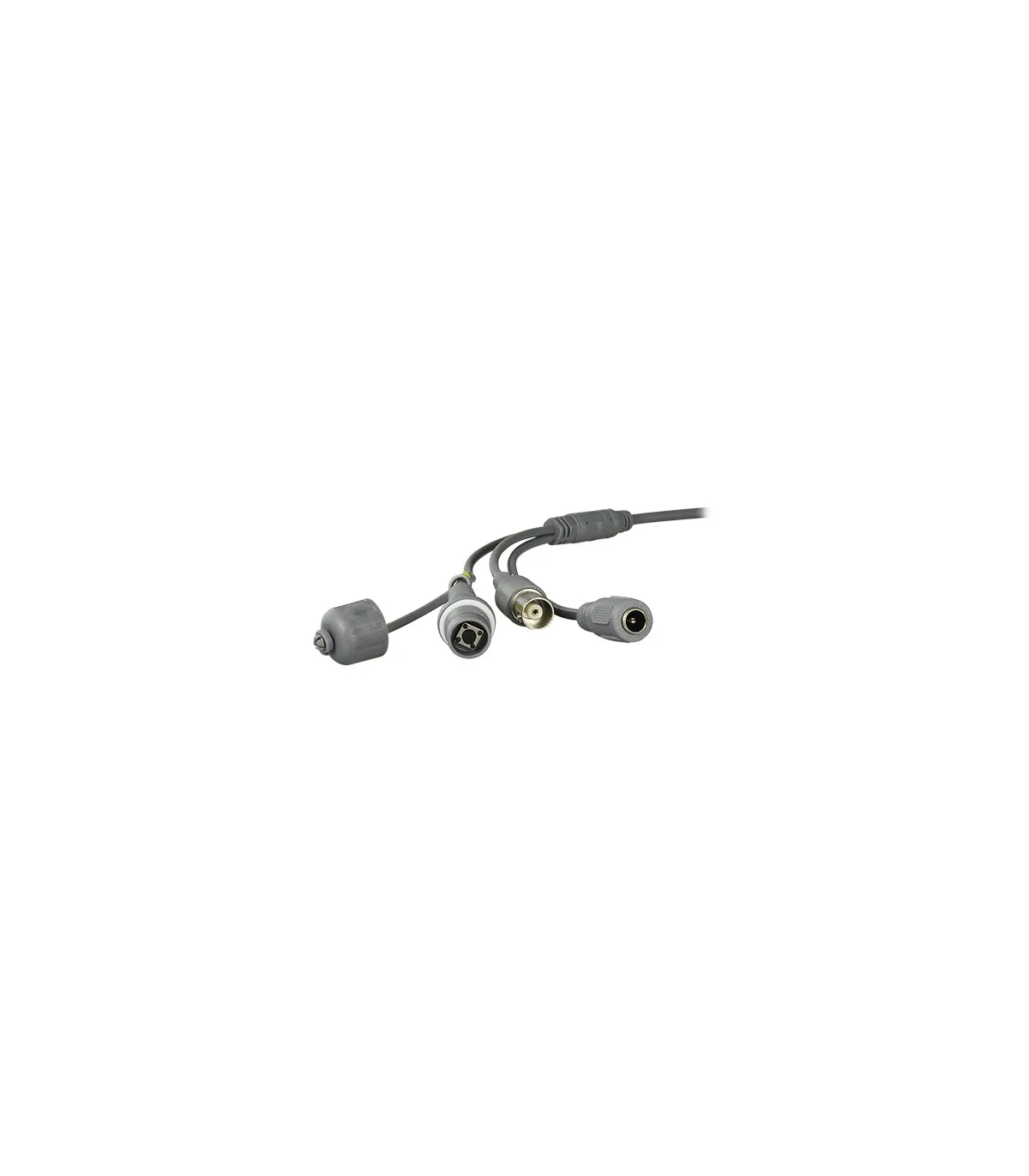

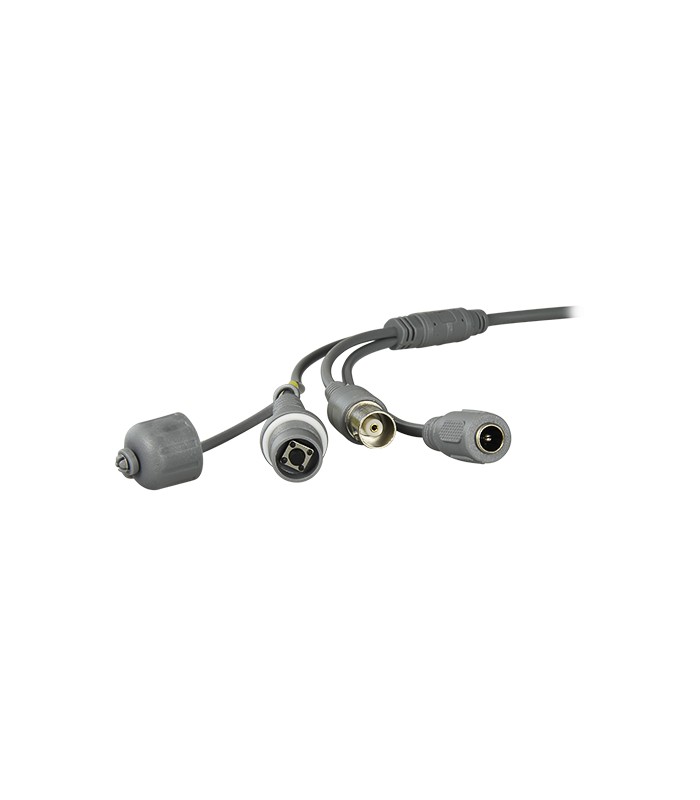

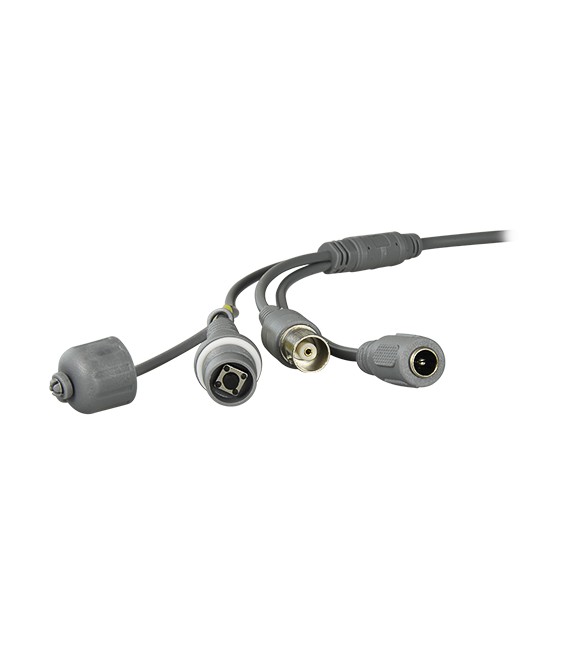

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2DNR, AWB, ATW, BLC, AGC, Smart IR |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 500 mA, 5.9 w max |
| Protection degree | Waterproof IP67 | Anti-vandal IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 111.3 (H) x 145 (Ø) mm |

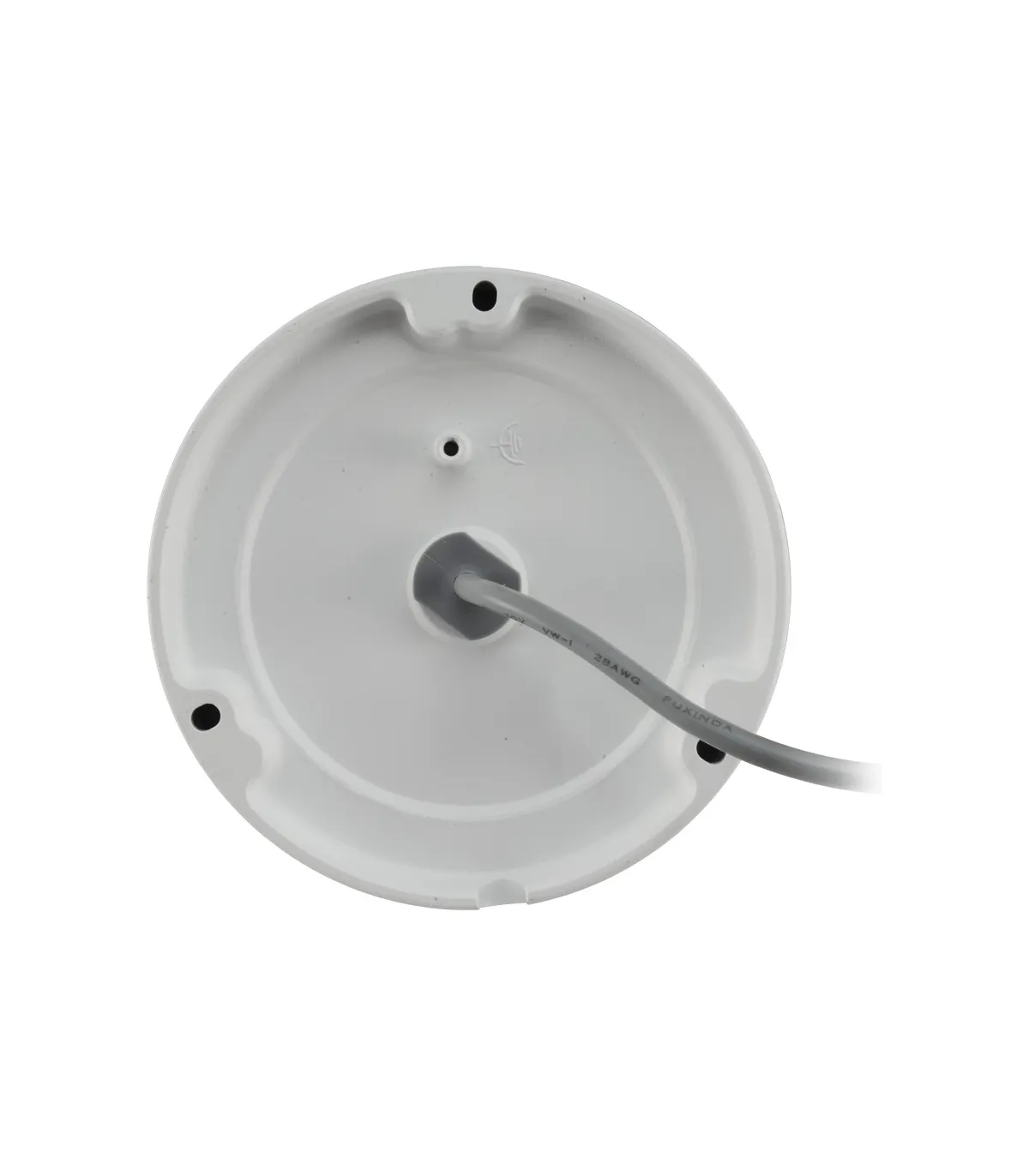

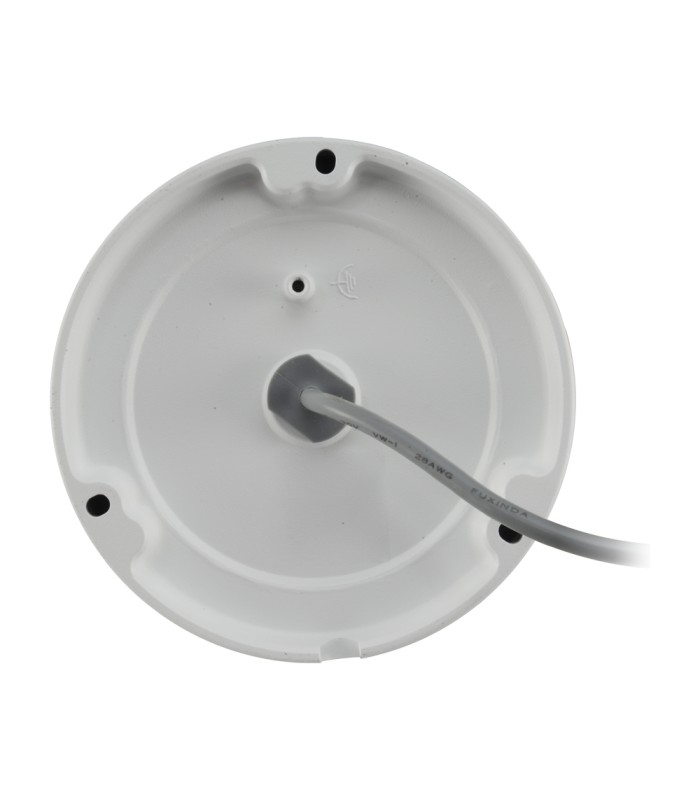

| Base diameter | 130 (Ø) mm |
| Weight | 837 g |
Data sheet
