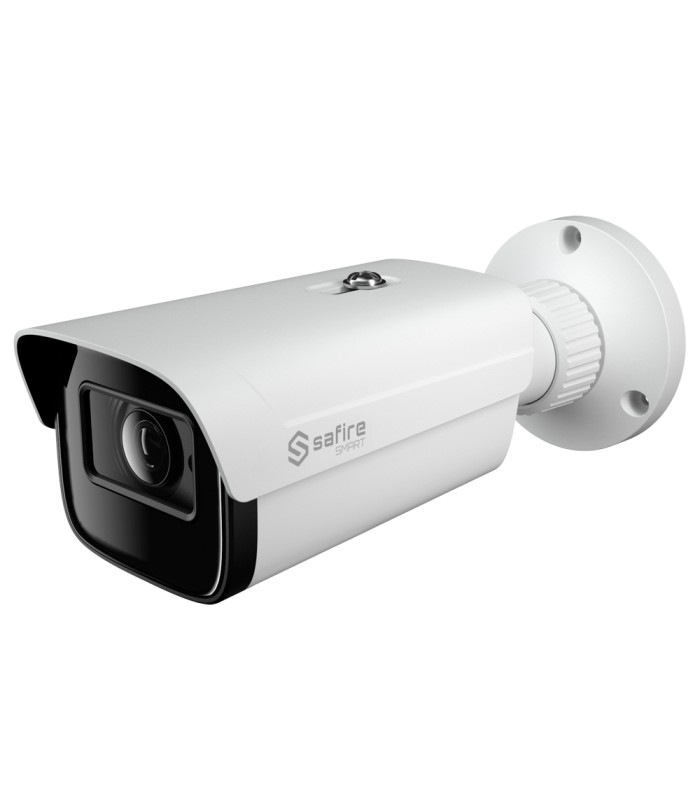

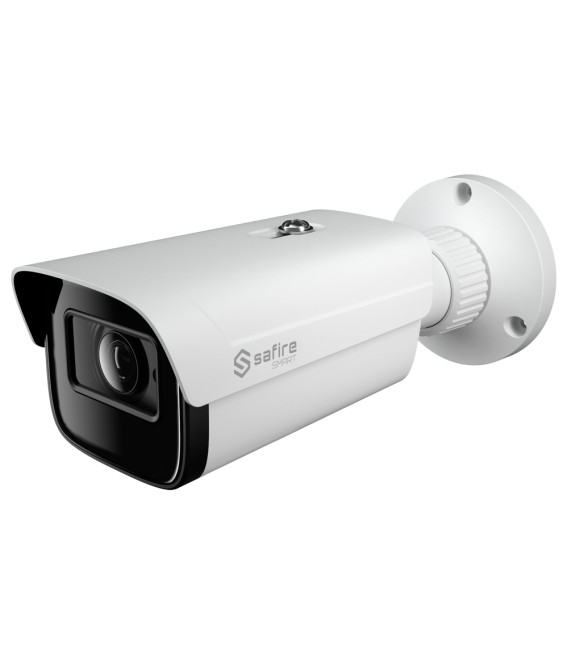

4 in 1 Bullet Camera E1 Range SF-B580ZSA-2E1
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Bullet Camera E1 Range
- 2 Mpx (1920x1080), 1/2.8" CMOS Starlight
- 2.8 mm lens | IR range 20 m
- DWDR, HLC, BLC, AGC | Integrated microphone
- Waterproof IP67, Anti-vandal IK10
4 in 1 Bullet Camera E1 Range SF-B580ZSA-2E1
- Safire Smart
- E1 Professional Range high quality and performance
- HDTVI, HDCVI, AHD and Analog Bullet Camera
- CMOS 1/2.8" Starlight
- 2Mpx (1920x1080)
- 4 in 1 output
- 2.8mm lens
- 0 Lux
- IR Range 20 m
- 3D DNR
- IR CUT
- Mirror
- HLC, BLC, AGC, DWDR
- Built-in microphone
- Audio over coaxial HDTVI
- Waterproof IP67
- Vandal-resistant IK10
Technical specifications
| Brand | Safire Smart |
| Range | E1 Professional high quality and performance |
| Image sensor | 1/2.8" CMOS Starlight |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | 2Mpx@25FPS |
| Lens | Motorized 2.8~12 mm (H: 88.6º~34.4º, V: 57.5º~19.7º, D: 96.4º~39º) |
| Minimum illumination | 0.001 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / IR range up to 50 m (ICR) |
| Day / Night | Auto / Color / BW (Black and White) |
| Video output | 1 x BNC HDTVI / HDCVI / AHD / CVBS |
| Audio | Microphone integrated Audio over coaxial via HDTVI |
| Video output switching | Via DVR (HDTVI by default) |
| Basic functions | Menu OSD (remote) |
| Configurable OSD functions | DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| Positioning Lens | 3 Axis |
| Power | DC 12 V / 700 mA, 8.5W max |
| Degree protection | Waterproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 80.5 (W) × 80.5 (H) x 217.70 (Fo) mm |
| Weight | 560 g |
Contents
- Safire Smart Dome Camera
- 3 studs and 3 mounting screws
- Quick assembly guide
- Installation template
