4 in 1 Dome Camera E1 Range SF-D040-3KE1
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Dome Camera E1 Range
- 3K (2944x1656, 5Mpx 16:9), 1/2.5" CMOS
- 2.8 mm lens | IR range 30m
- DWDR, HLC, BLC, AGC
- Waterproof IP67

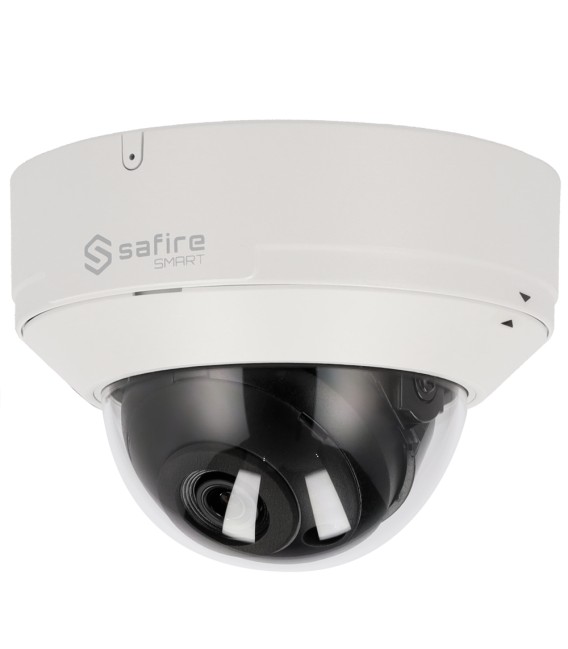

4 in 1 Dome Camera E1 Range SF-D040-3KE1
- Safire Smart
- Professional E1 Range of high quality and performance
- HDTVI, HDCVI, AHD and Analog Dome Camera
- CMOS 1/2.5"
- 3K (2944x1656, 5Mpx 16:9)
- 4 in 1 output
- 2.8mm lens
- 0 Lux
- IR Range 30 m
- 2DNR
- IR CUT
- Image improvements HLC, BLC, AGC, DWDR
- Waterproof IP67
- Vandal-proof IK10
Technical specifications
| Brand | Safire Smart | ||
| Range | E1 Professional, high quality and performance | ||
| Image sensor | 1/2.5" CMOS | ||
| Resolution maximum | 3K (2944x1656, 5Mpx 16:9) | ||
| Resolution | TVI: 2944×1656@20fps, 2560x1440@25fps/30fps CVI: 2560x1440@25fps/30fps AHD: 2944x1656@20fps, 2560x1440@25fps/30fps CVBS: PAL/NTSC valign="middle" class="table-data"> | Lens | 2.8 mm (H: 91º, V: 74.8º, D: 103.8º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) | ||
| Infrared illumination | 0 Lux / IR range up to 30 m (ICR) | ||
| Day / Night | Auto / Color / BW (White and black) | ||

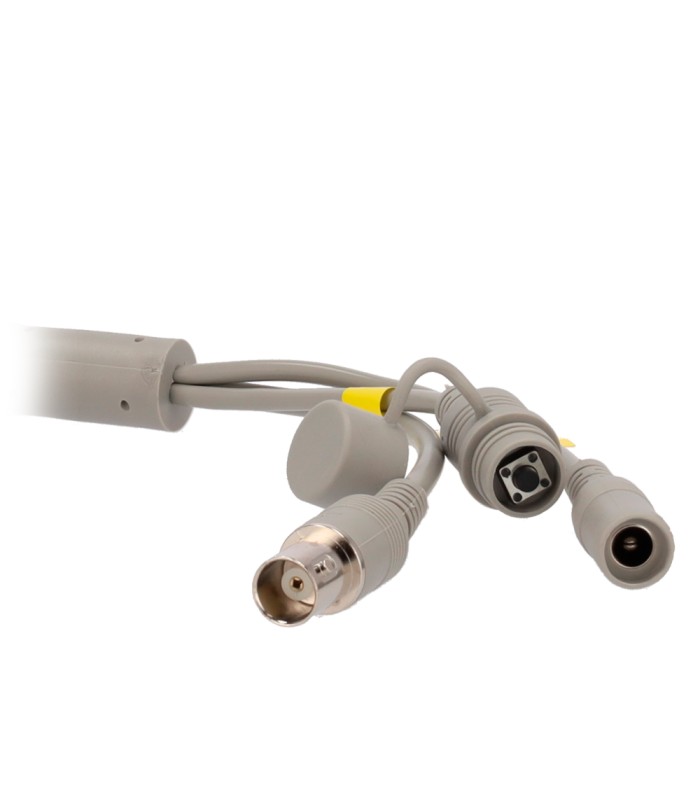

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS | ||
| Video switching | Via DVR (HDTVI default) | ||
| Audio | 1 Microphone (Audio over coaxial in HDTVI) | ||
| Basic functions | OSD menu (remote) | ||
| Configurable OSD functions | DWDR, 2DNR, AWB, ATW, BLC, AGC, Smart IR | ||
| Lens Positioning | 3 Axis | ||
| Power | DC 12 V / 500 mA, 6W max | ||
| Protection degree | Waterproof IP67 | ||
| Temp. operation | -30º C ~ +50º C | ||
| Material | Metal body and plastic support | ||
| Dimensions | 82.8 (H) x 94.6 (Ø) mm | ||
| Weight | 390 g |
Contents
- Safire Smart Dome Camera
- 3 plugs and 3 mounting screws
- Guide quick assembly
- Installation template
