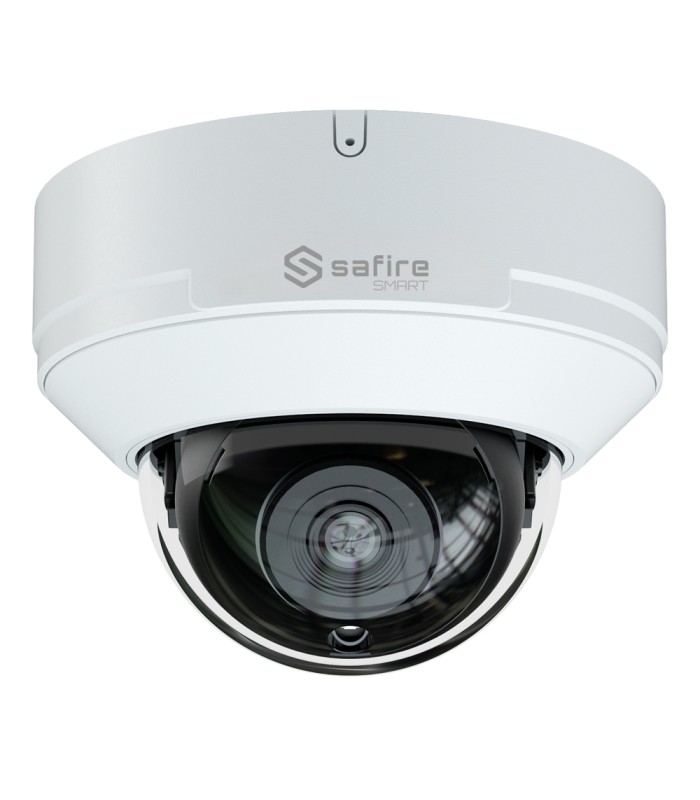

4 in 1 Dome Camera E1 Range SF-D040SA-2E1
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Dome Camera E1 Range
- 2 Mpx (1920x1080), 1/2.8" CMOS Starlight
- 2.8 mm lens | IR range 20 m
- DWDR, HLC, BLC, AGC | Integrated microphone
- Waterproof IP67, Anti-vandal IK10
4 in 1 Dome Camera E1 Range SF-D040SA-2E1
- Safire Smart
- Professional E1 Range high quality and performance
- HDTVI, HDCVI, AHD and Analog Dome Camera
- CMOS 1/2.8" Starlight
- 2Mpx (1920x1080)
- 4 in 1 output
- 2.8mm lens
- 0 Lux
- IR Range 20 m
- 3D DNR
- IR CUT
- Mirror
- HLC, BLC, AGC, DWDR
- Built-in microphone
- Audio over coaxial HDTVI
- Waterproof IP67
- Vandal-resistant IK10
Technical specifications
| Brand | Safire Smart |
| Range | E1 Professional high quality and performance |
| Image sensor | 1/2.8" CMOS Starlight |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | 2Mpx (25fps) |
| Lens | 2.8 mm (H: 101º, V: 68.6º, D: 108.6º) |
| Minimum illumination | 0.001 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / IR range up to 20 m (ICR) |
| Day / Night | Auto / Color / BW (Black and White) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Audio | Built-in microphone Audio over coax via HDTVI |
| Video switching | Via DVR (HDTVI by default) |
| Basic functions | OSD menu (remote) |
| 3 Axis | |
| Power | DC 12 V / 375 mA, 4.5W max |
| Protection grade | Waterproof IP67, Vandal resistant IK10 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 87.8 (H) x 119 (Ø) mm |
| Weight | 580 g |
Contents
- Safire Smart Dome Camera
- 3 plugs and 3 mounting screws
- Quick guide assembly
- Installation template
