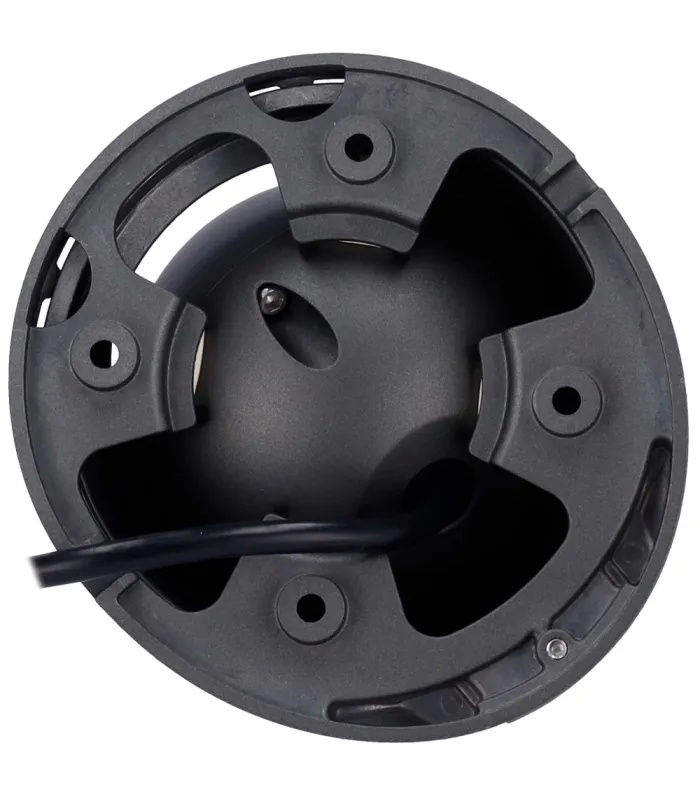

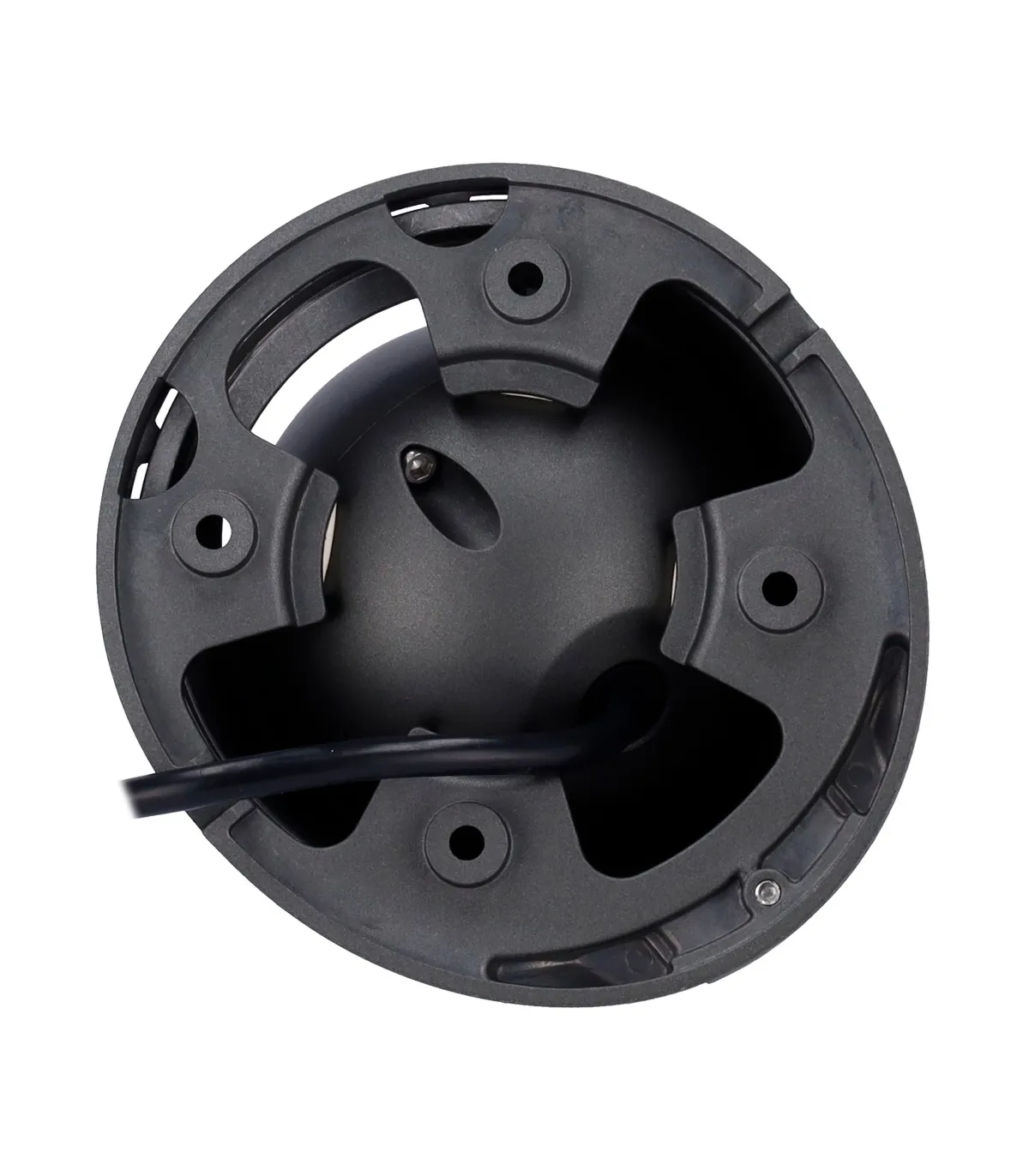

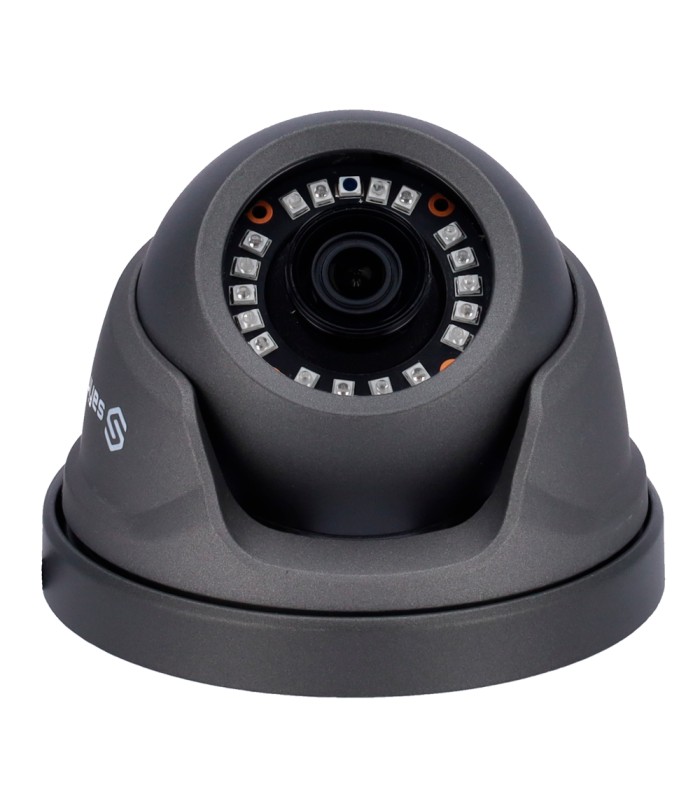

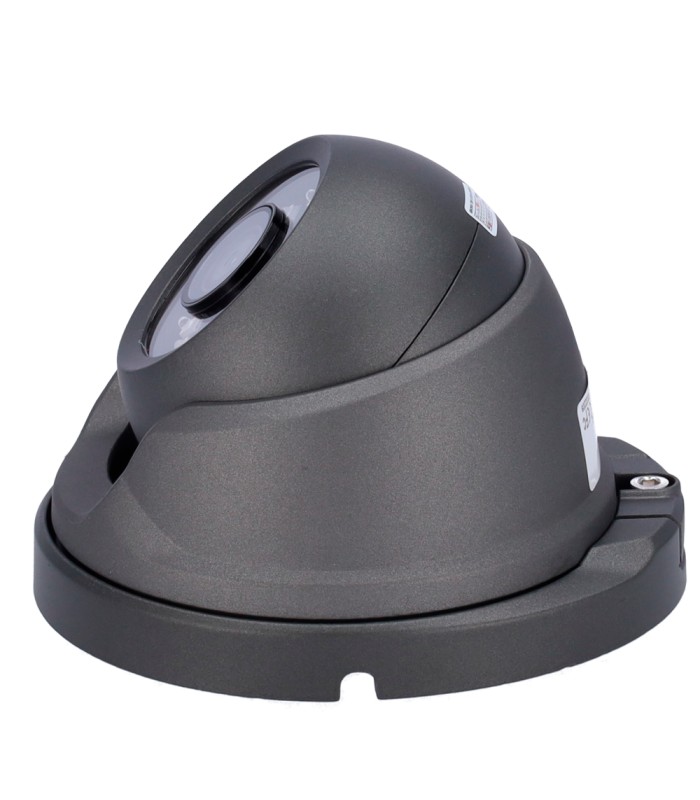

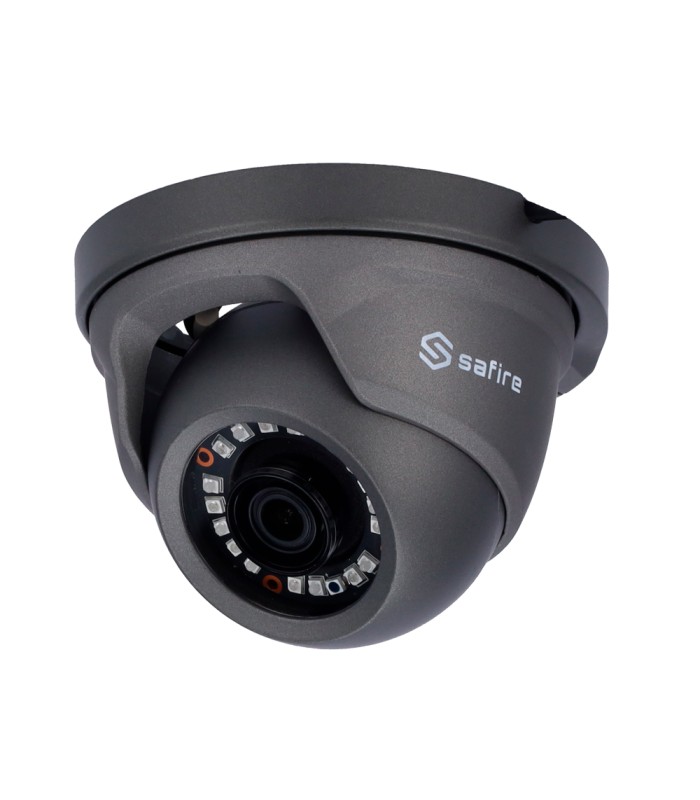

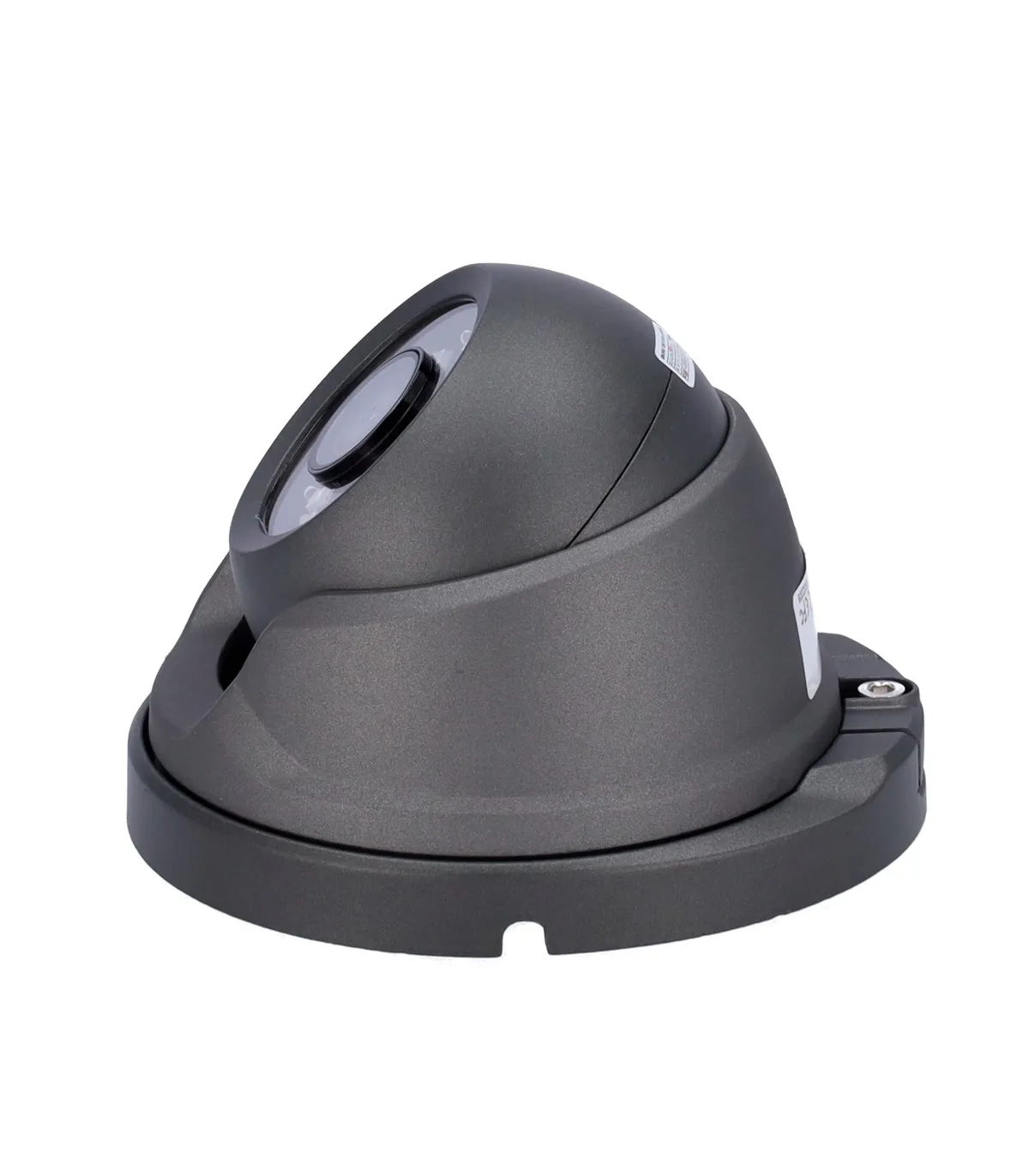

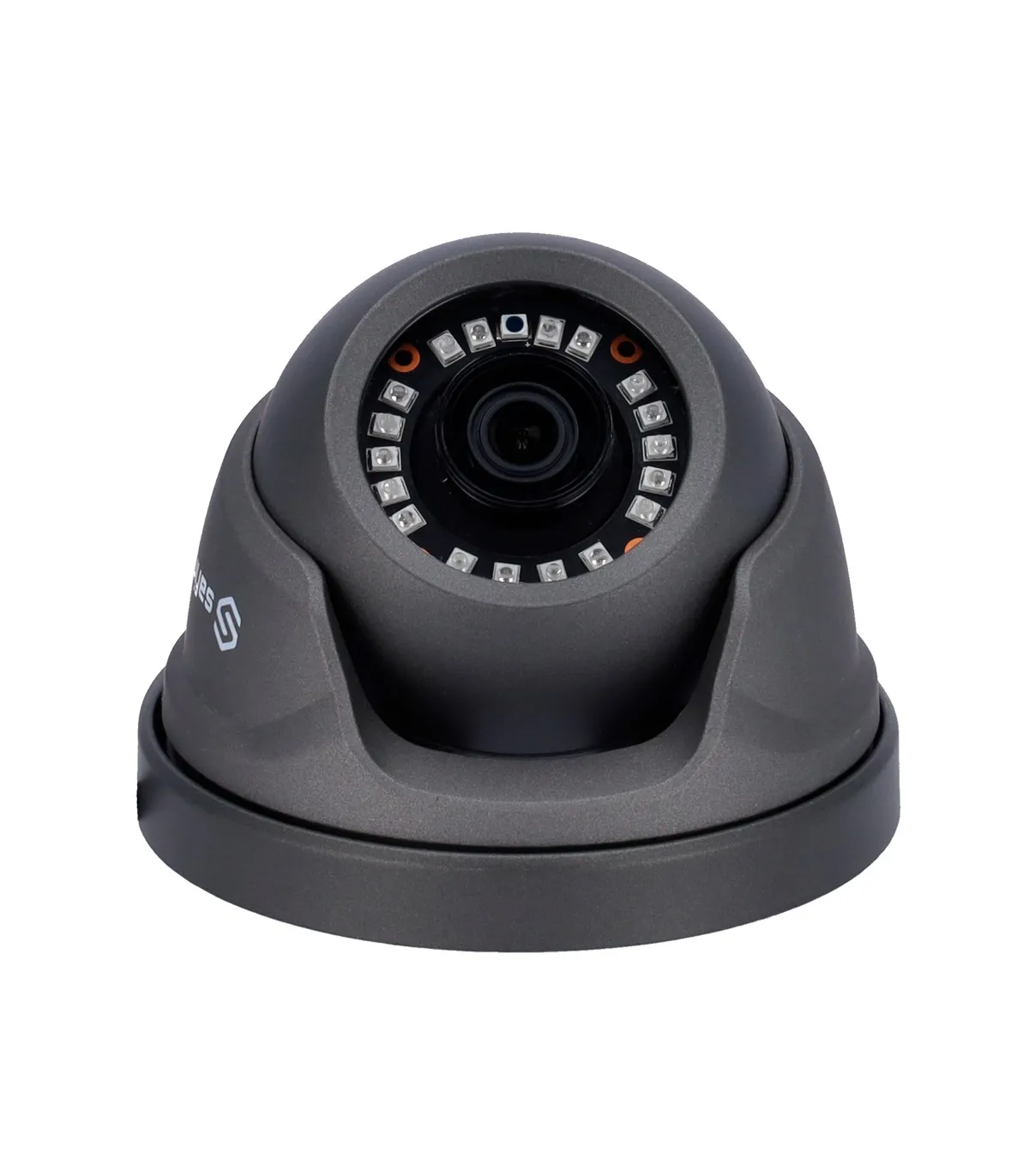

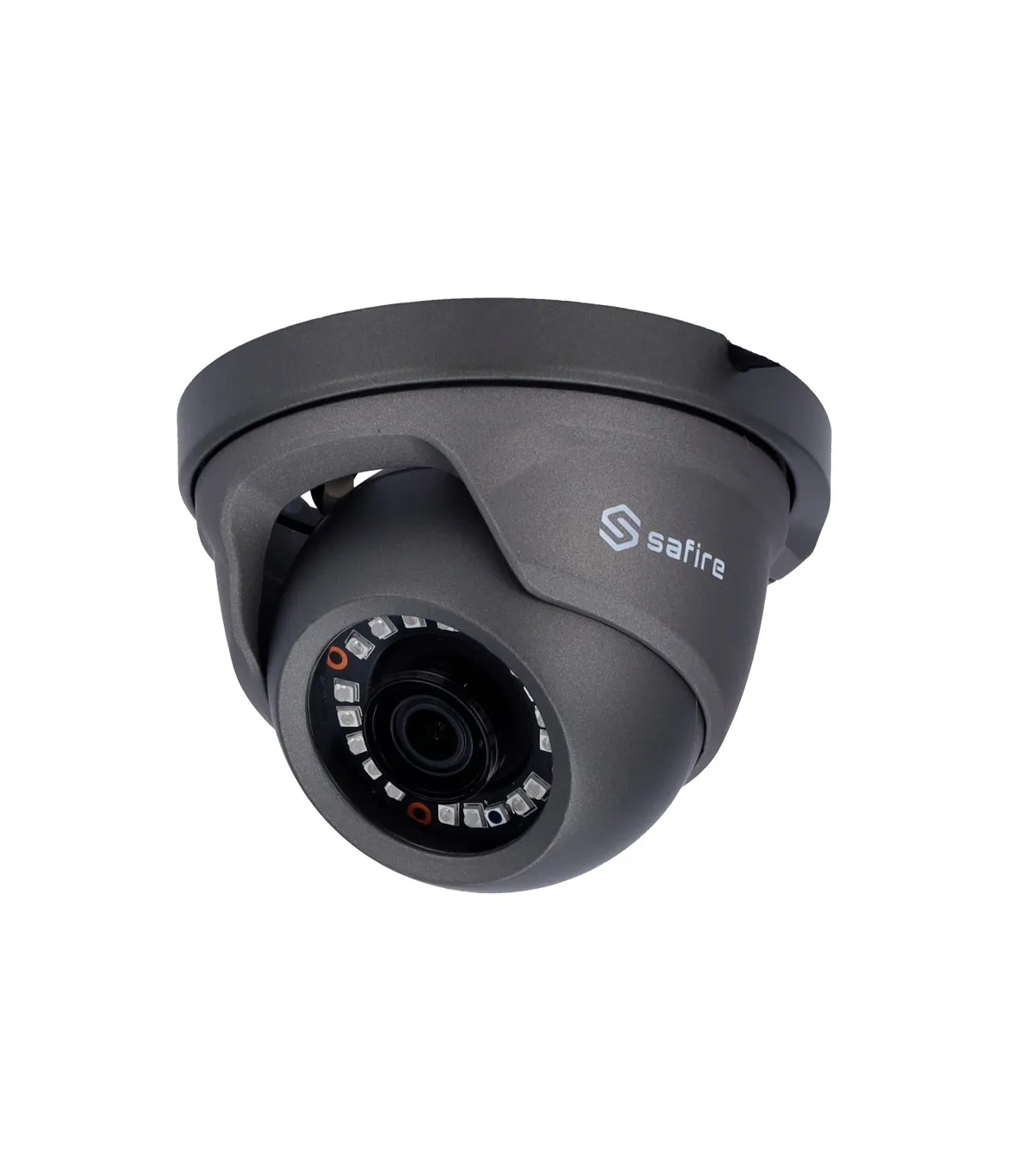

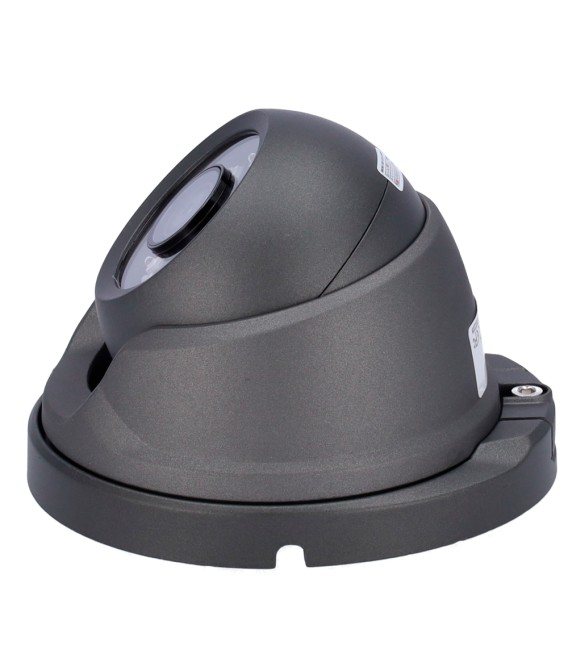

ECO Range Turret Camera SF-T941G-3KE
- HDTVI, HDCVI, AHD and Analog Turret Camera
- ECO Range
- 1/3" CMOS
- 3K resolution (2880x1620)
- 4 in. output 1
- 3.6 mm lens
- 0 Lux
- IR Matrix Range 20 m
- 2D DNR
- IR CUT
- Waterproof IP67
Technical specifications
| Range | ECO |
| Image Sensor | 3K 1/3" CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) at 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 60º (H) |
| Lighting minimum | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Infrared illumination | 0 Lux / IR Matrix LEDs (range 20 m) |
| Day / Night | Auto / Color / BW (black and white) |

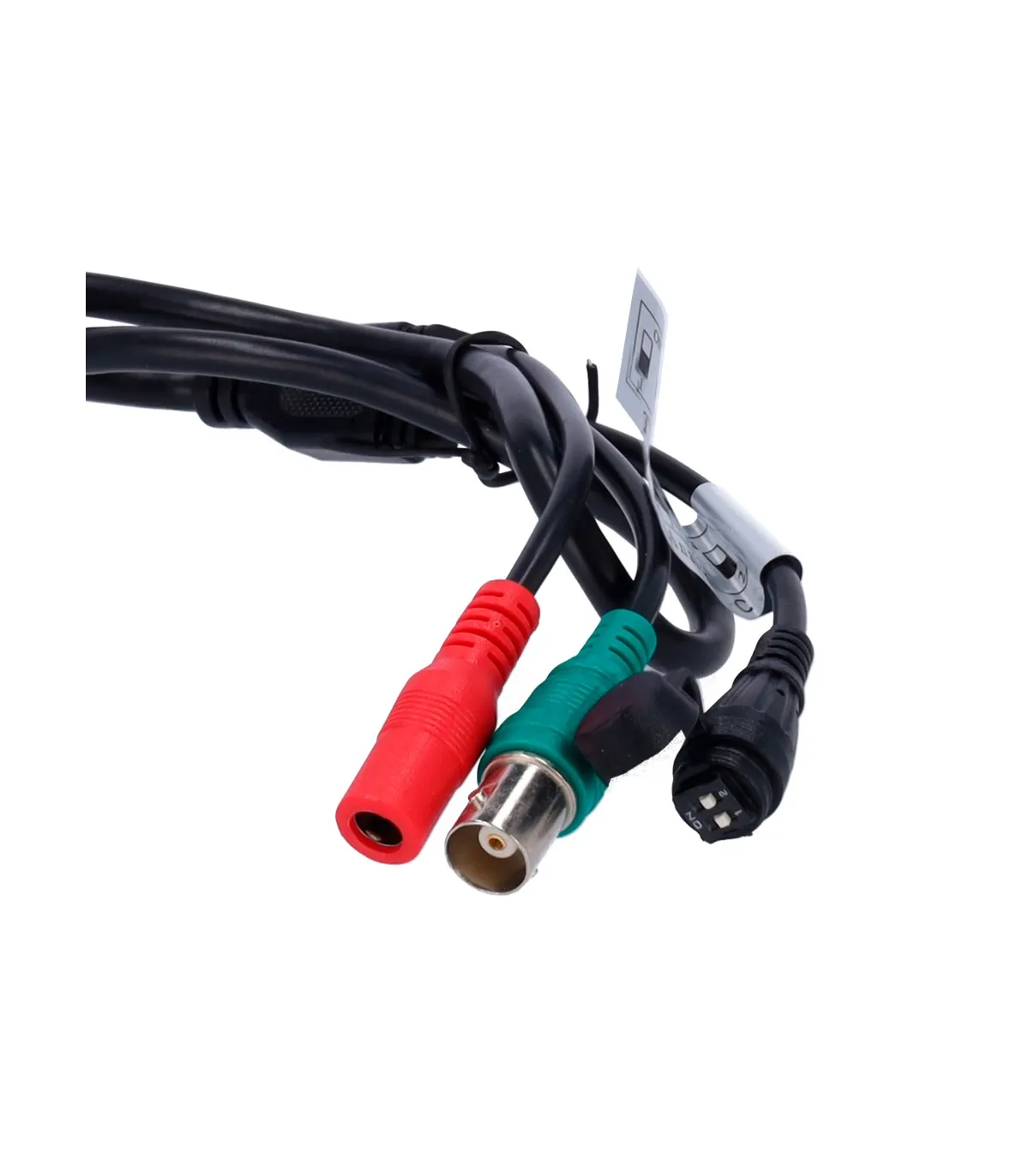

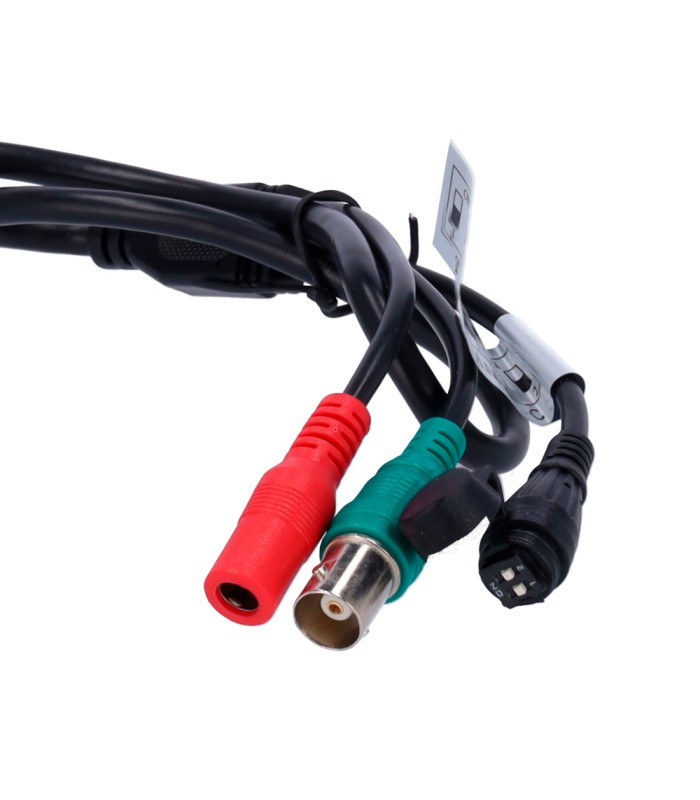

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | Not available |
| Audio | Not available |
| Power | DC 12 V / 300 mA, 4 W max. |
| Grade of protection | Waterproof IP67 |
| Temp. operation | -10º C ~ +60º C |
| Material | Metal and plastic |
| Dimensions | 68 (H) x 91 (Ø) mm |

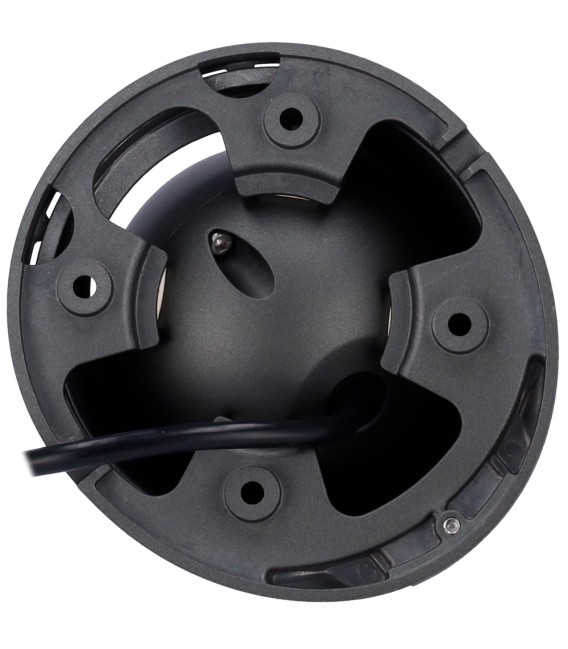

| Base diameter | 75 (Ø) mm / 4 screws |
| Weight | 300 g |
Contents
- Turret 4N1 Camera
- Installation material
- Instructions for use
