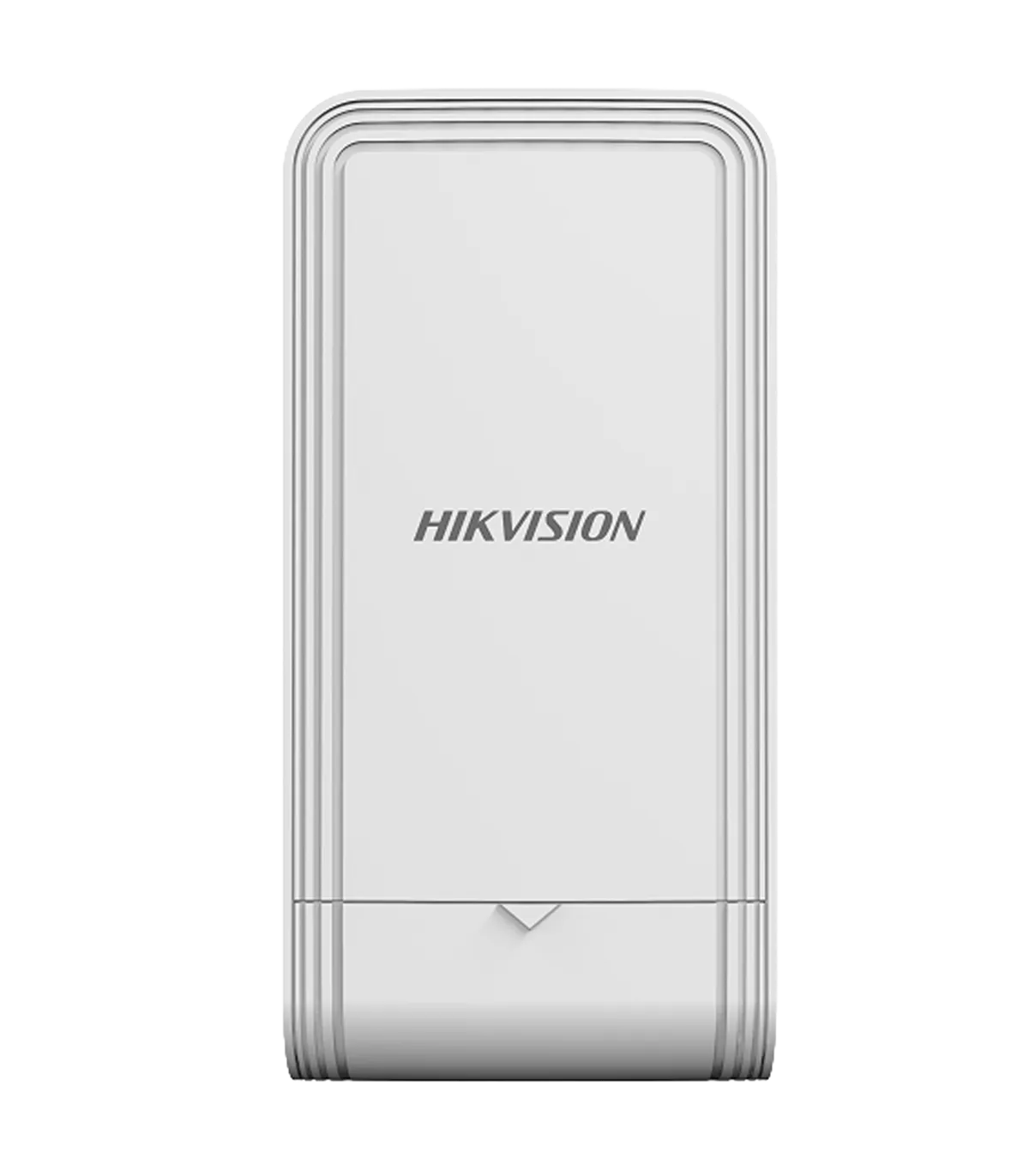

Hikvision 5 GHz Wireless Link up to 3 km Outdoor IP55 DS-3WF3000S-EI-5AC/P

Description & Key Features: DS-3WF3000S-EI-5AC/P

The Hikvision DS-3WF3000S-EI-5AC/P is a high-range outdoor wireless bridge designed to establish point-to-point (PtP) or point-to-multipoint (PtMP) wireless network links in the 5 GHz band. Based on the IEEE 802.11ac standard, it can deliver an air transmission speed of up to 867 Mbps, enabling stable and fast connections between physically separated locations, such as buildings, plots, or network segments that require wired-free connectivity.

This device features an integrated 2×2 MIMO antenna with 8 dBi and can achieve wireless distances of up to 3 km in line of sight, depending on environmental conditions, providing a solid link for data or video from IP cameras and other network equipment. Additionally, it has two 10/100 Mbps Ethernet ports, one designed for passive PoE input and the other with PoE 802.3af output, with a PoE power budget of 10 W, facilitating the powering of an endpoint device through the same cable.

The DS-3WF3000S-EI-5AC/P is designed for outdoor use with IP55 protection, supports a wide operating temperature range, and can be managed via a web interface or compatible software for configuration and link monitoring. Its robust design and transmission capabilities make it ideal for connecting networks or IP cameras in remote areas without the need for direct physical cabling.

Specifications: DS-3WF3000S-EI-5AC/P

Package Contents

• 1x DS-3WF3000-EI-5AC/P
• 1x Passive PoE Injector
• Instructions

Use Case

In a typical deployment scenario, the Hikvision DS-3WF3000S-EI-5AC/P can be utilized to connect two separate buildings within a campus environment, where traditional cabling is impractical. By leveraging its high-speed wireless connectivity, installers can create a reliable network link that supports both data and video transmission from IP cameras positioned in each building. The device's ability to cover distances of up to 3 km in ideal conditions ensures that even remote locations can be integrated into the network seamlessly. Additionally, the robust outdoor design with IP55 protection allows for installation in various weather conditions, making it suitable for long-term use. The dual Ethernet ports enable easy integration with existing network infrastructure, while the remote monitoring capabilities via web management tools provide users with the flexibility to manage their network efficiently. Overall, the DS-3WF3000S-EI-5AC/P is an excellent solution for enhancing connectivity in challenging environments.
