Hikvision 5 GHz Wireless Bridge up to 3 km IP55 Outdoor DS-3WF3000-EI-5AC/P

Description & Key Features: DS-3WF3000-EI-5AC/P

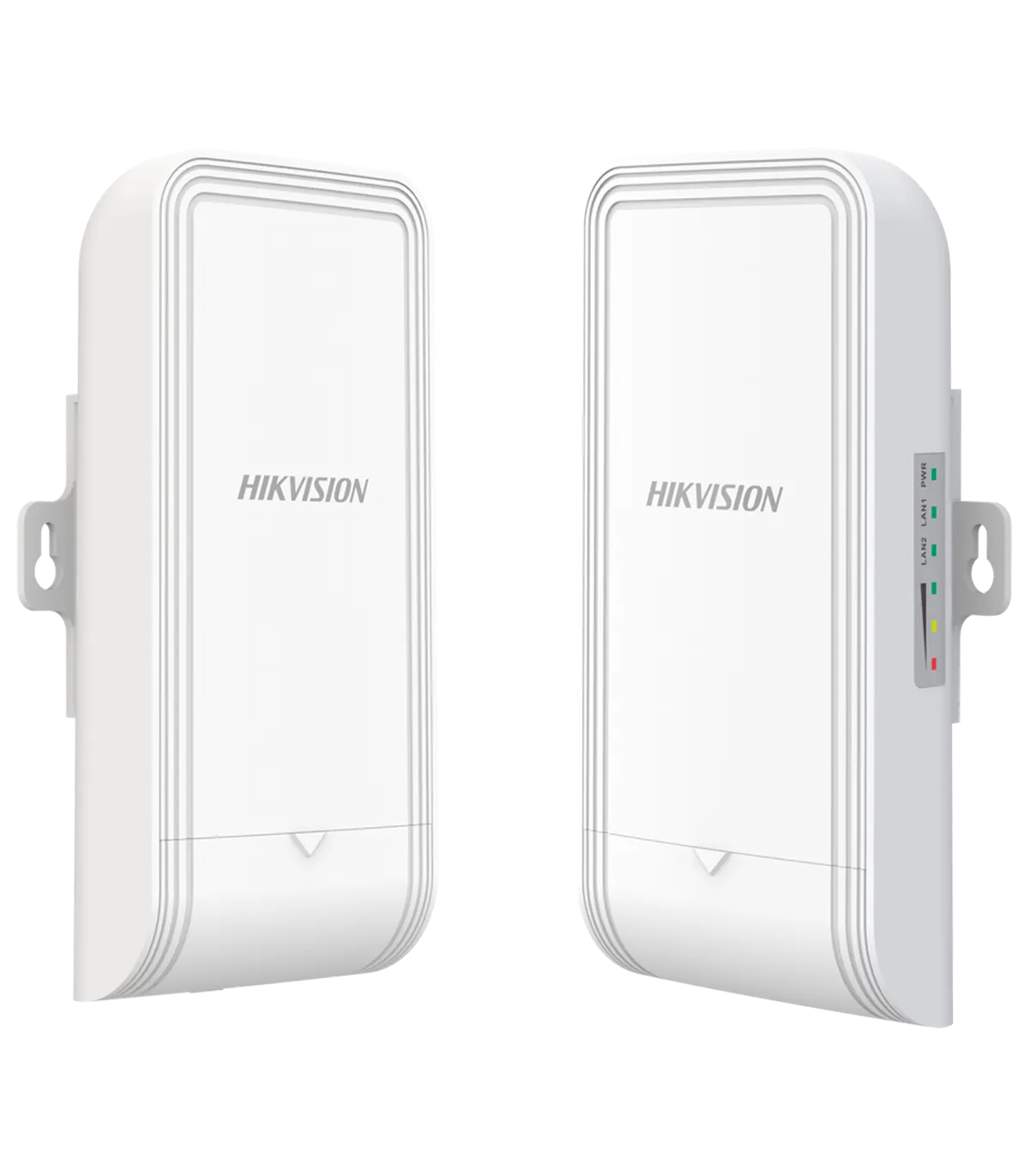

The Hikvision DS-3WF3000-EI-5AC/P is an outdoor wireless bridge kit designed to establish point-to-point (PtP) or point-to-multipoint (PtMP) wireless network links in the 5 GHz band, making it ideal for connecting networks or equipment in areas where physical cabling is impractical, such as between buildings or outdoor network extensions. It utilizes 802.11ac technology with air speeds of up to 867 Mbps and can cover distances of up to approximately 3 km in line of sight under favorable conditions.

This kit comes packaged in pairs, with two wireless units that include an integrated 2×2 MIMO antenna of 8 dBi, 2 RJ45 Ethernet ports (10/100 Mbps) per device, and standard PoE power supply, facilitating installation without local power sources. It offers stable transmission and IP55 protection for outdoor use, supporting basic management functions and wireless security features such as WPA2-PSK and automatic/manual channel selection.

The device supports low power consumption (typical ~2.43 W, maximum ~3.6 W) and is plug-and-play, simplifying deployment even for users without advanced wireless networking experience. Its ability to maintain long-range, high-speed links makes it suitable for IP video surveillance, data links, and other outdoor connectivity applications when wired infrastructure is unavailable.

Specifications: DS-3WF3000-EI-5AC/P

Package Contents

• 2x DS-3WF3000-EI-5AC/P
• 2x Passive PoE Injectors
• Instructions

Use Case

In a typical deployment scenario, the Hikvision DS-3WF3000-EI-5AC/P can be utilized to connect two buildings that are separated by a significant distance, where running physical cables is not feasible. For instance, a business may require a reliable connection between its main office and a remote warehouse. By installing the wireless bridge at both locations, the company can achieve a stable network connection for data transfer and IP video surveillance. The plug-and-play feature allows for quick setup, enabling even non-technical staff to establish the connection with ease. Additionally, the device's IP55 protection ensures durability against outdoor elements, making it suitable for various environmental conditions. With a maximum transmission power of 22 dBm, the DS-3WF3000-EI-5AC/P can maintain high-speed links, ensuring that critical applications such as remote monitoring and data access remain uninterrupted.
