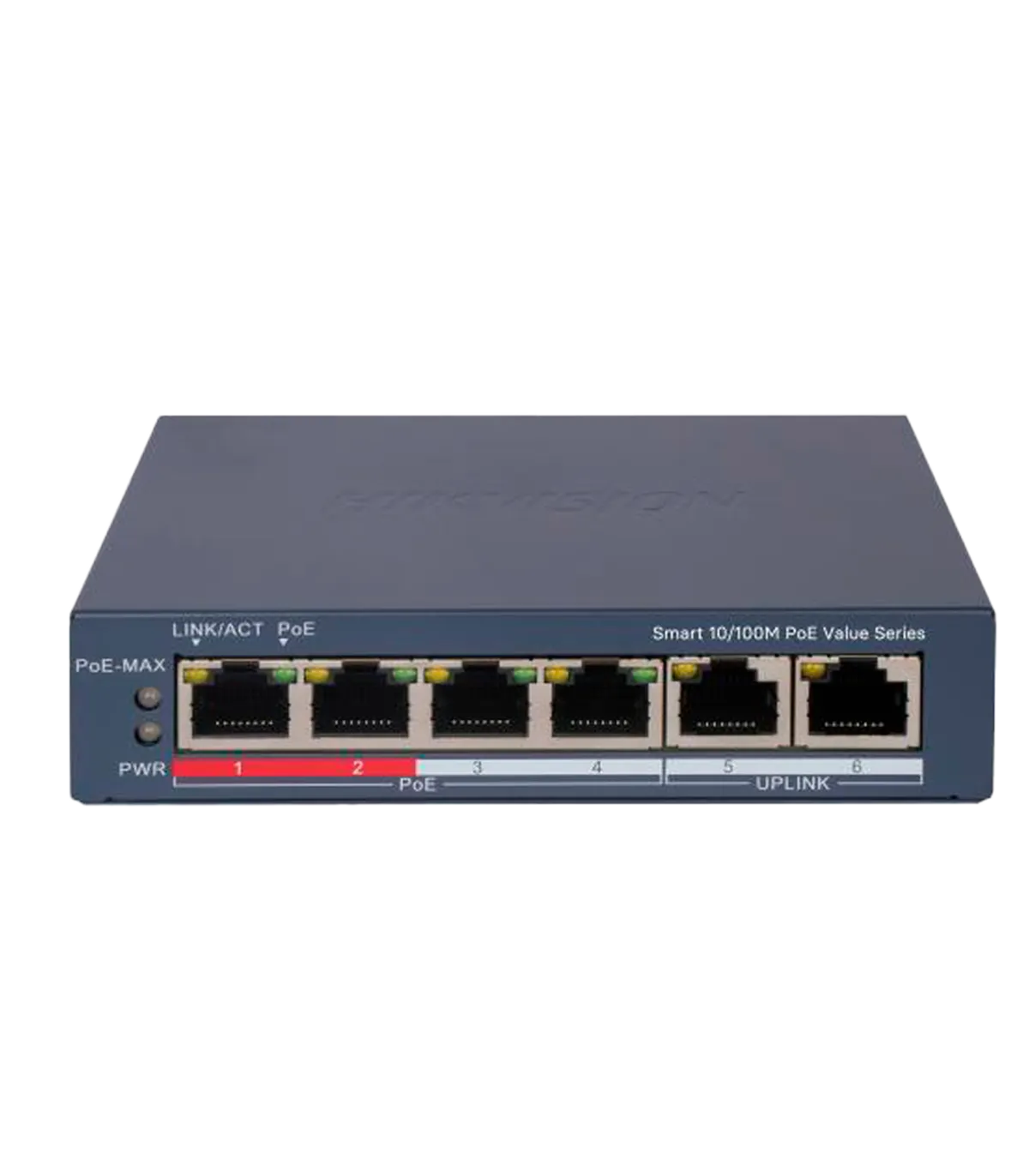

The DS-3E1106P-EI/M is a managed PoE switch designed for desktop use, ideal for small to medium-sized networks requiring reliable power and data transmission. This device features 4 PoE RJ45 ports with speeds of 10/100Mbps and 2 uplink ports, making it suitable for connecting multiple devices such as IP cameras and access points. With a total PoE power support of up to 45W, it ensures efficient operation of connected devices while being compatible with PoE IEEE802.3af/at standards. The switch can be easily managed using Hik-Partner Pro and Hik-Central Pro, providing a powerful and intuitive user experience.
| Brand | Hikvision |
| Interface | 4 PoE+ RJ45 10/100 Mbps + 2 RJ45 10/100 Mbps uplink |
| RJ45 Port Speed | 6x 10/100Mbps |
| PoE Power Supply | PoE/PoE+ 802.3af/at port 1-4 Up to 60W total power |
| Extended PoE | Up to 300 meters (this may vary depending on the camera model or cable condition) |
| Management Protocols | Web/Hik-Partner Pro/Hik-Central Pro |
| Technologies and Protocols | Loop Detection (STP and RSTP) Up to 32 VLANs (supports trunk and access mode) Port Isolation Link Aggregation (supports static link aggregation) Supports an aggregation group PoE Watchdog LLDP/HPP SNMP v1/v2c Management IP 10.180.190.200 |
| Power Supply | External power adapter 54V/0.92A |
| Operating Temperature | 0° C ~ 40° C |
| Dimensions | 83.1 (L) x 27.6 (H) x 121 (W) mm |
| Weight | 0.77 kg (with package) |
The DS-3E1106P-EI/M is an excellent choice for installers setting up a surveillance system in a small office environment. With its managed PoE capabilities, this switch allows for seamless integration of multiple IP cameras, ensuring that each device receives adequate power and data connectivity. For instance, an installer can connect four cameras directly to the switch, utilizing the PoE power supply to eliminate the need for additional power outlets. The extended PoE feature enables camera placement up to 300 meters away, providing flexibility in positioning without compromising performance. Additionally, the switch's support for VLANs allows for enhanced network segmentation, improving security and management. End users benefit from the intuitive management interface provided by Hik-Partner Pro, making it easy to monitor and configure the network as needed. Overall, the DS-3E1106P-EI/M is a robust solution for efficient network deployment.
