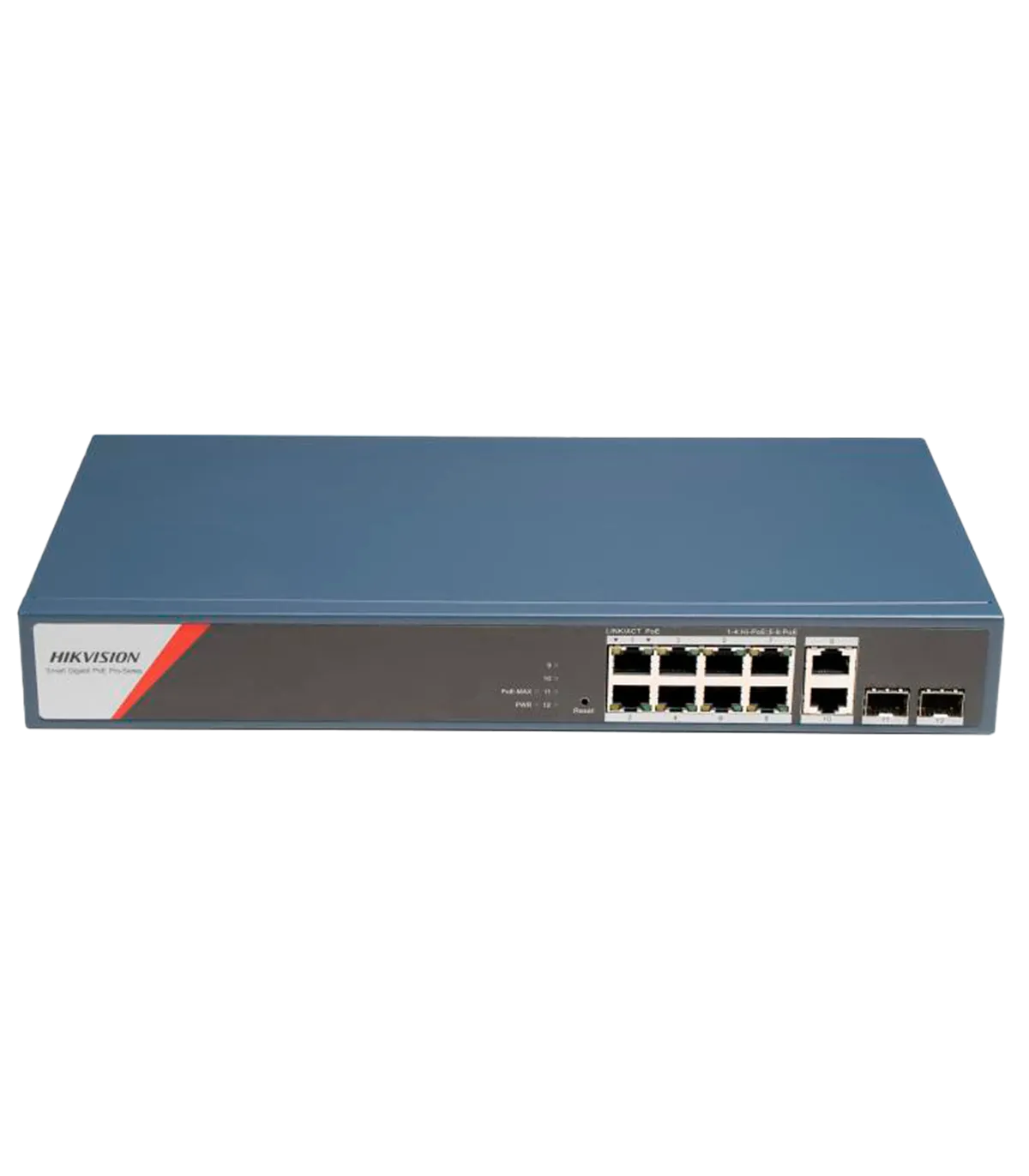

The DS-3E1512HP-SI-8P2T2F is a sophisticated managed switch designed for seamless integration into modern electronic security systems. Ideal for environments requiring robust Power over Ethernet (PoE) capabilities, this device supports up to 8 RJ45 ports with PoE+ functionality, making it perfect for powering IP cameras and other network devices. With advanced features such as PoE watchdog and intelligent PoE management, it ensures reliable operation and optimal performance in security applications.
| Interfaces | 8 PoE RJ45 10/100/1000 Mbps + 2 Gigabit combo RJ45/SFP ports |
| PoE Features | Hi-PoE port 1 (up to 90W) PoE/PoE+ 802.3af/at ports 2-8 Up to 130W total power |
| PoE Functionalities | Extended PoE ports 1-8 up to 300 meters range at 10Mbps Port Isolation for ports 1-8 PoE Watchdog for ports 1-8 resets cameras if unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Features | Static link aggregation (1 group) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Features | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| MAC Table | 16K |
| Bandwidth | 9.2Gbps |
| Forwarding Rate | 6.84Mbps |
| Internal Cache | 4 Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 2.5A |
| Operating Temperature | 0º C ~ 45º C |
| Consumption | Idle 20W / With PoE 150W |
| Dimensions | 175.8 (L) x 44.5 (H) x 335 (W) mm |
| Weight | 2.9Kg |
The DS-3E1512HP-SI-8P2T2F is ideally suited for deployment in a variety of security environments, such as corporate offices, retail spaces, and educational institutions. For instance, in a corporate office, this managed switch can be utilized to connect multiple IP cameras and access points, ensuring reliable Power over Ethernet delivery. With its PoE watchdog feature, the switch can automatically reset unresponsive devices, minimizing downtime and enhancing security monitoring. Additionally, the extended PoE capability allows for camera installations up to 300 meters away, providing flexibility in positioning. The integration with HikPartner Pro enables remote monitoring and management, allowing IT administrators to oversee network performance and energy usage efficiently. Overall, the DS-3E1512HP-SI-8P2T2F enhances the reliability and efficiency of security systems, making it an essential component for any modern security infrastructure.
