DS-KH6320-WTDE1 | |
| Brand | Hikvision |
| Model | DS-KH6320-WTDE1 |
| Operating system | Linux |
| Display type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 2 x configurable alarm inputs, 1 x RS485, 1 x 4 wires |
| Outputs | 2 x relay outputs, 1 x 4 wires |
| Audio | Two-way audio with microphone and built-in speaker Noise reduction and echo cancellation |
| Memory | microSD card slot (up to 128 GB) |
| Connection | 4 wires / Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote access | iVMS-4200 software Mobile app Hik-Connect |
| Power | DC 12 V / 500 mA max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 340 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |

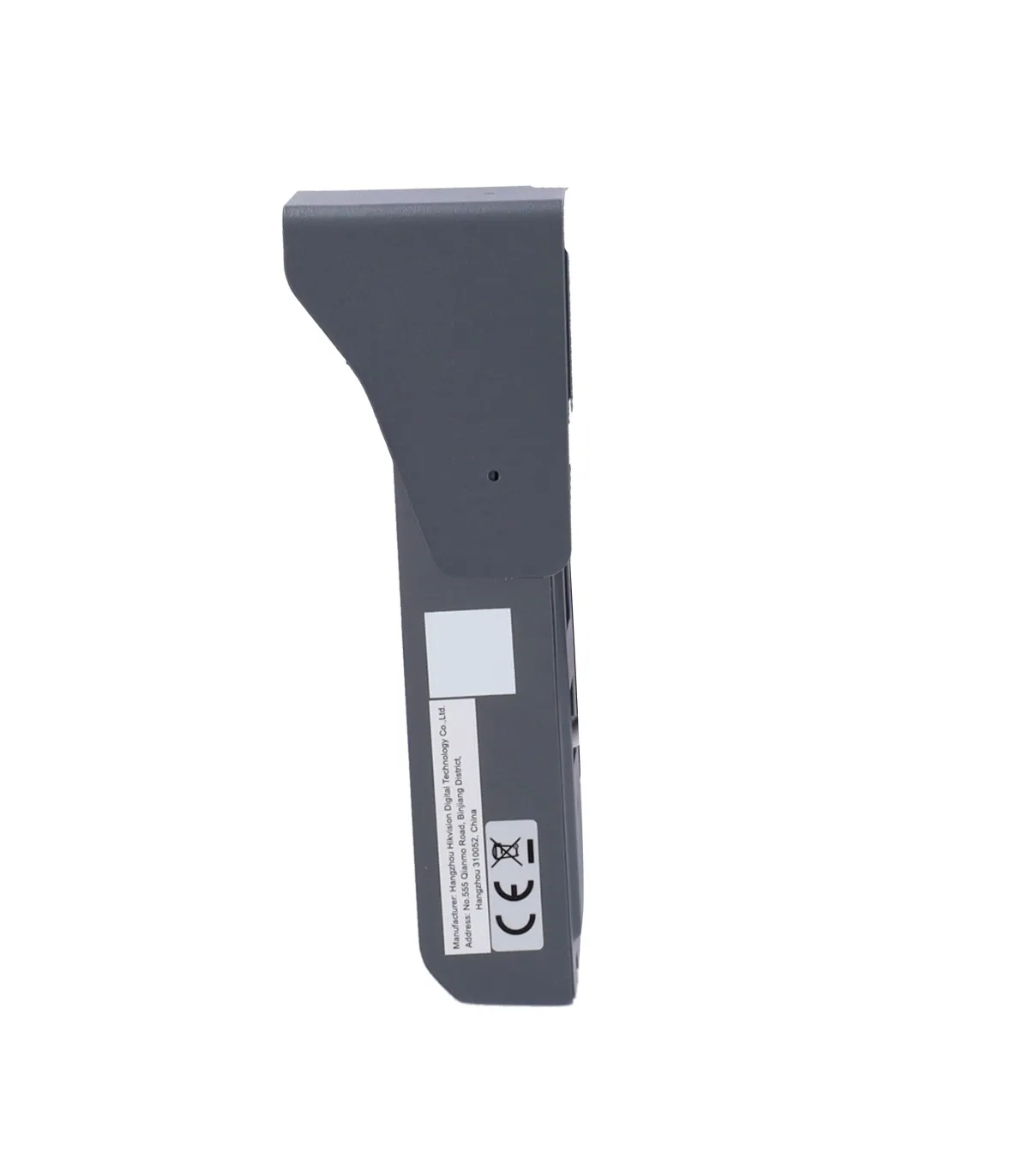

DS-KB2421T-IM | |
| Brand | Hikvision |
| Model | |
| View angle | H: 66º, V: 37º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button |
| Outputs | 1 x relay output |
| Inputs | 1 x 4 wires |
| Communication | 4 wires |
| Power | DC 12 V / 420 mA max (via 4-wire monitor) |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Aluminum alloy |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 135 (H) x 50 (W) x 42 (D) mm |
| Weight | 340 g |
