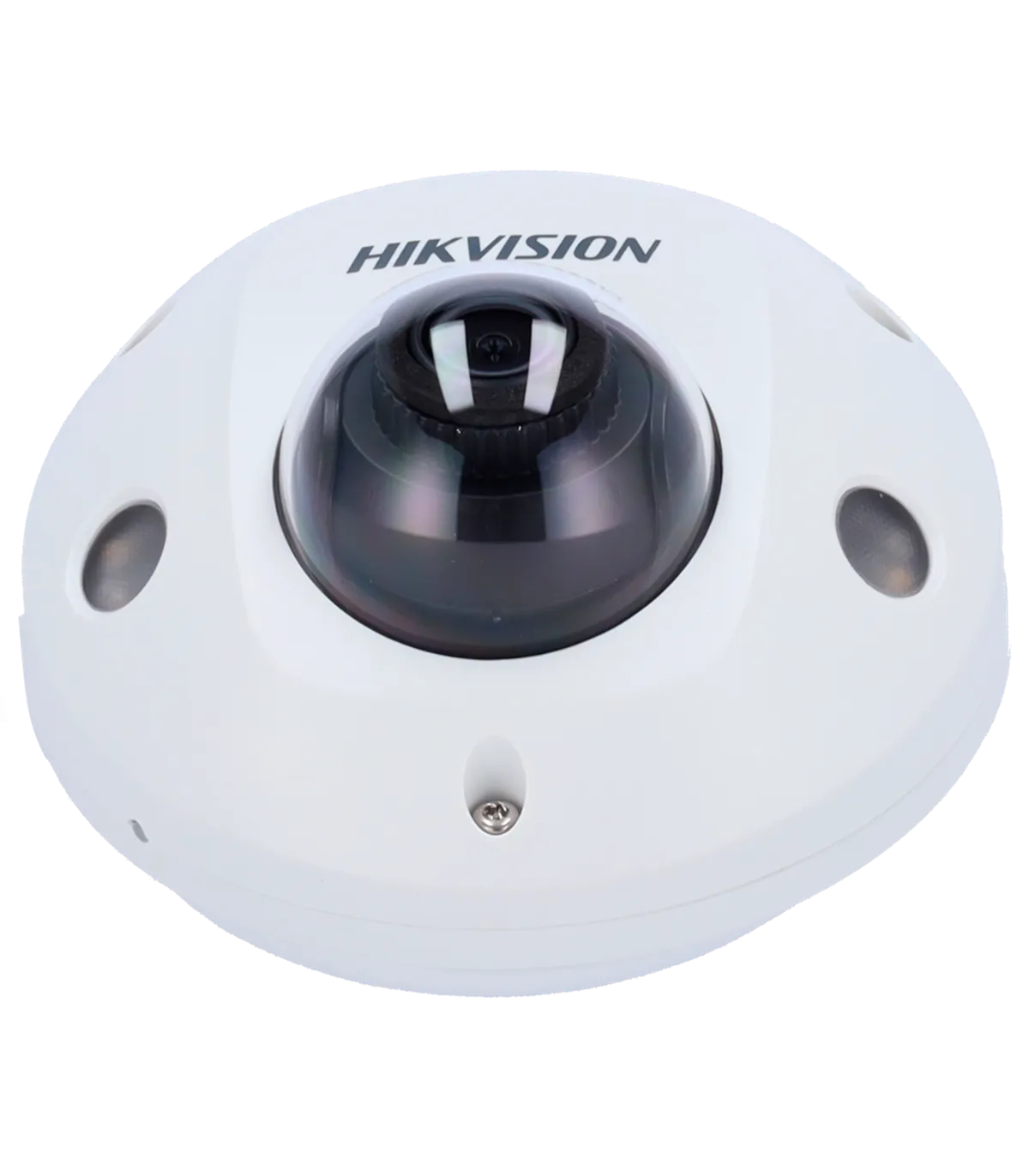

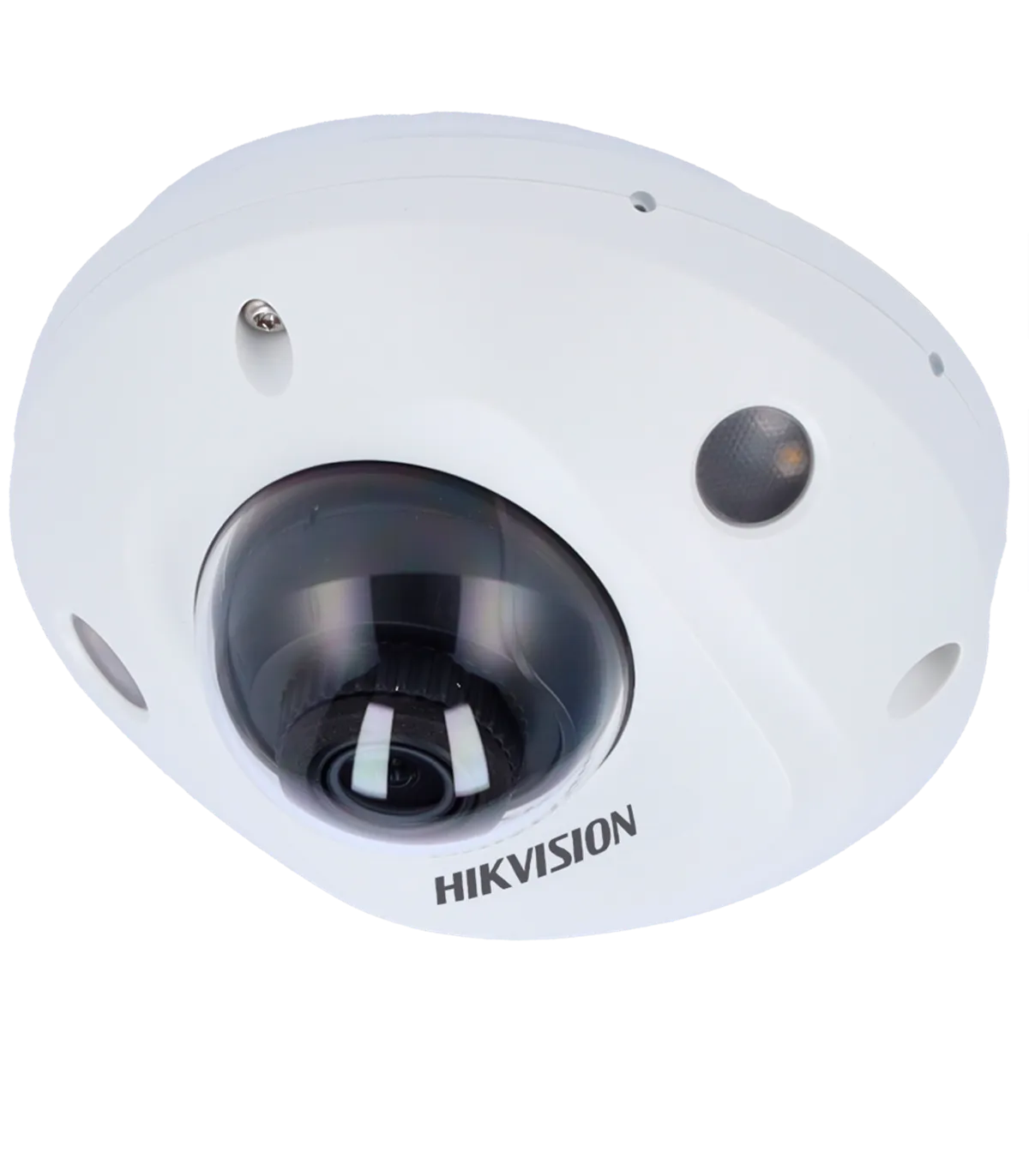

The DS-2CD2583G2-LIS2U(2.8mm) is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution and Progressive Scan CMOS sensor, it delivers exceptional image quality, making it ideal for both indoor and outdoor environments. This camera features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Its hybrid light technology, combining IR and white light, allows for effective monitoring even in complete darkness, with a range of up to 30 meters.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108°, V: 59°, D: 127° |
| DORI | 84 m (D), 33 m (O), 16 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |

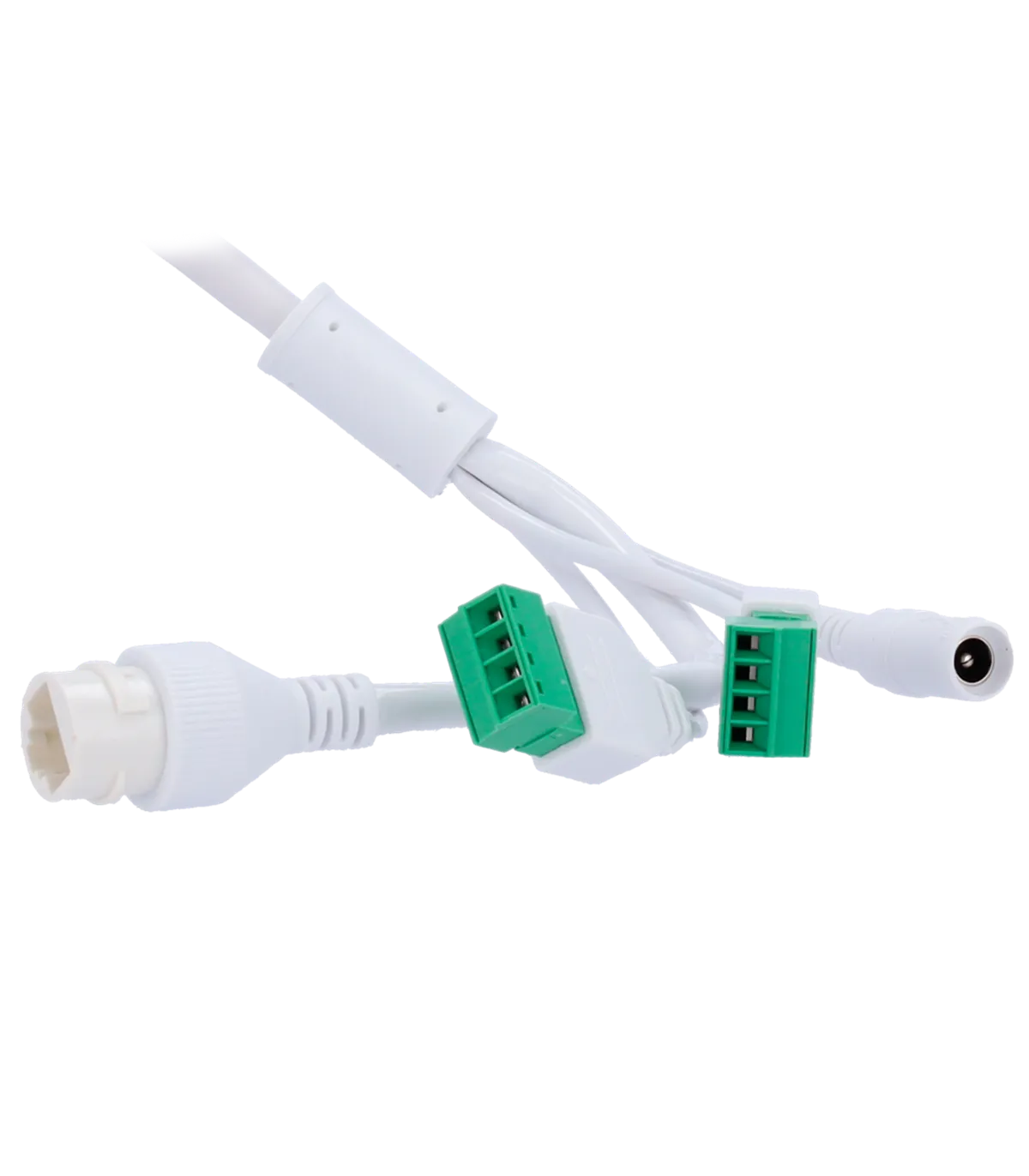

| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof IK08 vandal-proof |
| Material | Base: Aluminum alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 113.6 mm x 74.6 mm (H) |

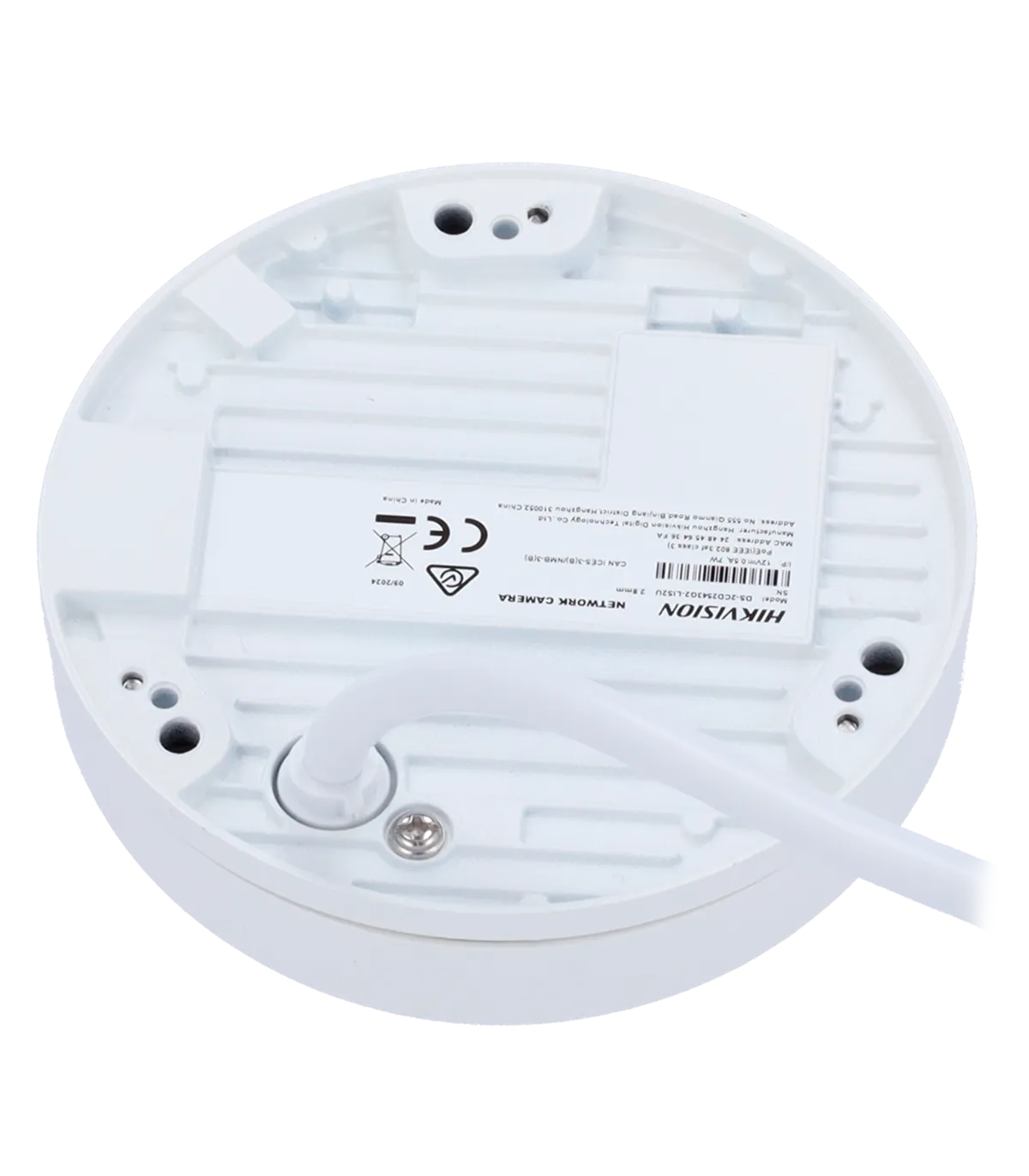

| Base Dimensions | Ø base 110 mm / Ø between screws 96 mm / 3 screws |
| Weight | 500 g |
The DS-2CD2583G2-LIS2U(2.8mm) is an excellent choice for various surveillance applications, including retail stores, parking lots, and office buildings. Its high-resolution imaging capabilities ensure that every detail is captured, providing security personnel with the necessary information to respond effectively to incidents. The camera's remote monitoring features allow users to access live feeds from anywhere, enhancing situational awareness. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between humans and vehicles, making it ideal for busy environments. With its IP67 waterproof rating, this camera is built to withstand harsh weather conditions, ensuring reliable performance year-round. The easy installation process, supported by PoE technology, simplifies setup, making it a preferred choice for installers and end-users alike.
