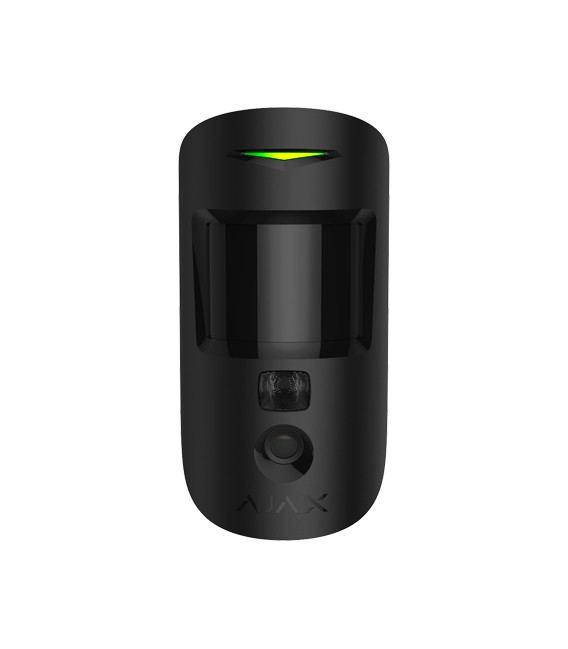

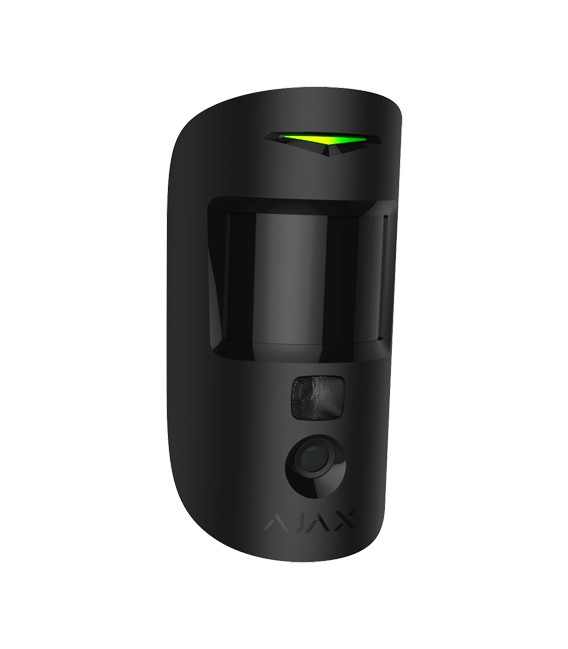

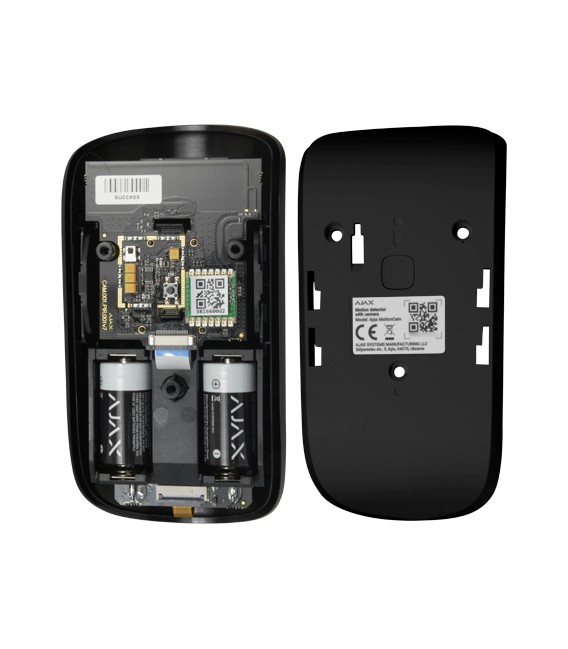

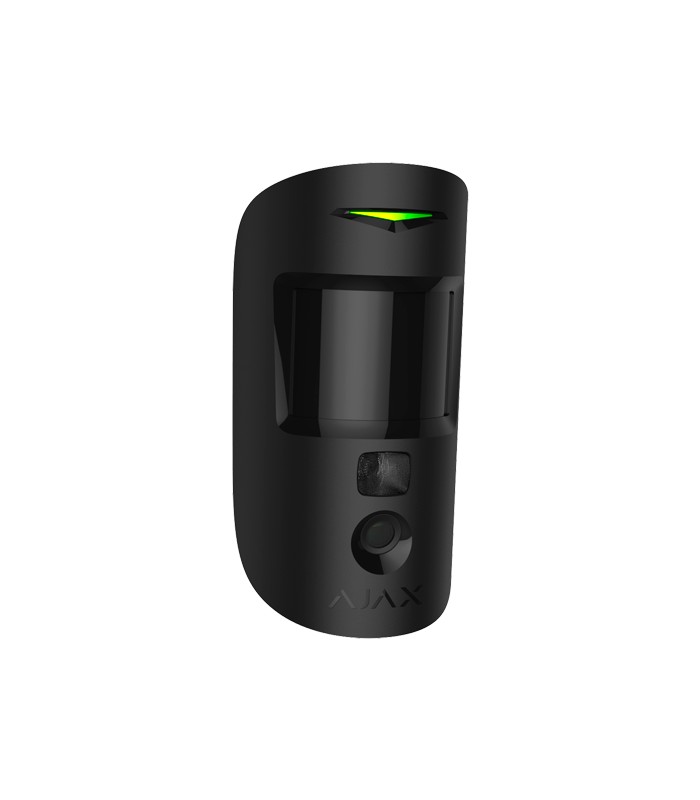

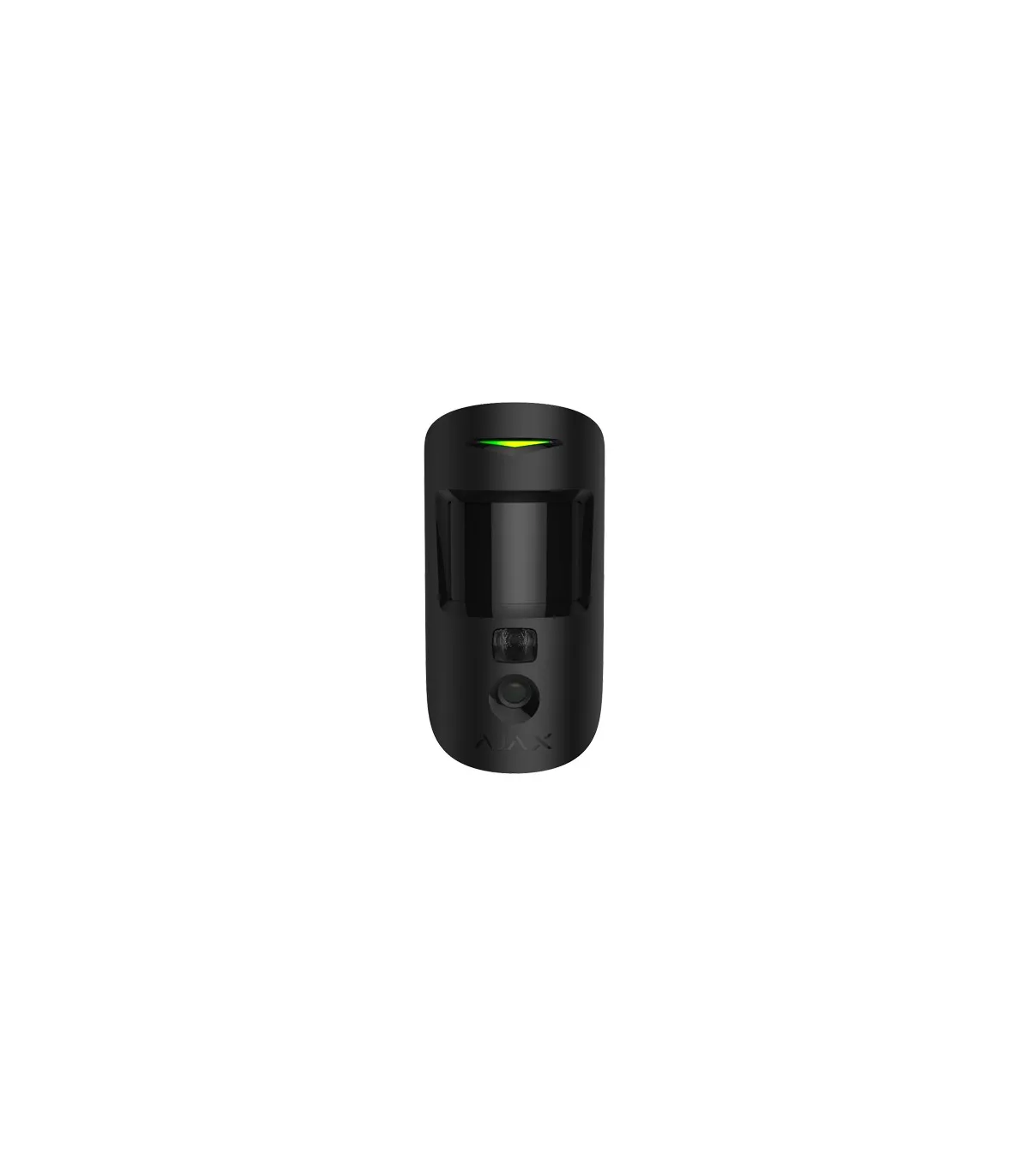

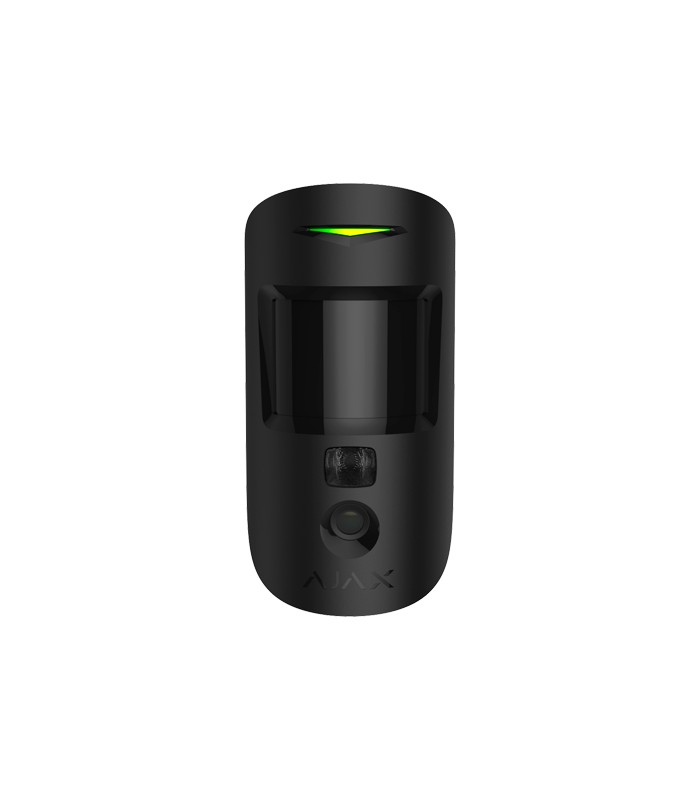

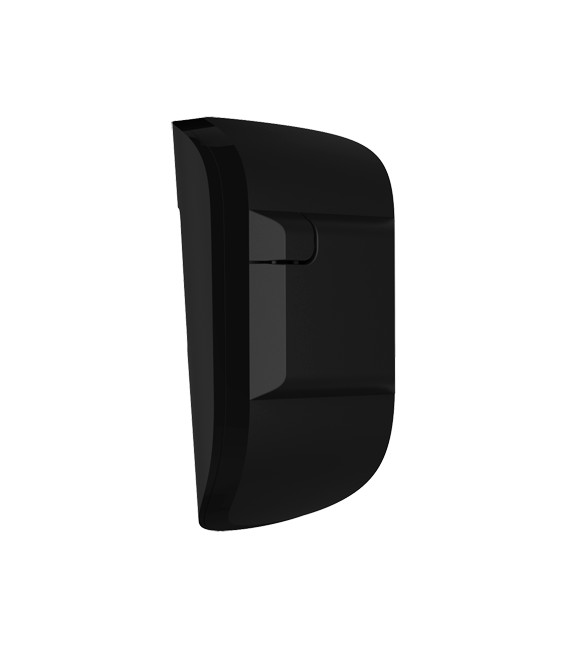

AJ-MOTIONCAM-B bidirectional PIR photodetector
- Ajax
- Pet-immune PIR volumetric photodetector
- Grade 2 certified
- Bidirectional
- Wireless 868 MHz Jeweler
- Internal antenna free space range 1700 m
- Motion detection indicator
- Detection: Range 12 m / H: 88.5º / V: 80º
- Anti-opening tamper
- Immunity against pets ≤ 20 Kg
- Maximum resolution VGA
- Sending up to 5 images for each detection
- Power supply: 2 CR123A 3.0 V batteries (estimated duration 4 years)
- Use interior
- Includes support
- Compatible with Ajax Hub 2
- Black color
Technical specifications
| Brand | Ajax |
| Technology | Volumetric PIR with camera |
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |

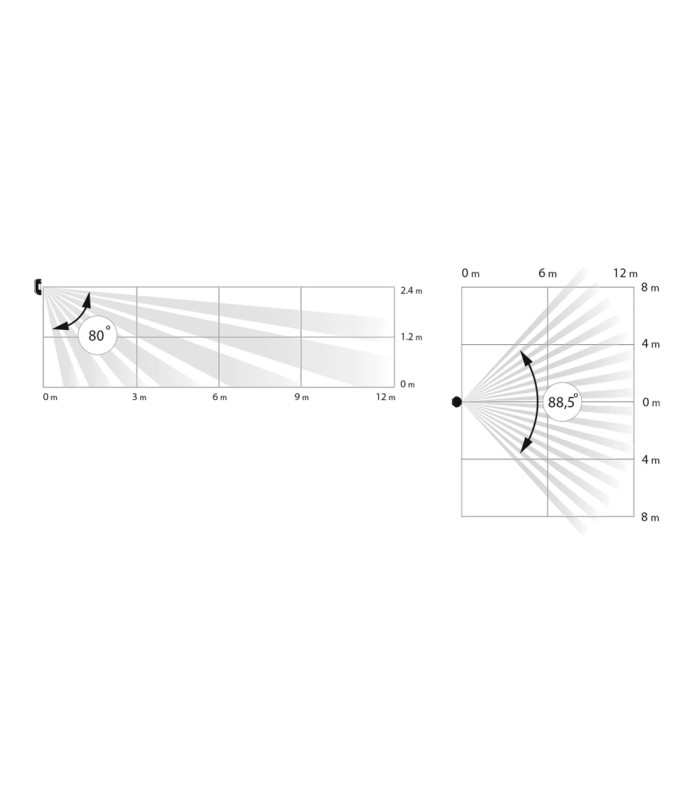

| Detection field | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweler and Wings (image sending) |
| Transmission distance | ≤ 1700 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per each detection |
| Image sending | Image sending and receiving in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |

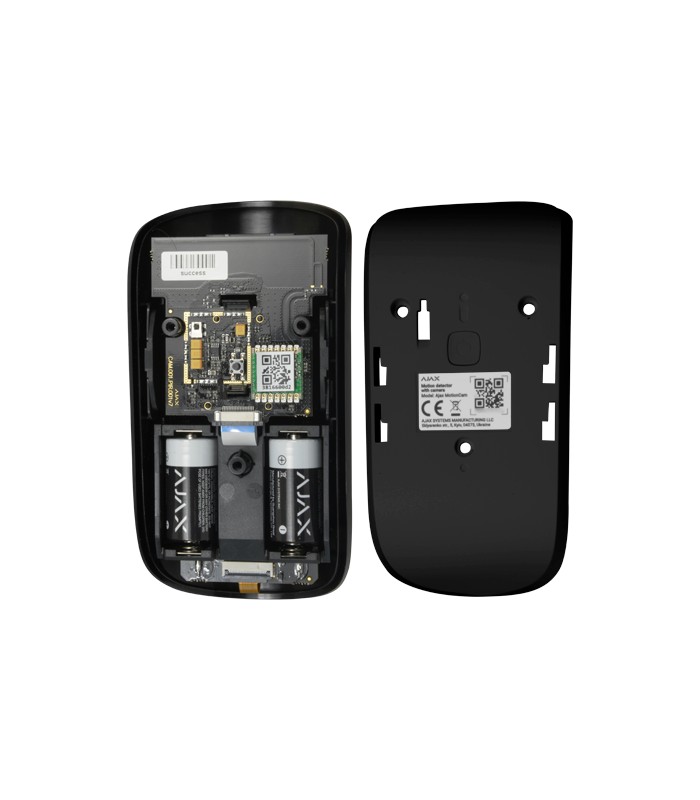

| Battery | 2 CR123A 3.0 V batteries (duration up to 4 years) |
| Compatibility | Hub 2 and Hub 2 Plus |
| Temp. operation | 0º C ~ 40º C |
| Cover material | ABS plastic |
| Dimensions (without support) | 135 (H) x 70 (W) x 60 (Fo) mm |
| Color | Black |
Contents
- Indoor PIR photodetector
- Instruction manual

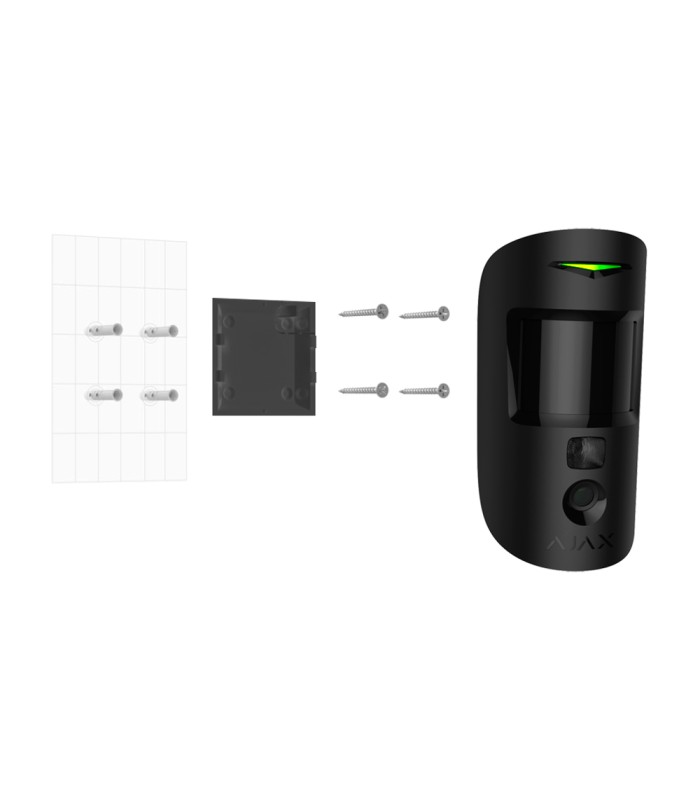

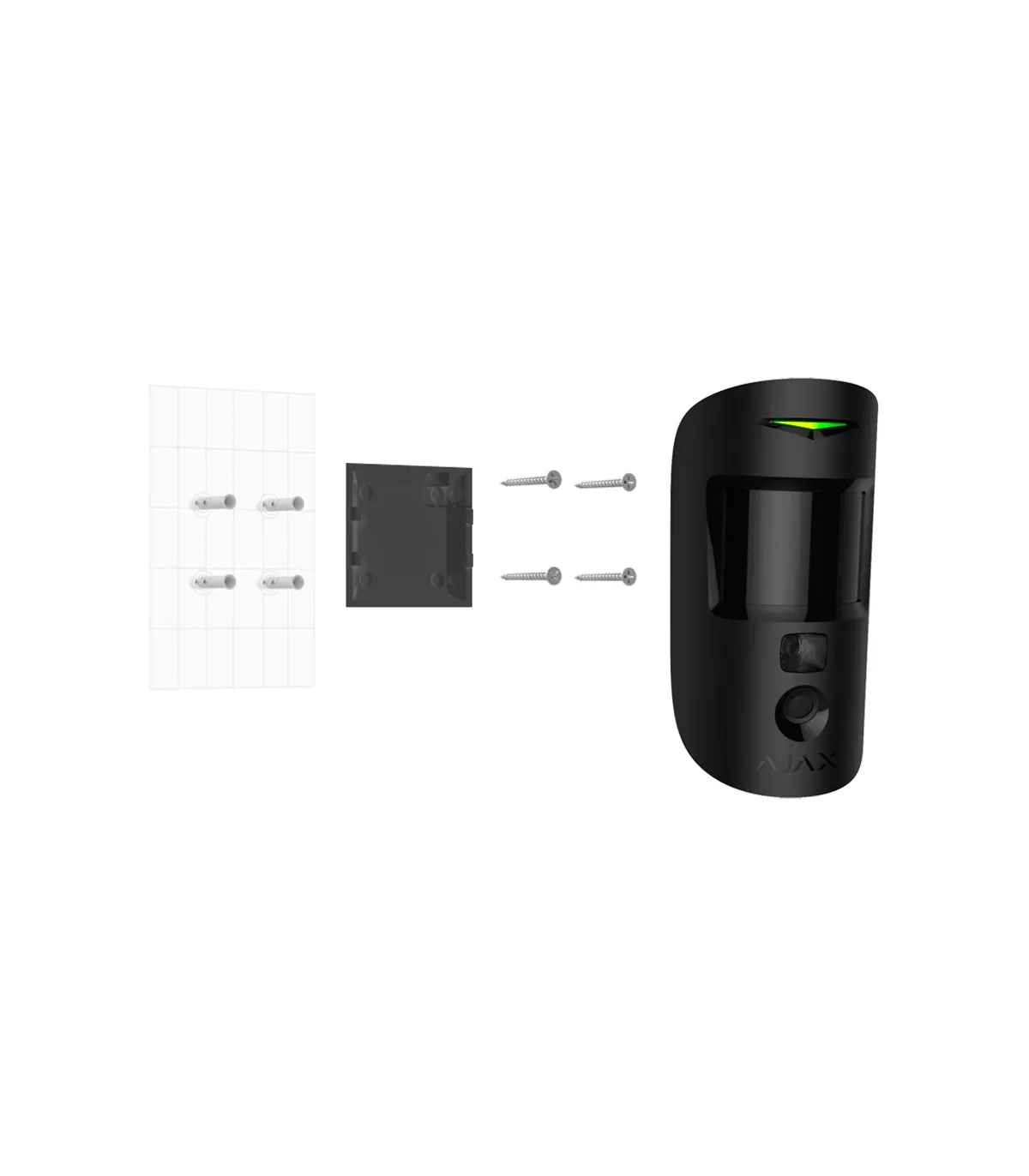

- Material assembly
