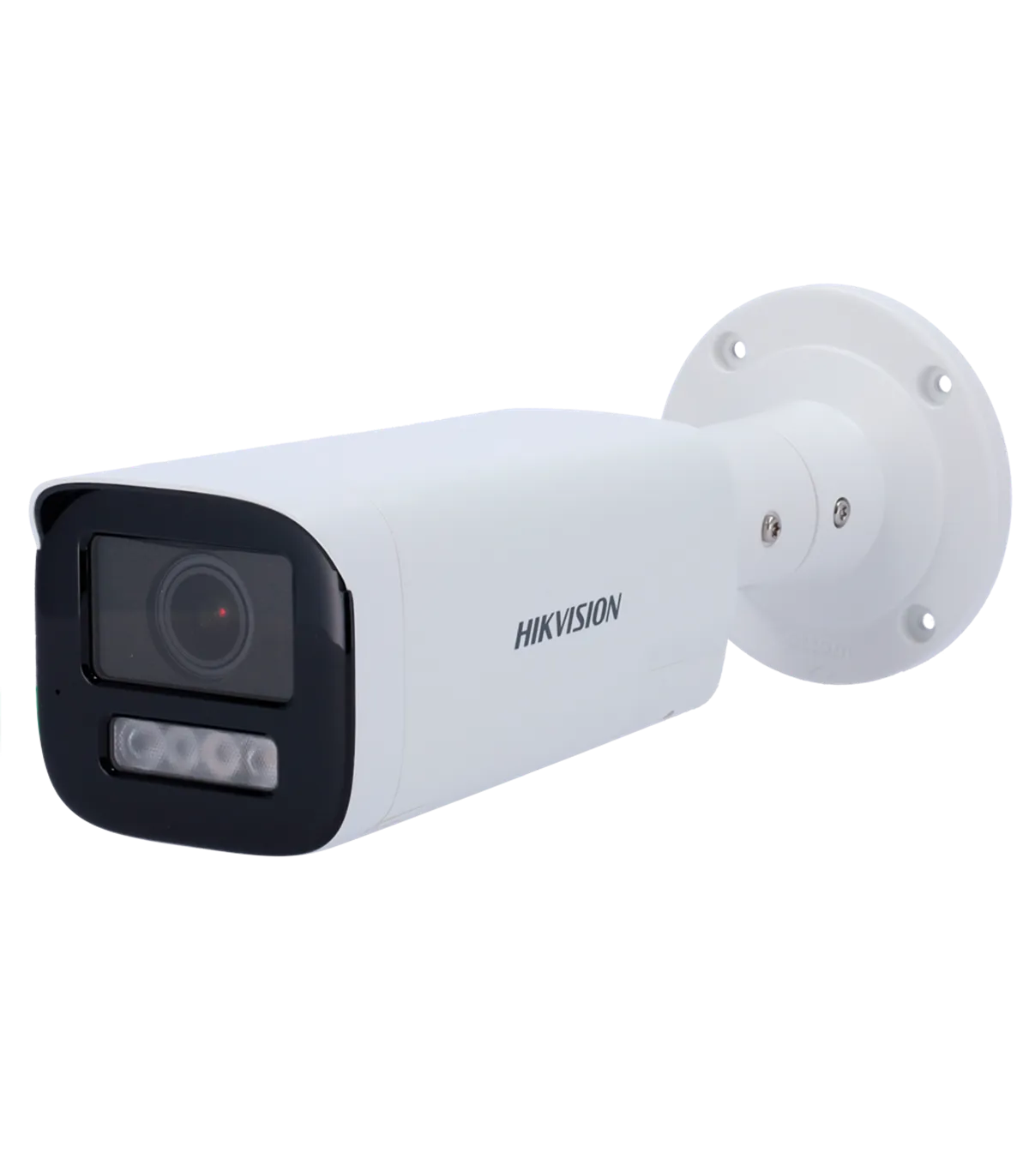

The DS-2CD1663G2-LIZSU/SL is a high-performance IP bullet camera designed for versatile surveillance applications. With its advanced features, it is ideal for both indoor and outdoor environments, providing reliable security solutions for residential and commercial properties. This camera offers exceptional image quality with a resolution of 6 Megapixels, making it suitable for detailed monitoring. Its varifocal motorized lens allows for flexible installation and precise field of view adjustments, ensuring optimal coverage in various settings.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106~35.6°, V: 55.9~20°, D: 127.4~40.8° |
| DORI | 68~200 m (D), 27~79 m (O), 13.6~40 m (R), 6.8~20 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR and white light IR range: 50 m White light range: 50 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 900 mA / 10.8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 105 mm x 285.8 mm (Fo) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 780 g |
The DS-2CD1663G2-LIZSU/SL is an excellent choice for a variety of surveillance scenarios, particularly in retail and commercial settings. For instance, a retail store can deploy this IP bullet camera at entry points and high-traffic areas to ensure comprehensive coverage. With its motion detection 2.0 feature, the camera can effectively differentiate between human and vehicle movements, allowing for precise alerts and monitoring. The integrated deterrent siren and flash enhance security by discouraging potential intruders. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from their smartphones or PCs, providing peace of mind even when away from the premises. The IP67 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD1663G2-LIZSU/SL offers a robust solution for enhancing security and operational efficiency in diverse environments.
